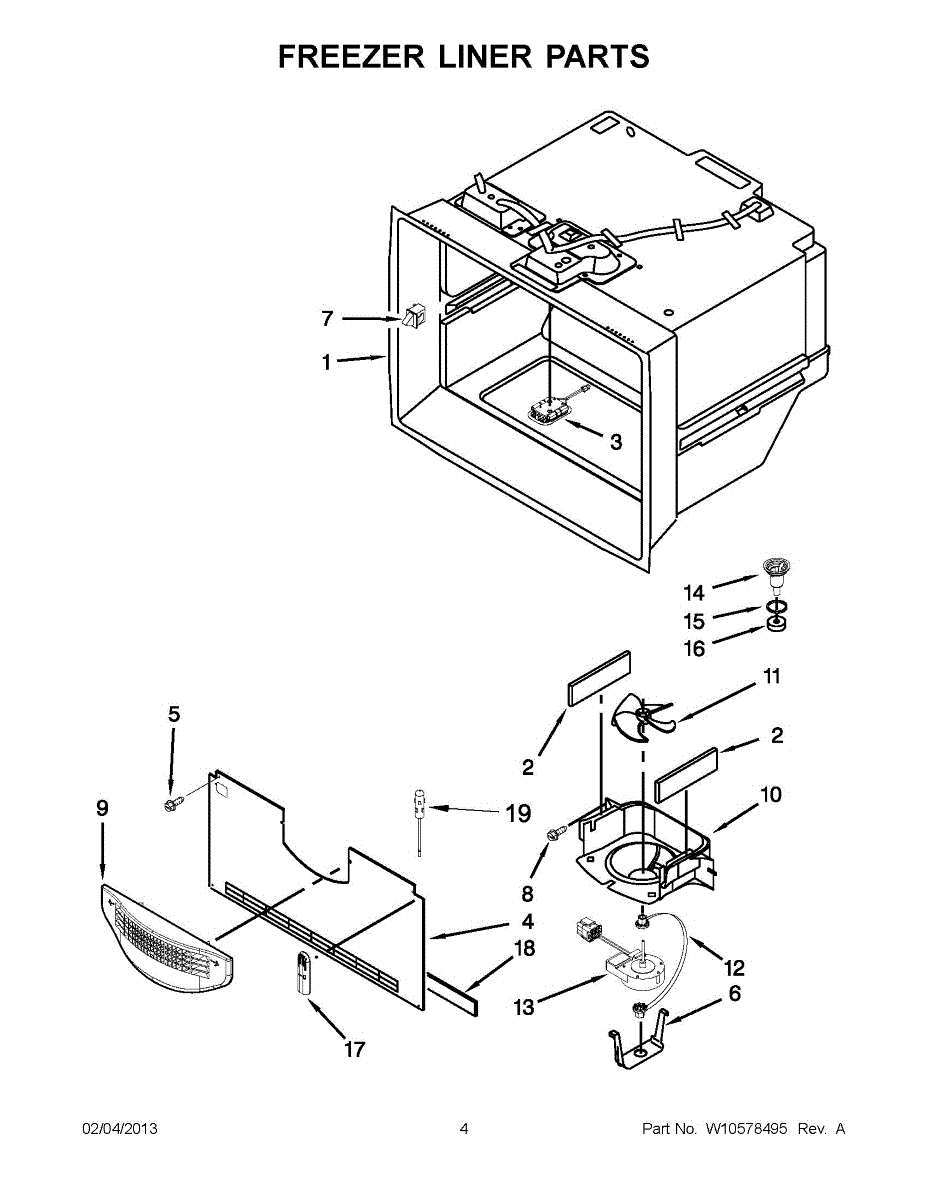

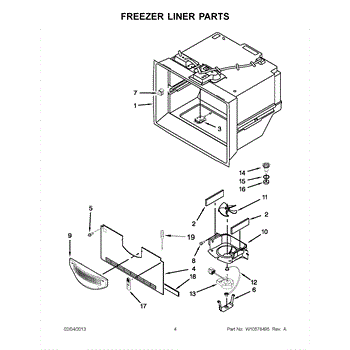

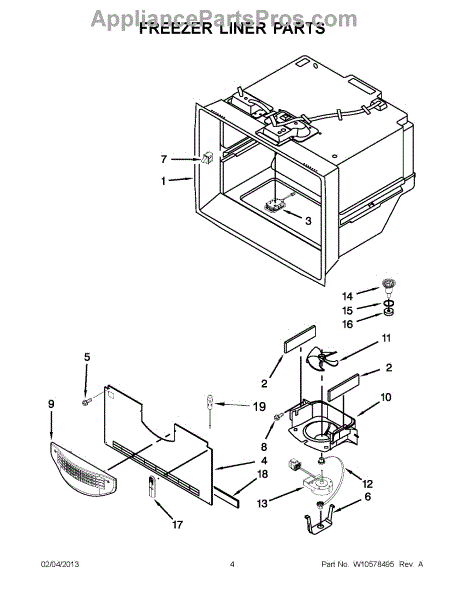

Parts for Whirlpool WRF736SDAW10: 02 - Freezer Liner Parts

This gasket forms a tight seal between mating surfaces inside your appliance to help contain air or water and maintain proper performance. Replacing a worn or damaged gasket restores reliable sealing and helps prevent leaks or escapes. What it does:

• Maintains an airtight/watertight seal between components
• Helps prevent leaks, drips, and moisture or air escaping
• Supports correct temperatures and operating efficiency
• Common signs of failure: visible cracks or flattening, leaking, moisture around the joint, or poor sealing

• 1 gasket

• Disconnect power; shut off water supply if applicable
• Note gasket orientation before removal and clean mating surfaces
• Seat the gasket evenly without stretching or kinking
• Reassemble and test for proper seal and any leaks

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

The Door Switch is an OEM part for Whirlpool refrigerators. This switch plays a crucial role in monitoring the status of the refrigerator door. It detects when the door is open and closed and signals the refrigerator to suspend or resume cooling operations accordingly.

Causes of a bad door switch can include general wear and tear over time, exposure to moisture, or impact damage. Please check for proper connection and that the wires are intact before replacing the switch.

Symptoms of a bad door switch include:

• The refrigerator fails to resume cooling after closing the door
• The inside light fails to turn on when the door is opened
• Abnormal energy usage due to improper door monitoring

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


This replacement screw secures panels, brackets, and components inside appliances. Replacing a missing or stripped fastener restores a snug, rattle-free fit using the correct #8-18 thread and 5/8-inch length.

• Fastens covers, trims, brackets, and internal parts to the cabinet/frame
• Used wherever a #8-18 x 5/8 screw is specified
• Replace if the original is missing, corroded, stripped, or will not tighten
• Symptoms: loose or rattling panels, gaps, or hardware that backs out

• Disconnect power; shut off gas/water before servicing
• Match thread and length; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• Inspect and replace damaged clips or tabs before securing

This grille is a decorative exterior cover for your appliance. It conceals openings or component areas while preserving the unit's intended airflow and clean, finished appearance. Replacing a cracked or missing grille restores a secure fit and look. What it does

• Covers and protects an opening or component area while allowing proper clearance/airflow as designed
• Helps prevent debris from entering sensitive areas
• Restores a clean, finished front appearance
• Common symptoms: cracked or warped grille, broken mounting tabs, loose/rattling panel, missing piece

• 1 grille

• Disconnect power before servicing the appliance
• Remove retaining screws or release locking tabs; retain existing hardware for reuse
• Align tabs/hooks, seat the grille, and secure; do not overtighten screws
• Confirm a snug fit and unobstructed openings before restoring power

This evaporator fan shroud directs air from the evaporator coil into the cabinet and protects the fan assembly for consistent cooling performance. It helps maintain proper airflow and reduces fan noise when installed correctly. What it does:

• Channels air across the evaporator coil to improve cold-air circulation in the compartment
• Protects the evaporator fan motor and blade from contact with ice and debris
• Helps reduce rattling or whistling caused by loose or damaged housings
• Can help address uneven cooling or warmer temperatures when the original shroud is cracked or missing

• (1) evaporator fan shroud / fan housing

• Disconnect power to the appliance before starting any repair
• Remove interior panels and the evaporator cover to access the fan area; keep track of fasteners
• Inspect mounting tabs and gaskets; replace any damaged hardware for a secure fit
• Reassemble panels fully and restore power; verify fan runs and airflow is unobstructed

This evaporator fan blade mounts on the freezer fan motor to move air across the evaporator coils and circulate cold air through the cabinet, helping maintain proper temperatures when the original blade is cracked, warped, or missing.

• Circulates air over the evaporator coils for efficient heat removal and even cooling
• Helps restore airflow between freezer and fresh food sections
• Addresses symptoms such as weak/no airflow from vents, rising temperatures, or rattling/scraping noises from the freezer area
• Replaces a damaged blade that wobbles or rubs the shroud

• Disconnect power; remove freezer shelves/bins and the rear panel to access the fan assembly
• Pull the old blade straight off the motor shaft; avoid prying on or bending the shaft
• Match the orientation of the original and press the new blade onto the shaft until fully seated with clearance to the shroud
• Spin by hand to ensure free movement; reassemble panels and restore power

This rubber grommet cushions and seals a wiring, hose, or shaft opening to help prevent abrasion, reduce vibration, and maintain a snug fit for quieter, safer appliance operation. What it does:

• Protects wiring, hoses, or moving shafts from chafing and wear
• Helps seal openings to limit water, air, or lint intrusion
• Dampens vibration and reduces noise where panels or components meet
• Worn or damaged grommets can cause rubbing sounds, visible wear, loose hoses, or leaks

• Disconnect power (and water if applicable) before beginning any repair
• Push-fit replacement in most applications; a small screwdriver or needle-nose pliers can help with removal or alignment
• Inspect surrounding seals, hoses, and mounting surfaces and replace damaged parts as needed

The Motor-Evap is an OEM part for Whirlpool refrigerators. It circulates cool air within the refrigerator compartment to maintain even temperatures throughout. The evaporator motor works in conjunction with the cooling system, drawing in warm air and distributing cold air via its high-efficiency fan blades.

Causes of a bad evaporator motor can include normal wear over many operating hours, damages from dust or debris buildup, and failures in the motor winding or power control mechanisms.

Symptoms of a bad evaporator motor include:

• Inability to properly cool food items
• Warm spots developing within the refrigerator
• Unusual noise or vibrations from the cooling system area
• Issues maintaining set temperatures even when cycling

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Drain Funnel is an OEM part for Whirlpool French door refrigerators. It serves as the sloped plastic strainer that guides water from the evaporator coils s it into the drip pan below.

Causes of a faulty Drain Funnel include cracks or punctures developing from continuous use transferring water weight. Mineral deposits or food particles that gradually collect on funnel surfaces could restrict proper drainage as well over time.

Symptoms involve:

• Puddling or spilled water inside refrigerator interiors
• Uncontrolled leaks potentially damaging other components
• Restricted airflow if funnel clogs from sediment buildup
• Musty odors developing without efficient drainage management

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This O-ring seal provides a watertight seal for the appliance's water path, helping prevent leaks and maintain proper operation. Use this exact replacement when the original ring is cracked, flattened, or worn. What it does:

• Creates a pressure-tight seal at a water connection to stop drips and leaks
• Keeps water contained inside hoses, valves or pump fittings
• Restores proper sealing when the original O-ring becomes brittle or deformed
• Helps prevent water damage to cabinetry and flooring from appliance leaks

• One O-ring seal

• Turn off power and water supply before beginning any repair
• Remove the old O-ring and clean mating surfaces of debris and buildup
• Inspect the groove or fitting for damage; replace the part if the mating surface is scored
• If needed, use a small amount of manufacturer-recommended lubricant to ease installation and protect the O-ring

This drain tube gasket seals the connection between the drain tube and its mating port to prevent leaks. A tight seal helps keep water where it belongs and protects surrounding components from moisture damage.

• Creates a watertight seal at the drain tube connection point
• Can help address water leaks around the drain area
• Deterioration, cracking, or hardening of the old gasket may cause seepage
• Replacing a worn gasket can restore proper leak prevention

• Unplug the appliance and shut off water supply before service
• Place a towel or pan to catch residual water when disconnecting the tube
• Inspect the tube and mating surfaces; clean before installing the new gasket
• Do not overtighten fittings; verify a snug, even seal and check for leaks on first run

This replacement outer cover restores the appliance's exterior protection and appearance by shielding internal components from dust and debris and helping reduce noise from loose parts. A direct-fit repair for visible damage or missing panels. What it does:

• Protects internal components and wiring from dust, lint, and accidental contact
• Helps maintain proper airflow paths and prevents debris buildup
• Reduces rattles and vibration caused by a damaged or loose cover
• Improves appliance appearance when the original cover is cracked, warped, or missing

• Always unplug the appliance or disconnect power before starting work
• Remove any necessary access panels or trim to reach mounting screws or clips
• Transfer any hardware, gaskets, or insulation from the old cover if required
• Tighten fasteners securely and test the appliance for proper operation after reassembly

This replacement door gasket creates a tight seal to help prevent leaks and maintain proper appliance performance. It restores the sealing surface around the door so the appliance can operate as intended. What it does:

• Seals the door opening to help prevent water or air from escaping
• Helps maintain consistent internal temperature and cleaning performance
• Reduces leaks and pooling beneath the appliance
• Can eliminate drafts, rattling, or improper door closure related to a worn seal

• One gasket

• Designed for direct replacement; inspect mounting channel for damage before installing
• Clean the sealing surface and remove old adhesive or debris for a proper fit
• Press gasket fully into the channel and verify an even seal around the entire door
• Disconnect power and water before servicing
