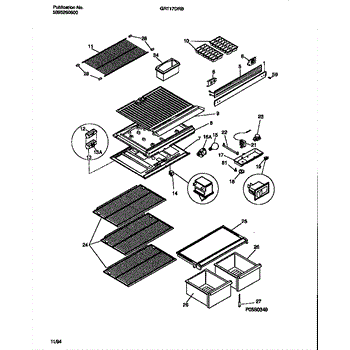

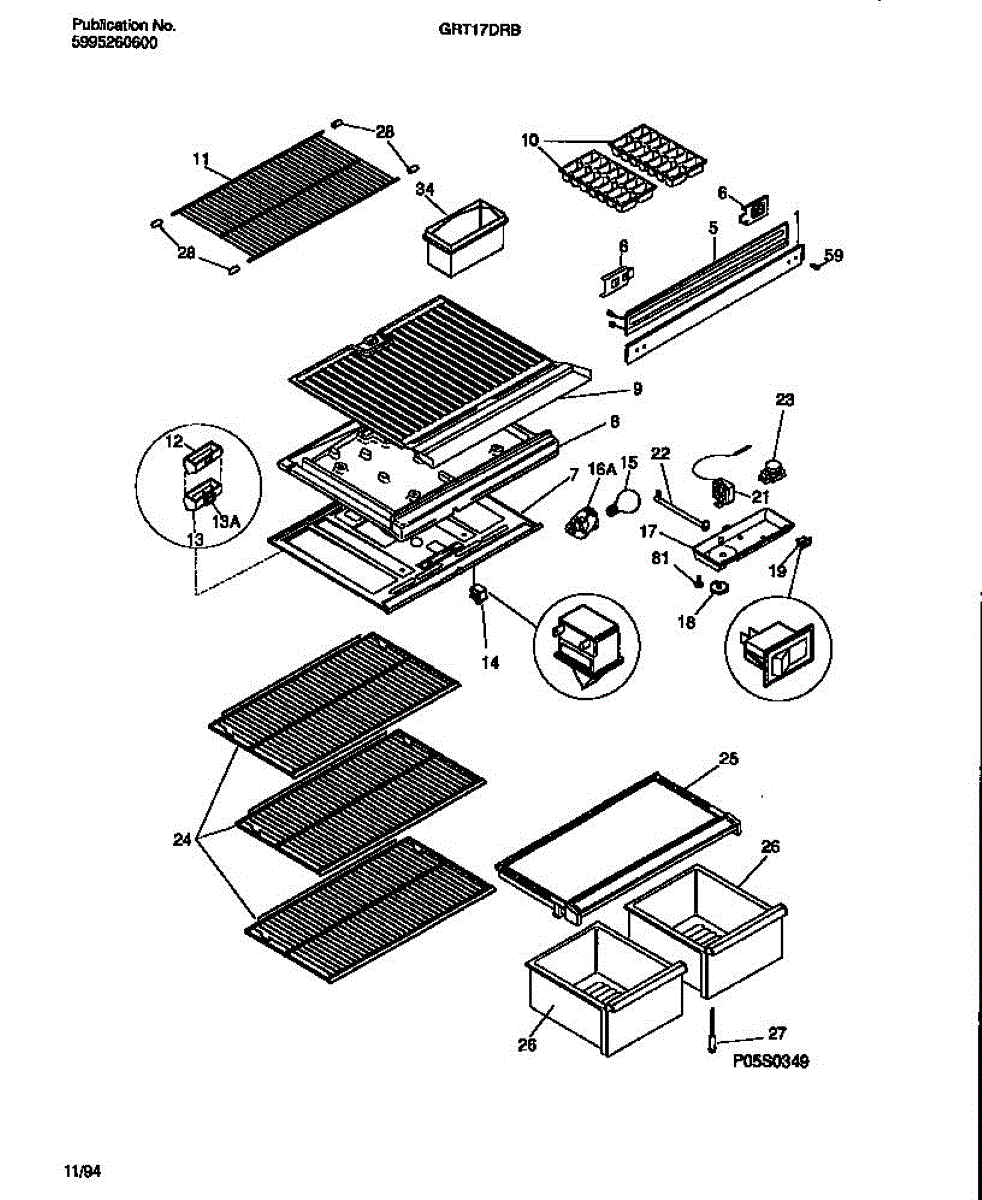

Parts for Frigidaire GRT17DRBD2: 04 - Shelves, Controls, Divider, Mullion Parts

This tapping plate secures the mullion/vertical trim on a refrigerator, restoring a solid mount and proper door alignment. It replaces a damaged or missing mounting plate to reduce trim movement and help maintain a tight door seal. What it does:

• Provides a screw-ready mounting surface for the refrigerator mullion/trim
• Helps keep the mullion firmly in place to prevent wobble or rattling
• Restores proper mullion alignment that can affect door fit and sealing
• Addresses symptoms like loose or shifting mullion trim and uneven door gaps

• Disconnect power and empty doors as needed before working on the mullion area
• Align plate with the mullion mounting area and secure with appropriate screws
• Use hand tools and wear gloves to protect hands from sharp edges

Optional flexible ice tray for those that dont have an icemaker

This door-activated light switch controls the interior lamp in your refrigerator. Replace a worn or sticking switch to restore dependable lighting and prevent the bulb from staying on and warming the compartment when the door is closed.

• Opens and closes the light circuit as the door is opened and closed
• Helps prevent the light from staying on with the door shut
• Common symptoms: interior light won't turn on, stays on with the door closed, or works intermittently
• Physical signs may include a stuck/broken plunger or damaged housing

• Disconnect power before servicing
• Gently pry the old switch from the liner/panel and release its locking tabs
• Transfer wires one at a time to the same terminals on the new switch
• Press the new switch fully into place; restore power, and test

The Light Socket is an OEM part for Frigidaire refrigerators. It is responsible for holding the light bulb in place and providing the electrical connection needed to illuminate the refrigerator's interior. This ensures visibility inside the refrigerator, helping you easily find and access your stored food items.

Causes of a bad light socket can include electrical malfunctions, wear and tear over time, or damage due to bulb replacements or impact.

Symptoms of a bad light socket include:

• The refrigerator light not turning on
• Flickering or dim light
• Visible damage to the socket
• Electrical sparking or unusual noises when the light is on

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This nut anchor secures the appliance control box to the cabinet, keeping the control module mounted and stable for reliable operation. Replacement restores proper fastening when the original anchor is missing or damaged. What it does:

• Provides a captive fastening point for the control box or control board housing
• Holds the control assembly steady to prevent movement, vibration, or rattling
• Helps maintain proper alignment of electrical connections and wiring harnesses
• Used when the original anchor is stripped, cracked, or no longer grips the panel

• One nut anchor for control box mounting

• Disconnect power to the appliance before servicing to avoid shock or injury
• Access the control box per your model's service instructions; remove panels carefully
• Press or fasten the nut anchor into the mounting hole until it seats; secure the control box with the appropriate screw
• If supply threads are damaged, replace any mating fasteners and fit snugly, but not over-tightened.

This screw is a direct-replacement fastener used to secure appliance panels and trim so components stay in place and operate quietly. It restores proper fit where mounting screws are missing or worn. What it does:

• Secures panels, trim, brackets or small components to the appliance frame
• Helps prevent rattling, misalignment, or loose parts during operation
• Matches OEM thread and head style for correct fit and reliable fastening
• Useful when replacing stripped or missing mounting hardware

• Disconnect power before servicing electrical appliances
• Use the correct screwdriver or bit to avoid stripping the head
• Keep small parts away from children and pets during installation
• Replace with the exact OEM screw to ensure proper fit and safety

Plastic

This is a replacement mounting screw used to secure the defrost timer assembly to the refrigerator control housing, restoring proper fastening and preventing the timer from shifting or vibrating during operation. What it does:

• Secures the defrost timer to the control housing so the timer stays in position.
• Prevents vibration or movement that can cause intermittent contact or noisy operation.
• Helps maintain reliable defrost cycle timing by keeping the timer properly aligned.
• Addresses symptoms such as a loose or missing fastener, rattling behind the control panel, or a timer that shifts when the door is opened.

• Unplug the appliance before starting work to prevent electrical shock.
• Access the control housing or timer bracket per your model's service instructions.
• Use the correct screwdriver or driver bit; do not overtighten—stop when snug to avoid stripping.
• Retain removed hardware for reference and compare screw length/threads before installing.

The Defrost Timer is an OEM part for Frigidaire refrigerators. It is an essential electronic component that controls the automated defrost cycle of the refrigerator. The defrost timer monitors run times and temperatures to determine when to initiate the defrost process. It allows the refrigerator to operate efficiently by preventing excessive ice buildup. This defrost timer is designed to run for 30 minutes every 8 hours.

Symptoms of a bad defrost timer include:

• Inability to initiate or maintain the defrost cycle
• Excessive ice buildup in the freezer compartment
• Erratic temperature fluctuations
• The refrigerator running excessively or displaying other performance issues

Causes of a bad defrost timer can be normal wear and tear over time. Environmental factors like power surges or fluctuations may also impact the electronic timer functionality.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Protector Cap is an OEM part for Frigidaire refrigerators. It is designed to shield and protect specific components within the refrigerator, such as the temperature sensor or wiring connections. This cap helps to ensure that these critical parts remain intact and functional, contributing to the overall efficiency and performance of the appliance.

 A compromised protector cap can expose sensitive components to potential damage, leading to malfunctions and decreased refrigerator efficiency.

Symptoms of a bad protector cap include:

• Visible cracks or damage to the cap
• Loose or missing cap
• Exposed or damaged wiring or sensors

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This #10-32 x 3/4-inch machine screw secures appliance components such as panels, brackets, and handles. Using the correct length and thread helps restore a snug, rattle-free hold wherever this screw is specified by the manufacturer.

• Fastens components with a #10-32 machine thread and 3/4-inch length
• Helps keep panels, trim, brackets, or handles secured and aligned
• Replaces missing, stripped, or corroded hardware
• Common signs include loose or wobbly parts, rattling, missing screws, or damaged screw heads/threads

• Disconnect power before servicing; if working near a water connection, shut off the water supply
• Use the correct driver/bit and start threads by hand to avoid cross-threading
• Tighten snugly; do not overtighten to prevent stripping plastic or threads
• Reuse any model-specific washers or spacers if present

This factory fastener secures appliance panels and components. Replace a missing, stripped, or corroded screw to restore a tight, rattle-free fit and keep brackets and covers properly aligned.

• Fastens panels, brackets, and internal parts as specified by the manufacturer
• Helps maintain alignment and reduces vibration/rattling
• Replace if the head is stripped, threads are damaged, or corrosion is present
• Symptoms include loose/missing hardware, gaps, or rattling during operation

• Disconnect power; shut off gas/water if applicable before servicing
• Use the correct driver/bit size to avoid stripping the head
• Start threads by hand to prevent cross-threading; do not overtighten
• Match screw length/thread to the location; replace in sets when required
