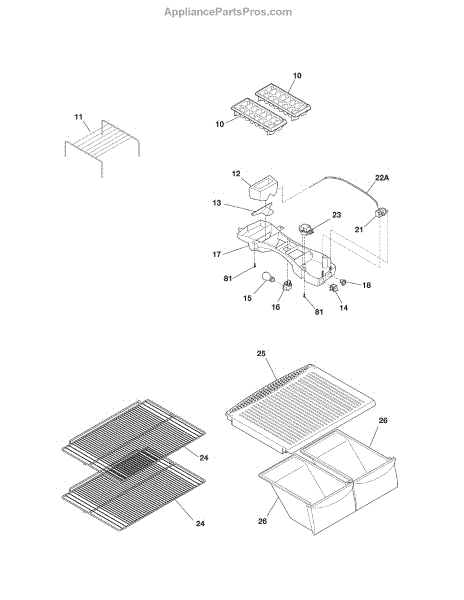

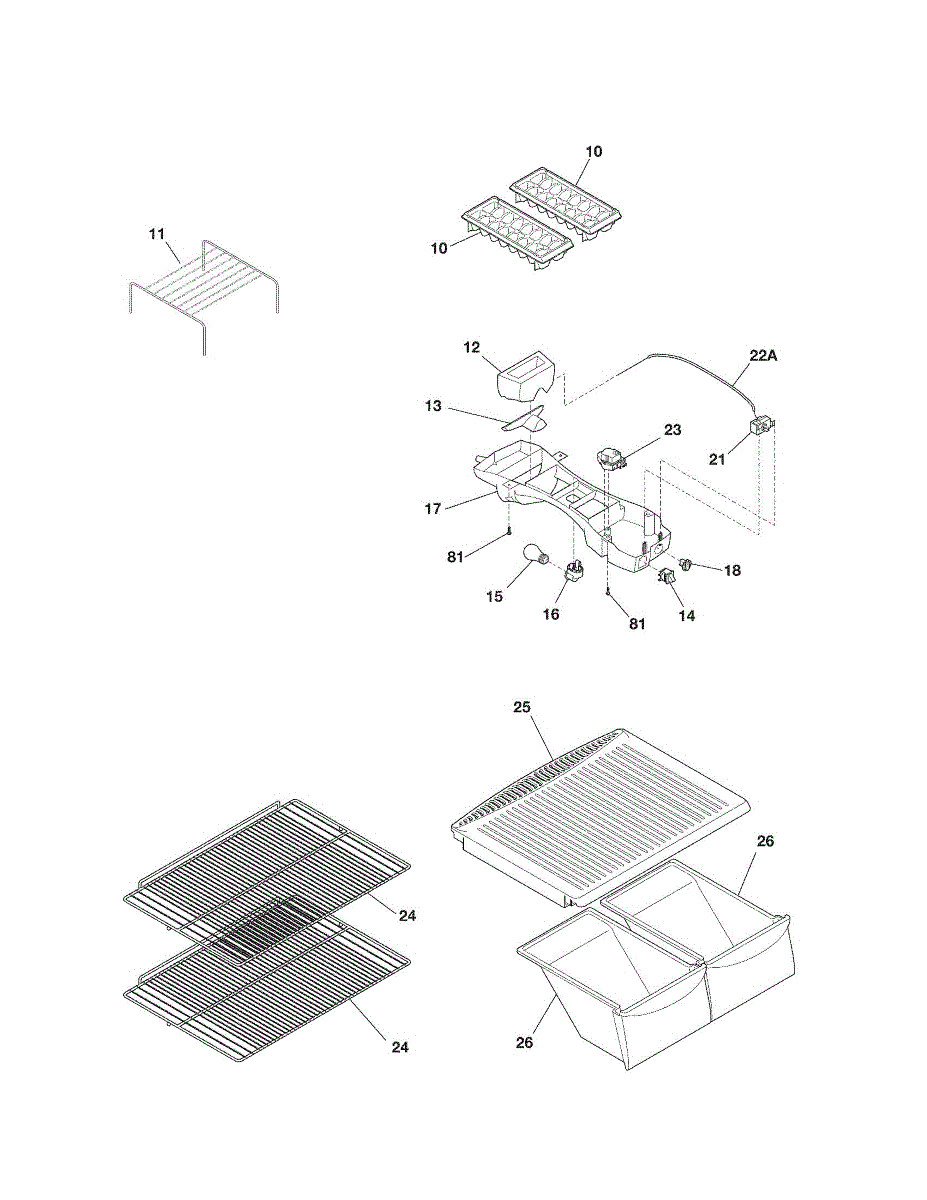

Parts for Kenmore 253.61764016 (25361764016, 253 61764016): Shelves Parts

Missing ice trays or need extra ice capacity? This stackable ice cube tray fits most refrigerators. Simple DIY installation takes just minutes.

The Freezer Shelf is an OEM part for Frigidaire freezers. This shelf provides additional storage space within the freezer, allowing for organized placement of frozen foods and optimizing the use of available space.

Common causes of a bad freezer shelf include overloading the shelf with heavy items, accidental impacts that can cause bending or breakage, or regular wear and tear from frequent use.

Symptoms of a bad freezer shelf include:

• Cracks or breakage in the shelf material
• The shelf not fitting securely or wobbling
• Difficulty in sliding or positioning the shelf
• Visible warping or bending

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Molded plastic deflector that directs airflow inside your refrigerator. Replace if cracked, warped, or missing to restore proper air circulation.

Warm spots in lower fridge? This bottom air diffuser directs cold air to maintain even temperatures. Simple snap-in installation restores airflow.

Refrigerator interior light won't turn on or stays on? This door light switch controls your fridge lighting. Quick DIY fix with basic tools.

Illuminates your oven interior so you can monitor cooking without opening the door. Replace when burned out or dimming. Verify fit with your model number.

Refrigerator light won't turn on or flickers? A faulty light socket is often the cause. This snap-in replacement restores interior lighting in 10 minutes.

Control box housing for refrigerator electronic control boards. Replaces cracked, broken, or missing housings that protect the circuit board assembly.

Replace a cracked, broken, or missing temperature control knob on your refrigerator. Installs on the control shaft to restore accurate temperature selection.

Refrigerator not cooling or freezing? A faulty temperature control thermostat causes inadequate cooling. DIY repair in 5-10 minutes with basic tools.

Replacement water tube for refrigerators. Routes water between components like the inlet valve and dispenser. Replace if cracked, leaking, or damaged.

Excessive ice buildup in freezer or warm fridge? This defrost timer controls the defrost cycle. DIY-friendly repair with basic tools in under 30 minutes.

The Refrigerator Shelf is an OEM part for Frigidaire refrigerators. This shelf provides sturdy storage space within the refrigerator, helping to organize food items and maximize the use of available space. The shelf measures approximately 24 inches in width and 16.25 inches in length.

Over time, refrigerator shelves can become damaged or worn due to heavy loads, spills, or accidental impacts. These issues can compromise the shelf's stability and usability.

Symptoms of a bad refrigerator shelf include:

• Cracks or breakage in the shelf material
• Difficulty fitting the shelf securely in its slots
• The shelf sagging or failing to support items properly

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Plastic shelf cover that sits above the crisper drawers in your refrigerator. Replace if cracked, broken, or damaged to restore proper drawer support.

Replace your refrigerator's lower crisper pan if cracked, broken, or missing. Stores fruits and vegetables in the bottom section of your fridge.

Factory fastener that secures panels, brackets, and internal components. Replace missing, stripped, or corroded screws to restore tight fit and eliminate rattling.

Replacement owner's manual for your refrigerator. Provides operating instructions, maintenance guidelines, and troubleshooting tips for your appliance.

This service data sheet is a factory service insert that provides wiring diagrams, component locations and basic diagnostic notes to help troubleshoot and repair the appliance. It's a reference document meant for service use. What it does:

• Shows wiring diagrams and connector pinouts to help identify electrical routing and connections
• Lists component locations and part callouts so technicians can find and verify parts
• Includes basic diagnostic notes or service instructions commonly used during repairs
• Helps confirm original factory specifications and correct service procedures

• One factory service data sheet (single folded/printed insert)

• This is an informational/service document, not a replaceable mechanical or electrical component
• Keep sheet protected from moisture and grease; store with appliance documentation
• Use only for reference; follow all safety procedures and disconnect power before servicing appliance

This is a repair parts list — a printed parts diagram and listing that helps identify service parts and part numbers for your appliance. Use it to find the correct replacement components and plan repairs safely. What it does

• Shows exploded views and part numbers to identify the exact parts you need
• Helps diagnose which component is likely causing a specific issue
• Simplifies ordering by matching part callouts to official part numbers
• Saves time by making parts locations and quantities clear during repair

• One repair parts list / parts diagram sheet

• No tools required; store near the appliance or service manual for reference
• Keep the sheet dry and away from sharp objects to preserve legibility
• Use as a reference only — this sheet does not replace the actual replacement parts

Replacement mounting screw for securing the defrost timer assembly to the refrigerator control housing. Prevents timer from shifting or vibrating.

Seals the evaporator coil cover to prevent air bypass and direct cold air over coils. Replace if worn or damaged to restore airflow and reduce frost.

Control box wiring harness assembly for refrigerators. Connects control board to components. Replace if wires are damaged, connector is cracked, or harness is worn.
