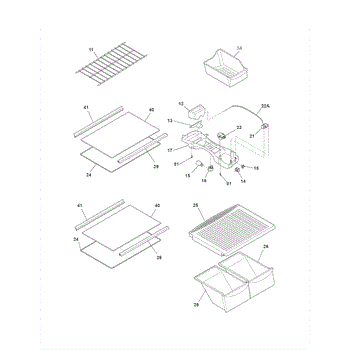

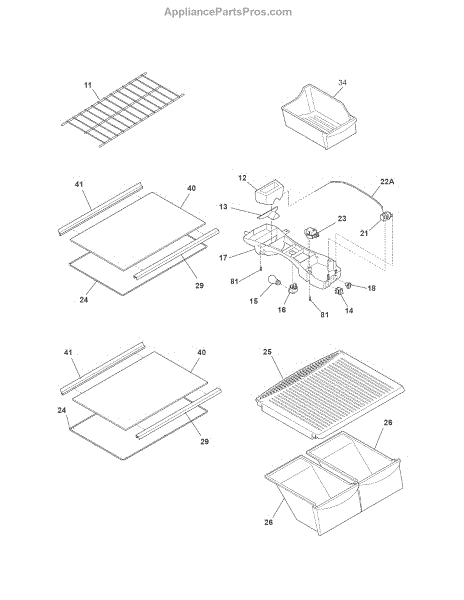

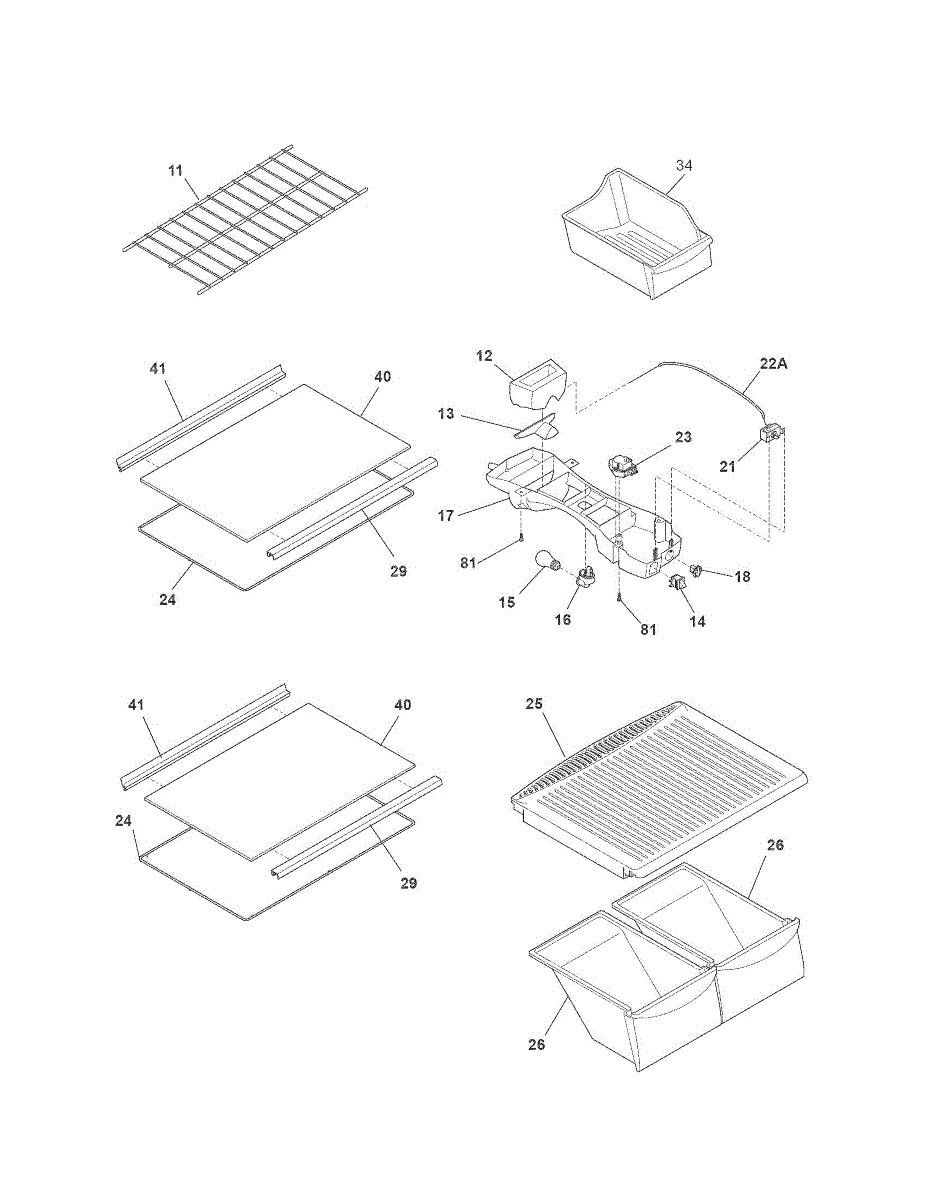

Parts for Kenmore 253.72922010 (25372922010, 253 72922010): Shelves Parts

The Freezer Shelf is an OEM part for Frigidaire freezers. It provides additional storage space within the freezer, allowing for organized storage of frozen foods. The shelf is designed to fit securely within the freezer compartment, supporting the weight of various frozen items.

Common causes of a bad freezer shelf include cracking or breaking due to heavy loads, wear and tear from frequent use, or damage from accidental impacts.

Symptoms of a bad Freezer Shelf include:

• Visible cracks or breaks in the shelf
• Difficulty in fitting the shelf securely within the freezer
• The shelf not staying in place or collapsing under weight

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This refrigerator deflector is a molded guide that mounts inside the unit to direct internal airflow where it's needed. Replacing a cracked, warped, or missing deflector helps restore proper circulation for more consistent temperatures and performance.

• Channels airflow within the freezer/dispenser path to maintain even cooling
• Helps reduce frost or ice buildup caused by misdirected air
• Can address symptoms like warm spots, frost around vents, or rattling from loose parts
• Replace if broken, deformed, or missing

• Disconnect power before servicing
• Remove shelves/panels as needed to access the mounting location; keep track of screws/clips
• Install the new deflector in the same orientation; reuse existing hardware
• Reassemble and verify that vents/air passages are unobstructed

Bottom air diffuser directs cold air into the refrigerator's lower cabinet to help maintain even temperatures and reduce warm spots. Replacing a damaged diffuser restores proper airflow and helps the fresh-food section cool more consistently. What it does:

• Redirects cold air from the cooling channel into the refrigerator's lower cabinet for balanced cooling.
• Helps reduce warm spots and uneven temperatures in the fresh-food area.
• A cracked, broken, or missing diffuser can lead to restricted airflow and inconsistent cabinet temperatures.
• Seats into the lower air channel and secures with factory tabs or fasteners; inspect mounting tabs for damage.

• Disconnect power to the appliance before performing any service.
• Remove shelves and drawers as needed for access; work carefully around evaporator/air channels.
• Gently release and re-seat plastic tabs or remove fasteners; avoid forcing parts to prevent breakage.
• If tabs are damaged, replace them or consider replacing adjacent vent components to ensure a secure fit.

The Light Switch is an OEM replacement part for Frigidaire refrigerators. This switch controls the interior light of the refrigerator, turning it on when the door is opened and off when the door is closed. It ensures that the refrigerator is properly illuminated, making it easier to find items inside.

Causes of a bad light switch can include electrical malfunctions, physical damage from repeated use, or wear and tear over time.

Symptoms of a bad Light Switch include:

• Interior light not turning on when the door is opened
• Light flickering or intermittently turning on and off
• The refrigerator light staying on even when the door is closed

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Light Bulb (40W) is an OEM part for Frigidaire appliances. Specifically designed to fit and function with Frigidaire models, this 40-watt bulb illuminates the interior of your oven, making it easier to check on the progress of your baking or roasting without opening the oven door.

Over time, oven light bulbs can burn out or be damaged from high temperatures or accidental bumps during cleaning or cooking. A functioning light bulb is crucial for the optimal operation of your oven, enhancing visibility and improving your cooking experience.

Symptoms of a bad Light Bulb include:

• The oven interior remains dark when the light switch is engaged.
• Flickering light, indicating a loose connection or nearing the end of the bulb's lifespan.
• Completely non-functional light, which can hinder your ability to monitor cooking progress.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This refrigerator light socket holds and powers the interior bulb so you can clearly see inside. Replace a cracked, heat-damaged, or loose socket to restore reliable illumination when the interior light won't work or flickers.

• Provides the electrical connection and mounting point for the compartment light bulb
• Fixes symptoms such as no interior light with a known-good bulb
• Addresses intermittent flickering when the door is opened or closed
• Helps resolve visible charring, melting, or broken contacts on the socket
• Corrects a loose bulb that won't stay seated or lit

• Disconnect power to the refrigerator before servicing; remove the light lens/cover and bulb
• Note wire positions; release the old socket from its mount
• Transfer wires to the new socket one lead at a time and seat the socket fully
• Reinstall the bulb and cover; restore power and test
• Use only the bulb type and wattage specified for your model

This control box is the refrigerator's electronic control board that regulates key functions like temperature control, defrost cycles and user interface responses. Replacing a faulty board restores consistent operation and control of affected systems. What it does:

• Monitors and controls compressor and fan operation to maintain set temperatures
• Manages timed defrost cycles and related heater/relay functions
• Interprets user inputs from the control panel and sends commands to components
• Helps resolve symptoms such as unresponsive controls, incorrect temperature display, or irregular cooling cycles

• One control box (electronic control board)

• Disconnect power to the appliance before attempting service to avoid shock or damage
• Handle the board by its edges and avoid touching circuitry; use ESD precautions if available
• Verify connectors and harness routing match the replacement before fastening

This temperature control knob replaces a worn or broken fridge temperature dial so you can set the refrigerator temperature accurately. It restores a solid grip and clear pointer for reliable, easy adjustments. What it does:

• Fits onto the temperature control shaft to select colder or warmer settings
• Provides a clear pointer for precise temperature selection
• Replaces cracked, stripped, or missing knobs that make adjustments difficult
• Helps eliminate loose or slipping knob operation

• One temperature control knob

• Push-fit installation onto the control shaft; no special tools typically required
• Ensure power is off and remove food before working in the appliance for safety
• Inspect the control shaft for damage; replace the control if the shaft is stripped

The Cold Control is an OEM part for Frigidaire refrigerators. It regulates the temperature inside the fridge and freezer compartments by controlling the compressor, evaporator fan, and cooling vents. Proper cooling depends on the cold control operating reliably.

Symptoms of a bad cold control include:

• Fluctuating temperatures that don't stay consistent
• The refrigerator or freezer running excessively hot or cold
• The compressor not turning on at all

Causes of failure can be worn over many years of use or damage to electronic components. Without an accurately functioning control, cooling performance diminishes significantly.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This replacement water tube routes water within the refrigerator's internal water system. Installing a fresh, intact tube helps stop leaks and restores reliable water flow to the dispenser and ice maker. What it does:

• Carries water between components such as the inlet valve, reservoir, dispenser, and ice maker
• Maintains a sealed, kink-free path for proper flow and pressure
• Common signs of failure: leaks or puddling, weak or no dispenser flow, ice maker not filling, brittle or discolored tubing

• One tube

• Unplug the refrigerator and shut off the water supply before servicing
• Note the original routing; take photos to match length and path
• If trimming, cut ends square and fully seat into the existing push-to-connect or compression fittings
• Restore water and check all connections for leaks before powering the unit back on

The Defrost Timer is an OEM replacement part for Frigidaire refrigerators. It is a crucial component that controls the defrost cycle, ensuring proper and efficient defrosting of the freezer compartment.

Symptoms of a bad defrost timer:

• Excessive ice buildup in the freezer compartment
• Freezer not maintaining the desired temperature
• Water leaks or moisture accumulation due to improper defrosting
• Refrigerator running constantly or cycling too frequently

Causes of a defective defrost timer can include mechanical wear and tear, electrical malfunctions, or simply reaching the end of its lifespan due to regular use.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore refrigerator models.

This sliding full-width shelf frame supports the refrigerator's glass shelf and lets it pull out for easier access. Replace a cracked or warped frame to restore stable storage and smooth shelf movement in the fresh food compartment. What it does:

• Holds the glass shelf insert across the full cabinet width
• Provides slide-out action for easier loading and unloading
• Helps keep the shelf level and secure under normal food weight
• Common signs it's failing: cracked/broken corners, shelf won't slide smoothly, sagging or tilting, glass feels loose

• One sliding shelf frame

• Empty the shelf; remove and set aside the glass insert before replacing the frame
• Handle glass carefully and wear cut-resistant gloves
• Seat the new frame on the shelf supports; ensure all tabs are fully engaged
• Reinstall the glass and confirm smooth sliding before reloading items

The Cover is an OEM part for Frigidaire refrigerators. This cover serves to protect and conceal various internal components of the refrigerator, ensuring they are shielded from dust, debris, and potential damage. The cover measures approximately 25 x 19 inches.

Causes of a bad cover can include wear and tear from regular use, accidental damage from overloading the refrigerator, or brittleness and cracking due to temperature fluctuations. When the cover is damaged, it can expose internal components to potential harm and affect the overall efficiency of the refrigerator.

Symptoms of a bad Cover include:

• Visible cracks or breaks in the cover
• Loose or missing sections
• Difficulty in fitting the cover properly in its place
• Increased accumulation of dust or debris inside the refrigerator

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This Crisper Drawer is an OEM replacement part for Frigidaire refrigerators. It is designed to store your fruits and vegetables, keeping them fresh and crisp for longer.

Symptoms of a bad crisper drawer include:

• Excessive moisture in the drawer
• Difficulty opening or closing the drawer
• Visible cracks or damage on the drawer

Causes of crisper drawer issues generally stem from overloading, which can lead to cracks and damage, or wear and tear over time that affects the drawer's smooth operation and sealing capabilities.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Front Shelf Trim is an OEM replacement part for Frigidaire refrigerators. Contained within the fresh food compartment, it secures the upper glass shelf and frames the front opening.

Causes relate to cracking or breaking of the brittle plastic over continued use, exposure to sudden impacts, or stresses from excessive shelf loading.

Symptoms of a bad trim include:

• Gaps appearing along the front cover leaving the shelf unstable
• Crackling or popping noises from inadequate support of shelf weight
• Difficulty removing or replacing the shelf track for cleaning

It is also compatible with Electrolux, Gibson, Kelvinator, and some Kenmore models.

The Ice Container is an OEM replacement part for Frigidaire refrigerators. It is responsible for storing ice produced by the ice maker.

Causes of a bad ice container can include wear and cracks that develop over repeated use and cleaning. Minerals or scale deposits may also accumulate inside over time.

Symptoms of a bad ice container include:

• Ice spilling or leaking out of the container
• Cracks or breaks that compromise the storage cavity
• Chipping of the plastic coating inside the container

This OEM Frigidaire replacement part is compatible with refrigerators from Electrolux, Gibson, and Kelvinator as well.

The Glass Shelf is an OEM part for Frigidaire refrigerators. It is a sturdy and durable shelf designed to provide ample storage space within the refrigerator compartment.

Symptoms of a bad glass shelf include:

• Cracks or chips in the glass surface
• The shelf becoming loose or unstable in its mounting
• Difficulty in sliding the shelf in and out smoothly
• Stains or discoloration that cannot be cleaned

Causes of a faulty glass shelf can include accidental impact or dropping, excessive weight or pressure on the shelf, or general wear and tear over time.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Rear Shelf Trim is an OEM replacement part for Frigidaire side-by-side refrigerators. Located at the rear of the top shelf inside the refrigerator compartment, the trim piece defines the edge and provides a finished appearance. The trim measures approximately 22”.

Symptoms of a bad rear shelf trim can include:

• Cracks, chips, or scratches compromising its preserved shelf edge
• Discoloration, fading, or peeling ruining its matching polished finish
• Sharp corners or splinters posing a potential pinch risk to users

Causes may be due to normal wear from cleaning agents, repeated drying cycles over time, or impacts stressing the trim's fragile plastic surface.

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator, and some Kenmore side-by-side models.

This factory fastener secures appliance panels and components. Replace a missing, stripped, or corroded screw to restore a tight, rattle-free fit and keep brackets and covers properly aligned.

• Fastens panels, brackets, and internal parts as specified by the manufacturer
• Helps maintain alignment and reduces vibration/rattling
• Replace if the head is stripped, threads are damaged, or corrosion is present
• Symptoms include loose/missing hardware, gaps, or rattling during operation

• Disconnect power; shut off gas/water if applicable before servicing
• Use the correct driver/bit size to avoid stripping the head
• Start threads by hand to prevent cross-threading; do not overtighten
• Match screw length/thread to the location; replace in sets when required

This service data sheet is a factory service insert that provides wiring diagrams, component locations and basic diagnostic notes to help troubleshoot and repair the appliance. It's a reference document meant for service use. What it does:

• Shows wiring diagrams and connector pinouts to help identify electrical routing and connections
• Lists component locations and part callouts so technicians can find and verify parts
• Includes basic diagnostic notes or service instructions commonly used during repairs
• Helps confirm original factory specifications and correct service procedures

• One factory service data sheet (single folded/printed insert)

• This is an informational/service document, not a replaceable mechanical or electrical component
• Keep sheet protected from moisture and grease; store with appliance documentation
• Use only for reference; follow all safety procedures and disconnect power before servicing appliance

This is a replacement mounting screw used to secure the defrost timer assembly to the refrigerator control housing, restoring proper fastening and preventing the timer from shifting or vibrating during operation. What it does:

• Secures the defrost timer to the control housing so the timer stays in position.
• Prevents vibration or movement that can cause intermittent contact or noisy operation.
• Helps maintain reliable defrost cycle timing by keeping the timer properly aligned.
• Addresses symptoms such as a loose or missing fastener, rattling behind the control panel, or a timer that shifts when the door is opened.

• Unplug the appliance before starting work to prevent electrical shock.
• Access the control housing or timer bracket per your model's service instructions.
• Use the correct screwdriver or driver bit; do not overtighten—stop when snug to avoid stripping.
• Retain removed hardware for reference and compare screw length/threads before installing.

A molded gasket that seals the evaporator coil cover to reduce air bypass and help direct cold air over the coils for more consistent cooling. Replaces a worn or damaged seal to help restore proper airflow and reduce frost buildup. What it does:

• Seals the evaporator coil cover to prevent warm air from bypassing the coil
• Helps maintain proper airflow for consistent cooling performance
• Reduces frost or ice buildup caused by air leaks around the coil cover
• Prevents condensation and dripping by keeping air where it belongs

• Disconnect power to the appliance before servicing to avoid electrical shock
• Thaw any frost/ice accumulation and remove the evaporator access cover per manufacturer instructions
• Clean mating surfaces, then press the seal into place ensuring a full, even fit around the cover

This control box wiring harness routes power and signals between the appliance control board and other components to restore reliable control operation and electrical connectivity. It helps resolve intermittent controls and lost function caused by damaged wiring. What it does:

• Connects the control board to switches, sensors and motors to enable normal control functions.
• Replaces damaged or frayed wiring that can cause intermittent operation or unresponsive controls.
• Addresses symptoms such as control panel not responding, random shutdowns, or error codes tied to wiring faults.
• Restores proper signal and power routing when connector damage or wire breaks interrupt circuits.

• Disconnect all power to the appliance before beginning any service.
• Compare the new harness to the original and follow factory connector positions and routing to avoid pin miswiring or chafing.
• Handle connectors gently and ensure all terminals fully seat; inspect mating connectors for damage before reconnecting.
