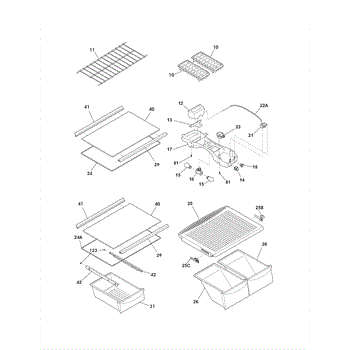

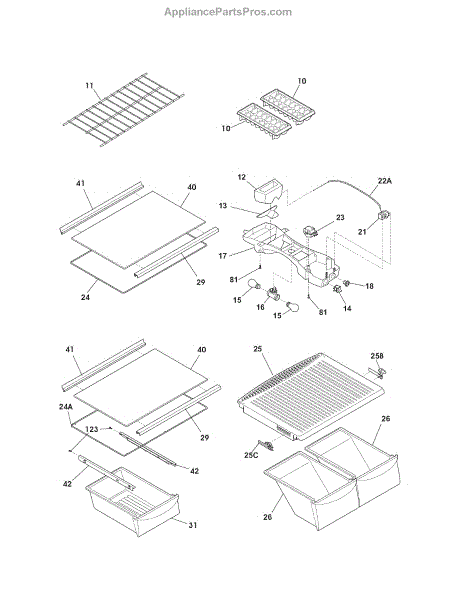

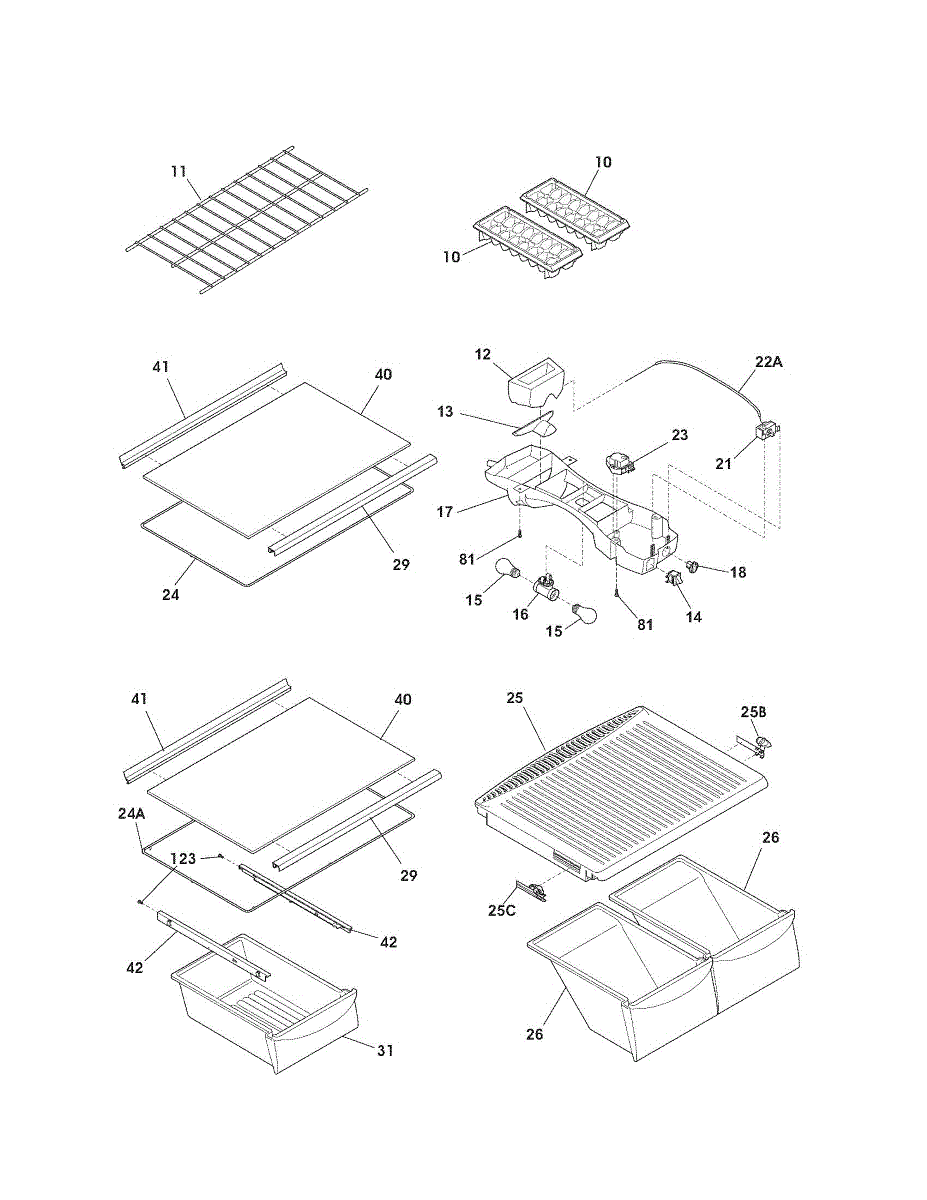

Parts for Kenmore 565.61780 (56561780, 565 61780): Shelves Parts

Optional flexible ice tray for those that dont have an icemaker

The Freezer Shelf is an OEM part for Frigidaire freezers. It provides additional storage space within the freezer, allowing for organized storage of frozen foods. The shelf is designed to fit securely within the freezer compartment, supporting the weight of various frozen items.

Common causes of a bad freezer shelf include cracking or breaking due to heavy loads, wear and tear from frequent use, or damage from accidental impacts.

Symptoms of a bad Freezer Shelf include:

• Visible cracks or breaks in the shelf
• Difficulty in fitting the shelf securely within the freezer
• The shelf not staying in place or collapsing under weight

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This refrigerator deflector is a molded guide that mounts inside the unit to direct internal airflow where it's needed. Replacing a cracked, warped, or missing deflector helps restore proper circulation for more consistent temperatures and performance.

• Channels airflow within the freezer/dispenser path to maintain even cooling
• Helps reduce frost or ice buildup caused by misdirected air
• Can address symptoms like warm spots, frost around vents, or rattling from loose parts
• Replace if broken, deformed, or missing

• Disconnect power before servicing
• Remove shelves/panels as needed to access the mounting location; keep track of screws/clips
• Install the new deflector in the same orientation; reuse existing hardware
• Reassemble and verify that vents/air passages are unobstructed

Bottom air diffuser directs cold air into the refrigerator's lower cabinet to help maintain even temperatures and reduce warm spots. Replacing a damaged diffuser restores proper airflow and helps the fresh-food section cool more consistently. What it does:

• Redirects cold air from the cooling channel into the refrigerator's lower cabinet for balanced cooling.
• Helps reduce warm spots and uneven temperatures in the fresh-food area.
• A cracked, broken, or missing diffuser can lead to restricted airflow and inconsistent cabinet temperatures.
• Seats into the lower air channel and secures with factory tabs or fasteners; inspect mounting tabs for damage.

• Disconnect power to the appliance before performing any service.
• Remove shelves and drawers as needed for access; work carefully around evaporator/air channels.
• Gently release and re-seat plastic tabs or remove fasteners; avoid forcing parts to prevent breakage.
• If tabs are damaged, replace them or consider replacing adjacent vent components to ensure a secure fit.

The Light Switch is an OEM replacement part for Frigidaire refrigerators. This switch controls the interior light of the refrigerator, turning it on when the door is opened and off when the door is closed. It ensures that the refrigerator is properly illuminated, making it easier to find items inside.

Causes of a bad light switch can include electrical malfunctions, physical damage from repeated use, or wear and tear over time.

Symptoms of a bad Light Switch include:

• Interior light not turning on when the door is opened
• Light flickering or intermittently turning on and off
• The refrigerator light staying on even when the door is closed

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Light Bulb (40W) is an OEM part for Frigidaire appliances. Specifically designed to fit and function with Frigidaire models, this 40-watt bulb illuminates the interior of your oven, making it easier to check on the progress of your baking or roasting without opening the oven door.

Over time, oven light bulbs can burn out or be damaged from high temperatures or accidental bumps during cleaning or cooking. A functioning light bulb is crucial for the optimal operation of your oven, enhancing visibility and improving your cooking experience.

Symptoms of a bad Light Bulb include:

• The oven interior remains dark when the light switch is engaged.
• Flickering light, indicating a loose connection or nearing the end of the bulb's lifespan.
• Completely non-functional light, which can hinder your ability to monitor cooking progress.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This interior refrigerator light socket holds the cabinet lamp and connects it to the appliance wiring, restoring a secure bulb connection for reliable interior illumination. Ideal when the socket is cracked, loose, or no longer makes contact. What it does:

• Secures and connects the refrigerator interior bulb to the cabinet wiring so the light turns on when the door is opened.
• Replaces cracked, melted, corroded, or loose sockets that cause flickering, intermittent light, or loss of illumination.
• Provides a stable threaded or bayonet-style receptacle (matching the original) so bulbs seat properly and stay in place.
• Helps eliminate poor electrical contact that can cause intermittent operation or shorted lamp circuits.

• Always disconnect power to the refrigerator (unplug or switch off circuit) before inspecting or replacing the socket.
• Remove the bulb before replacing the socket; handle bulbs with care to avoid breakage.
• Match the socket orientation and terminal connections to the original; preserve wire routing and secure all connectors.

This control box is the refrigerator's electronic control board that regulates key functions like temperature control, defrost cycles and user interface responses. Replacing a faulty board restores consistent operation and control of affected systems. What it does:

• Monitors and controls compressor and fan operation to maintain set temperatures
• Manages timed defrost cycles and related heater/relay functions
• Interprets user inputs from the control panel and sends commands to components
• Helps resolve symptoms such as unresponsive controls, incorrect temperature display, or irregular cooling cycles

• One control box (electronic control board)

• Disconnect power to the appliance before attempting service to avoid shock or damage
• Handle the board by its edges and avoid touching circuitry; use ESD precautions if available
• Verify connectors and harness routing match the replacement before fastening

The Cold Control is an OEM part for Frigidaire refrigerators. It regulates the temperature inside the fridge and freezer compartments by controlling the compressor, evaporator fan, and cooling vents. Proper cooling depends on the cold control operating reliably.

Symptoms of a bad cold control include:

• Fluctuating temperatures that don't stay consistent
• The refrigerator or freezer running excessively hot or cold
• The compressor not turning on at all

Causes of failure can be worn over many years of use or damage to electronic components. Without an accurately functioning control, cooling performance diminishes significantly.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This replacement water tube routes water within the refrigerator's internal water system. Installing a fresh, intact tube helps stop leaks and restores reliable water flow to the dispenser and ice maker. What it does:

• Carries water between components such as the inlet valve, reservoir, dispenser, and ice maker
• Maintains a sealed, kink-free path for proper flow and pressure
• Common signs of failure: leaks or puddling, weak or no dispenser flow, ice maker not filling, brittle or discolored tubing

• One tube

• Unplug the refrigerator and shut off the water supply before servicing
• Note the original routing; take photos to match length and path
• If trimming, cut ends square and fully seat into the existing push-to-connect or compression fittings
• Restore water and check all connections for leaks before powering the unit back on

The Defrost Timer is an OEM replacement part for Frigidaire refrigerators. It is a crucial component that controls the defrost cycle, ensuring proper and efficient defrosting of the freezer compartment.

Symptoms of a bad defrost timer:

• Excessive ice buildup in the freezer compartment
• Freezer not maintaining the desired temperature
• Water leaks or moisture accumulation due to improper defrosting
• Refrigerator running constantly or cycling too frequently

Causes of a defective defrost timer can include mechanical wear and tear, electrical malfunctions, or simply reaching the end of its lifespan due to regular use.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore refrigerator models.

This sliding full-width shelf frame supports the refrigerator's glass shelf and lets it pull out for easier access. Replace a cracked or warped frame to restore stable storage and smooth shelf movement in the fresh food compartment. What it does:

• Holds the glass shelf insert across the full cabinet width
• Provides slide-out action for easier loading and unloading
• Helps keep the shelf level and secure under normal food weight
• Common signs it's failing: cracked/broken corners, shelf won't slide smoothly, sagging or tilting, glass feels loose

• One sliding shelf frame

• Empty the shelf; remove and set aside the glass insert before replacing the frame
• Handle glass carefully and wear cut-resistant gloves
• Seat the new frame on the shelf supports; ensure all tabs are fully engaged
• Reinstall the glass and confirm smooth sliding before reloading items

This sliding shelf frame supports the refrigerator's shelf glass and allows the shelf to pull out for easier access to food. Replacing a cracked or warped frame restores a stable, level surface and smooth shelf movement.

• Supports the shelf glass and food load to keep items level and secure
• Enables slide-out access; helps the shelf move smoothly on its side supports
• Restores stability when the original frame is cracked, warped, or has broken support points
• Can help with issues like a shelf that sags, binds, or won't sit correctly

• Disconnect power and remove items from the shelf area before service
• Carefully lift out the shelf assembly; remove and set aside the glass insert
• Transfer any inserts/trim (such as the glass panel) to the new frame if your model uses them
• Seat the new frame on the side supports and verify smooth sliding action

The Humidity Control Slide is an OEM part for Frigidaire refrigerators. This part regulates the humidity levels within the crisper drawers, helping to keep fruits and vegetables fresh for longer periods. The slide allows users to adjust the ventilation in the crisper, providing optimal storage conditions for different types of produce.

Causes of a bad humidity control slide can include regular wear and tear, accidental breakage, or misalignment that prevents it from moving smoothly.

Symptoms of a bad humidity control slide include:

• Difficulty adjusting the humidity settings
• The slide feeling loose or falling off
• Produce not staying fresh as long as expected
• Visible damage or cracks on the slide mechanism

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Frigidaire humidity control slide is an OEM replacement part responsible for regulating and adjusting the humidity levels within the crisper drawers of a refrigerator. This slide is found on the fresh food drawer to allow adjustment of the amount of moisture retained in the crisper drawers, which is essential for preserving the freshness and crispness of fruits and vegetables.

By adjusting the humidity control slide, users can create an ideal environment for different types of produce, ensuring that they stay fresh for longer periods and preventing food waste from wilting or drying out prematurely.

This part fixes the following symptoms

• Inability to adjust or control the humidity levels within the crisper drawers.
• Produce items wilting or drying out quickly due to improper humidity regulation.
• The control slide becoming loose, stuck, or difficult to move.

This Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Crisper Bin Cover is an OEM part for Frigidaire refrigerators. It serves as the cover for the crisper bin, providing a flat surface for additional storage while helping to maintain the optimal humidity levels within the bin. This crisper cover measures approximately 26 x 19 inches.

Causes of a bad crisper bin cover can include regular wear and tear, heavy items causing cracks or breakage, or accidental damage from mishandling during cleaning or reorganization. Over time, these factors can compromise the functionality and appearance of the cover.

Symptoms of a bad crisper bin cover include:

• Cracks or visible damage on the cover
• The cover not fitting properly or securely over the crisper bin
• Difficulty in opening or closing the crisper drawer due to an ill-fitting cover

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This Crisper Drawer is an OEM replacement part for Frigidaire refrigerators. It is designed to store your fruits and vegetables, keeping them fresh and crisp for longer.

Symptoms of a bad crisper drawer include:

• Excessive moisture in the drawer
• Difficulty opening or closing the drawer
• Visible cracks or damage on the drawer

Causes of crisper drawer issues generally stem from overloading, which can lead to cracks and damage, or wear and tear over time that affects the drawer's smooth operation and sealing capabilities.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Front Shelf Trim is an OEM replacement part for Frigidaire refrigerators. Contained within the fresh food compartment, it secures the upper glass shelf and frames the front opening.

Causes relate to cracking or breaking of the brittle plastic over continued use, exposure to sudden impacts, or stresses from excessive shelf loading.

Symptoms of a bad trim include:

• Gaps appearing along the front cover leaving the shelf unstable
• Crackling or popping noises from inadequate support of shelf weight
• Difficulty removing or replacing the shelf track for cleaning

It is also compatible with Electrolux, Gibson, Kelvinator, and some Kenmore models.

The Meat Pan is an OEM part for Frigidaire refrigerators. This drawer is specifically designed to store meats and other perishables at an optimal temperature within your refrigerator. Its placement often allows for slightly different temperature conditions than the rest of the refrigerator, helping to keep meats fresher for longer. This bin measures approximately 18 inches long and 13 inches wide,

Symptoms of a failing meat pan include:

• Cracks or breaks in the pan that compromise its structural integrity
• Difficulty sliding the pan in and out due to damage or warping
• The pan not sealing properly, which can affect temperature regulation within the compartment

Causes of meat pan damage usually stem from overloading the drawer beyond its capacity, frequent and forceful use, or accidental damage from items being dropped on or in it.

This OEM part is compatible with Kenmore, Frigidaire, Crosley, Westinghouse, Electrolux, Kelvinator, and Gibson brands.

The Glass Shelf is an OEM part for Frigidaire refrigerators. It is a sturdy and durable shelf designed to provide ample storage space within the refrigerator compartment.

Symptoms of a bad glass shelf include:

• Cracks or chips in the glass surface
• The shelf becoming loose or unstable in its mounting
• Difficulty in sliding the shelf in and out smoothly
• Stains or discoloration that cannot be cleaned

Causes of a faulty glass shelf can include accidental impact or dropping, excessive weight or pressure on the shelf, or general wear and tear over time.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Rear Shelf Trim is an OEM replacement part for Frigidaire side-by-side refrigerators. Located at the rear of the top shelf inside the refrigerator compartment, the trim piece defines the edge and provides a finished appearance. The trim measures approximately 22”.

Symptoms of a bad rear shelf trim can include:

• Cracks, chips, or scratches compromising its preserved shelf edge
• Discoloration, fading, or peeling ruining its matching polished finish
• Sharp corners or splinters posing a potential pinch risk to users

Causes may be due to normal wear from cleaning agents, repeated drying cycles over time, or impacts stressing the trim's fragile plastic surface.

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator, and some Kenmore side-by-side models.

The Meat Pan Hanger is an OEM replacement part for  Frigidaire ovens and ranges. It is a handy accessory designed to support and securely hold meat pans or other oven-safe cookware during the cooking process. The hanger measures approximately 16.65 inches in length by 1 inch in width.

Symptoms of needing to replace the meat pan hanger include:

• Visible signs of wear, warping, or damage on the existing hanger
• The hanger becoming unstable or unable to securely hold cookware
• Difficulty in inserting or removing the hanger from the oven racks

Causes of needing a new meat pan hanger can include normal wear and tear over time, exposure to high temperatures, or physical damage due to accidental dropping or mishandling.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore ovens and ranges. For the right-hand side order 240530701.

The Meat Pan Hanger is an OEM replacement part for Frigidaire refrigerators. Measuring approximately 16 inches long by 1 inch high, it is a component designed to securely hold and support the meat pan or drawer inside the refrigerator compartment.

Symptoms of a faulty or damaged Meat Pan Hanger include:

• The meat pan becoming loose or unstable within the refrigerator
• Difficulty in sliding or removing the meat pan from its designated location
• Visible cracks, breaks, or damage to the hanger itself

Causes of needing to replace the meat pan hanger can include wear and tear over time, physical impact or mishandling, or the desire to upgrade or replace an outdated or damaged component.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore refrigerator models.

Note: This part is sold separately from the left side drawer support rail. For the left-hand side, you should order part number 240530601.

This factory fastener secures appliance panels and components. Replace a missing, stripped, or corroded screw to restore a tight, rattle-free fit and keep brackets and covers properly aligned.

• Fastens panels, brackets, and internal parts as specified by the manufacturer
• Helps maintain alignment and reduces vibration/rattling
• Replace if the head is stripped, threads are damaged, or corrosion is present
• Symptoms include loose/missing hardware, gaps, or rattling during operation

• Disconnect power; shut off gas/water if applicable before servicing
• Use the correct driver/bit size to avoid stripping the head
• Start threads by hand to prevent cross-threading; do not overtighten
• Match screw length/thread to the location; replace in sets when required

This replacement screw secures panels, brackets, and other components in your appliance. Replace missing or stripped hardware to restore a tight, rattle-free fit and keep assemblies aligned the way the manufacturer intended.

• Fastens the designated component to the appliance cabinet or assembly
• Helps reduce looseness, vibration, and rattling
• Replaces missing, corroded, or stripped screws
• Supports proper alignment of panels, trim, and brackets

• Disconnect power and, if applicable, shut off gas/water before servicing
• Match the screw to the original location; retain any reusable clips or washers
• Start threads by hand to avoid cross-threading; use the correct driver
• Tighten snugly—do not overtighten into plastic or thin metal

This service data sheet provides the official service information and basic wiring/diagnostic references technicians use when servicing the appliance. It helps identify specifications, service points and troubleshooting steps quickly. What it does:

• Supplies manufacturer service information, wiring diagrams and diagnostic notes used during repair
• Helps technicians control and component locations before starting work
• Supports faster troubleshooting by providing model-specific service references
• Useful for reference when ordering parts or service procedures

• This is a reference document, not an electrical or mechanical replacement part
• Keep with the appliance manual or service records for future repairs
• Handle and store in a dry place to prevent damage or loss

This printed owner's manual provides operating instructions, safety information, maintenance tips, and basic troubleshooting to help you use and care for your appliance correctly. Keep it for quick reference and safe operation. What it does:

• Explains controls, settings and normal operation so you can use the appliance as intended
• Lists safety warnings and handling guidance to reduce risk during use and cleaning
• Covers routine maintenance steps to help prevent common issues
• Includes simple troubleshooting tips for common symptoms like unusual noises, temperature concerns, or control confusion
• Directs you to the correct part numbers and service recommendations when repair is needed

• No tools required; retain the manual near the appliance for easy access
• Follow all safety instructions in the manual before performing any maintenance or repairs
• If servicing is needed, disconnect power and/or water supply per the manual's safety guidance
• Use the manual's part-number and service guidance when ordering replacement parts

This is a replacement mounting screw used to secure the defrost timer assembly to the refrigerator control housing, restoring proper fastening and preventing the timer from shifting or vibrating during operation. What it does:

• Secures the defrost timer to the control housing so the timer stays in position.
• Prevents vibration or movement that can cause intermittent contact or noisy operation.
• Helps maintain reliable defrost cycle timing by keeping the timer properly aligned.
• Addresses symptoms such as a loose or missing fastener, rattling behind the control panel, or a timer that shifts when the door is opened.

• Unplug the appliance before starting work to prevent electrical shock.
• Access the control housing or timer bracket per your model's service instructions.
• Use the correct screwdriver or driver bit; do not overtighten—stop when snug to avoid stripping.
• Retain removed hardware for reference and compare screw length/threads before installing.

A molded gasket that seals the evaporator coil cover to reduce air bypass and help direct cold air over the coils for more consistent cooling. Replaces a worn or damaged seal to help restore proper airflow and reduce frost buildup. What it does:

• Seals the evaporator coil cover to prevent warm air from bypassing the coil
• Helps maintain proper airflow for consistent cooling performance
• Reduces frost or ice buildup caused by air leaks around the coil cover
• Prevents condensation and dripping by keeping air where it belongs

• Disconnect power to the appliance before servicing to avoid electrical shock
• Thaw any frost/ice accumulation and remove the evaporator access cover per manufacturer instructions
• Clean mating surfaces, then press the seal into place ensuring a full, even fit around the cover

This control box wiring harness routes power and signals between the appliance control board and other components to restore reliable control operation and electrical connectivity. It helps resolve intermittent controls and lost function caused by damaged wiring. What it does:

• Connects the control board to switches, sensors and motors to enable normal control functions.
• Replaces damaged or frayed wiring that can cause intermittent operation or unresponsive controls.
• Addresses symptoms such as control panel not responding, random shutdowns, or error codes tied to wiring faults.
• Restores proper signal and power routing when connector damage or wire breaks interrupt circuits.

• Disconnect all power to the appliance before beginning any service.
• Compare the new harness to the original and follow factory connector positions and routing to avoid pin miswiring or chafing.
• Handle connectors gently and ensure all terminals fully seat; inspect mating connectors for damage before reconnecting.
