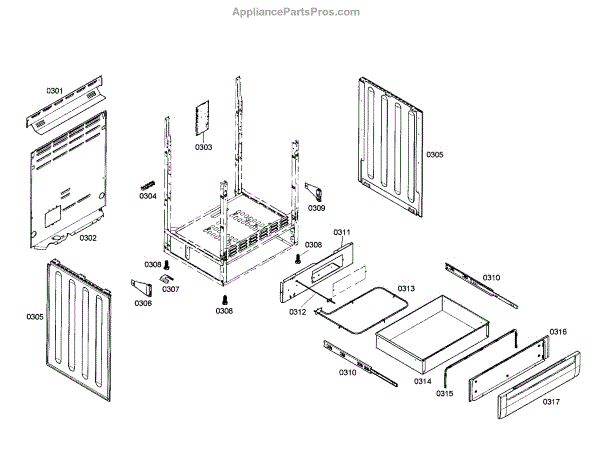

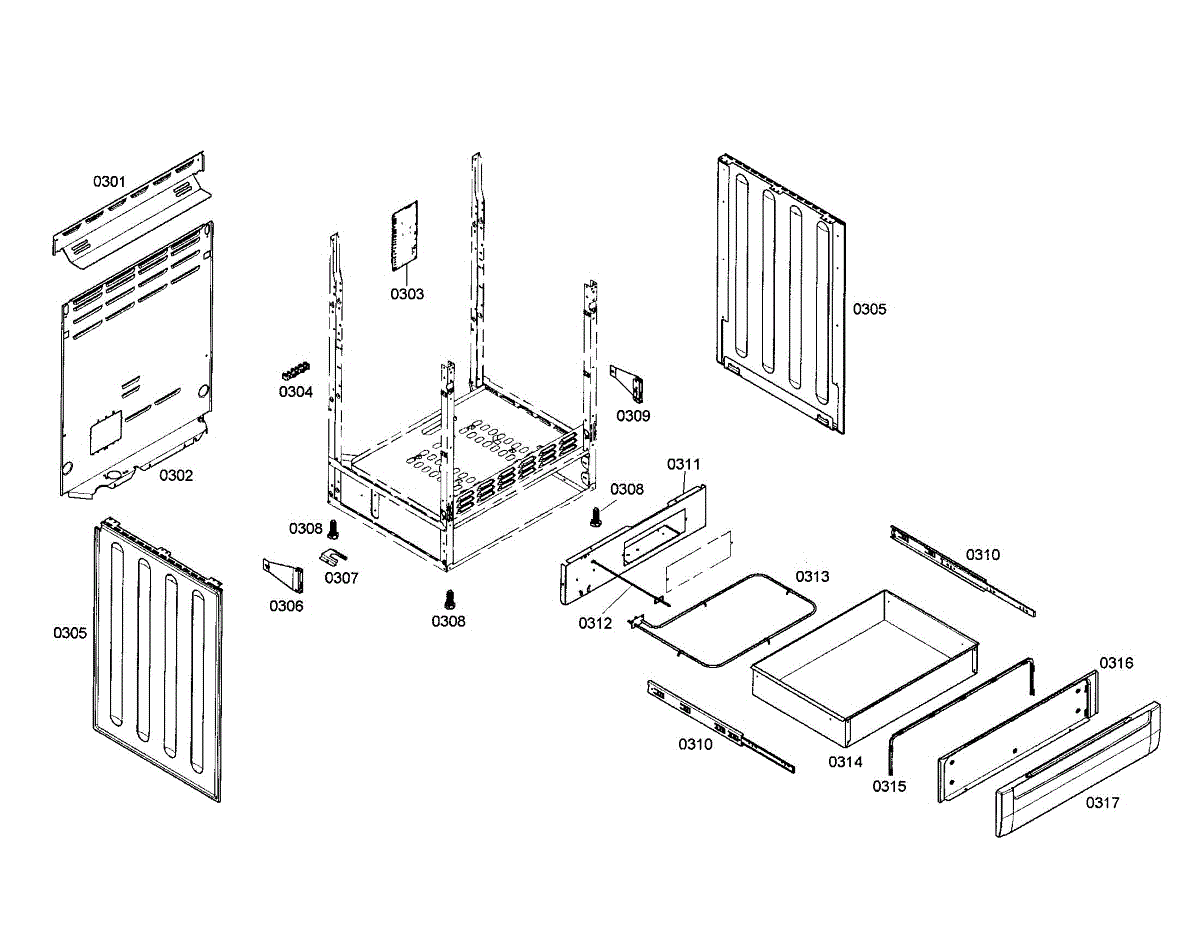

Parts for Bosch HES7022U/01: Side Panels / Drawer Parts

This is a replacement oven control board manufactured by Bosch. The oven control board is the oven's brain and handles all the functions. It also includes the display and provides users with the ability to control functionality, like bake and broil, setting timers, and more. While the oven control board does not include moving parts, heat and moisture can damage soldered components and lead to failure. Signs that the control board may need to be replaced include lack of information on the display, inability to control specific functions, or complete lack of operability. Note that this part is often misdiagnosed, so make sure to check the old board's operability with a multimeter before replacing it. To replace the oven control board, first remove the exterior cowling. Locate the wiring harness and disconnect it before removing the mounting screws. Install the replacement part following these steps in reverse.This genuine OEM part is sold individually. It only fits Bosch Thermador ovens.

This mounting bracket secures appliance components in place to restore proper alignment and stability. It's a simple replacement part that helps reduce rattling and supports correct panel or assembly positioning. What it does:

• Secures a panel or assembly to the appliance frame to prevent movement and vibration
• Restores proper alignment for doors, panels, or internal components
• Helps stop rattling, noises, or loose components that occur when a support bracket fails
• Provides a direct mechanical replacement—no electrical function

• One replacement mounting bracket

• High-level: remove power and water to the appliance before starting repairs
• Use basic hand tools; keep fasteners from the original part for reinstallation unless new ones are supplied
• If the bracket mounts a door or heavy panel, support the panel during removal and reinstallation to avoid damage

This heating element assembly provides the heating source for the appliance, restoring normal temperature output for drying/heating cycles. Replaces a worn or failed element to help recover proper operation and cycle performance. What it does

• Heats air or water as part of the appliance's main heating circuit.
• Restores normal cycle temperatures when the original element has failed.
• Can resolve symptoms such as no heat, extended cycle times, or temperature-related error codes.
• Works with the appliance's thermostat and safety cutouts to maintain safe operating temperature.

• Disconnect power (and gas supply, if applicable) before starting any repair.
• Handle with care to avoid damaging terminals, terminals insulation, or mounting brackets.
• Inspect surrounding wiring, connectors, and thermal cutouts; replace any damaged components.
• After installation, verify proper operation by running a test cycle and checking for correct heat and no unusual smells or noises.

This pushbutton switch controls power to the appliance circuit. When pressed, it opens or closes the electrical path to turn the function on or off, restoring reliable button response and consistent operation.

• Controls on/off power for the selected function
• Worn or stuck switch can cause no response when pressing the button
• Intermittent, delayed, or stuck-on operation may indicate switch failure
• Physical damage or heat discoloration on terminals are common failure signs

• Disconnect power before service to avoid electrical shock
• Note wire positions or photograph connections before removal
• Transfer wires firmly to the new switch; ensure terminals are fully seated
• Test function before reassembling panels

This panel frame is the front trim piece that restores the exterior appearance and edge finish of the appliance door. It replaces damaged, cracked or loose trim to help the door sit and look right. What it does:

• Covers and protects the outer edge of the appliance door and control area
• Restores a secure, flush fit when the original trim is cracked, bent or warped
• Helps prevent dirt and moisture from getting behind the door front where components sit
• Improves the appliance's appearance when the original panel shows cosmetic damage

• Disconnect power to the appliance before starting any repairs
• Removal typically requires opening the door and removing the inner door panel or retaining screws; handle panels carefully to avoid scratching
• Retain and reuse any original clips or screws unless replacement hardware is specified

A replacement cable harness that routes power and signals between components to restore electrical connections and control functions. Use this harness to replace damaged, frayed or disconnected wiring that can cause intermittent operation or no power. What it does:

• Transfers power and control signals between appliance components for proper operation
• Replaces damaged, cut, or corroded wiring that can cause intermittent faults or loss of function
• Restores secure, insulated connections to prevent arcing and electrical shorts
• Matches OEM connector arrangement and wire grouping for straightforward wiring replacement

• Disconnect power to the appliance before starting any repair to avoid shock or injury
• Compare connectors and wire colors to the original harness to ensure correct fit before installing
• Route harness along the same path and secure with original clips or ties to prevent pinching or chafing

The Convection Fan Motor is an OEM component specifically designed for Bosch combination and convection steam oven ranges. Located within the oven cavity, it powers the convection fan and circulation of hot air.

Symptoms of a bad convection motor include:

• Failure to achieve even heat distribution within the oven
• Loud grinding noises or vibrations from the fan
• Inability to select convection cooking modes
• Burning smells indicating possible overheating

Causes of failure may involve normal wear over extended use. Blocked ventilation from food debris could overload the motor. Accidental liquid spillage presents corrosion risks.

Replacing with this genuine Bosch motor restores essential airflow. Compatible with 500 series models, it features a permanently lubricated design for durable performance. Backed by Bosch quality, this convection replacement ensures reliable cooking for years to come. It is also compatible with Thermador and Gaggenau ranges.


The Oven Light Switch is an OEM part for Bosch ranges. It engages convenient interior illumination through a single motion, allowing monitoring of baked goods without compromising temps.

Causes of a bad oven light switch can include failures from the natural stresses of constant clicking associated with opening and closing the oven door.

Symptoms of a bad oven light switch include:

• Dim or unresponsive lights even when the door is opened properly
• Inability to turn lights off, leaving them burning needlessly
• Stuck in either the on or off position without toggle functionality
• Potentially hazardous exposed live terminals under switch housings

This OEM Bosch part can also be used on Thermador and Gaggenau appliances.

This door seal restores a tight barrier between the oven door and cavity. Replacing a worn gasket helps your oven reach and hold temperature, reduces heat escaping at the door edges, and supports more consistent baking and roasting results.

• Creates a heat-resistant seal around the oven opening
• Helps the oven preheat and maintain set temperature
• Limits heat, steam, and odors from escaping at the door
• Typical signs it needs replacement: visible tears or flattening, heat felt around the door, longer preheat/cook times, or uneven baking

• Disconnect power at the breaker and let the oven cool completely
• Open the door, pull the old seal from its channel, and clean the groove
• Press the new seal evenly into the channel without stretching; ensure corners seat fully
• Close the door to verify uniform contact all around and adjust as needed

This grille for pan is a replacement trim piece that restores proper airflow and appearance around the appliance pan. It helps keep the pan area protected and looking finished after repair. What it does:

• Covers and ventilates the pan opening to help direct airflow and prevent debris entry
• Replaces a cracked, warped, or missing grille to restore fit and finish
• Helps eliminate rattling or rubbing caused by a damaged trim piece
• Matches OEM fit so it installs cleanly with the original mounting points

• Install requires removal of the surrounding trim or access panel; follow your appliance manual
• Handle carefully to avoid scratching the finish; use non-marring tools as needed
• Disconnect power to the appliance before working in the service area
• Replace damaged clips or screws with OEM fasteners for secure fit

Restore clear visibility inside your oven with this oven lamp assembly. It replaces a failed or damaged light unit so you can check cooking progress without opening the door and losing heat.

• Illuminates the oven cavity during baking and broiling
• Replaces a cracked lens, burned socket, or damaged lamp housing
• Can help fix a light that won't turn on, flickers, or is intermittent
• Maintains visibility without repeated door openings

• Disconnect power at the breaker and allow the oven to cool completely before service.
• Remove oven racks for working space; access the lamp area per your model's service instructions (from inside the cavity or the rear panel).
• Handle glass components carefully; if transferring a bulb, avoid touching the glass directly.
• Restore power and test the light before reinstalling racks and returning the oven to service.

This heating element is the direct-replacement heater assembly that provides the heat source for compatible appliances, restoring proper heating so cycles reach the temperatures needed for effective drying or cleaning. What it does:

• Generates heat for the appliance's thermal system (air or water heating depending on model).
• Replaces a failed or damaged heater element to restore normal temperature rise.
• Common symptoms it may fix: no heat, weak/no drying or cleaning performance, or unusually long cycles.
• Works as part of the appliance's safety and temperature-control circuit (thermostats or sensors may also be involved).

• Always disconnect power (and water, if applicable) before replacing the element.
• Allow the appliance to cool fully and wear protective gloves; heating elements can have sharp edges.
• After installation, restore power and run a short test cycle to check for any error codes.

The Sensor is an OEM part for Bosch ovens and ranges. It detects and monitors the actual interior temperature to maintain precise baking and roasting conditions.

Causes of a bad temperature sensor can include wear from prolonged heat exposure within the oven cavity. Physical damage, moisture intrusion or circuitry malfunctions may also lead to sensor failure over time.

Symptoms of a bad oven temperature sensor include:

• Inability to accurately read or achieve set target temperatures
• Fluctuations in readings displayed
• Cooking modes like bake and broil functioning abnormally

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

This Terminal Box is an OEM part for Bosch Built-In Ovens. Integral to the oven's electrical system, this component serves as a secure connection point for various electrical wires within the appliance.

A common issue with a malfunctioning Terminal Box is loose connections or damage to the terminal block due to heat exposure or aging.

Symptoms of a defective Terminal Box may include:

• Inconsistent power supply to the oven
• Non-functional heating elements
• Sparks or electrical arcing within the terminal box area

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

This hinge is the OEM replacement that supports and pivots your appliance door for proper alignment and smooth opening. Replacing a worn hinge restores correct door fit and helps prevent sagging or binding. What it does:

• Provides a pivot point for the appliance door to open and close smoothly
• Maintains door alignment and seal to help prevent leaks or uneven gaps
• Worn or damaged hinges can cause the door to sag, rub, or close unevenly
• Matches OEM fit and mounting points for direct replacement

• Disconnect power and water before inspecting or replacing door hardware
• Support the door during removal to prevent dropping or damage
• Compare new hinge to the old part for correct orientation and mounting before final installation
• Tighten fasteners securely but avoid over-torquing; test door operation after installation

This replacement mounting bracket secures internal components and panels to restore proper alignment and stability. Use it when a broken or missing bracket causes loose parts, noise, or improper panel fit on compatible units. What it does

• Holds and supports adjacent panels or assemblies to maintain correct alignment.
• Prevents movement that can cause rattling, vibration noise, or scraping.
• Restores stable mounting for parts that may sag or sit unevenly.
• Helps ensure smooth operation by keeping components in their intended position.

• One mounting bracket

• Disconnect power before starting any repair to avoid electrical hazards.
• Basic hand tools are typically required; handle brackets carefully to avoid bending.
• Do not overtighten fasteners—secure snugly to avoid stressing the bracket.

The Foot is an OEM component specifically designed for Bosch freestanding and slide-in electric ranges. Constructed of rugged cast metal, anti-tip brackets stabilize cooking operation. Even weight distribution protects floors.

Causes of a broken foot commonly relate to impacts during moving or cleaning. Prolonged use weakens mounting clips requiring timely replacement.

Symptoms of a bad foot include:

• Instability raising tip-over hazards
• Major leaning endangering cooktop surfaces
• Loosening raising noise concerns

Causes of a bad foot can involve stress fractures from overloading or excessive slide-outs. Corrosion inhibits secure fastening necessitating replacment.

This OEM Bosch part is also compatible with some Thermador, Dacor, and Lynx ranges maintaining dependable positioning and anti-tilt protection over years of use. Replace for uninterrupted cooking confidence.


This door hinge secures and lets the appliance door pivot smoothly, restoring proper alignment and seal for reliable operation. Use this hinge to replace a worn, bent, or broken door pivot that prevents the door from seating correctly. What it does:

• Provides a stable pivot point so the door opens and closes smoothly
• Restores correct door alignment to improve sealing and reduce air leaks
• Stops door sagging, binding, or uneven gaps when mounting hardware has failed
• Prevents rubbing or unusual noises from a loose or damaged hinge

• One door hinge

• Disconnect power to the appliance and remove contents from the door before servicing
• Support the door while removing and installing the hinge to avoid damage or injury
• Tighten fasteners securely to the manufacturer's torque recommendations; replace any worn screws

This slide restores smooth in-and-out movement for a dishwasher rack by replacing worn or damaged sliding hardware. It helps racks glide evenly for easier loading and unloading and reduces sticking, scraping or unexpected drops. What it does:

• Guides and supports a dishwasher rack as it extends and retracts
• Replaces cracked, worn or stiff slides that cause a rack to stick, tilt or catch
• Reduces scraping, uneven travel and noisy operation
• Fits into the existing rack guide assembly to restore proper rack alignment

• Disconnect power to the appliance before servicing and remove the rack to access the slide
• Typically installs by sliding or snapping into the rack guide; retain or reuse any original fasteners if present
• After installation, verify the rack moves smoothly and is properly aligned

This panel frame is the trim piece that surrounds the appliance control area, restoring the finished look and protecting the control assembly from spills and wear. It helps maintain a clean, professional appearance for the front control area. What it does:

• Replaces damaged or cracked control panel trim that exposes internal components
• Protects buttons, knobs, and the control board from spills and everyday wear
• Restores proper alignment and fit of the control surface for normal use
• Helps prevent debris buildup behind the control area that can interfere with operation

• One panel frame

• Designed to mount to the front control area; uses existing fasteners—inspect removed screws/clips for reuse
• Handle panels and trim carefully to avoid scratching painted or plastic finishes
• Disconnect power before beginning any repair that exposes electrical components

This inner door is the dishwasher's inner panel that supports the door assembly and helps contain water and steam during cycles, restoring a secure, finished door surface. It replaces damaged or corroded inner door panels to improve sealing and appearance. What it does:

• Serves as the interior face of the dishwasher door and provides structural support for inner components
• Helps maintain a watertight seal and prevents leaks from the door area
• Replaces dented, cracked, or corroded inner panels that can trap moisture or cause cosmetic damage
• Restores proper alignment so the door closes and latches correctly

• 1 inner door panel

• Disconnect power and water supply before starting any repair
• Handle panel edges carefully; use gloves to avoid cuts and protect finish
• Installation typically requires removing the outer door panel and disconnecting inner fasteners—keep hardware organized for reassembly

This part is a replacement fixing kit and is a genuine OEM part manufactured by Bosch. This part has been sourced directly from the manufacturer and is intended to repair a broken or faulty door in a variety of different oven models. This fixing kit includes both of the door hinges that are necessary for repairing the oven door. These hinges are necessary for the user to control the opening rate of the door, as well as allow the door to remain ajar at an angle. When undergoing any repair work, make sure to always disconnect the power and gas supplies from the oven. It is highly recommended that work gloves are worn to for proper protection.This is an authentic replacement part and thus is suitable for use on several different models of ovens that have been manufactured by Bosch, Thermador, Gaggenau, and some other brands.

This part is a replacement fixing kit and is a genuine OEM part manufactured by Bosch. This part has been sourced directly from the manufacturer and is intended to repair a broken or faulty door in a variety of different oven models. This fixing kit includes both of the door hinges that are necessary for repairing the oven door. These hinges are necessary for the user to control the opening rate of the door, as well as allow the door to remain ajar at an angle. When undergoing any repair work, make sure to always disconnect the power and gas supplies from the oven. It is highly recommended that work gloves are worn to for proper protection.This is an authentic replacement part and thus is suitable for use on several different models of ovens that have been manufactured by Bosch, Thermador, Gaggenau, and some other brands.

This glass front panel is the exterior replacement glass that restores the appliance's finished look and protects the underlying door and control area from scratches and wear. It fits into the door assembly to provide a clean, glossy surface. What it does:

• Replaces cracked, chipped, or heavily scratched front/door glass to restore appearance
• Protects internal components and trim from direct contact and debris
• Helps keep the door surface smooth and easy to clean
• Restores a secure fit when broken or loose glass affects the door finish

• One glass front panel

• Disconnect power to the appliance before starting any repair
• Handle glass with gloves and protective eyewear to avoid cuts
• Installation typically requires removing the door trim or bezel—follow the OEM service instructions for your model

This insulating part provides electrical and thermal isolation for internal appliance components, helping prevent shorting and reducing heat transfer where wiring or terminals meet sensitive parts. Use it to restore safe operation after damage or wear. What it does:

• Provides electrical insulation for terminals, connectors, or wiring to prevent shorts and arcing
• Reduces heat transfer between hot components and nearby wiring or plastic parts
• Helps maintain safe clearances and protects against chafing or contact-related failures
• Commonly replaced when cracked, melted, burned, or otherwise compromised

• One insulating part

• Always disconnect power (unplug appliance or switch off breaker) before servicing
• Verify correct orientation and seating; do not force the part into place
• Inspect surrounding wiring and terminals; replace any damaged connectors or wires

This heat shield is a replacement protective panel that helps block and deflect heat away from nearby components for safer operation and longer component life. It restores the original heat barrier where a damaged or missing shield allows excess heat exposure. What it does:

• Deflects and disperses heat away from wiring, insulation, and nearby plastic or sensitive parts
• Prevents heat-related charring, warping, or premature failure of adjacent components
• Reduces the risk of hot spots that can cause burning smells or visible scorch marks
• Restores the appliance's original thermal protection when the existing shield is bent, corroded, or missing

• One heat shield panel

• Always disconnect power (and gas if applicable) before servicing the appliance
• Handle carefully—edges may be sharp; wear gloves and eye protection
• Verify proper orientation and secure all fasteners to restore original clearance and airflow
