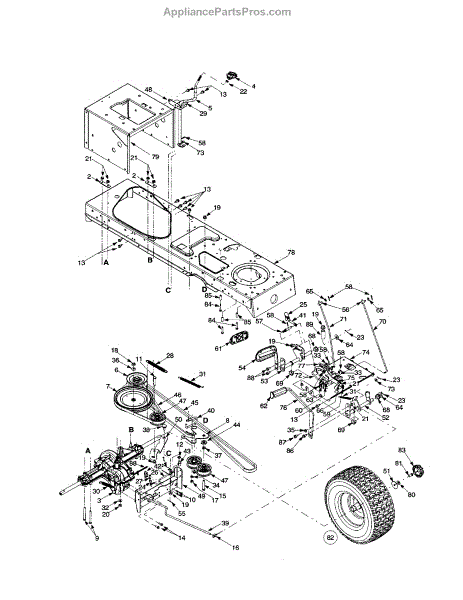

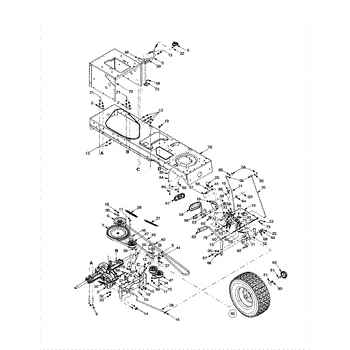

Parts for Troy-Bilt G609G: Single-Speed Transmission Parts

This replacement part is a headlight harness. This is a genuine replacement part made by MTD. This particular harness is made up of different wires and is responsible for connecting certain parts together so that the headlights are able to turn on and off according to the user's preferences. A new headlight harness might be needed if the current harness is unable to stay attached or is damaged in any way. After years of normal wear and tear the wires in the harness might have become stripped and should be replaced if this is the case. If the headlight is not turning on when the switch is working, it might be a faulty harness. Be sure the engine is completely powered down before attempting to repair this specific part.This headlight harness is sold individually and is sourced directly from the manufacturer to ensure proper fit. This part is a genuine OEM replacement part.

This harness assembly is a genuine MTD part, sold individually. A harness assembly can be used as a replacement part in a lawn mower. This genuine OEM part is made out of durable, high quality materials meant to stand up to the elements and to regular long-term usage over the standard lifespan of a lawn mower.The harness assembly in a lawn mower might need eventual replacement if its function has been rendered reduced or negated after overuse or an accidental collision with a hard object. If this occurs, the harness assembly should be removed and replaced by this genuine OEM replacement part. Refer to the manual for detailed instructions.This component is a genuine OEM replacement part sourced directly from the manufacturer. It is sold individually. This harness assembly is compatible with the following outdoor appliance brands: MTD and Cub Cadet.

This is a part designed for a lawn mower. It is a single speed, complete transmission assembly that comes pre-greased in a sealed package. A mower transmission turns the engine, moving the mower back and forth, and provides a controlled application of power to the machine. The single speed transmission is responsible for moving the mower from 1 mph to whatever its top speed may be. This is an OEM part sourced directly from the manufacturer. It is sold individually.A single speed transmission is designed to deliver high torque output, have minimal transmission losses, minimum wear, and should operate smoothly. It is important to ensure that the fluids in the machine are checked regularly. Low transmission fluid is one of the most common causes of a slipping transmission. Unless properly maintained, the single speed transmission will perform poorly or stop working altogether which will result in it needing to be replaced.This part is compatible with lawn tractors, pedal drive lawn tractors, and automatic lawn tractors from MTD, Craftsman, Troy-Bilt, Yard Machines, and Husky.

This part is a variable speed pulley assembly that is used on lawn tractors. The variable speed pulley assembly is responsible for changing the speed of the rotating shaft. The speed can be either increased or decreased.A new variable speed pulley assembly will be needed if any of the components of this assembly are cracked, broken, or damaged in any way. If the belt is slipping, if there is excessive vibration, or if it is rapidly wearing out, then the variable speed pulley assembly will need to be replaced. Remember to wear gloves when operating or performing care and maintenance on any outdoor power equipment. Never perform care and maintenance on outdoor power equipment that is powered on.This variable speed pulley assembly is a genuine MTD part. It is sold individually. This particular variable speed pulley assembly is compatible with lawn tractors that are manufactured by MTD, Craftsman, Husky, and Yard Machines.

This screw is used on a variety of lawn and garden equipment from many manufacturers. This hex screw is a large bolt that has a six-sided head that can be used to fasten metal to wood or wood to wood. This type of screw is unique from traditional screws because the bolt head needs to be held with a socket while a second wrench is used to tighten or loosen the part. The bolts have a smooth shank and small threads. These screws can break or become damaged and no longer do their job. When that happens, they will need to be replaced. A hex key wrench can be placed into the slot of the screw and turned counterclockwise to loosen up the bolt. The replacement hex screw can then be placed in the original hole to adhere parts together on lawn equipment. This is a genuine replacement OEM screw that is commonly used on Craftsman, Toro, Murray, MTD, Yard Machines, Troy-Bilt, Bolens, Yard-Man, MasterCut, Cub Cadet, and Huskee lawn mowers, log splitters, snowblowers, chainsaws, tillers, and string trimmers. The screw is sold individually and made of durable metal.

This replacement part is a hex screw, and it is intended for use in different types of lawn equipment. This is a genuine replacement part made by MTD. This screw can be used in a variety of ways depending on the repair needed. Hex screws are similar to normal screws except they have a six-sided head, like a hexagon. A new hex screw might be needed if the current one is damaged or missing. It is common that screws may become stripped or loose overtime, causing them to fall out. If any parts of the lawn mower are becoming loose or falling off, the hex screw might be missing. This replacement should be fairly easy and should only require a screwdriver and possibly pliers. This part is a genuine OEM replacement part and is sold individually. Be sure to purchase the correct amount as some appliances require more than one hex screw.

This self-tapping screw is used to attach various parts to the engine housing of medium sized gasoline powered engines, in particular yard tools such as tillers, snow blowers, yard tractors, riding mowers, power vacuums, shredders, and chippers. It is used in over 150 different gasoline powered engines. Screws such as these are used particularly when a device is going to receive a great amount of vibration and stress while the engine is running and rotating tools are engaged. Such devices sustain a great deal of wear over time and the parts subject to replacement will eventually fail and need to be replaced. In such cases, it is wisest to replace the attaching hardware such as housing screws as well, because it is a self-tapping screw. Screws of this type are designed to forge a tight bond between the metal pieces they are securing together, but once loosened, they should ideally be replaced with new hardware. Make sure when replacing these screws to use genuine OEM parts like these screws. These replacement parts are manufactured to be identical to the original pieces. This hex screw is compatible with the following brands: MasterCut, Yard-Man, Yard Machine, Montgomery Wards, MTC, Murray, Bolens, Craftsman, Turf King, Troy Bilt, Cub Cadet, Huskee, Toro, and Ryobi.

This hex nut is designed for use with select trimmers and mowers. It is a standard hardware part that may have multiple applications depending on the type of unit and model. The nut is typically used to secure engine components or housing elements to provide safe use of the machine. These nuts are durable, but they are small and can become lost during other repairs. The constant exposure to vibrations and use can also cause them to strip or become damaged over time. Either way, a replacement with this genuine hex nut will resolve the issue and get equipment back in working order. This genuine OEM hex nut is manufactured to exact standards and sourced from the manufacturer. It can be used with trimmers and mowers from RYOBI, MTD, Bolens, Troy-Bilt, Yard Machines, Huskee, Yard Man, and Cub Cadet. Check the parts diagram for exact application and location of this nut and note that it may have multiple uses on select models. This hex nut is sold individually, and additional nuts will require the purchase of multiple pieces. In order to replace this nut, a hex socket wrench and driver will be required. Always wear gloves for safety.

The hex lock nut is found on many different types of outdoor lawn equipment, as well as other types of equipment. The lock nut works to secure bolted joints by adding friction to the bolt threads. The nut has flat sides, which can easily be gripped by a wrench to be tightened or loosened as needed. These types of nuts are common, as they provide easy assembly and disassembly of various parts. Buyers may need a new hex lock nut for a range of reasons. The nut that is currently on the equipment could have become damaged or lost while working on the machine. It is vital for all of the nuts to be in place and properly secured on the equipment before use. This is an authentic OEM part. Some of the products that use hex lock nuts include lawn mowers, snowblowers, tillers, edgers, string trimmers, and log splitters. Common equipment brands using these nuts include Craftsman, Toro, Cub Cadet, Yard Machines, and Troy-Bilt.

This is a flange nut that can be used in a variety of lawn and garden equipment from different manufacturers. The nut is made of metal, measures 5/16x18, and is used to secure components in place. It also assists with preventing backing out caused by vibration. Over time, the flange nut can become damaged and will need to be replaced. If the flange nut in lawn and garden equipment has become damaged, is loose, or gets lost, then replacement is required. The level of difficulty of replacing a flange nut depends on which parts it's securing and what kind of equipment it is installed on. This flange nut is an OEM replacement part that can be used with lawn mowers, snowblowers, wood chippers, tillers, log splitters, leaf blowers, and edgers by MasterCut, Craftsman, Yard-Man, Toro, Bolens, Cub Cadet, Montgomery Wards, Ryobi, Huskee, Troy-Bilt, MTD, and Yard Machines. It is sold individually and will require a wrench or socket for installation.

This replacement part is a cotter pin. It is a genuine replacement part made by MTD. Cotter pins are also sometimes known as clevis pins and are responsible for fastening two metals together. This allows the machine to work properly and operate smoothly. A new cotter pin might be needed if the current ones are damaged in any way or even missing. This part is small so it can be misplaced after years of normal wear and tear. It is possible that this part become stripped or lodged in place over time. The repair should be fairly easy and only require common tools. Be sure the engine is completely powered down before beginning this repair. This pin is sold individually. This is a genuine OEM replacement part sourced directly from the manufacturer to ensure a proper fit.

This is a ball and joint assembly replacement for use with several types of lawn and garden equipment, including lawn tractors. The ball and joint assembly is an important part of the steering system in the machine. It helps to secure tie rod ends and drag links. If there is damage to the ball and joint assembly, it can cause a range of problems with the steering. This can make it impossible to properly operate the machine. Damage to the assembly could occur for a range of reasons. In some cases, it could simply be years of wear and tear plus corrosion. Other times, it could be damage caused while operating the machine. Issues with the ball and joint assembly should be repaired right away. This is a genuine OEM replacement part that can work for many machines, such as lawn tractors, lawn mowers, and snowblowers. It is compatible with a range of brands including Yard-Man, Troy-Bilt, Yard Machines, Craftsman, Bolens, Murray, Cub Cadet, Toro, and MTD.

This insulator nut plate is a genuine MTD part, sold individually. This insulator nut plate can be used as a replacement part in a lawn mower. The purpose of the insulator nut plate in a lawn mower is to self-wrench into a bolt as a fastening component of several parts within the machinery of the appliance.The insulator nut plate can be easily lost or misplaced, or the component can become damaged and stripped over time from general wear and tear or as the result of an accident. The insulator nut plate is a small component and if it is found to be missing, it should be replaced by this genuine OEM replacement part. If the insulator nut plate is damaged, it should also be replaced. Remember to always wear gloves when handling, repairing, and operating outdoor equipment. Always unplug the appliance before performing any kind of repair or replacement.Sourced directly from the manufacturer, this component is a genuine replacement part that is sold individually. This insulator nut plate is compatible with the following outdoor appliance brands: MTD, Craftsman, Toro, Cub Cadet, Troy-Bilt, Murray, Yard Machines, Huskee, Bolens, Yard Man, and MasterCut.

This extension spring attaches to the axle support bracket and the drive belt idler pulley on many types of lawn and garden equipment. It creates additional tension to the drive belt idler pulley. Sometimes the extension spring can be stretched out or may break, often caused through excess use. If this is the case, the spring will need to be replaced.If the spring is broken or no longer creates the appropriate amount of tension, replacement is required. It is an easy process that only requires a set of pliers. The pliers can be used to take the old spring off of the yard equipment before attaching the new extension spring. Make sure the equipment is on a stable surface and powered off when working with it. Remove the spark plug wire to prevent accidents.This extension spring is an authentic OEM replacement part sourced directly from the manufacturer. It is sold as an individual component. The spring is made to be used with lawnmowers, lawn tractors, and tillers created by MasterCut, Yard-Man, Bolens, Huskee, MTD, Yard Machines, Murray, Troy-Bilt, Cub Cadet, and Craftsman.

This spring clip is a genuine MTD replacement part for lawn tractors and lawnmowers. The function of a spring clip is to fasten individual components together by maintaining spring tension. This spring clip is a metal part that most commonly clips the frame of the lawnmower or tractor to the deck.A lawnmower or lawn tractor spring clip might have to be replaced if there is damage to the part that loosens the spring tension and releases the components that it is meant to clamp together. If the spring clip is damaged, it must be removed and replaced immediately, as all components of the lawnmower or lawn tractor must be held together to ensure safe appliance use. Remember to always wear gloves when handling, repairing, and operating outdoor equipment. This spring clip is compatible with the following brands: MTD, Yard Man, Troy-Bilt, and Yard Machines. This part sold individually.

This is a replacement bell washer, a flat washer that can be used with a wide range of various types of lawn and garden equipment. The inner dimension of this washer is 0.40 inches, while the outer dimension is 0.88 inches. Washers are typically used as a way to help ensure a tight connection when used with bolts or screws. They will also help to distribute the pressure of the connection and reduce the risk of corrosion. Washers will also provide some protection from damage during installation. Washers could need to be replaced for any number of reasons. In some cases, they might have become corroded or worn down over time. This could mean they no longer provide a solid and secure connection. Other times, the washer could become lost while working on the machine. Owners should always be sure that they replace any lost or damaged washers right away. Not using washers can reduce the lifespan of the machine. This is a genuine OEM bell washer that is sold individually. It is typically used in lawn mowers, snowblowers, tillers, leaf blowers, string trimmers, log splitters, wood chippers, edgers, and chainsaws. It is compatible with Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Husky, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, and MasterCut brands.

This part is a replacement flat washer. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. The intended use for this part is to properly replace a defective or lost flat washer in outdoor power equipment.Flat washers are a standard piece of hardware that can be used on many types of equipment. They enable screws or bolts to tightly fix components together by providing a larger bearing surface. Lost or defective washers should be replaced. Always ensure that the equipment is completely powered off and is cooled down before attempting to start the repair process. For more accurate information on installation of this particular flat washer, reference the owner's manual or equipment diagrams for specific instructions and part location. This is an authentic OEM part and as such is sold individually and made from durable and high-quality metal. This flat washer can be used with outdoor power equipment manufactured by Craftsman, MTD, Troy-Bilt, and other brands.

This is a rubber variable-speed belt designed for use with lawnmowers. This part ensures that the lawnmower is able to move. Since the belt is under a lot of stress, it can break, become damaged, or stretch out. When any of those things occur, the variable-speed belt will need to be replaced.A pair of pliers and a wrench set will be needed to replace the variable-speed belt. Before making the replacement, the pulleys should be cleaned to ensure the best longevity and performance with the belt. To change the belt, disconnect the spark plug wire and loosen the transaxle pulley. Take the tension off the drive belt, remove the belt, and then secure the new belt. To get the best performance out of the belt, it is a good idea to periodically inspect it for stretching or wear and tear.This variable-speed belt is a genuine OEM replacement part sourced directly from the manufacturer. It is sold as a single component. The belt is made to be used in lawnmowers and lawn tractors made by Craftsman, Toro, Troy-Bilt, MTD, Huskee, Montgomery Wards, and Yard-Man.

This part is an idler pulley. The idler pulley applies tension to and guides the engine drive belt. A wrench set is needed to perform any repair involving the idler pulley part.The idler pulley can become worn over time with normal use. Wear to the pulley can cause the belt to slip. Signs that the idler pulley needs to be replaced include squealing noises coming from the equipment, the engine stalling, or overheating. The idler pulley is an essential component and it is important to replace this part if it becomes worn, broken, or damaged in any way.This part is a genuine MTD part and is an OEM part sourced directly from the manufacturer and it is sold individually. This idler pulley is compatible with lawn tractors and snowblowers manufactured by MTD, Yard Machines, Bolens, Yard-Man, Troy-Bilt, Cub Cadet, and Husky.

This replacement part is an extension spring, and it is intended for use in different types of lawn equipment. This is a genuine replacement part made by MTD. An extension spring, which can also sometimes be referred to as a tension spring, creates tension inside of the device and aids it in running smoothly and efficiently. A new extension spring might be needed if the user notices that the mower's engine is no longer working properly. If there are unusual noises coming from inside of the device, it's possible that the extension spring is malfunctioning. The spring can be stripped and snap over time. Always shut the engine down before attempting to replace any part of a lawn mower. This spring is a genuine OEM replacement part and is sourced directly from the manufacturer. This spring is sold individually so be sure to purchase the proper amount.

A flat washer is used in a variety of applications, such as being placed under bolts or nuts as a means to help distribute the load over a larger area and to help ensure the nuts and bolts do not become loose over time. The washers also help to protect the surface from corrosion and damage. Not having washers could reduce the lifespan of a machine. It is important for buyers to replace washers that may have been lost or become damaged. The washers should be checked for signs of corrosion, cupping, or other damage that would necessitate replacement. Buyers should always make sure they are getting the correct size. The flat washer is an OEM part sold individually. It can be used for a range of different types of outdoor machines and more. Some of the types of machines that typically use these washers include lawn tractors, tillers, lawn mowers, chippers, shredders, and snowblowers. Brands include MTD, Yard Machines, Yard-Man, Troy-Bilt, Poulan, and Ryobi.

This genuine replacement part is a MTD flat washer flange sized .339 X .640 inch X .033 inch. This MTD flat metal washer flange has a variety of applications for many types of equipment including lawn mowers, snow blowers, tillers, edgers, and log splitters. Washers are important to the proper functioning of the product. They spread the load of a threaded fastener, such as a bolt or nut, or can be used as a spacer. However, they can often wear down or become damaged through extended normal use and may not last the full life cycle of the product, leading to improper operation. This high quality OEM replacement part is sourced directly from the manufacturer, and is sold individually. This MTD flat washer flange has multiple applications in a wide range of products from Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Yard Machines, MTD, Huskee, Montgomery, Wards, Bolens, Yard-Man, Turf King, MasterCut, and more. Please note: original part number 166763 is now obsolete, and manufacturer has replaced the original part number with this part.

This is a replacement part for select riding mowers designed to ensure smooth rotation for years of use. This part is circular and tapers off into a hexagonal shape to support rotating shafts that create friction inside of machinery. Rotating parts are almost a given in most machinery like riding mowers, so the hex flange bearing provides support in multiple ways to parts such as wheels, rotors, and gears.The hex flange bearing serves two fundamental roles to make machinery run efficiently. For starters, friction will inevitably occur in rotating shafts, so bearings reduce the amount of friction and related wear and tear. The second function of this part is protecting the rotating from damage due to pressure created during operation.This genuine OEM sourced replacement part is intended to be used for lawn tractors from MTD and other yard machines. This part is compatible with manufacturers including Yard Machines, Bolens, Yard Man, Troy-Bilt, Cub Cadet, and Husky. A wrench may be used for an easier replacement installation. This item is available for purchase individually.

This support bracket is a genuine MTD part, sold individually. A support bracket can be used as a replacement part in a lawn mower. This genuine OEM part is made out of high quality, durable metal material meant to bolster and stabilize the placement of one or more components on the internal or external machinery of a lawn mower.If the support bracket has been punctured, dented, cracked, chipped, warped, or eroded, it should be removed and replaced by this genuine OEM replacement part in order to guarantee safe continued usage of the appliance. This component is a genuine OEM replacement part sourced directly from the manufacturer. It is sold individually. This support bracket is compatible with the following outdoor appliance brands: MTD, Toro, and Cub Cadet.

This tubeless air valve attaches to wheels, allowing air into and out of the tires on various lawn equipment. Regularly replacing this part is considered a part of routine maintenance. Make sure that you use appropriate pliers and other tools for easy installation. Be sure to use gloves when replacing these valves and work with caution so as not to damage the sensitive parts. This OEM tubeless air valve can be the perfect fit for compatible wheels on equipment such as lawn mowers, snowblowers, tillers, edgers, log splitters, and wood chippers. It is designed for use with select models from MTD, including Craftsman, Troy-Bilt, Bolens, Remington, Yardman, RYOBI, Husky, Power Pro, and many others. There is a limited parts warranty on this valve, which is made of durable rubber and metal and designed to offer a high-quality replacement. Sold individually.

This hex screw is a genuine MTD part. A hex screw can be used as a replacement part in refrigerators, humidifiers, lawn mowers, snowblowers, tillers, log splitters, and wood chippers. The purpose of this genuine OEM part is to stabilize and secure the placement of components within the internal or external machinery of one of these appliances.In lawn equipment a screw might easily be lost, misplaced, or damaged; if this occurs, the screw should be removed and replaced by this genuine OEM replacement part so that all components can maintain their placement.This is a genuine OEM replacement part sourced directly from the manufacturer. It is sold individually. This hex screw is compatible with equipment manufactured by MTD, Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Murray, Sub Zero, Yard Machines, Huskee, Montgomery Wards, Bolens, Yard Man, Turf King, and MasterCut.

The hex head self-tapping screws are designed for a number of applications in lawn and garden equipment, primarily holding machinery and engine parts together. Over time, screws can become stripped, fall out, or otherwise get damaged, resulting in a need for replacement. When replacing screws and other hardware, always be sure to disengage or disable any power supply to reduce the risk of shock or other injuries. The self-tapping screw makes it easy to replace, and the fact that they are manufacturer-guaranteed ensures a perfect fit for compatible machines. This OEM self-tapping screw is compatible with several machines from RYOBI, MTD, Husky, Cub Cadet, Yard-Man, Troy-Bilt, Bolens, and Yard Machines. It can be found in lawnmowers and tractors and can be in multiple locations, depending on the exact model. This screw is sold as a single piece; order multiple quantities if needed.

This OEM screw is a fastener with a trimmed six-sided or hexagonal head plus a washer face on the bearing surface. It is one of the most commonly used fasteners. Considered standard hardware, this component has multiple applications and can be used on woodworking, machine assembly, and mechanical repair. The screw is 3/4 long and has a thread size of 5/16 -18. A hex cap screw is installed into tapped holes by turning the head to fit and tighten. This is the fastener of choice in applications where tight tolerance is necessary. This is a genuine factory part sourced from the manufacturer and is sold individually. It can be used with Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, and MasterCut brands of lawn maintenance equipment including lawn mowers, snowblowers, tillers, leaf blowers, log splitters, and wood chippers.
