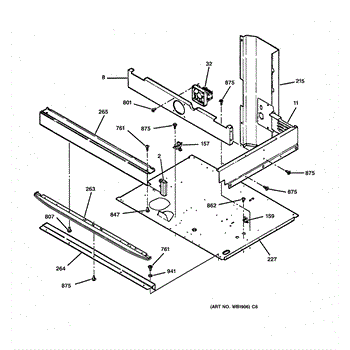

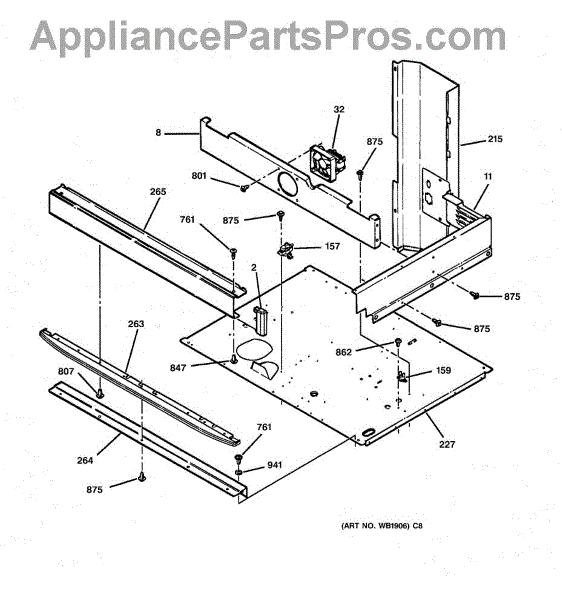

Parts for Ge JTP45BW1BB: 03 - Spacer Parts

This fan assembly restores proper airflow inside your appliance, moving air to cool internal components and support ventilation. Replace a seized, noisy, or non-running fan to prevent overheating and bring back efficient, quieter operation.

• Circulates air through the appliance for cooling and/or ventilation
• Helps maintain safe operating temperatures and consistent performance
• Common symptoms: no or weak airflow, fan won't start or runs intermittently, loud grinding/squealing/rattling, excessive vibration
• A failed fan can lead to overheating or thermal safety shutdowns

• Disconnect power at the breaker before servicing
• Access the fan per your model's service information; note wire locations and mounting orientation
• Transfer any brackets, screws, or gaskets from the original
• Ensure the fan wheel spins freely and nothing contacts it before restoring power

This convection fan assembly circulates heated air inside the oven cavity for more even baking and roasting. Replacing a worn or noisy fan restores proper airflow and helps maintain stable temperatures during convection cooking.

• Moves hot air across the cavity during convection modes for uniform results
• Helps the oven recover heat faster and reduces hot/cold spots
• Common symptoms of failure: loud humming, squealing, or rattling; fan not spinning; poor or uneven convection performance
• Can cause longer cook times or inconsistent browning when not working properly

• Disconnect power at the breaker and allow the appliance to cool completely
• Access the convection fan from the rear panel or interior back cover, depending on model; retain all screws and shielding
• Note wire locations and mounting orientation; install the new assembly in the same position
• Before restoring power, ensure the blade spins freely and does not contact the shroud or liner

This factory screw secures components within your appliance, keeping panels, brackets, and other parts tight and aligned. Replacing a missing or stripped screw helps eliminate rattles and restores a solid, properly mounted assembly.

• Fastens appliance components to frames, brackets, or cooktop/oven structures
• Replaces missing, rusted, or stripped hardware
• Helps address loose or rattling panels and misaligned trim
• Restores a secure fit after service or cleaning

• Disconnect power; if gas, shut off the gas supply. Allow the appliance to cool completely
• Match the screw to its original location and length for proper fit
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening to prevent stripping metal or plastic

ST10-16 X 7/16"

This black-finished screw secures appliance panels, brackets, or trim in place. Replacing a missing or damaged fastener restores a solid fit and helps prevent rattling, gaps, and loose components.

• Fastens panels, trim, brackets, or covers on the appliance
• Helps maintain proper alignment and reduces vibration noise
• Common replacement when the original is lost, stripped, rusted, or broken
• Symptoms include loose or wobbly parts, rattling, or visible gaps

• Disconnect power; for gas appliances, also shut off the gas supply
• Allow hot surfaces to cool before servicing
• Start threads by hand to avoid cross-threading, then tighten snugly—do not overtighten
• Reuse any original washers or spacers in the same order and location

Nickel

Black. 8-18 AB HXW 3/8
