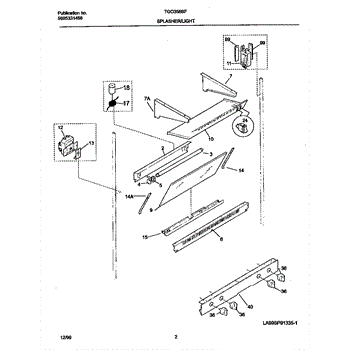

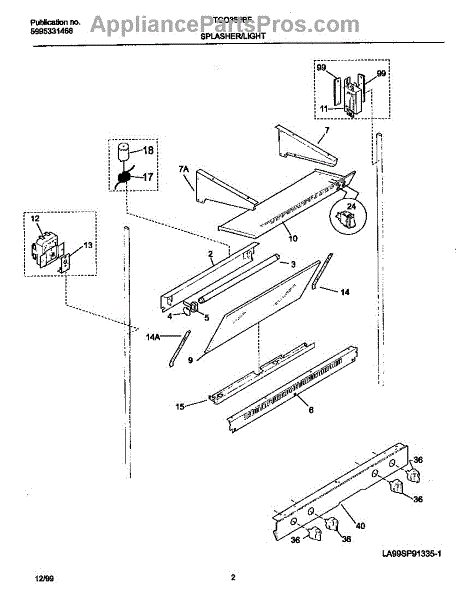

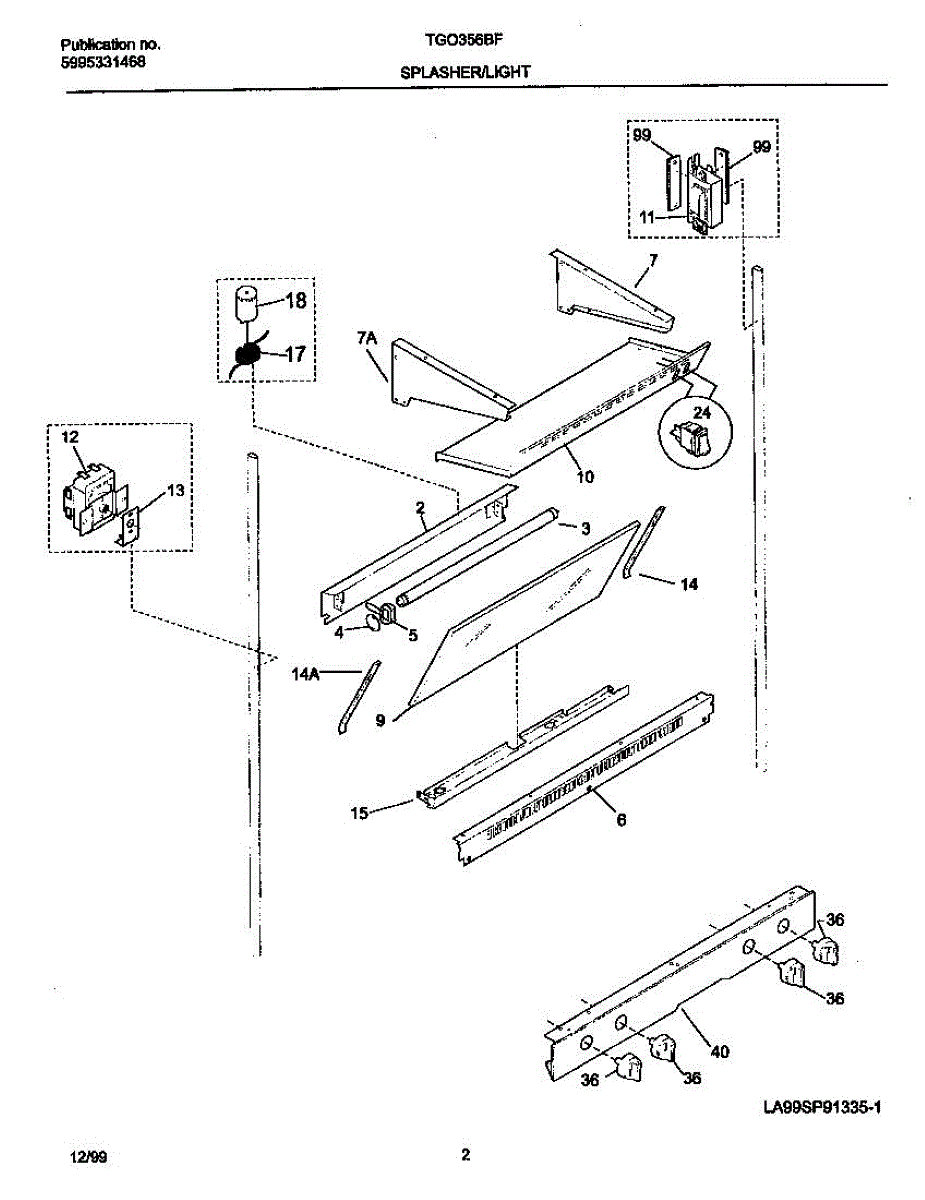

Parts for Frigidaire TGO356BFW3: 02 - Splasher Parts

Right-side support plate for upper oven cavity. Replace if cracked, bent, or missing to restore structural integrity and proper oven alignment.

Left-side support plate for upper oven cavity. Mounts inside range to provide structural stability. Replace if cracked, warped, or damaged during service.

This is a starter receptacle socket used in the lighting circuit of a range or oven. It holds the fluorescent lamp starter in place and provides the electrical connection needed to ignite the oven light. Replace this receptacle if the oven light flickers, fails to turn on, or the socket shows signs of burn damage or corrosion.

This manifold panel is the replacement cover that mounts over the appliance manifold to protect internal tubing and provide the finished surface for controls. Restores proper fit and appearance after damage or wear. What it does:

• Covers and protects the manifold and associated tubing from debris and accidental contact
• Provides the finished mounting surface for control components and trim
• Helps maintain correct alignment of control openings and knobs
• Commonly replaced when the panel is dented, cracked, missing, or has broken mounting tabs

• Disconnect power (and gas supply on gas models) before starting any repair
• Use care handling sharp edges; wear gloves to avoid cuts
• Removal typically requires lifting or removing the cooktop/control assembly
• Secure all mounting tabs and fasteners; do not force mismatched parts

Specs: 8 - 18 x 0.500

Black hinge washer for electric and gas ranges. Replaces worn, cracked, or missing washers on door hinges to ensure proper door alignment and support.

Specs: 8 - 18 x 0.500

This is a replacement mounting screw used to secure the dual safety valve assembly on compatible gas ranges and ovens. It restores proper fastening so the valve stays firmly in place during operation. What it does

• Secures the safety/dual gas valve to the appliance chassis or manifold
• Prevents valve movement that can interfere with burner operation or alignment
• Commonly replaced when original screw is missing, stripped, or damaged
• Matches OEM thread size and length for correct fit and retention

• One (1) screw, size 10-16 x 0.486

• Disconnect power and shut off gas supply before starting work; follow all safety procedures
• Thread carefully to avoid cross-threading; do not overtighten — snug to OEM torque specification
• Inspect surrounding mounting holes and hardware; replace any stripped or damaged parts for a secure fit

Replacement machine screw used to secure appliance panels and internal components, restoring a stable fit and reducing rattling. Matches a 10-32 thread with a 17/32-inch length for original fastener locations. What it does:

• Fastens panels, trim pieces, and internal brackets; a missing or damaged screw can cause loose panels or rattling noises.
• Secures knobs, control housings and small assemblies to prevent wobble or misalignment.
• Restores proper fit for components so doors and access panels sit evenly and function reliably.

• Disconnect power (unplug or shut off circuit) before accessing components.
• Use the correct driver and tighten by hand; avoid overtightening to prevent stripped threads or cracked plastic.
• Keep any original washers or clips and reinstall them with the screw.

Secures the oven bottom panel in place. Replace if screw is stripped, missing, or no longer holds the panel securely. Sold individually.

Size: 8-32t x 0.500 inch. Color: Black.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.
