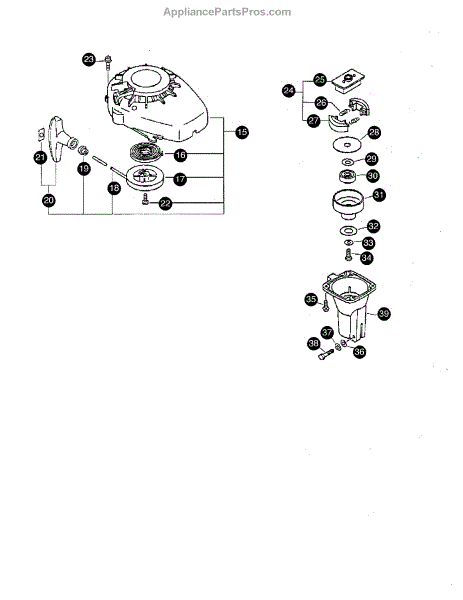

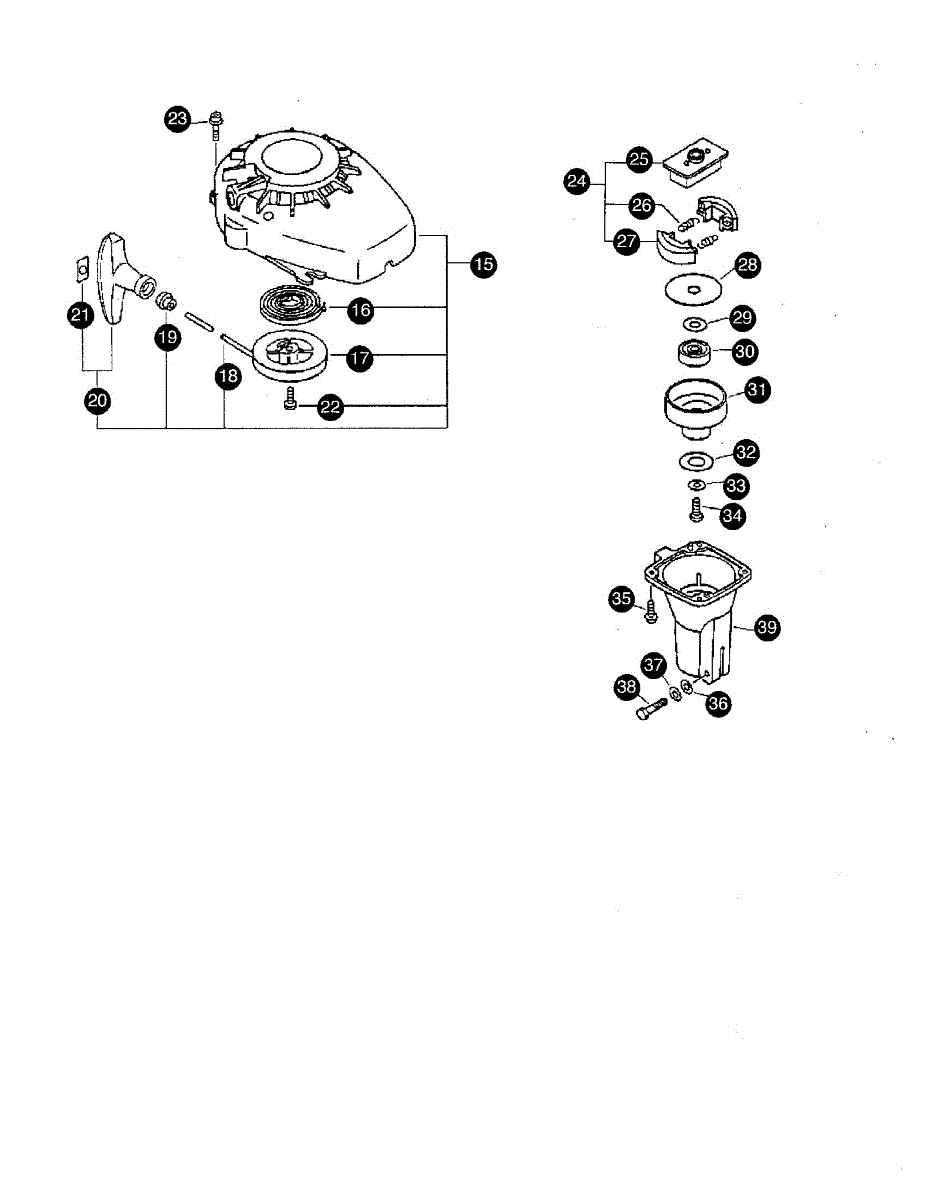

Parts for Mantis 7225: Starter / Pawl Catcher / Clutch Parts

This is a genuine starter assembly that is used for gas powered hedge trimmers. The starter assembly contains all of the components of the starter system, including the plastic starter grip, starter rope, housing, starter pulley, and the recoil spring. When one component of this system goes bad, it can impact the rest of the machine. If the recoil spring is too stretched or the starter rope is damaged, for example, the unit may not start.The starter assembly is fairly easy to replace but be sure to wear gloves when doing engine work and allow the machine to cool completely to avoid the risk of burns or other dangers. If a starter assembly isn't working as it should, a replacement should be made as soon as possible.This genuine OEM starter assembly is manufactured by Echo. It is compatible with trimmers from Echo and Little Wonder. It is sold as an individual assembly. The hardware required is sold separately and will require an additional purchase.

A starter rewind spring is made of metal and works in conjunction with pull starter lawn and garden equipment. If the starter rewind spring is damaged, the equipment’s engine won’t be able to start. The pull start may not provide any resistance when trying to start the machinery. If this is the case, inspect the starter rewind spring for damage. Replacing the starter rewind spring can be accomplished in just a few moments with only a screwdriver. Remove the old part and insert the new one. This starter rewind spring is compatible with string trimmers, hedge trimmers, leaf blowers/vacuums/ pole saws and pruners, edgers, chipper shredders, small engines, tillers, water pumps, and sprayers manufactured by Echo, Little Wonder, Mantis, and Shindaiwa brands. It is a genuine OEM part.

A starter rope is wrapped around the recoil drum starter pulley. The starter spring creates tension for the rope to recoil. It is 2.25 inches in diameter on the outside of the pulley and 0.25 inches in diameter on the inside of the pulley. If the starter spring has gone bad, consider replacing the recoil drum starter pulley while repairing the other part. It may be that the damage of the starter spring has chipped the drum, or the drum may be worn from the friction of spinning as the rope uncoils and recoils. If the recoil drum starter pulley is damaged, it may not spin freely. This could prevent the engine from starting. The replacement of this part should be quick and easy and only requires a screwdriver and pliers to complete. The recoil drum starter pulley works with trimmers, hedge trimmers, pole saws and pruners, leaf blowers/vacuums, small engines, chipper shredders, edgers, tillers, and water pumps manufactured by Echo, Little Wonder, Mantis, and Shindaiwa brands. It is a genuine OEM part.

This Echo starter rope is part of many lawn tools, including edgers and hedge trimmers. It is included to improve the rewind function of each of these tools to create a better performance. The starter rope starts the process of getting an internal engine running on small machines. Other components in the assembly include rope reels and a spring. Starter rope is durable, but it can break down and disintegrate over time and regular use. When the rope ages, it may start to fray and catch on the starter, which causes additional damage. At some point, it may become hung up inside and impossible to retract. The starter rope will eventually break and require a replacement. This involves cutting out the old rope, resetting the recoil spring tension, and installing the starter rope in the hole on the starter housing and the pulley. This is a genuine OEM component directly from the manufacturer and comes in as an individual item. It’s designed to be used with hedge trimmers, edgers, cultivators, and blowers by Echo, Little Wonder, and Mantis. The only tools needed to replace a starter rope include a screwdriver.

This is a rope guide that is used with various types of lawn and garden equipment. It connects the rope handle and the starter rope. It helps prevent damage to either of the ropes by covering them in durable plastic material. Over time or through use, the rope guide can become damaged or break. If this happens, the part will need to be replaced. First, put the equipment on a flat surface. Drain the fuel from the tool and disconnect the spark plug wire. Next, the starter will need to be removed from the tool to gain access to the rope guide. The rope guide and any other damaged components, such as the string and springs, can be removed from the tool before adding a replacement component. This is an authentic OEM replacement component that is sourced directly from the manufacturer. It is sold as an individual part. The rope guide is compatible with string trimmers, leaf blowers, hedge trimmers, and pole pruners manufactured by Little Wonder, Echo, and Shindaiwa.

This is a starter grip that is used on many different types of lawn and garden equipment. The starter is the part that engages the pull rope when the user yanks on it. This causes the engine to turn quickly enough for the ignition module to make a spark. This spark is used to ignite the gasoline in the cylinder. The starter grip is made of durable plastic but can become damaged, broken, or lost. The starter grip has an important function in starting the tool while also being comfortable to use.If the starter grip needs to be replaced, a socket wrench and a screwdriver will be required. Put the tool on a flat surface and remove the spark plug wire before making the replacement. Disassemble the tool to reach the starter assembly so the grip can be removed. Replace the grip and reassemble the parts.This starter grip is sold as an individual component. It is a genuine OEM replacement part that is sourced directly from the manufacturer. The starter grip has been designed to fit tillers, edgers, string trimmers, hedge trimmers, and leaf blowers manufactured by Mantis, Little Wonder, and Echo.

This screw is a necessary part in many pieces of outdoor lawn and garden equipment and especially in power machines. It is designed to be used with hedge trimmers, edgers, chainsaws, leaf blowers, chippers, shredders, trimmers, engines, power sprayers, pole saws, pruners, brush cutters, tillers, cultivators, and water pumps. It is designed to be compatible for use with products manufactured by the Echo and Shindaiwa companies.The basic function of a screw is to hold different pieces or materials together. Replacing screws like this one is a relatively simple process as it involves locating the faulty screw, or a spot with a missing screw, and replacing it with the new one.This screw is a genuine OEM part sourced directly from the manufacturer, and it is sold individually. It is manufactured by the Echo company. This screw is made out of metal.

The 4 x 16 replacement screw is a genuine fit for select Echo engines. This screw has multiple applications for specific locations on different types of equipment. The screw and two washers ensure a secure fit in every application. Over time, screws can wear down, become stripped, or even get broken or lost entirely. A replacement will be necessary and if this is the screw that is missing, this replacement will provide the perfect fit for compatible machines. This screw has a special application and is not for general use. This genuine OEM screw is manufactured to exact standard and can fit Echo engines on Echo and Little Wonder products. This high-quality screw is made of durable metal and sold as a single unit. It includes a lock washer and flat washer for added security. Those who need more than one screw will have to purchase additional quantities. Because screws often get lost or broken, it is a good idea to keep a few extras on hand in case of emergencies.

The clutch spring is found within the retaining plate of a clutch disc. This clutch spring part is crucial, as its purpose is to dampen and smoothen out the engagement of the clutch disc. This means that it is responsible for assisting with the absorption of any fluctuations of the engine's rotations per minute (RPMs). Clutch springs also serve to level out the speed difference, which in turn helps keep the transmission healthy because it experiences a more linear delivery of power instead of spurts.This clutch spring is a genuine OEM part sourced directly from the manufacturer, and it is sold individually. A clutch spring is a key part when it comes to outdoor lawn and garden machines such as trimmers, hedge trimmers, string trimmers, grass trimmers, cultivators, engines, and tillers. It is compatible to be used with products manufactured by the Echo and Little Wonder brands. Please note that the clutch spring with the part number 17501805130 (AP6127844) should replace part number 17501804630.

This clutch shoe can be used as a replacement part for hedge trimmers, string trimmers, or tillers. The clutch shoes are bound together by the clutch spring through consistent tension and are integrated into the equipment's clutch system. A clutch shoe engages the clutch bell once the engine has reached a certain speed and avoids engaging the clutch bell when the engine is idling.A clutch shoe can be worn down over time or can suffer damage from puncturing, piercing, erosion of the metal material, or direct impact with a hard object thereby warping the material. If the clutch shoe is damaged, the clutch bell will be engaged even when the engine is idling. The broken or malfunctioning clutch shoes should be removed and replaced with this genuine OEM replacement part immediately before using the outdoor appliance again. Remember to always wear gloves when handling, repairing, and operating outdoor equipment. This clutch shoe is a genuine Echo part, sold individually. It is compatible with the following outdoor appliance brands: Echo, Mantis, Shindaiwa, and Little Wonder.

This replacement screw has multiple applications for securing the working parts and housing for lawn equipment engines. The screw and washer are commonly found on lawn equipment engines and may be responsible for attaching the housing to the engine, holding the shaft together on a blower or trimmer, or any other securing need. This OEM screw is made from high-quality metal with a black finish and sold individually with a single washer. Sometimes, these screws can be stripped, damaged, or lost, resulting in the need for replacement. Get the perfect fit for your compatible unit with this OEM replacement screw. This genuine replacement screw has been designed for Little Wonder and Echo lawn equipment. It has applications in a variety of units, including backpack blowers, trimmers, brush cutters, chainsaws, edgers, cut off saws, and cultivators that take this 4x14 model. You can consult your user manual and equipment diagram for correct locations and usage of this replacement screw, as well as compatibility.
