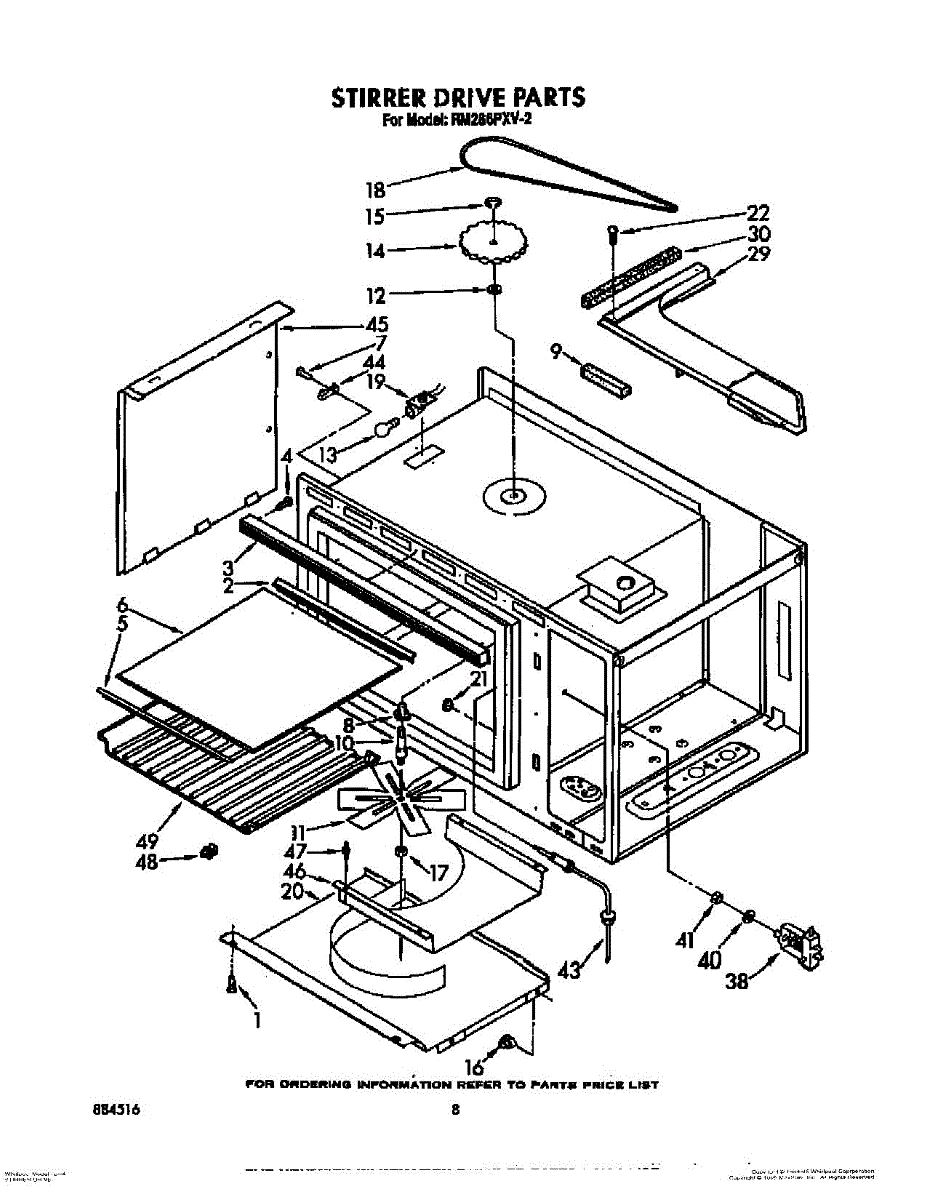

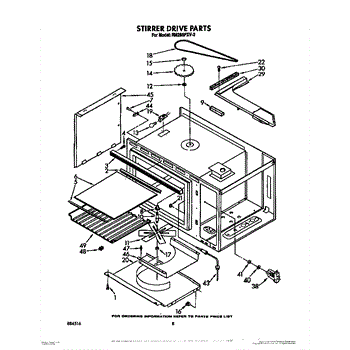

Parts for Whirlpool RM286PXV2: 06 - Stirrer Drive Parts

This part has been discontinued by the manufacturer and is no longer available.

A replacement incandescent lamp that restores oven cavity lighting so you can check cooking progress without opening the door. Fits the OEM light socket and provides bright, direct illumination for safe food monitoring. What it does:

• Replaces a burned-out oven/incandescent light so the interior is lit during use
• Helps you see food clearly to prevent overcooking or missed doneness
• Restores normal light operation when the oven lamp no longer powers on or flickers
• Works with the oven light assembly and standard appliance light sockets

• Disconnect power or unplug the appliance before replacing the bulb to avoid shock
• Allow the old bulb and oven interior to cool before handling
• Use a cloth or gloves to install the bulb to avoid skin oils on the glass
• If the new bulb still does not light, check the socket and replace switches or wiring only after proper diagnosis

This stirrer drive belt transfers motor power to the stirrer assembly so the stirrer can rotate properly. It replaces a worn or broken belt to restore consistent stirrer movement and reduce slipping or noise. What it does

• Transfers torque from the motor to the stirrer shaft to enable rotation
• Commonly used when the stirrer stops turning, slips, or rotates intermittently
• Helps restore even operation and proper circulation tied to the stirrer function

• One stirrer drive belt

• Disconnect power to the appliance before starting any repair
• Inspect pulleys and the stirrer assembly for damage and alignment before installing the new belt
• Route the belt per the OEM layout and ensure proper tension; replace damaged components as needed

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This part has been discontinued by the manufacturer and is no longer available.

White support rack that secures a dishwasher rack to its track, keeping the rack aligned for smooth sliding and safer loading. Replaces broken or worn supports to restore proper rack function and stability. What it does:

• Holds the dishwasher rack in place so it slides smoothly and stays level.
• Prevents the rack from slipping, leaning, or falling during loading and unloading.
• Reduces noise and wobbling caused by damaged or missing rack supports.
• Restores proper rack alignment for consistent wash performance and safe loading.

• Disconnect power to the appliance before starting any repair; follow all safety precautions.
• Remove the affected rack to access the support; inspect adjacent clips or tracks for damage.
• Align the support with the rack/track and snap or secure it into place; confirm the rack slides and sits level.
