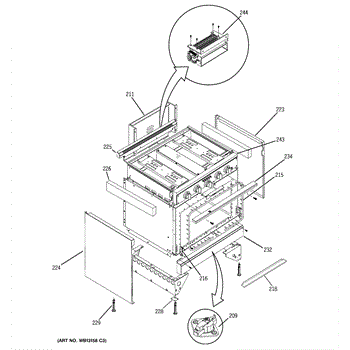

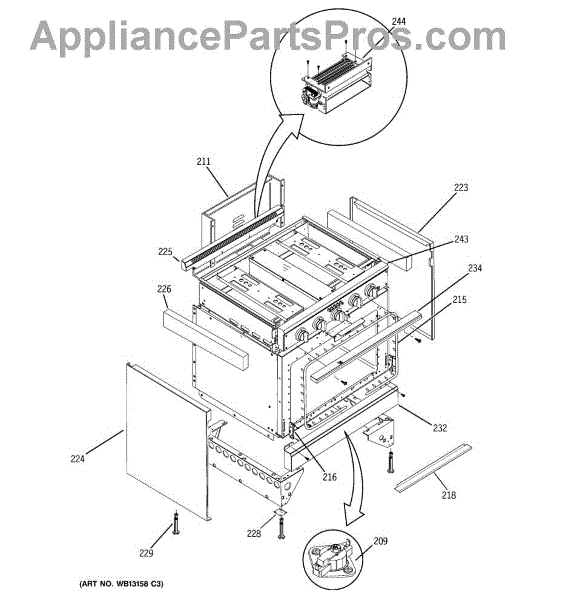

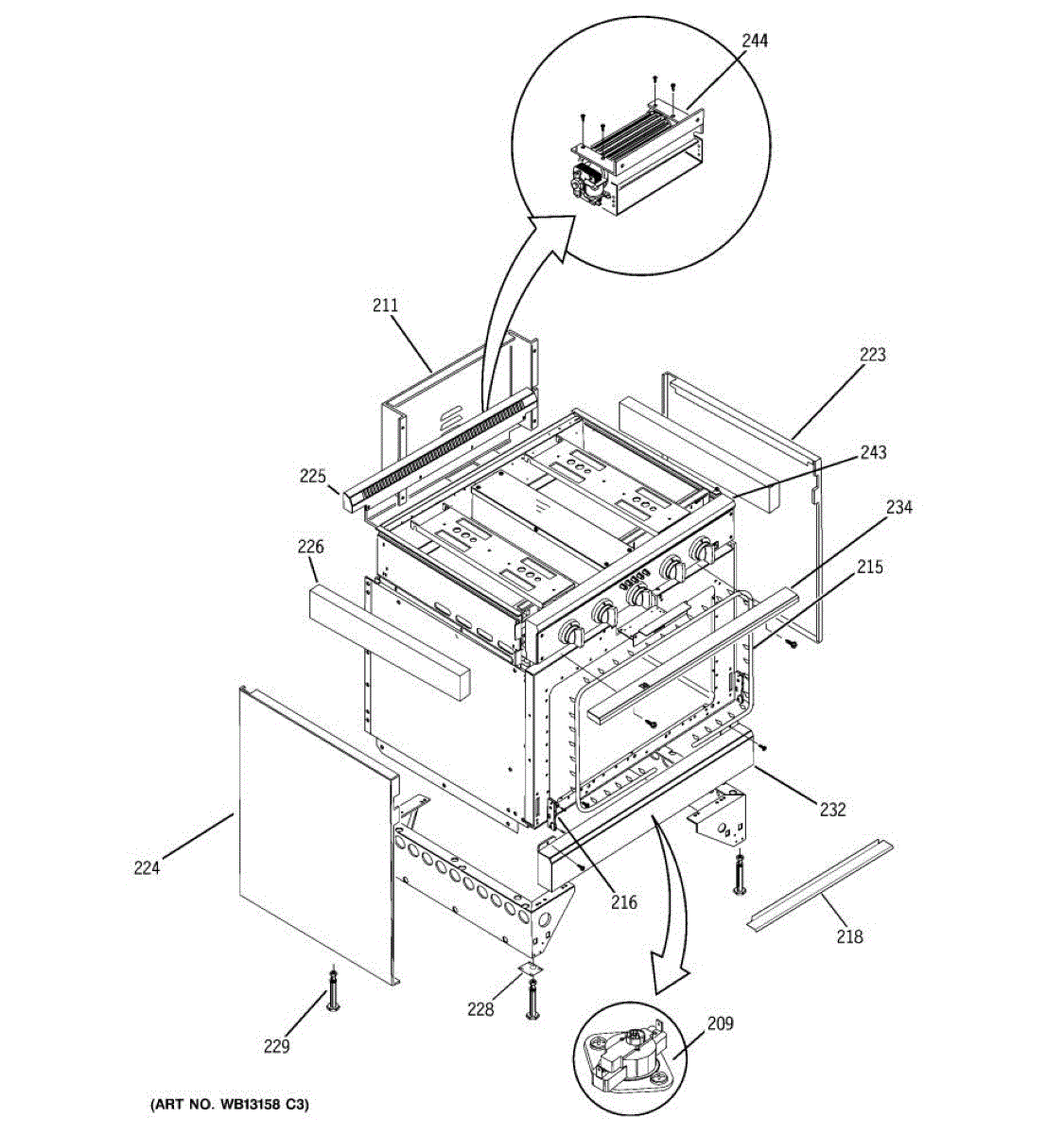

Parts for Ge ZDP30L4H2SS: 05 - Structure Parts

This is the hinge receptacle that mounts to the oven frame and receives the door hinge, allowing the oven door to pivot open and closed. It provides a secure anchor point for the hinge pin or arm. Replace this receptacle if the oven door is sagging, not closing flush, or if the mounting point is cracked or worn.

This left-hand side body panel restores the cabinet exterior and protects internal components on compatible GE ranges and cooktops, giving a clean finished appearance and shielding wiring and controls from damage. What it does:

• Replaces the left outer cabinet panel to repair dents, rust, or cosmetic damage
• Protects internal parts and wiring from spills, heat, and impact
• Helps maintain proper airflow and enclosure integrity for the appliance
• Addresses visible exterior damage or rough edges that can catch dirt

• Designed to mount with existing factory fasteners; inspect screws and clips and reuse or replace as needed
• Turn off and unplug the appliance and allow it to cool before starting work
• Handle panel edges carefully to avoid cuts; use gloves and eye protection

Replacement hex head screw for your range. Secures internal components and panels. Order a new screw if yours is stripped, missing, or damaged.

This static drip tray catches and channels excess water and condensation to help keep the appliance interior and surrounding area dry. It restores proper drainage and helps prevent water from pooling where it can cause stains or damage. What it does:

• Collects drips and condensation from internal components to prevent pooling
• Guides water toward the appliance drain path or evaporator area
• Helps maintain clean interior surfaces by containing leaks and spills
• Useful when original tray is cracked, warped, or missing

• Disconnect power to the appliance before servicing
• Remove shelves or panels as needed for access; inspect mounting tabs or supports
• Seat tray into existing guides or clips; do not force or modify mounting features
• If persistent leaks continue after replacement, check drain lines and seals.
