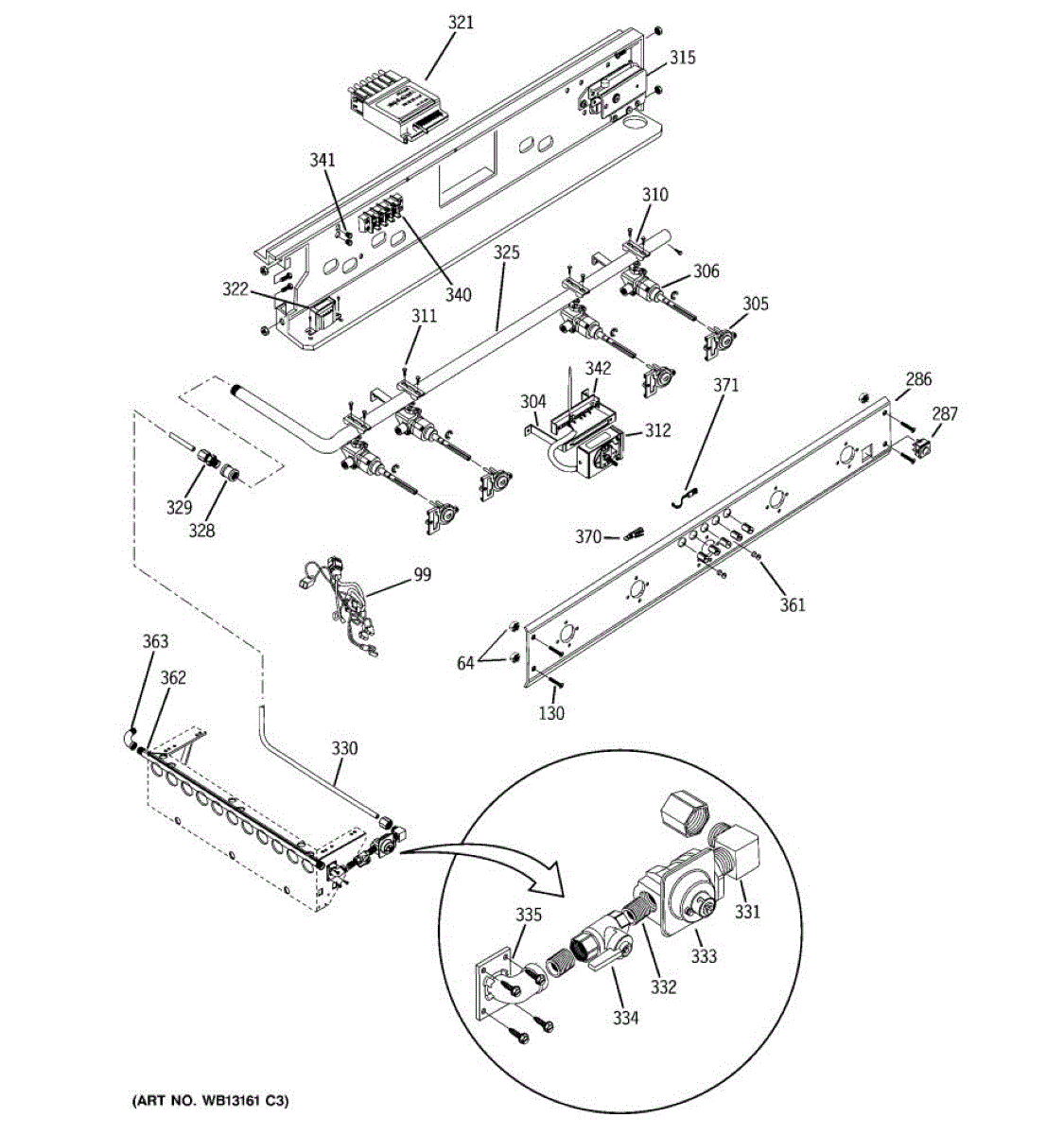

Parts for Ge ZDP30L4H2SS: 02 - Manifold Assembly Parts

If your gas burner won't light or keeps clicking after ignition, the igniter switch may be faulty. This switch closes when you turn the knob to spark.

Secures gas valves on your cooktop or range. Replace if loose, cracked, or causing gas flow issues. Verify fit with your model number before ordering.

10-32 x 1 inch hex head screw for securing cooktop panels, brackets, and assemblies. Replace missing, stripped, or corroded fasteners during repairs.

Fix inaccurate oven temperatures or uneven baking with this range thermostat assembly. Controls precise heating. Moderate DIY install with basic tools.

This thermostat door lock assembly secures the temperature control area and helps ensure consistent thermostat operation. It replaces a worn or broken door lock to restore proper door closure and temperature performance. What it does

• Secures the thermostat/temperature control compartment door to help maintain consistent internal temperatures.
• Replaces damaged or broken lock components that prevent the door from latching properly.
• Helps stop drafts and reduce temperature fluctuation caused by a loose or non-latching control door.
• Common symptom: door won't stay closed or the thermostat cover won't latch.

• One thermostat door lock assembly.

• Disconnect power to the appliance before attempting any repair to avoid shock or injury.
• Handle plastic components carefully to avoid breakage; use appropriate hand tools.
• If mounting hardware or trim is damaged, replace those parts as well.

Burners won't light or spark continuously? A faulty spark module prevents reliable ignition. This part sends pulses to igniters for quick lighting.

This high-voltage transformer steps line voltage up to power the magnetron, producing microwave energy. Replacing a failed transformer can restore heating when the oven runs but doesn't heat or hums without cooking.

• Supplies the high voltage the magnetron needs to generate microwave energy
• Failure may present as the microwave running but not heating
• May cause a loud hum or buzz with no heat
• Can blow an internal fuse or trip a breaker immediately after pressing Start

• Disconnect power before service; the high-voltage capacitor can retain a dangerous charge even when unplugged
• Support the heavy transformer during removal/installation and reuse original mounting hardware and wire positions
• After installation, verify secure connections in the high-voltage circuit (capacitor and diode) before testing

Elbow plate for ranges. Mounts to the burner assembly to provide structural support. Replace if bent, cracked, broken, or missing for proper fit.

Gas line elbow fitting for cooktop and range installations. Connects gas supply tubes at a 90-degree angle. Replace if cracked, stripped, or leaking.
