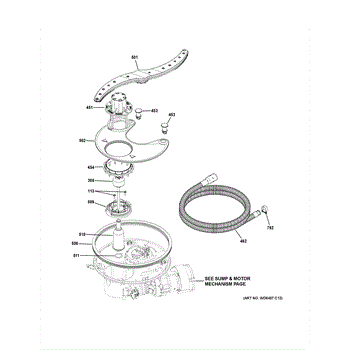

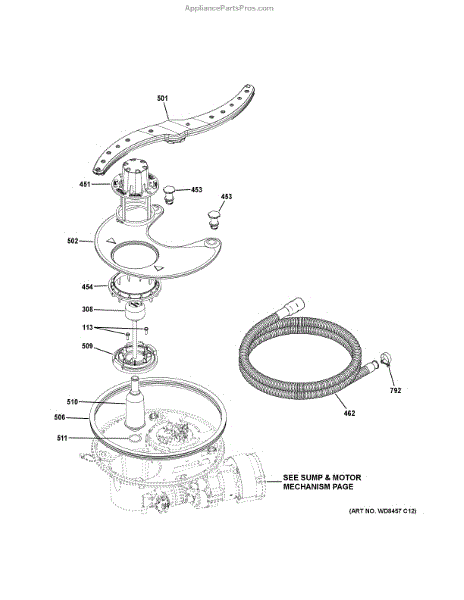

Parts for Ge GDF511PSM0SS: Sump & Filter Assembly Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The screw is an OEM replacement component for GE dishwashers. It is used to securely fasten parts inside the dishwasher tub assembly.

Causes of a damaged or defective screw usually involve wear from continuous mechanical stresses and vibration during dishwasher usage. Loose parts affect machine balance and performance.

Symptoms of a compromised screw placement include:

• Noises or abnormal sounds coming from inside the tub
• Intermittent error codes related to moving components
• Detached or misaligned spray arms or filters
• Insecure tub fixtures that can be jarred with normal operation

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Dishwasher Float is an OEM replacement part for GE dishwashers. Located in the dishwasher's sump area, the float plays an important role in detecting water levels and ensuring proper filling and draining during cycles.

Causes of a bad float include normal wear and tear, mineral buildup within the dishwasher, or accidental impact damage.

Symptoms of a bad float include:

• Improper or inconsistent water level filling the dishwasher
• Inability to fully drain water after cycles
• Delayed cycles or unusual noises related to water functions

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Vent Filter is an OEM part for GE dishwashers. It helps to capture and filter out food particles, grease, and other debris.

Causes of a bad vent filter can include clogging or blockage due to accumulated debris, wear and tear over time, or damage to the filter material.

Symptoms of a bad vent filter include:

• Lingering unpleasant odors during or after the dishwasher cycle
• Visible signs of debris or buildup on the filter surface
• Reduced effectiveness of the dishwasher's drying performance

Replace your worn-out or clogged vent filter with this genuine OEM GE part to restore your dishwasher.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.


The Filter Adapter is an OEM component specifically designed for GE dishwashers. Located inside the dishwasher tub, it functions to strain out large food particles from water before it reaches the wash arms.  The adapter holds the removable wash/rinse filters in place during operation, functioning as an extension of the filtration system.

Causes of a bad filter adapter can include cracks or breaks compromising its sealing surface, wear and tear deforming filter retention features over time, or buildup inhibiting functionality.

Symptoms of a bad filter adapter include:

• Loose or falling out removable filters during washing
• Bypassing of food particles around compromised seals
• Reduced lifespan of disposable filters placed in a faulty adapter
• Debris accumulation impacting spray arm performance

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Drain Tube is an OEM part for GE dishwashers. This tube is responsible for carrying wastewater from the dishwasher to the household drain, ensuring efficient and effective removal of dirty water during and after the wash cycle. The drain tube helps maintain the dishwasher's performance by preventing water from pooling inside the appliance.

Over time, drain tubes can become clogged, cracked, or worn out due to regular use or debris buildup. Common causes of a bad drain tube include blockages from food particles, mineral deposits, wear and tear from frequent use, or damage from improper installation or handling.

Symptoms of a bad drain tube include:

• Water not draining from the dishwasher
• Leaks around the dishwasher area
• Unpleasant odors due to standing water
• Visible cracks, splits, or kinks in the tube

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Contains one lower spray arm and one middle spray arm.

This coarse plastic filter is a replacement strainer that helps keep large debris out of the appliance's water path, protecting internal valves and pumps and helping maintain proper water flow. What it does:

• Catches large particles and sediment before they reach valves, hoses or pumps
• Helps reduce debris-related flow restrictions that can cause poor fill or drain performance
• Reduces the chance of valve damage or clogging from large contaminants
• Commonly replaced when debris is visible or when water flow is noticeably reduced

• One coarse plastic filter/strainer

• Turn off power and water supply before starting any repair
• Access location and removal steps vary by model; follow the parts diagram
• Inspect and clean the housing before installing the new filter; rinse the filter under running water
• Ensure the filter is seated correctly and check for leaks after restoring power and water

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Sump Gasket is an OEM part for GE dishwashers. It forms a watertight seal around the sump area, preventing leaks and ensuring proper water circulation within the dishwasher.

Causes of a bad sump gasket include exposure to high temperatures, general wear and tear over time, and damage from cleaning chemicals.

Symptoms of a bad sump gasket include:

• Water leaking from the bottom of the dishwasher
• Poor cleaning performance due to improper water circulation
• Visible cracks or deterioration in the gasket material
• Unusual noises during the wash cycle

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This floor plate is the OEM-style replacement that fits under the oven cavity to protect internal components and provide a stable cooking surface. Restores proper support and helps maintain even heat distribution in the lower oven area. What it does

• Covers and protects the oven's lower cavity from spills, drips, and falling debris
• Helps funnel heat and airflow for more consistent baking and roasting performance
• Prevents direct contact between food/drips and heating components
• Reduces corrosion and wear to inner oven parts caused by spills

• One floor plate as shown

• Designed to be installed in the lower oven cavity; for exact placement
• Remove power (unplug or shut off breaker) and allow the oven to cool before servicing
• Use appropriate gloves to avoid sharp edges; avoid forcing the part into place

This replacement flood stem holds and guides the washer's water-level float so the machine can detect and control water levels. Replaces a worn or damaged mounting tube to restore reliable float operation. What it does:

• Secures and positions the water-level float inside the tub or housing
• Allows the float to move freely so the machine senses proper water level
• Helps prevent overfill and incorrect fill-level behavior when functioning correctly
• Common symptoms of a faulty unit: incorrect water level, washer overfills or fills unevenly, or the machine shows fill/drain issues

• One flood stem

• Disconnect power and turn off the water supply before starting any repair
• Replacement typically requires access to the washer cabinet/top or inner tub area
• Handle the float and tube gently to avoid damage; ensure proper seating and alignment during reassembly
• After installation, run a short fill/drain cycle to confirm correct float operation and that there are no leaks

The Float Mounting Tube O Ring is an OEM component specifically designed for GE dishwashers. This float mounting tube o-ring creates a watertight seal around a tube that helps monitor water levels using a float and switch assembly.

Causes of a bad float mounting tube o-ring can include cracks, tears or warping that prevents proper sealing. Chemical exposure from regular dishwasher use can cause o-rings to degrade over time.

Symptoms of a bad Float Mounting Tube O Ring include:

• Water leaks in the area around the tube fitting
• Moisture or water damage near water level monitoring components
• Irregular or improperly timed cycles from inaccurate water level readings
• Safety issues from undetected pooling or overflow of water

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This dishwasher hose clamp secures a hose to its fitting to maintain a tight, leak-resistant seal during operation. Replacing a worn or corroded clamp helps stop drips and keeps fill, drain, or circulation lines firmly in place.

• Secures dishwasher hoses to fittings on pumps, valves, or drain outlets
• Helps prevent water leaks at hose connections
• Keeps hoses from slipping off under vibration and water pressure
• Typical symptoms include water under the unit, dampness in the cabinet, or a hose connection that feels loose

• Disconnect power and shut off water supply before servicing
• Access the hose connection (toe-kick or rear/side panels may need removal)
• Seat the hose fully on the fitting, position clamp just behind the barb/ridge, and secure without over-tightening
• Run a short test cycle and check all connections for leaks
