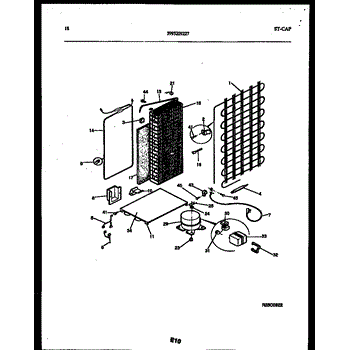

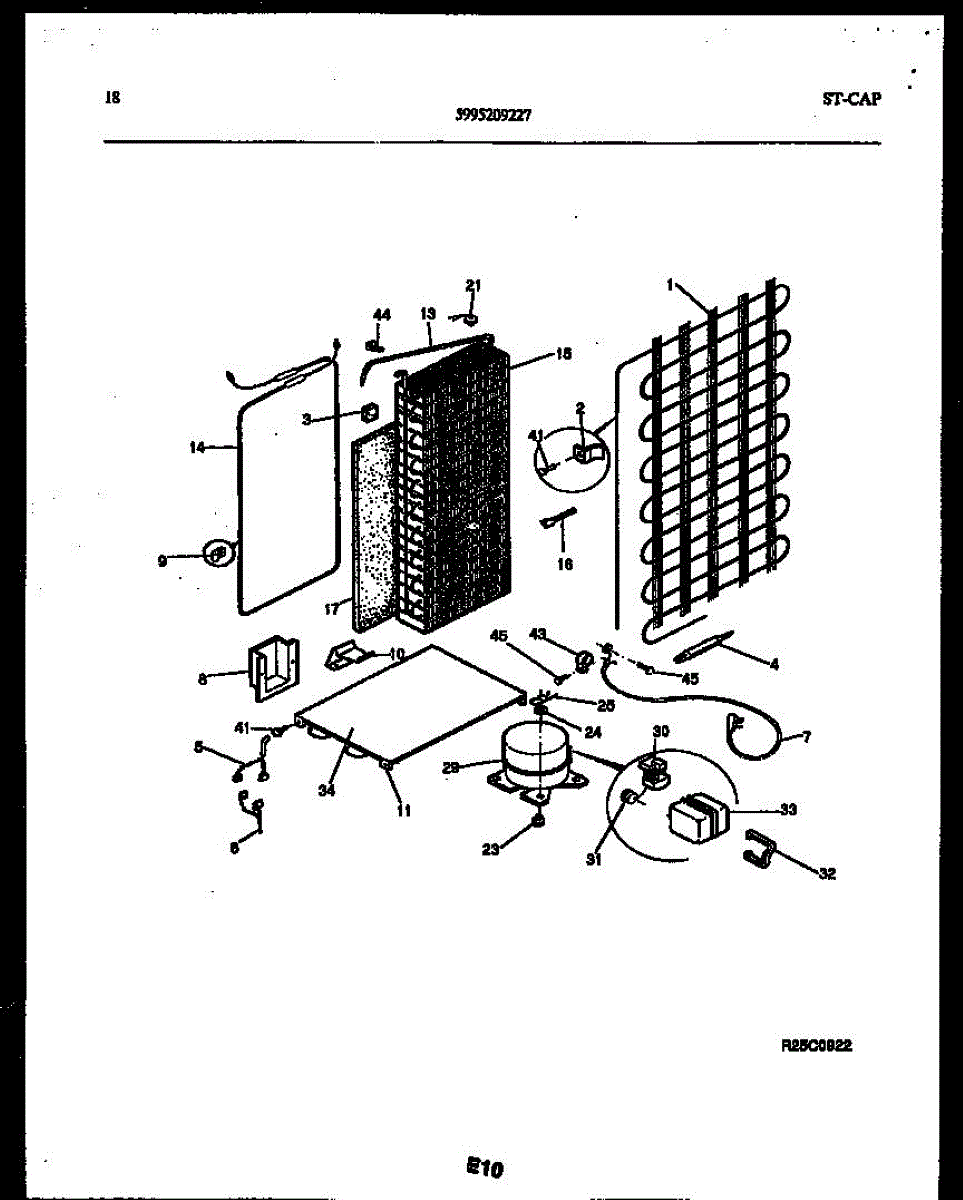

Parts for Frigidaire RS22F5DX1B: 10 - System And Automatic Defrost Parts

This compressor overload is a replaceable start-protection device that helps prevent compressor overheating and electrical damage. Replacing a failed overload restores reliable compressor starting and helps the refrigerator return to normal cooling. What it does:

• Protects the compressor by interrupting current if the compressor draws excessive current or overheats.
• Works with the compressor start relay to help the compressor start and run normally.
• Common symptoms of a failing overload: refrigerator not cooling, compressor won't start or hums, repeated clicking or tripping.
• Small, service-replaceable part located at the compressor terminals.

• Disconnect power to the appliance before accessing the compressor and its terminals.
• Handle wiring and terminals carefully; note lead locations or take a photo before removal to ensure correct reinstallation.
• If mounting hardware or connector types differ, do not force parts.

Galvanized Steel

This part has been discontinued by the manufacturer and is no longer available.

This is a factory-style replacement screw used to secure appliance components. It restores proper fastening where the original screw is missing, stripped, or damaged so panels and assemblies stay firmly attached. What it does:

• Fastens panels, brackets, or components to the appliance frame or assemblies
• Replaces missing or damaged mounting hardware that can cause rattles or loose parts
• Provides the correct fit and thread engagement for a secure connection
• Helps maintain appliance alignment and safe operation

• Use the matching screwdriver or bit to avoid stripping the head
• Tighten until snug; do not over-torque to prevent thread or part damage
• Turn off power and remove any access panels before working on electrical components
