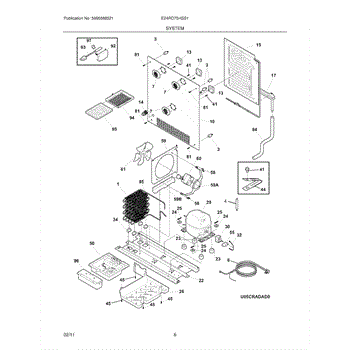

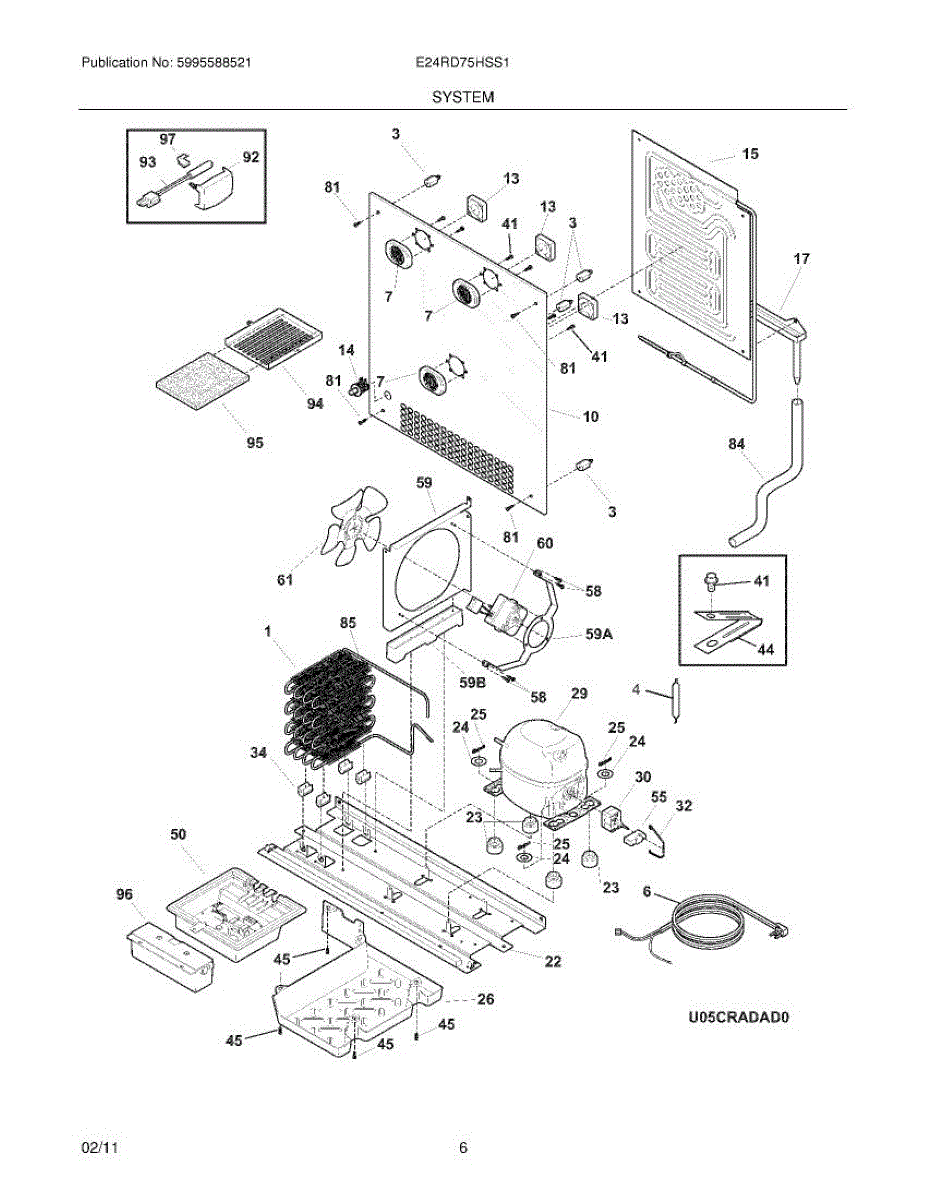

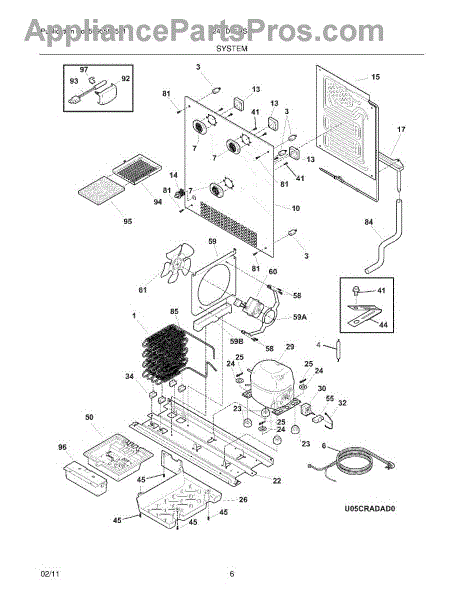

Parts for Electrolux E24RD75HSS1: 07 - System Parts

The Air Filter is an OEM part for Frigidaire refrigerators designed to enhance the air quality inside the refrigerator, ensuring that food stays fresh and odor-free.

The Air Filter helps to remove unwanted odors and impurities from the refrigerator's circulating air. It absorbs and neutralizes common food odors, keeping your fridge smelling clean and pleasant. The activated carbon filter is 7 times more effective than baking soda at removing odors.

For best results, change filter every 6 months.
Color: Black.
Measures about 7 inches wide by 5 inches deep.

Symptoms of a bad air filter include:

• Lingering food odors inside the refrigerator
• Increased presence of stale or unpleasant smells
• Decreased effectiveness in eliminating odors

Replace your Air Filter with this genuine part to ensure a clean and fresh-smelling refrigerator. This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Includes service line.

The Power Cord is an OEM part for Frigidaire refrigerators. It transmits electrical current from the wall outlet directly to the internal refrigerator components, allowing them to operate properly. As the critical link supplying energy, this power cord plays an essential role in refrigerator performance.

Causes can involve normal wear over many years, accidental punctures, harsh chemicals, or excessive bending/pulling that strains and weakens internal wiring. Rodent damage is another potential issue.

Symptoms of a bad power cord include:

• The refrigerator not powering on when plugged in
• Flickering lights or intermittent operation
• Warm temperatures inside the fridge compartment
• Evidence of cord damage like cracks, blisters, or exposed wires

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This light switch controls the interior lamp, turning it on when the refrigerator door opens and off when it closes. Replace a worn or stuck switch to restore proper lighting and prevent the light from staying on. What it does:

• Door-activated plunger switch that opens/closes power to the interior light
• Restores interior lighting when the door is opened
• Resolves lights that stay on with the door closed, which can warm the compartment
• Addresses intermittent or flickering light from worn contacts

• 1 light switch

• Disconnect power before servicing
• Gently pry the old switch from the liner or remove the control housing as required for access
• Transfer the wire connectors to the new switch, matching positions
• Press the new switch fully into place, restore power, and test light operation

This rubber compressor mounting grommet cushions and isolates the compressor to reduce vibration and noise that can transfer to the cabinet. It helps maintain stable compressor positioning for quieter, smoother operation. What it does:

• Absorbs compressor vibration to lower noise and rattling
• Dampens movement that can cause abrasion or wear on mounting hardware
• Helps maintain proper alignment of the compressor assembly
• Common symptom: excessive buzzing, vibration, or rattling from the back of the appliance

• Always disconnect power to the appliance before servicing.
• Support the compressor before removing mounts to prevent shifting or damage.
• Inspect surrounding mounts and hardware; replace any worn or damaged pieces.

This compressor mounting clip secures the compressor to its chassis to reduce movement and noise for reliable operation. It replaces worn or broken clips that allow the compressor to shift during use. What it does:

• Holds the compressor in place on the mounting bracket to prevent shifting
• Reduces vibration and rattling noises caused by a loose mount
• Helps maintain proper compressor alignment for steady operation
• Useful when a cracked or bent clip no longer secures the compressor

• Disconnect power to the appliance before accessing compressor area
• Inspect surrounding mounts and rubber isolators; replace if damaged
• Secure clip fully so compressor is held without forcing or misaligning components

A small replacement mounting clip that secures interior trim and panels to restore proper fit and reduce rattling. Use when a broken or missing clip leaves gaps or lets panels or trim sit loose on the appliance. What it does:

• Secures trim, access panels or small plastic covers to the appliance frame
• Restores proper alignment and helps eliminate panel vibration or rattling
• Replaces cracked, worn or missing clips that allow gaps or loose parts
• Works as a simple fastener where the original clip has failed

• Always disconnect power to the appliance before beginning any repair
• Clip typically installs with a push-fit or snap-in motion; a flat tool may help remove the old clip
• Handle surrounding trim gently to avoid cracking brittle plastic
• Verify correct clip orientation before snapping into place

Color: Black. Rubber. Holds tube/wire

The Compressor Run Capacitor is an OEM replacement part for Frigidaire refrigerators. This electrical component is essential for providing the necessary torque to start and maintain the operation of the compressor motor, which is responsible for cooling the refrigerator.

Symptoms of a failing compressor run capacitor include:

• The refrigerator not running or cooling properly
• The compressor failing to start or running intermittently
• Humming or buzzing noises coming from the compressor area

Causes of needing to replace the compressor run capacitor can include normal wear over time, exposure to high temperatures or electrical surges, or physical damage to the capacitor itself.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore refrigerator models.

This hex head screw secures panels, brackets, and small components on appliances, restoring proper fit and stability. It's a direct replacement fastener when an original mounting screw is missing, loose, or damaged. What it does:

• Secures panels, brackets, trim, and internal components to prevent rattling or movement
• Replaces stripped, missing, or damaged mounting screws that cause loose parts or misalignment
• Restores reliable mechanical fastening so doors and panels sit flush and operate correctly
• Works as a general-purpose appliance mounting screw when original fasteners are worn

• Always disconnect power to the appliance before starting any repair
• Match the screw to the original location and thread engagement; start by hand to avoid cross-threading
• Use the correct driver or socket for the hex head and tighten until snug—do not overtighten
• If the original hole or threads are damaged, repair or replace the mating hardware before installing the screw

The Condenser Fan Motor is an OEM replacement part for Frigidaire refrigerators. It is a component responsible for drawing heat away from the refrigerator's cooling system. By rapidly spinning the condenser fan blades, the motor works to dissipate heat buildup and ensure optimal cooling performance.

Causes of a bad condenser fan motor include bearing wear over time, damage from moisture or dirt infiltration, or failure of electronic motor components.

Symptoms of a bad condenser fan motor include:

• Inadequate or inconsistent cooling within the refrigerator
• Loud buzzing or rattling noises emanating from the rear
• Slow or failed rotation of the condenser fan blades

This OEM Frigidaire replacement condenser fan motor is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore-branded refrigerators.

The Condenser Fan Motor Blade is an OEM replacement part for Frigidaire refrigerators. This part attaches to the condenser fan motor and works by drawing air through the condenser coils and over the compressor, dissipating heat and allowing the refrigerant to cool effectively.

Causes of damage to the Condenser Fan Motor Blade can include physical damage from moving or cleaning the refrigerator, obstruction from debris that impedes the blade's rotation, or wear and tear over time that can lead to cracks or the blade becoming loose.

Symptoms of a bad Condenser Fan Motor Blade include:

• The refrigerator running hotter than usual
• Unusual noises coming from the back of the refrigerator where the condenser fan is located
• The refrigerator compressor running for longer periods than normal or cycling on and off more frequently

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This #8-32 x 3/8 screw secures appliance panels, brackets, and assemblies. Replace a missing or stripped fastener to keep parts tight and aligned, reduce vibration, and restore proper fit in compatible refrigerators and freezers.

• Machine-thread fastener sized #8-32, 3/8-inch length
• Secures control housings, trims, covers, and support brackets per model design
• Replaces missing, worn, or corroded screws that cause loose or rattling parts
• Helps maintain alignment and stability after service

• Unplug the appliance; shut off water if applicable
• Match thread size to the original and start by hand to avoid cross-threading
• Use the correct driver; do not overtighten, especially into plastic
• Verify component alignment and operation after fastening

• Thread size: #8-32
• Length: 3/8 inch

The Temperature Sensor (10K NTC) is an OEM replacement part for Frigidaire refrigerators. This sensor monitors the internal temperature of the refrigerator or freezer compartment, sending signals to the control board to regulate cooling cycles. It ensures the appliance maintains the correct temperature for optimal food preservation.

Temperature sensors can fail due to wear over time, electrical issues, or exposure to moisture. A malfunctioning sensor can cause inaccurate temperature readings, leading to improper cooling or freezing.

Symptoms of a bad temperature sensor include:

• Fluctuating or incorrect temperatures in the refrigerator or freezer
• Food spoiling faster than expected or freezing inappropriately
• Error codes related to temperature regulation
• The refrigerator running continuously or cycling too often

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Air Filter is an OEM part for Frigidaire refrigerators designed to enhance the air quality inside the refrigerator, ensuring that food stays fresh and odor-free.

The Air Filter helps to remove unwanted odors and impurities from the refrigerator's circulating air. It absorbs and neutralizes common food odors, keeping your fridge smelling clean and pleasant. The activated carbon filter is 7 times more effective than baking soda at removing odors.

For best results, change filter every 6 months.
Color: Black.
Measures about 7 inches wide by 5 inches deep.

Symptoms of a bad air filter include:

• Lingering food odors inside the refrigerator
• Increased presence of stale or unpleasant smells
• Decreased effectiveness in eliminating odors

Replace your Air Filter with this genuine part to ensure a clean and fresh-smelling refrigerator. This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This LED power board supplies and regulates low-voltage power for a refrigerator's LED lighting system, restoring proper illumination and stable LED operation. It's a direct-replacement electrical control module for the lighting circuit. What it does:

• Provides regulated power to interior LED lights so they illuminate correctly
• Prevents LED flicker or dimming caused by a failing lighting power module
• Ensures LEDs receive consistent voltage during normal fridge operation
• Works with the fridge's lighting controls to turn lights on/off with door switches

• One LED power board (lighting control module) as pictured

• Disconnect power to the appliance before accessing electrical components
• Handle the board carefully and avoid touching circuit traces or components
• Mount in the original location and reconnect all plugs securely; verify operation before reassembling

This genuine replacement clip secures appliance components to keep panels and small parts aligned and stable, restoring fit and function. It's a small, durable fastener used where a simple snap or hold is required. What it does

• Holds trim, panels, or small components in place to prevent rattling or misalignment
• Restores secure fit where a damaged or missing clip causes loose parts
• Helps stop vibration noise caused by unsecured pieces
• Small, direct-fit part—replaces a single broken or lost clip

• Disconnect power to the appliance before starting any repair.
• Access may require removing trim or panels; keep track of fasteners.
• Press or snap the clip into place; do not force beyond fit—if it won't seat, recheck alignment.
• Wear gloves and eye protection to avoid cuts from sharp edges.

Color: Black/natural. Nylon

This grille clip is a small plastic retainer that secures a refrigerator grille or trim piece to the cabinet, keeping the front panels aligned and preventing rattles or gaps for a tidy appearance. What it does:

• Secures the lower/front grille or trim to the appliance cabinet to hold it in place
• Prevents grille movement, rattling, or sagging that can occur with worn clips
• Helps maintain a tight fit between trim and cabinet for a finished look
• Simple replacement part when existing clip is cracked, broken, or missing

• One grille clip

• Typically snaps into place; inspect mating slot and clip orientation before installing
• Replace any damaged adjacent clips for even support and fit
• Work carefully to avoid damaging the grille or surrounding trim

This replacement screw secures appliance components in place. Use it to replace a missing, stripped, or rusted fastener so shelves, handles, panels, or brackets stay properly mounted and the unit operates without unwanted movement.

• Fastens components to the cabinet, door, liner, or frame
• Restores a solid fit when the original screw is worn or lost
• Helps eliminate looseness, rattling, or misalignment
• Matches the original hardware for correct fit and thread engagement

• Disconnect power before servicing; for refrigerators, also turn off the water supply
• Align parts and start the screw by hand to avoid cross-threading
• Tighten with the correct driver; do not overtighten, especially into plastic
• If receiving threads are damaged, repair or replace the mating clip/bracket before installing

The Screw is an OEM replacement part for Frigidaire refrigerators. This small but essential component is used to secure various parts of the appliance, such as panels, brackets, or internal fixtures, ensuring the refrigerator's structural integrity and proper operation.

Over time, screws may become loose, stripped, or corroded due to regular use, environmental factors, or maintenance work. A damaged or missing screw can lead to misaligned parts or reduced stability of the appliance.

Symptoms of a bad or missing screw include:

• Loose or wobbly components within the refrigerator
• Panels or fixtures coming apart or misaligned
• Difficulty securing parts during maintenance or repair
• Rattling or unusual noises during operation

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.
