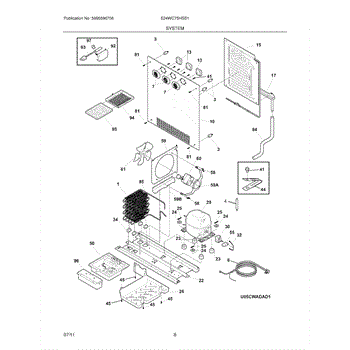

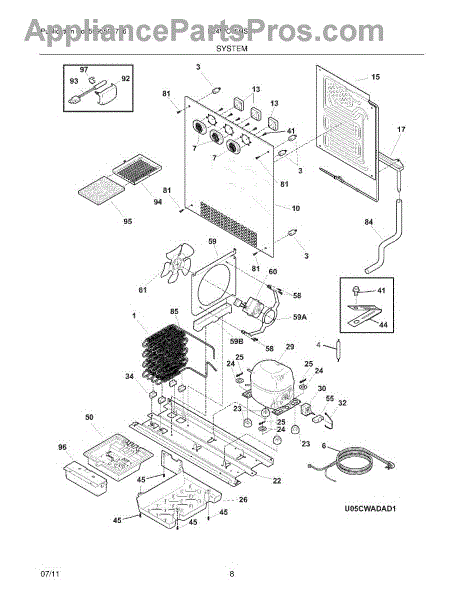

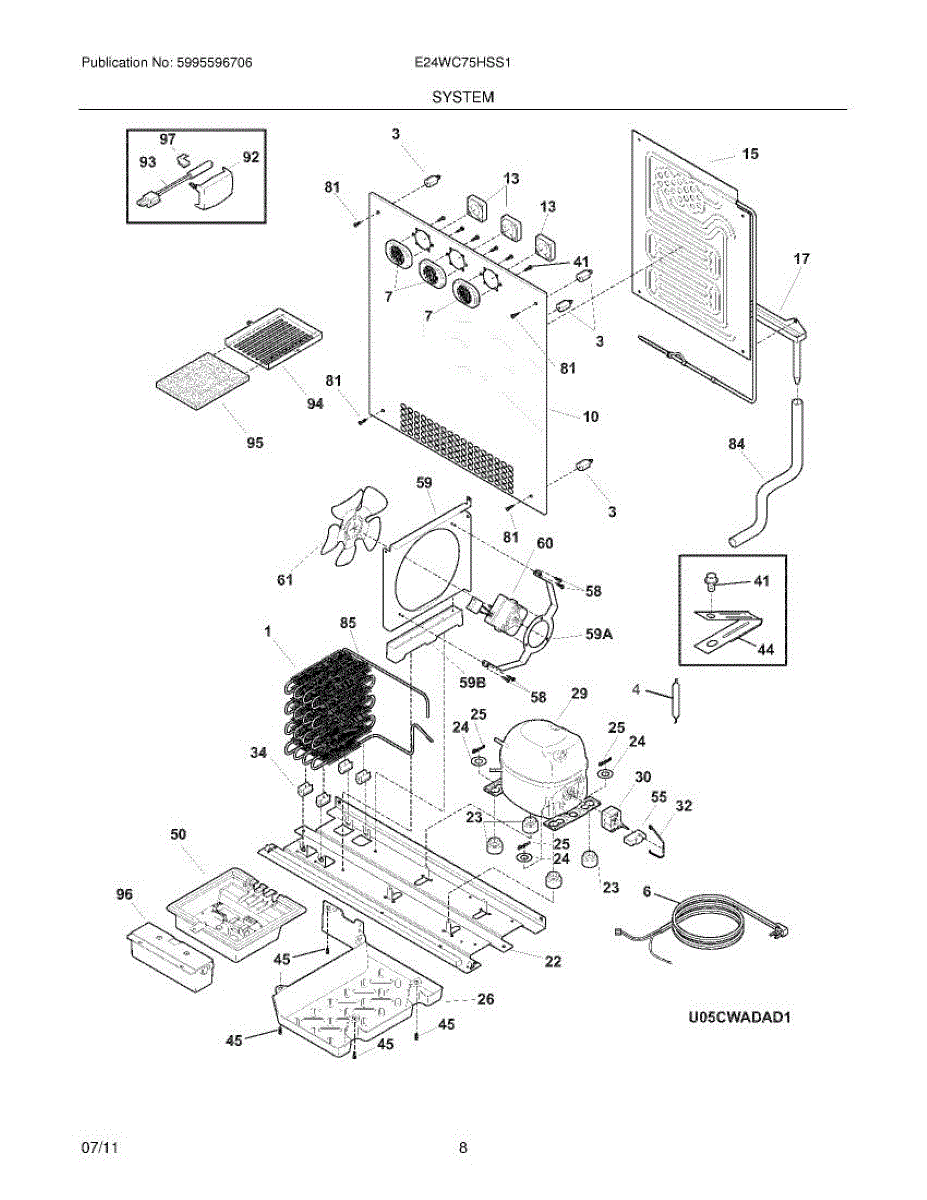

Parts for Electrolux E24WC75HSS1: 09 - System Parts

Includes service line.

Connects your refrigerator to the wall outlet to supply electricity. Replace if the original cord is frayed, damaged, or has exposed wires from wear or moving.

This fan cover is the molded housing that protects the evaporator fan and helps direct cold air through the freezer/refrigerator compartment for consistent cooling and quieter operation. What it does:

• Protects the evaporator fan and motor from ice, debris, and contact damage
• Channels airflow across the evaporator for efficient heat exchange
• Helps reduce fan noise and vibration by stabilizing the fan assembly
• Commonly replaced when broken, cracked, or causing rattling or reduced airflow

• Disconnect power to the appliance before starting any repair
• Remove interior panels and evaporator cover to access the fan housing; keep fasteners organized
• Handle edges carefully—plastic and metal components can be sharp
• Test appliance cooling after installation

Fix warm temperatures or frost buildup with this refrigerator evaporator. Restores proper cooling when the coil fails. Moderate difficulty repair.

Rubber grommet that mounts and cushions the compressor to reduce vibration transfer. Replace if cracked, worn, or missing to restore quiet operation.

Secures the compressor to the mounting bracket in your refrigerator. Replace if washer is missing, cracked, or worn to restore proper support.

Secures the compressor to the chassis, reducing movement and noise. Replace if your compressor shifts or rattles during operation. Confirm fit with model.

Secures interior trim and panels in place to eliminate gaps and rattling. Replace when clips break or go missing. Confirm fit with your model number.

Black rubber mounting grommet that secures tubes and wires in your refrigerator. Replace if cracked, worn, or missing to properly hold components in place.

Mounting screw for refrigerators and freezers. Secures panels, brackets, and internal components. Replace when stripped, missing, or damaged.

Secures wire harnesses and ground wires to your refrigerator cabinet. Replace if broken or missing to prevent wire damage. Verify fit with your model.

Refrigerator not cooling or compressor won't start? A failed run capacitor prevents the compressor from running. DIY repair in 10-15 minutes with video guide.

Replacement mounting screw for refrigerators and freezers. Secures shelves, handles, panels, and brackets. Replace missing, stripped, or rusted screws.

Refrigerator not cooling or making loud grinding noise? The condenser fan motor drives airflow to cool refrigerant. DIY repair in 30-60 minutes.

Refrigerator not cooling properly? A damaged condenser fan blade prevents airflow over the condenser coils. Quick DIY fix—simply push into place.

This #8-32 x 3/8 screw secures appliance panels, brackets, and assemblies. Replace a missing or stripped fastener to keep parts tight and aligned, reduce vibration, and restore proper fit in compatible refrigerators and freezers.

• Machine-thread fastener sized #8-32, 3/8-inch length
• Secures control housings, trims, covers, and support brackets per model design
• Replaces missing, worn, or corroded screws that cause loose or rattling parts
• Helps maintain alignment and stability after service

• Unplug the appliance; shut off water if applicable
• Match thread size to the original and start by hand to avoid cross-threading
• Use the correct driver; do not overtighten, especially into plastic
• Verify component alignment and operation after fastening

• Thread size: #8-32
• Length: 3/8 inch

Fixes incorrect temperature readings and short cycling. This thermistor monitors fridge temps and signals the control board. Moderate DIY repair.

Fix dim or flickering refrigerator lights with this LED power control board. Restores regulated power to interior LED lighting for consistent illumination.

Secures panels and components in your refrigerator to prevent rattling and misalignment. Replace if trim pieces are loose or parts shift. Verify fit with your model number.

Secures and organizes wires inside your appliance. Replace if broken, loose, or missing to prevent wire damage. Verify fit with your model number.

Intermediate wire harness for refrigerators and wine coolers. Connects electrical components inside the unit. Replace if wires are damaged or frayed.

Refrigerator door guide channel that helps align and support the door mechanism. Replace if cracked, broken, or worn to restore proper door alignment.

Secures tubes and wiring in your refrigerator. Replace if clips are broken or connections are loose. Confirm fit with your model number.

Secures the evaporator or condenser fan shroud to the refrigerator cabinet. Replace this mounting screw if stripped, missing, or broken during repair.

Secures refrigerator grille or trim to cabinet, preventing rattles and gaps. Replace when broken or missing to restore proper panel alignment. Verify fit with your model number before ordering.

Replacement mounting screw for refrigerator panels, handles, brackets, and internal fixtures. Order when original screws are stripped, lost, or damaged.

Specs: 10-16 X 0.500
