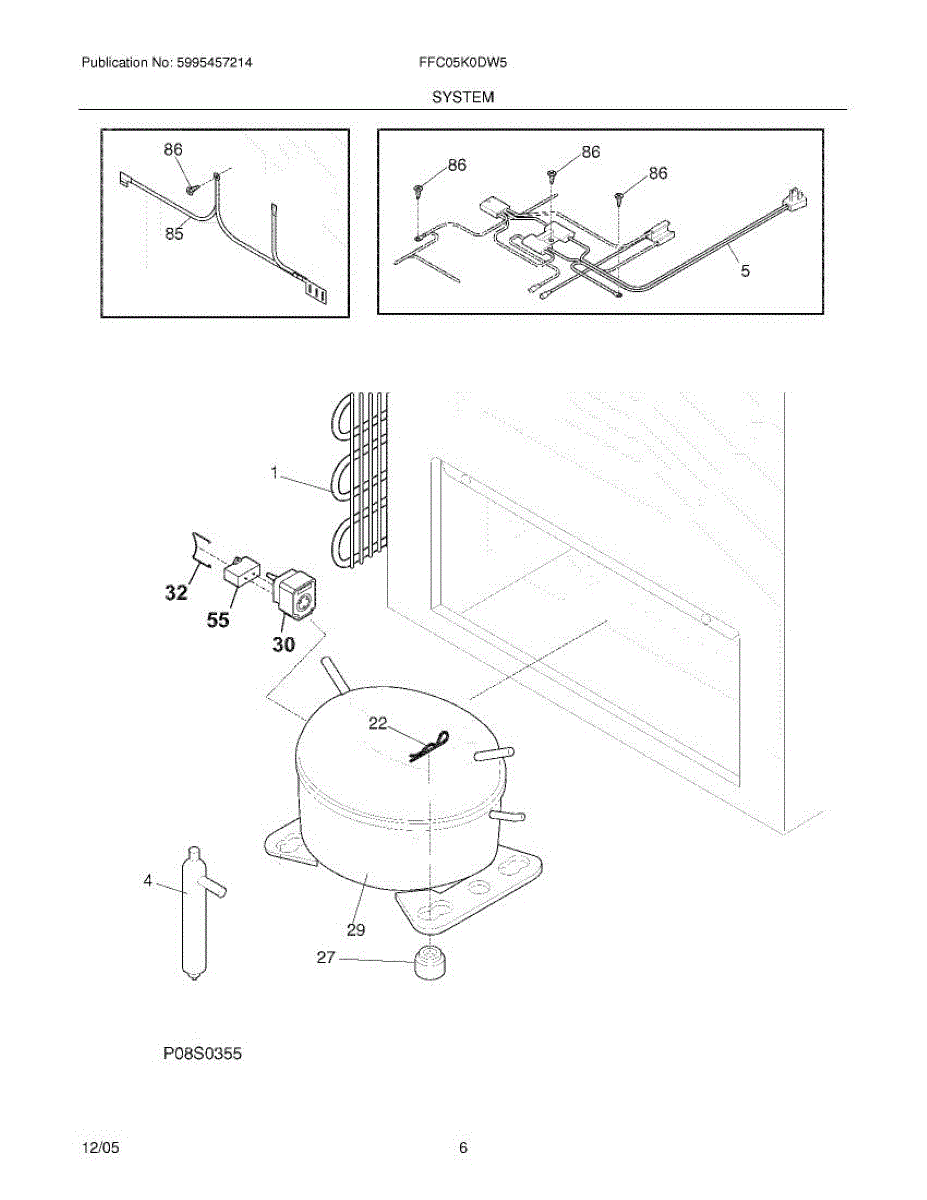

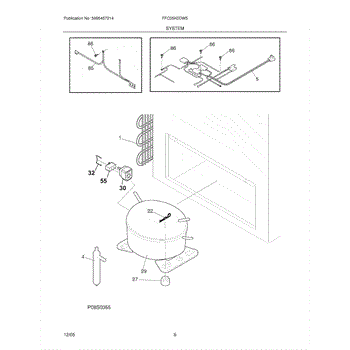

Parts for Frigidaire FFC05K0DW5: 07 - System Parts

Includes service line.

Wire harness for chest freezers. Connects electrical components inside the cabinet. Replace if wires are frayed, damaged, or connections are broken.

Secures compressor to mounting bracket in your refrigerator. Replace if clip is broken, loose, or causing vibration noise. Verify fit with your model number.

Rubber mounting grommet that cushions and isolates the compressor from the chassis. Replace if cracked, worn, or missing to restore proper support.

This is the compressor start device that helps the refrigerator's compressor motor start up by providing the initial surge of power needed to begin the compression cycle. It regulates current flow to the compressor windings during startup. Replace this part if the refrigerator is not cooling, the compressor clicks on and off repeatedly without running, or you hear a buzzing sound followed by a click coming from the back of the unit.

This capacitor stores and releases electrical energy to help the refrigerator's compressor start and run smoothly. Replacing a weak or failed capacitor can restore reliable compressor startup and more consistent cooling performance.

• Provides the electrical boost/phase shift needed for compressor motor startup and steady operation
• Works with the start device to deliver proper current to the compressor
• Failure symptoms can include clicking or humming near the compressor, poor cooling, or short cycling
• May cause the compressor not to start after power interruptions when weak or failed

• Disconnect power before servicing any electrical component
• Safely discharge the capacitor before handling; avoid touching terminals
• Note wire positions and terminal markings; transfer leads one at a time to the matching terminals
• Secure the capacitor in its mounting/bracket to prevent vibration damage
