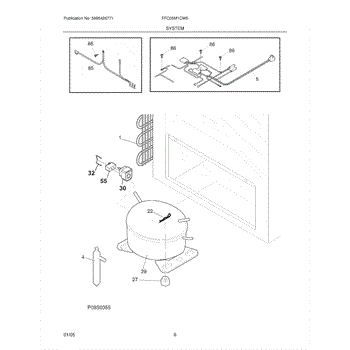

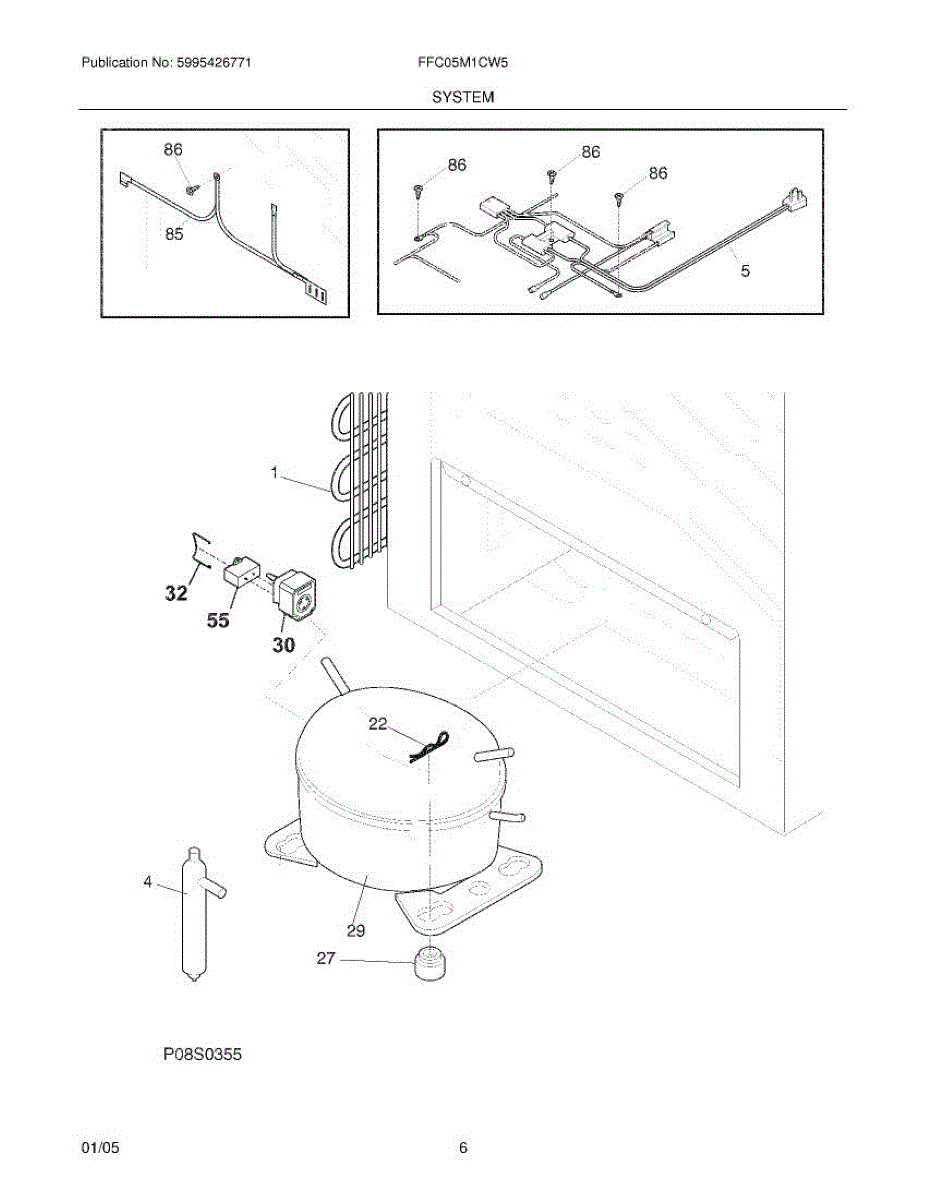

Parts for Frigidaire FFC05M1CW5: 07 - System Parts

Includes service line.

This compressor grommet is a rubber mounting isolator that cushions and secures the compressor to the appliance chassis, helping reduce vibration and noise while preventing metal-to-metal contact and premature wear. What it does:

• Cushions compressor movement to reduce vibration transmitted to the cabinet
• Dampens noise and rattling caused by compressor operation
• Prevents direct metal-to-metal contact that can wear mounting points
• Helps keep the compressor positioned and secured under load

• Disconnect power to the appliance before accessing the compressor or base pan
• Replace grommets while supporting the compressor to avoid strain on lines and connections
• Inspect remaining mounting grommets; replace all worn isolators for best performance

This electronic controller board manages key refrigeration functions and defrost routines so your appliance maintains proper temperatures. Replacing a failed board can restore automatic operation when cooling becomes erratic or frost buildup starts affecting performance.

• Governs programmed cooling and defrost cycles to help prevent frost accumulation and temperature swings
• Sends power to components per the control program, enabling fans, compressor, and heaters to run at the right time
• Typical failure signs: heavy frost on the evaporator, warm or no-cool conditions, nonstop running or short cycling, unresponsive controls
• May show visible damage such as burnt spots or a burnt odor on the board

• Disconnect power before servicing; use ESD protection and handle the board by the edges
• Access location varies by model; photograph wiring and move connectors one at a time to the new board
• Mount securely and ensure all harnesses are fully seated; avoid pinching wires during reassembly
• If frost was present, fully defrost the evaporator after installation and allow temperatures to stabilize after restoring power

This small mounting clip secures interior or cabinet components to keep panels and trim stable, helping reduce noise and maintain proper alignment. It's a simple replacement that restores a snug fit where the original clip has broken or worn. What it does:

• Holds panels, trim, or small components in place to prevent gaps or rattling
• Restores proper alignment of clipped parts after damage or wear
• Maintains a secure attachment point for adjacent parts during normal use
• Helps prevent moisture or debris from entering behind secured panels

• Disconnect power or unplug the appliance before accessing internal components
• Handle the clip and surrounding trim carefully to avoid cracking adjacent plastic
• Use basic hand tools as needed; do not force clips into place—align before snapping
• Replace any damaged mounting features for a secure fit

This capacitor stores and releases electrical energy to help the refrigerator's compressor start and run smoothly. Replacing a weak or failed capacitor can restore reliable compressor startup and more consistent cooling performance.

• Provides the electrical boost/phase shift needed for compressor motor startup and steady operation
• Works with the start device to deliver proper current to the compressor
• Failure symptoms can include clicking or humming near the compressor, poor cooling, or short cycling
• May cause the compressor not to start after power interruptions when weak or failed

• Disconnect power before servicing any electrical component
• Safely discharge the capacitor before handling; avoid touching terminals
• Note wire positions and terminal markings; transfer leads one at a time to the matching terminals
• Secure the capacitor in its mounting/bracket to prevent vibration damage
