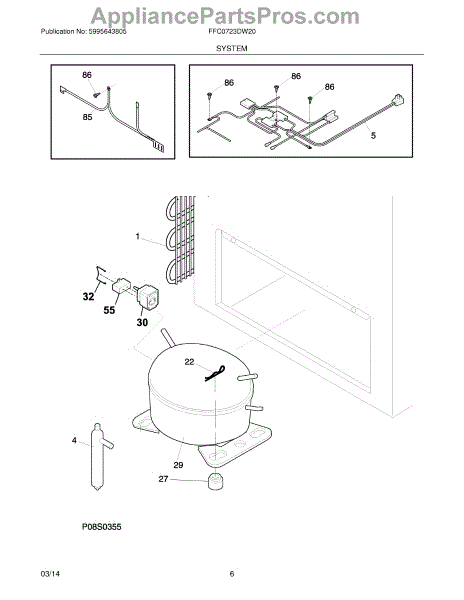

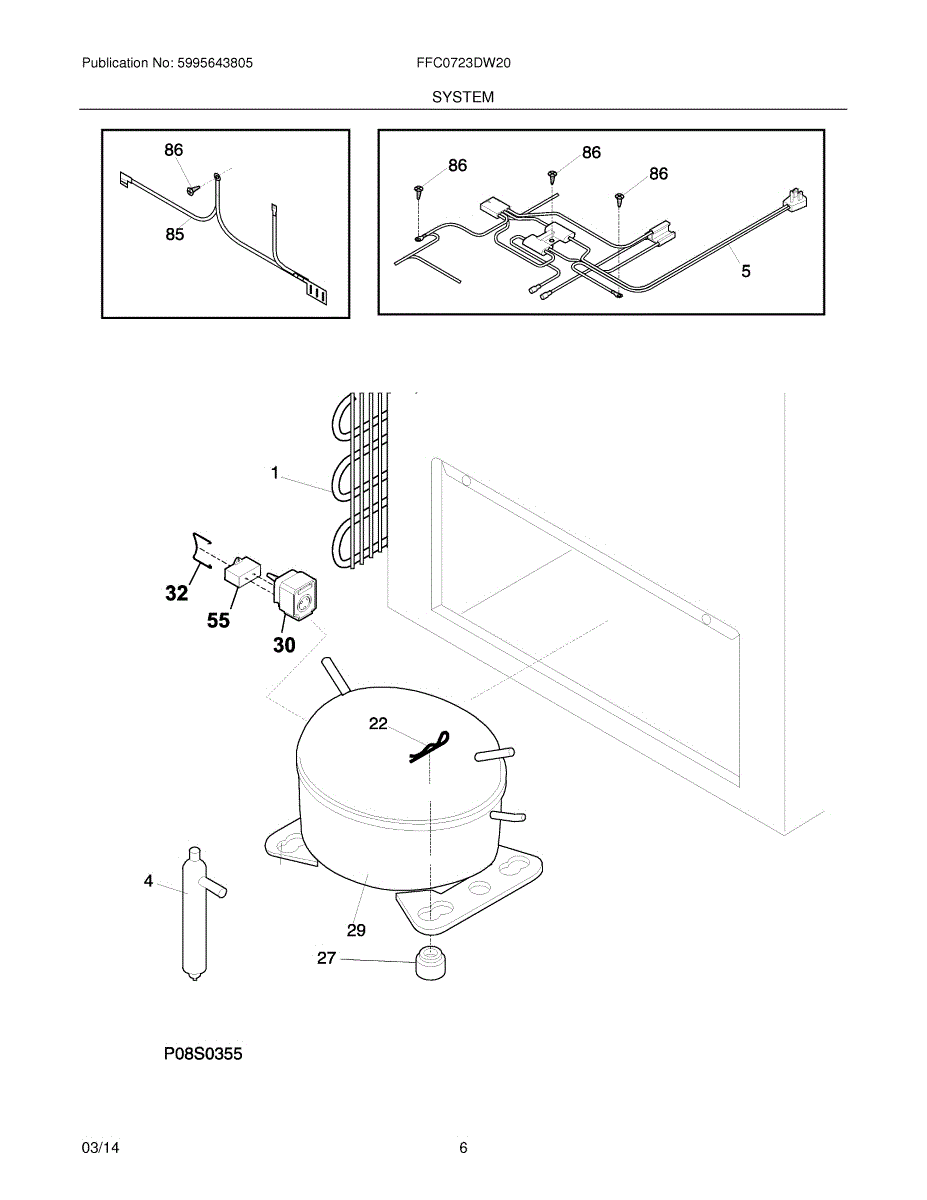

Parts for Frigidaire FFC0723DW20: 07 - System Parts

Includes service line.

This compressor mounting clip secures the compressor to its chassis to reduce movement and noise for reliable operation. It replaces worn or broken clips that allow the compressor to shift during use. What it does:

• Holds the compressor in place on the mounting bracket to prevent shifting
• Reduces vibration and rattling noises caused by a loose mount
• Helps maintain proper compressor alignment for steady operation
• Useful when a cracked or bent clip no longer secures the compressor

• Disconnect power to the appliance before accessing compressor area
• Inspect surrounding mounts and rubber isolators; replace if damaged
• Secure clip fully so compressor is held without forcing or misaligning components

Made for use with refrigerators by several major manufacturers, this is a full compressor kit. It is an internal part that is tasked with moving refrigerant throughout the appliance. It also works by adding pressure to part of the circuit to heat up the refrigerant. This creates a high pressure, hot gas that is moved to the compressor to be cooled and used to keep the appliance at the appropriate temperature. If the compressor is damaged or broken, it can cause the refrigerator to start making loud noises. The compressor may turn on and off more frequently than expected, created overheating and improper cooling, and create clicking noises. If the compressor kit is damaged, it should be replaced. Turn off the circuit breaker or unplug the refrigerator. Pull out the refrigerator and take off the access plate. Let it cool down before the compressor is removed. Use the contents of the kit to replace the part before reassembling and turning the power back on.This is a genuine OEM replacement part that can be used with Frigidaire, Kenmore, Gibson, Westinghouse, Tappan, Crosley, Kelvinator, Universal, and Electrolux freezers and refrigerators. It is sold as an individual part.

The Start Relay is an OEM replacement part for Frigidaire refrigerators. It is an electro-mechanical part that signals the refrigerator’s compressor to activate, initiating the cooling cycle. As the main switching mechanism that controls refrigerator operation, start relays experience considerable wear over thousands of on/off cycles.

Symptoms of a bad start relay include:

• Refrigerator failing to cool or compressor not engaging
• Constant humming sound but no cold air circulation
• Cooling performance declining noticeably over time

Causes of start relay failure generally relate to ongoing heat and electrical load stresses that slowly degrade insulation and wiring over the refrigerator’s lifetime. Corrosion from condensation or refrigerant leaks inside the unit can also compromise its function.

This OEM Frigidaire replacement relay is compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This small mounting clip secures interior or cabinet components to keep panels and trim stable, helping reduce noise and maintain proper alignment. It's a simple replacement that restores a snug fit where the original clip has broken or worn. What it does:

• Holds panels, trim, or small components in place to prevent gaps or rattling
• Restores proper alignment of clipped parts after damage or wear
• Maintains a secure attachment point for adjacent parts during normal use
• Helps prevent moisture or debris from entering behind secured panels

• Disconnect power or unplug the appliance before accessing internal components
• Handle the clip and surrounding trim carefully to avoid cracking adjacent plastic
• Use basic hand tools as needed; do not force clips into place—align before snapping
• Replace any damaged mounting features for a secure fit

The Run Capacitor is an OEM part for Frigidaire freezers. It is an electrical part that assists the compressor motor in starting up and running efficiently.

Causes of a bad run capacitor can include drying out and cracking of the insulating material over many power cycles, loose connections weakening over time, or electrical shorts from age.

Symptoms of a bad run capacitor include:

• Compressor failing to turn on or start consistently
• Buzzing or humming noises coming from inside the unit
• The freezer struggling to maintain proper temperatures
• Repeated tripping of the circuit breaker

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.
