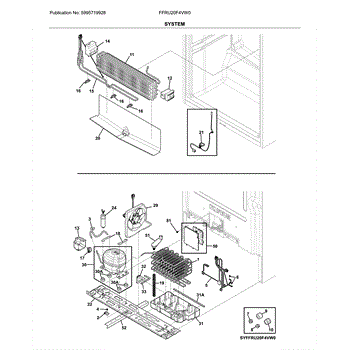

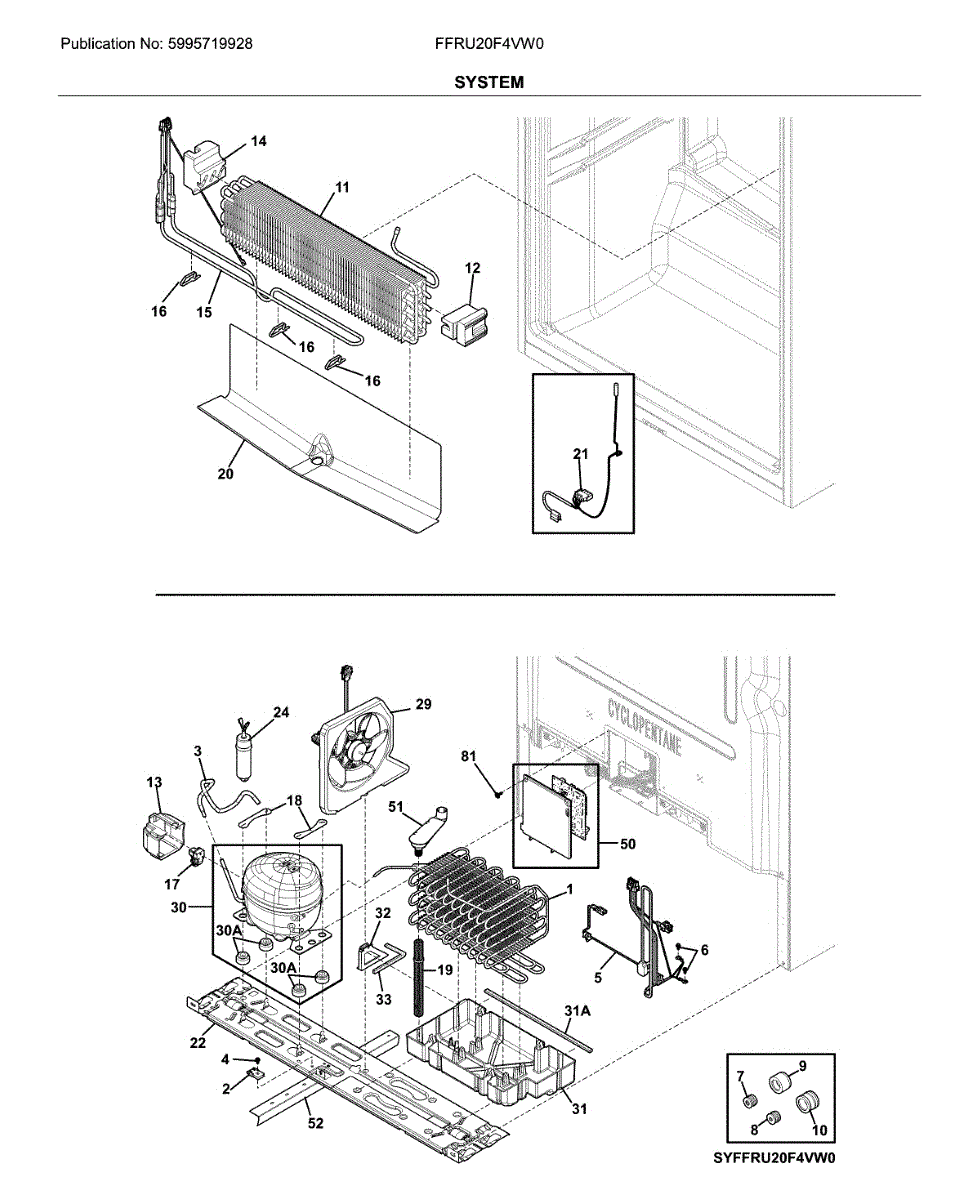

Parts for Frigidaire FFRU20F4VW0: System Parts

This evaporator drain tube channels defrost and condensation water from the freezer/refrigerator evaporator to the drain pan, helping prevent water buildup and pooling inside the cabinet. What it does

• Guides defrost and condensation water out of the evaporator area to the drain pan.
• Helps prevent water pooling under shelves or in the fresh-food compartment.
• Commonly replaced when cracked, clogged, or detached causes leaks or excess moisture.
• Works with the evaporator, drain funnel, and drain pan as part of the cabinet drainage system.

• One evaporator drain tube.

• Disconnect power before servicing to avoid electrical shock.
• Inspect surrounding drain funnel and pan for clogs or damage and clear debris before installing.
• Ensure tube is seated and routed per service manual to maintain proper drain flow and avoid kinks.

This hex head screw secures panels, brackets, and small components on appliances, restoring proper fit and stability. It's a direct replacement fastener when an original mounting screw is missing, loose, or damaged. What it does:

• Secures panels, brackets, trim, and internal components to prevent rattling or movement
• Replaces stripped, missing, or damaged mounting screws that cause loose parts or misalignment
• Restores reliable mechanical fastening so doors and panels sit flush and operate correctly
• Works as a general-purpose appliance mounting screw when original fasteners are worn

• Always disconnect power to the appliance before starting any repair
• Match the screw to the original location and thread engagement; start by hand to avoid cross-threading
• Use the correct driver or socket for the hex head and tighten until snug—do not overtighten
• If the original hole or threads are damaged, repair or replace the mating hardware before installing the screw

This factory heater restores controlled heat in the appliance's heating or defrost circuit so cycles complete correctly and performance returns to normal. Replacing a failed heater helps resolve temperature-related issues and reduces extended run times. What it does:

• Generates heat for the unit's designed function (wash/dry assist or defrost), depending on model
• A failed element can cause no heat, extended cycles, or temperature-related error codes
• Result in dishes staying wet or detergent not dissolving (dishwashers)
• Lead to frost/ice accumulation that doesn't melt during defrost (refrigeration)
• Often tests open (no continuity) when defective

• 1 heater

• Disconnect power before servicing; turn off water supply if applicable
• Access and mounting vary by model—refer to the product's service information
• Note wire positions; make firm, original-style connections and avoid stressing terminals
• After reassembly, run a test and check for leaks where the heater passes through the tub (if applicable)

This aluminum strap secures the defrost heater firmly against the evaporator coil to maintain proper contact during defrost. Correct contact improves heat transfer so frost melts evenly and helps prevent recurring ice buildup on the evaporator.

• Secures the defrost heater to the evaporator for proper contact and heat transfer
• Promotes complete, even defrosting across the evaporator coil
• Helps reduce repeat frost/ice accumulation caused by a shifted or loose heater
• Typical clues include a loose heater, uneven frost pattern, or rattling near the evaporator

• Disconnect power and allow ice to melt before accessing the evaporator
• Use care around sharp fins and fragile refrigerant tubing; do not puncture or deform the coil
• Position the heater per your model's parts diagram and tighten the strap for firm, even contact
• Verify wiring is routed clear of the fan and moving parts before reassembly

The Harness Assembly is an OEM part for Frigidaire freezers. It is a bundle of color-coded wires that connect electronic and mechanical components inside the freezer, allowing them to communicate and function as intended. The harness assembly reliably transmits signals from the control board to things like fans, temperature sensors, and door alarms.

Symptoms of a bad harness assembly include:

• Components not receiving power or control signals
• Intermittent operation of internal lights or fans
• Temperature control or cooling issues
• Buzzing or humming noises from loose wires
• Error codes related to communicating with modules

Causes of a bad dispenser can include damage over time from repeated bending and flexing of wires, rodent chewing, or corroded connections.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Capacitor is an OEM part for Frigidaire refrigerators. The capacitor is designed to start and run heavy motor loads like refrigeration compressors.

Causes of a bad capacitor are usually due to normal wear and tear over time. As refrigerators age, heat and vibration can degrade internal components like capacitors.

Symptoms of a bad capacitor include:

• The refrigerator compressor not starting or running intermittently
• Loud humming or buzzing sounds coming from inside the refrigerator or freezer
• The refrigerator not maintaining proper temperatures

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Condenser Fan Motor is an OEM part for Frigidaire refrigerators. Located behind the rear refrigerator wall and grille, the condenser fan motor works to dissipate heat from within the refrigerator system.

Symptoms of a bad condenser fan motor include:

• Refrigerator failing to adequately cool or ice up
• Increased humming and vibrations
• Elevated compressor run times
• Warm air discharge from rear grill

Causes of a bad condenser fan motor can include winding failures, bearing seizing, or obstructed fan blades no longer spinning freely.

This genuine OEM Frigidaire motor is compatible with some Electrolux, KitchenAid and Danby French door refrigerator models as well.

This compressor kit replaces a failed refrigerator compressor and the small electrical parts needed to restore the cooling system. It provides a ready set of components to help the appliance pump refrigerant and maintain proper temperatures. What it does:

• Replaces the refrigerator compressor motor that circulates refrigerant through the cooling loop
• Includes the basic electrical start/run parts needed to help the compressor restart and run reliably
• Commonly used when the appliance fails to cool or the compressor hums but doesn't start
• Helps address symptoms like warm temperatures in the fridge/freezer and a non-cycling compressor

• One compressor and accompanying electrical components as shipped

• Installation requires handling refrigerant lines and should be performed per local refrigerant and safety regulations
• Power to the appliance must be disconnected before starting work
• Replace any refrigerant and service fittings per OEM instructions; use correct refrigerant and oil specified by manufacturer
• Verify electrical connections and test for leaks after installation

This main control board is the oven/range electronic control that manages cooking functions, timing and user interface. Replacing a faulty board restores responsive controls and reliable operation for affected functions. What it does:

• Controls oven and cooktop functions, timers, and cycle sequencing
• Manages the user interface and display signals
• Can resolve unresponsive or intermittently working controls
• Stop error-code symptoms tied to a failed electronic control

• Disconnect power to the appliance before starting work to avoid shock or damage
• Handle the board by edges and avoid static discharge; use ESD precautions
• Follow factory wiring diagrams and mounting locations exactly

The Fan Seal and Drain Tube Kit is an OEM part cfor Frigidaire refrigerators. This comprehensive kit contains the rubber seal between the condenser fan motor and evaporator cover, as well as the drain tube that directs condensation away from electrical components.

Causes of a faulty kit can include deterioration of seals over many years, cracks developing in the drain tube, or misalignment preventing full contact and ventilation.

Symptoms pointing to a bad fan seal and drain tube set are:

• Water pooling or moisture inside rear refrigerator walls
• Excessive frost or ice buildup despite proper temperatures
• Strange noises or vibrations from air circulation issues
• Potential electrical problems due to condensation contact

Note: This kit includes a cover, drain tube connection, and sealing tape.

This OEM Frigidaire replacement kit restores ventilation and condensation control. It is also compatible with Electrolux, Gibson, and Kelvinator models.


This baffle directs cold air inside the refrigerator to help maintain even temperatures and proper airflow. Replacing a damaged or missing baffle restores intended air circulation and helps performance. What it does

• Channels and directs airflow between compartments for more consistent cooling.
• Helps prevent warm spots caused by blocked or misdirected air.
• Reduces stress on the cooling system by restoring designed airflow paths.
• Commonly replaced when cracked, broken, or missing, or when airflow is visibly obstructed.

• Unplug the appliance or disconnect power before starting any work.
• Remove food, shelves, and drawers as needed for access; handle components gently to avoid damage.
• Inspect mounting points and gaskets; replace any damaged fasteners or seals.
• Refer to OEM instructions for model-specific removal/replacement steps.

This replacement screw fastens appliance components so panels, brackets, and covers stay securely in place. Replace a missing, stripped, or damaged screw to restore a tight fit and help prevent vibration or noise. What it does:

• Secures panels, brackets, trim, or covers as designed for your model
• Replaces missing, rusted, or stripped hardware
• Helps correct loose or misaligned components
• Reduces vibration and rattling from loose fasteners

• Includes: 1 screw

• Disconnect power before servicing
• Wear gloves and eye protection
• Use the correct driver to avoid stripping the screw head
• Tighten snugly without overtightening; refer to your model's parts diagram for exact location
