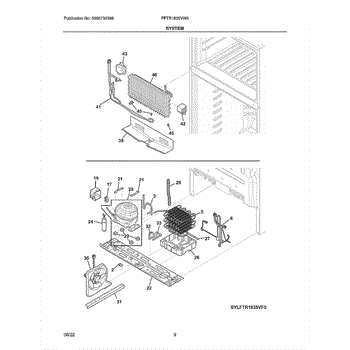

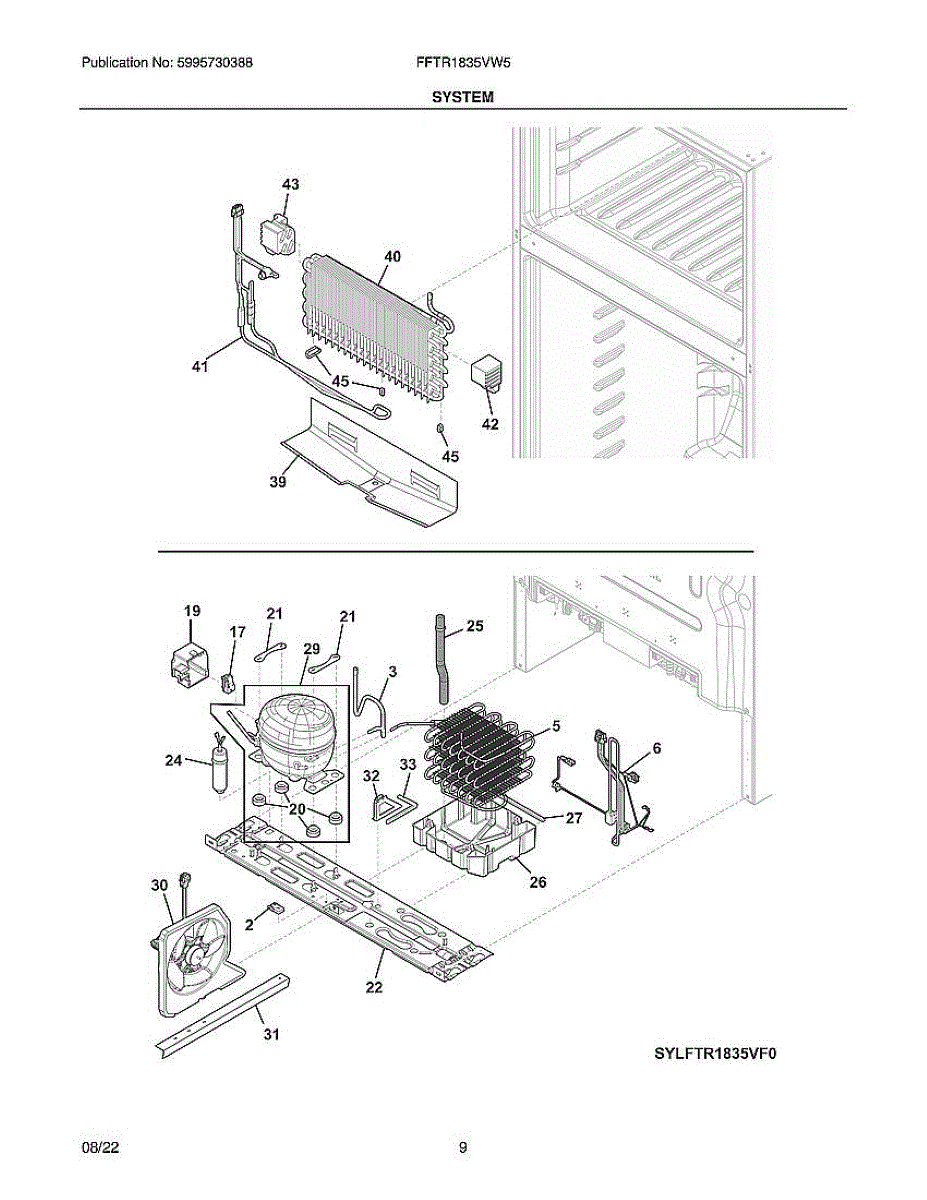

Parts for Frigidaire FFTR1835VW5: System Parts

This filter-drier removes moisture and contaminants from a refrigerator's sealed refrigerant circuit to help protect the compressor and improve cooling reliability. It's a service replacement for sealed-system repairs. What it does:

• Traps moisture and acid from refrigerant to reduce corrosion and oil breakdown.
• Captures particulate debris that can clog expansion devices and reduce cooling.
• Helps restore proper refrigerant flow after a compressor or tubing repair.
• Common symptom: system not cooling efficiently or refrigerant circuit contaminated after failures.

• One filter-drier (quantity: 1)

• Intended for certified HVAC/refrigeration technicians only; sealed-system service requires proper tools and refrigerant handling.
• Replace only when the system is opened for repair (compressor, tubing, or evaporator replacement).
• Must be brazed into the liquid line, evacuated, and charged per manufacturer refrigerant and service specs.
• Dispose of and handle used refrigerant and components according to local regulations.

This condenser coil assembly removes heat from the refrigerator's refrigerant so the appliance can cool properly. Replacing a damaged condenser helps restore efficient cooling and reduces compressor run time. What it does:

• Condenses refrigerant from a gas to a liquid so the cooling cycle can continue
• Supports proper heat rejection from the cooling system
• A faulty or clogged condenser can cause poor cooling, long run cycles, or a hot cabinet exterior
• Works with the condenser fan and compressor as part of the fridge's refrigeration system

• Disconnect power to the appliance before starting any service
• Work on a stable surface; condenser edges may be sharp—wear gloves and eye protection
• Inspect and clean the condenser area and condenser fan while replacing the part

The Wire Harness is an OEM part for Frigidaire refrigerators. It is a bundled set of multi-colored insulated wires that connect electronic and mechanical components inside the refrigerator. The wire harness reliably transmits power and control signals throughout the appliance.

Symptoms of a bad wire harness include:

• Loose, frayed, or damaged wiring
• Intermittent operation of lights, fans or temperature control
• Buzzing or humming noises coming from wires
• Error codes related to communicating with modules

Causes of a bad wire harness can include insulation cracking from repeated flexing/bending over time and exposure to liquid or rodent damage. This puts components at risk of short-circuits.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models. Replace yours today to avoid potential electrical issues.

The Start Device is an OEM part for Frigidaire refrigerators. It is responsible for initiating the electrical power to the compressor, enabling it to start functioning.

Causes tend to relate to standard wear over time. Moisture exposure can also impact durability.

Symptoms of a faulty start device can include:

• The compressor not starting or running intermittently
• Unusual clicking or buzzing sounds coming from the appliance
• Temperature fluctuations inside the refrigerator or freezer
• Complete loss of cooling or freezing capabilities
• Overheating of the compressor
• Burnt or damaged electrical connections near the start device

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.


This replacement cover protects internal components and restores the appliance's exterior finish. It fits where the original cover was damaged, cracked, or missing to help keep parts shielded from dirt and debris. What it does:

• Replaces a damaged or missing cover to protect internal components and wiring
• Prevents dust, lint, and small debris from reaching sensitive parts
• Restores a finished appearance to the area where the original cover was mounted
• Helps maintain proper airflow paths when fitted correctly

• One replacement cover

• Disconnect power (unplug or shut off circuit breaker) before starting any repair
• Handle edges carefully; use gloves to avoid cuts from sheet metal or mounting tabs
• Remove fasteners holding the old cover, align replacement, and secure with the original screws or clips

This base assembly is the molded cabinet base that supports and houses lower refrigerator components, helping keep parts aligned and directing condensation to the drain. Replacing a damaged base restores stable support and helps prevent leaks. What it does:

• Provides structural support for compressor, evaporator pan and lower components
• Channels condensation and defrost water toward the drain path
• Secures wiring and tubing routing at the refrigerator's bottom
• Can cause vibration, rattling, leaning, or water pooling when cracked or broken

• Disconnect power before starting and work on a cool, empty appliance
• Remove lower access panels and components per factory service instructions to access the base
• Inspect and reuse or replace fasteners, clips and gaskets as needed for a proper fit

The Capacitor is an OEM part for Frigidaire refrigerators. It is part of the refrigerator's electrical system, responsible for providing a boost of power to start the compressor.

A bad capacitor can be caused by electrical issues, component failure, or damage. When the capacitor becomes faulty, it can result in issues such as the compressor not starting, inadequate cooling, or the refrigerator not running at all.

Symptoms of a bad capacitor include:

• The refrigerator not cooling properly
• Unusual noises from the compressor
• Compressor turning on and off rapidly
• The refrigerator not running at all

Replace your faulty capacitor with this genuine OEM Frigidaire part to restore your refrigerator. This Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.


This tube is a direct-replacement plumbing/air line used in compatible Frigidaire appliances to route fluid or condensate. It restores proper flow and helps prevent leaks or pooling when the original tube is damaged or clogged. What it does:

• Channels water or condensate away from components to the appropriate drain or collection area
• Prevents leaks and water pooling caused by cracked, split, or collapsed tubing
• Helps restore normal dispenser/drain operation when original tubing is blocked or deteriorated
• Works as a simple, low-risk part to replace during troubleshooting of water-routing issues

• One replacement tube as shown

• Inspect the existing routing and connections before removal; replace with identical routing to avoid kinks or interference
• Use appropriate clamps or fittings and tighten securely to prevent leaks
• Disconnect power and water supply as applicable before servicing to prevent shock or flooding

This replacement pan collects condensate and drips to keep the appliance base dry and prevent water damage. It fits into the designated tray area and restores proper drainage for reliable operation. What it does:

• Catches defrost or condensation runoff to prevent puddling under the appliance
• Guides water toward the drain/evaporation area so the appliance can manage moisture
• Helps reduce musty smells and corrosion caused by standing water
• Works as the proper receptacle when the original pan is cracked, warped, or missing

• One replacement pan

• Disconnect power (or unplug) and remove access panels before installing
• Remove old pan carefully—dispose of any standing water and clean the area before installing the new pan
• Seat the pan fully in its mounting location so drains align; avoid forcing parts into place
• If you encounter damaged clips, screws, or surrounding components, replace or repair those items before use

This replacement mounting screw fastens panels and components in compatible Frigidaire appliances to restore secure assembly and reduce rattling or loose parts. Simple fastener sized for the original factory location. What it does:

• Secures panels, brackets, or trim to keep parts aligned and stable
• Prevents vibration and noise caused by loose fittings
• Restores proper attachment after repair or disassembly
• Matches the OEM thread and length for a correct fit when specified

• Use the correct screw hole and do not force; cross-threading can damage components
• Tighten to a snug fit—do not overtighten to avoid stripping threads or cracking plastic
• Power tools can be used with care; slow speed and proper bit help prevent slippage
• Turn off power and disconnect the appliance before accessing internal parts

This compressor kit replaces a failed refrigerator compressor and the small electrical parts needed to restore the cooling system. It provides a ready set of components to help the appliance pump refrigerant and maintain proper temperatures. What it does:

• Replaces the refrigerator compressor motor that circulates refrigerant through the cooling loop
• Includes the basic electrical start/run parts needed to help the compressor restart and run reliably
• Commonly used when the appliance fails to cool or the compressor hums but doesn't start
• Helps address symptoms like warm temperatures in the fridge/freezer and a non-cycling compressor

• One compressor and accompanying electrical components as shipped

• Installation requires handling refrigerant lines and should be performed per local refrigerant and safety regulations
• Power to the appliance must be disconnected before starting work
• Replace any refrigerant and service fittings per OEM instructions; use correct refrigerant and oil specified by manufacturer
• Verify electrical connections and test for leaks after installation

The Defrost Heater is an OEM part for Frigidaire refrigerators. It melts the ice buildup that occurs on the evaporator coils. The defrost heater is an element that generates warmth during scheduled defrost cycles, making sure the excess ice and frost are cleared away.

Causes of failure for a defrost heater may be related to cracked or broken heating filaments over many heating and cooling cycles. Natural wear and tear can weaken the heater structure.

Symptoms of a bad defrost heater include:

• Excessive ice or frost buildup inside fridge and freezer
• Inability of refrigerator to maintain set temperatures
• Frost or condensation appearing outside of refrigerator

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This hex head screw secures panels, brackets, and small components on appliances, restoring proper fit and stability. It's a direct replacement fastener when an original mounting screw is missing, loose, or damaged. What it does:

• Secures panels, brackets, trim, and internal components to prevent rattling or movement
• Replaces stripped, missing, or damaged mounting screws that cause loose parts or misalignment
• Restores reliable mechanical fastening so doors and panels sit flush and operate correctly
• Works as a general-purpose appliance mounting screw when original fasteners are worn

• Always disconnect power to the appliance before starting any repair
• Match the screw to the original location and thread engagement; start by hand to avoid cross-threading
• Use the correct driver or socket for the hex head and tighten until snug—do not overtighten
• If the original hole or threads are damaged, repair or replace the mating hardware before installing the screw

This replacement screw fastens appliance components so panels, brackets, and covers stay securely in place. Replace a missing, stripped, or damaged screw to restore a tight fit and help prevent vibration or noise. What it does:

• Secures panels, brackets, trim, or covers as designed for your model
• Replaces missing, rusted, or stripped hardware
• Helps correct loose or misaligned components
• Reduces vibration and rattling from loose fasteners

• Includes: 1 screw

• Disconnect power before servicing
• Wear gloves and eye protection
• Use the correct driver to avoid stripping the screw head
• Tighten snugly without overtightening; refer to your model's parts diagram for exact location
