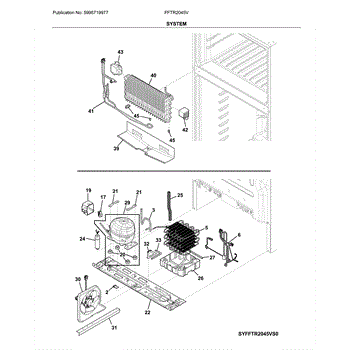

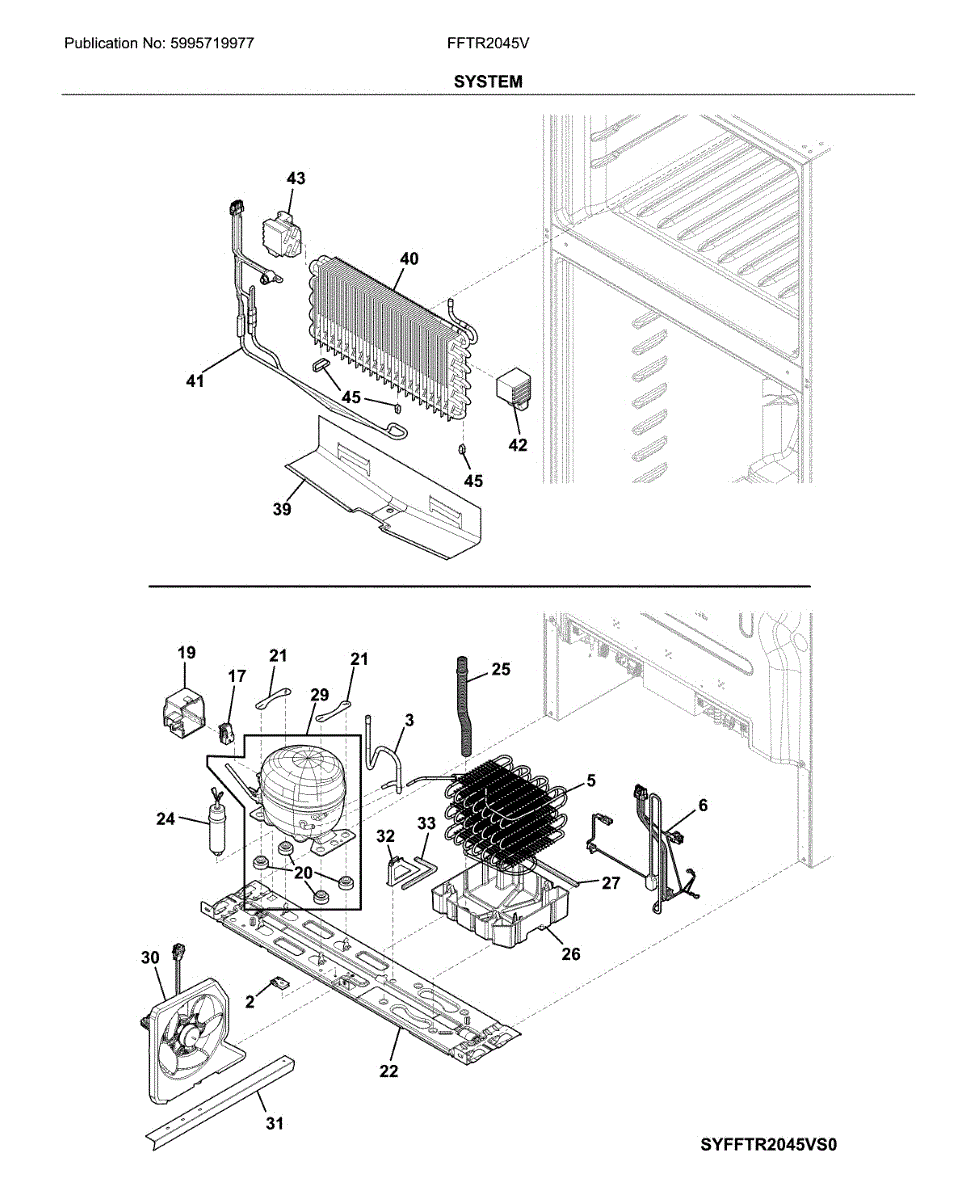

Parts for Frigidaire FFTR2045VW0: System Parts

This condenser coil assembly removes heat from the refrigerator's refrigerant so the appliance can cool properly. Replacing a damaged condenser helps restore efficient cooling and reduces compressor run time. What it does:

• Condenses refrigerant from a gas to a liquid so the cooling cycle can continue
• Supports proper heat rejection from the cooling system
• A faulty or clogged condenser can cause poor cooling, long run cycles, or a hot cabinet exterior
• Works with the condenser fan and compressor as part of the fridge's refrigeration system

• Disconnect power to the appliance before starting any service
• Work on a stable surface; condenser edges may be sharp—wear gloves and eye protection
• Inspect and clean the condenser area and condenser fan while replacing the part

The Wire Harness is an OEM part for Frigidaire refrigerators. It is a bundled set of multi-colored insulated wires that connect electronic and mechanical components inside the refrigerator. The wire harness reliably transmits power and control signals throughout the appliance.

Symptoms of a bad wire harness include:

• Loose, frayed, or damaged wiring
• Intermittent operation of lights, fans or temperature control
• Buzzing or humming noises coming from wires
• Error codes related to communicating with modules

Causes of a bad wire harness can include insulation cracking from repeated flexing/bending over time and exposure to liquid or rodent damage. This puts components at risk of short-circuits.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models. Replace yours today to avoid potential electrical issues.

The Start Relay is an OEM part for Frigidaire refrigerators. As an electronic switch, it is designed to receive signals from the control board to safely initiate power to the refrigerator systems. The relay allows the control functions to command starting compressors and fans without overloading circuits directly.

Causes of a faulty start relay include normal wear of the contacts and coil over thousands of relay operations. Mineral accumulation can also lead to arcing or resistance buildup.

Symptoms of failure involve:

• Inability to power on or cool properly
• Clicking sounds but compressors not engaging
• Repeated tripping of circuit breakers during use

This OEM Frigidaire replacement ensures reliable starting and cooling. This relay is also compatible with Electrolux, Gibson, and select Kenmore-branded fridges.

This replacement cover protects internal components and restores the appliance's exterior finish. It fits where the original cover was damaged, cracked, or missing to help keep parts shielded from dirt and debris. What it does:

• Replaces a damaged or missing cover to protect internal components and wiring
• Prevents dust, lint, and small debris from reaching sensitive parts
• Restores a finished appearance to the area where the original cover was mounted
• Helps maintain proper airflow paths when fitted correctly

• One replacement cover

• Disconnect power (unplug or shut off circuit breaker) before starting any repair
• Handle edges carefully; use gloves to avoid cuts from sheet metal or mounting tabs
• Remove fasteners holding the old cover, align replacement, and secure with the original screws or clips

This rubber grommet cushions and protects wiring, tubing or mounting points to reduce vibration and prevent chafing. It restores a tighter fit where the original grommet has worn, torn or become brittle. What it does:

• Cushions and isolates wiring, hoses, or mounting studs to reduce vibration and noise
• Prevents chafing and abrasion where components pass through metal or plastic openings
• Helps maintain proper alignment and fit of panels or assemblies
• Common symptom: visible wear, cracking, a loose or rattling component near the grommet location

• One grommet

• Disconnect power and water before servicing the appliance
• Inspect surrounding components for damage and replace any additional worn seals
• Gently press the grommet into place; small hand tools or a blunt plastic driver may help
• If routing wires or hoses, ensure they sit fully inside the grommet to prevent chafing

This base assembly is the molded cabinet base that supports and houses lower refrigerator components, helping keep parts aligned and directing condensation to the drain. Replacing a damaged base restores stable support and helps prevent leaks. What it does:

• Provides structural support for compressor, evaporator pan and lower components
• Channels condensation and defrost water toward the drain path
• Secures wiring and tubing routing at the refrigerator's bottom
• Can cause vibration, rattling, leaning, or water pooling when cracked or broken

• Disconnect power before starting and work on a cool, empty appliance
• Remove lower access panels and components per factory service instructions to access the base
• Inspect and reuse or replace fasteners, clips and gaskets as needed for a proper fit

The Capacitor is an OEM part for Frigidaire refrigerators. As an electrical component, it works behind the scenes to help power the compressor and ensure smooth, reliable refrigeration. Proper capacitor functioning is vital for starting and running the compressor motor efficiently.

Symptoms of a faulty capacitor can include:

• Inconsistent cooling power with temperature fluctuations
• The refrigerator fails to start or cycles on and off frequently
• Buzzing or humming sounds coming from inside walls
• Cases of warm food due to inadequate freezing and cooling abilities

Potential causes involve natural breakdown over many compressor start-up cycles accumulated over 10+ years. Damage from power surges is also possible.

Replace it with this genuine Frigidaire part to restore durable electrical support for the component operation. It prevents further wear and unnecessary service calls. Compatible with some Electrolux, KitchenAid, and Kenmore models that use Frigidaire components.


This tube is a direct-replacement plumbing/air line used in compatible Frigidaire appliances to route fluid or condensate. It restores proper flow and helps prevent leaks or pooling when the original tube is damaged or clogged. What it does:

• Channels water or condensate away from components to the appropriate drain or collection area
• Prevents leaks and water pooling caused by cracked, split, or collapsed tubing
• Helps restore normal dispenser/drain operation when original tubing is blocked or deteriorated
• Works as a simple, low-risk part to replace during troubleshooting of water-routing issues

• One replacement tube as shown

• Inspect the existing routing and connections before removal; replace with identical routing to avoid kinks or interference
• Use appropriate clamps or fittings and tighten securely to prevent leaks
• Disconnect power and water supply as applicable before servicing to prevent shock or flooding

This replacement pan collects condensate and drips to keep the appliance base dry and prevent water damage. It fits into the designated tray area and restores proper drainage for reliable operation. What it does:

• Catches defrost or condensation runoff to prevent puddling under the appliance
• Guides water toward the drain/evaporation area so the appliance can manage moisture
• Helps reduce musty smells and corrosion caused by standing water
• Works as the proper receptacle when the original pan is cracked, warped, or missing

• One replacement pan

• Disconnect power (or unplug) and remove access panels before installing
• Remove old pan carefully—dispose of any standing water and clean the area before installing the new pan
• Seat the pan fully in its mounting location so drains align; avoid forcing parts into place
• If you encounter damaged clips, screws, or surrounding components, replace or repair those items before use

The Condenser Fan Motor is an OEM part for Frigidaire refrigerators. Located behind the rear refrigerator wall and grille, the condenser fan motor works to dissipate heat from within the refrigerator system.

Symptoms of a bad condenser fan motor include:

• Refrigerator failing to adequately cool or ice up
• Increased humming and vibrations
• Elevated compressor run times
• Warm air discharge from rear grill

Causes of a bad condenser fan motor can include winding failures, bearing seizing, or obstructed fan blades no longer spinning freely.

This genuine OEM Frigidaire motor is compatible with some Electrolux, KitchenAid and Danby French door refrigerator models as well.

This baffle channels cold-air inside the refrigerator compartment to help maintain consistent temperatures and efficient cooling. It replaces a damaged or missing baffle to restore proper airflow and temperature balance. What it does:

• Directs and controls airflow from the evaporator into the fresh-food compartment
• Helps maintain even temperatures and reduce hot spots
• Prevents direct airflow that can freeze exposed items or cause frost buildup
• Restores proper circulation when a cracked, warped, or missing baffle causes performance issues

• Disconnect power to the appliance before starting any repair
• Remove any shelves or drawers that block access to the baffle
• Align tabs or mounting points and snap or secure the baffle into place per the service manual

The Defrost Heater is an OEM part for Frigidaire refrigerators. It melts the ice buildup that occurs on the evaporator coils. The defrost heater is an element that generates warmth during scheduled defrost cycles, making sure the excess ice and frost are cleared away.

Causes of failure for a defrost heater may be related to cracked or broken heating filaments over many heating and cooling cycles. Natural wear and tear can weaken the heater structure.

Symptoms of a bad defrost heater include:

• Excessive ice or frost buildup inside fridge and freezer
• Inability of refrigerator to maintain set temperatures
• Frost or condensation appearing outside of refrigerator

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This support mounting bracket secures and steadies a key appliance component, helping maintain proper alignment and reliable operation. It's a direct-fit replacement designed to restore part stability and reduce movement-related issues. What it does:

• Provides structural support and alignment for the associated assembly
• Helps prevent sagging, misalignment, or excessive vibration of the component
• Restores reliable mounting after a cracked, bent, or missing support
• Supports normal operation by keeping parts correctly positioned

• One support mounting bracket

• Install with factory-recommended fasteners; inspect surrounding parts for wear before reassembly
• Use basic hand tools; avoid overtightening fasteners which can deform the part
• Disconnect power to the appliance if required to access the mounting area

This aluminum strap secures the defrost heater firmly against the evaporator coil to maintain proper contact during defrost. Correct contact improves heat transfer so frost melts evenly and helps prevent recurring ice buildup on the evaporator.

• Secures the defrost heater to the evaporator for proper contact and heat transfer
• Promotes complete, even defrosting across the evaporator coil
• Helps reduce repeat frost/ice accumulation caused by a shifted or loose heater
• Typical clues include a loose heater, uneven frost pattern, or rattling near the evaporator

• Disconnect power and allow ice to melt before accessing the evaporator
• Use care around sharp fins and fragile refrigerant tubing; do not puncture or deform the coil
• Position the heater per your model's parts diagram and tighten the strap for firm, even contact
• Verify wiring is routed clear of the fan and moving parts before reassembly

This hex head screw secures panels, brackets, and small components on appliances, restoring proper fit and stability. It's a direct replacement fastener when an original mounting screw is missing, loose, or damaged. What it does:

• Secures panels, brackets, trim, and internal components to prevent rattling or movement
• Replaces stripped, missing, or damaged mounting screws that cause loose parts or misalignment
• Restores reliable mechanical fastening so doors and panels sit flush and operate correctly
• Works as a general-purpose appliance mounting screw when original fasteners are worn

• Always disconnect power to the appliance before starting any repair
• Match the screw to the original location and thread engagement; start by hand to avoid cross-threading
• Use the correct driver or socket for the hex head and tighten until snug—do not overtighten
• If the original hole or threads are damaged, repair or replace the mating hardware before installing the screw
