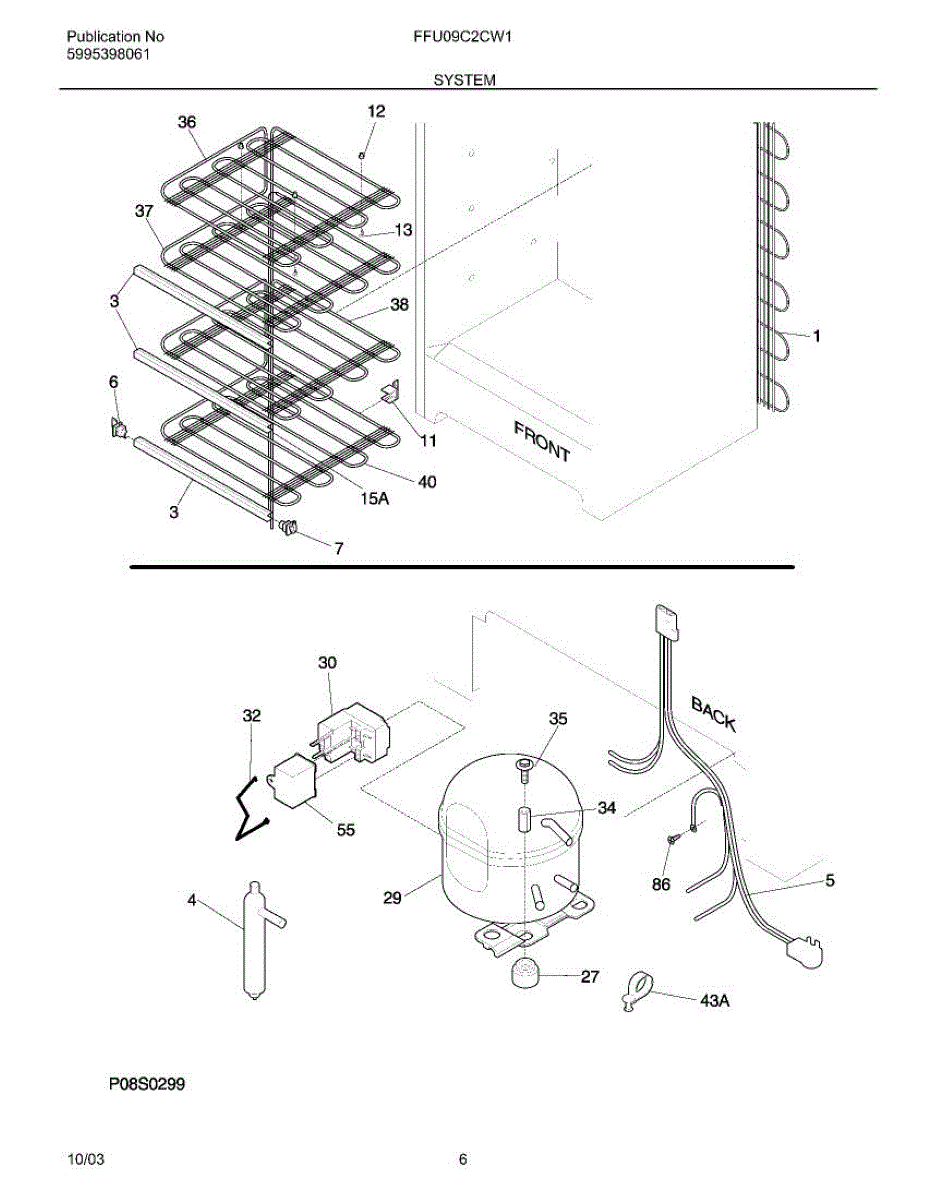

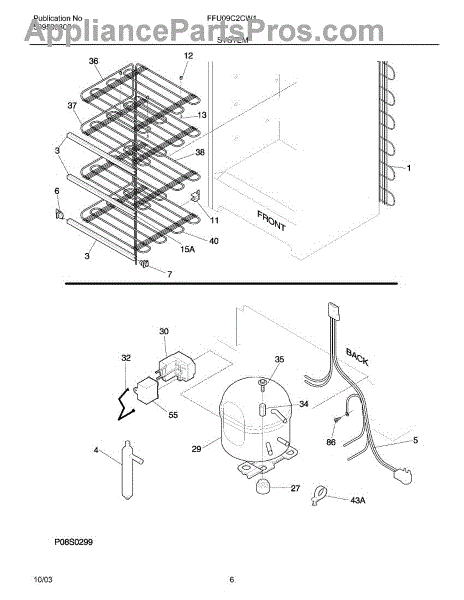

Parts for Frigidaire FFU09C2CW1: 07 - System Parts

Includes service line.

The Support is an OEM part for Frigidaire refrigerators. This component is designed to provide structural stability and support within the refrigerator, ensuring that various internal parts remain securely in place during operation.

Over time, the support can wear out or become damaged due to regular use, heavy loads, or accidental impacts. Issues such as the refrigerator shelves not staying in place, unusual noises during operation, or visible damage to the support structure are signs that a replacement may be necessary.

Symptoms of a bad support include:

• Shelves not staying in place
• Unusual noises during operation
• Visible damage to the support structure

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Support-Shelf is an OEM part for Frigidaire freezers, designed to provide sturdy and reliable support for the freezer shelves. This part ensures that the shelves remain level and secure under the weight of stored items.

Causes of a bad Support-Shelf can range from overloading shelves beyond their weight capacity, to normal wear and tear from years of use.

Symptoms of a bad Support-Shelf include:

• Shelves sagging or not sitting level, which can lead to inefficient storage and the risk of items falling.
• Cracks or breaks in the support, compromising the stability of the entire shelving system.
• Difficulty installing or removing shelves, indicating that the supports may be damaged or misshapen.

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This compressor grommet is a rubber mounting isolator that cushions and secures the compressor to the appliance chassis, helping reduce vibration and noise while preventing metal-to-metal contact and premature wear. What it does:

• Cushions compressor movement to reduce vibration transmitted to the cabinet
• Dampens noise and rattling caused by compressor operation
• Prevents direct metal-to-metal contact that can wear mounting points
• Helps keep the compressor positioned and secured under load

• Disconnect power to the appliance before accessing the compressor or base pan
• Replace grommets while supporting the compressor to avoid strain on lines and connections
• Inspect remaining mounting grommets; replace all worn isolators for best performance

This capacitor stores and releases electrical energy to help the refrigerator's compressor start and run smoothly. Replacing a weak or failed capacitor can restore reliable compressor startup and more consistent cooling performance.

• Provides the electrical boost/phase shift needed for compressor motor startup and steady operation
• Works with the start device to deliver proper current to the compressor
• Failure symptoms can include clicking or humming near the compressor, poor cooling, or short cycling
• May cause the compressor not to start after power interruptions when weak or failed

• Disconnect power before servicing any electrical component
• Safely discharge the capacitor before handling; avoid touching terminals
• Note wire positions and terminal markings; transfer leads one at a time to the matching terminals
• Secure the capacitor in its mounting/bracket to prevent vibration damage
