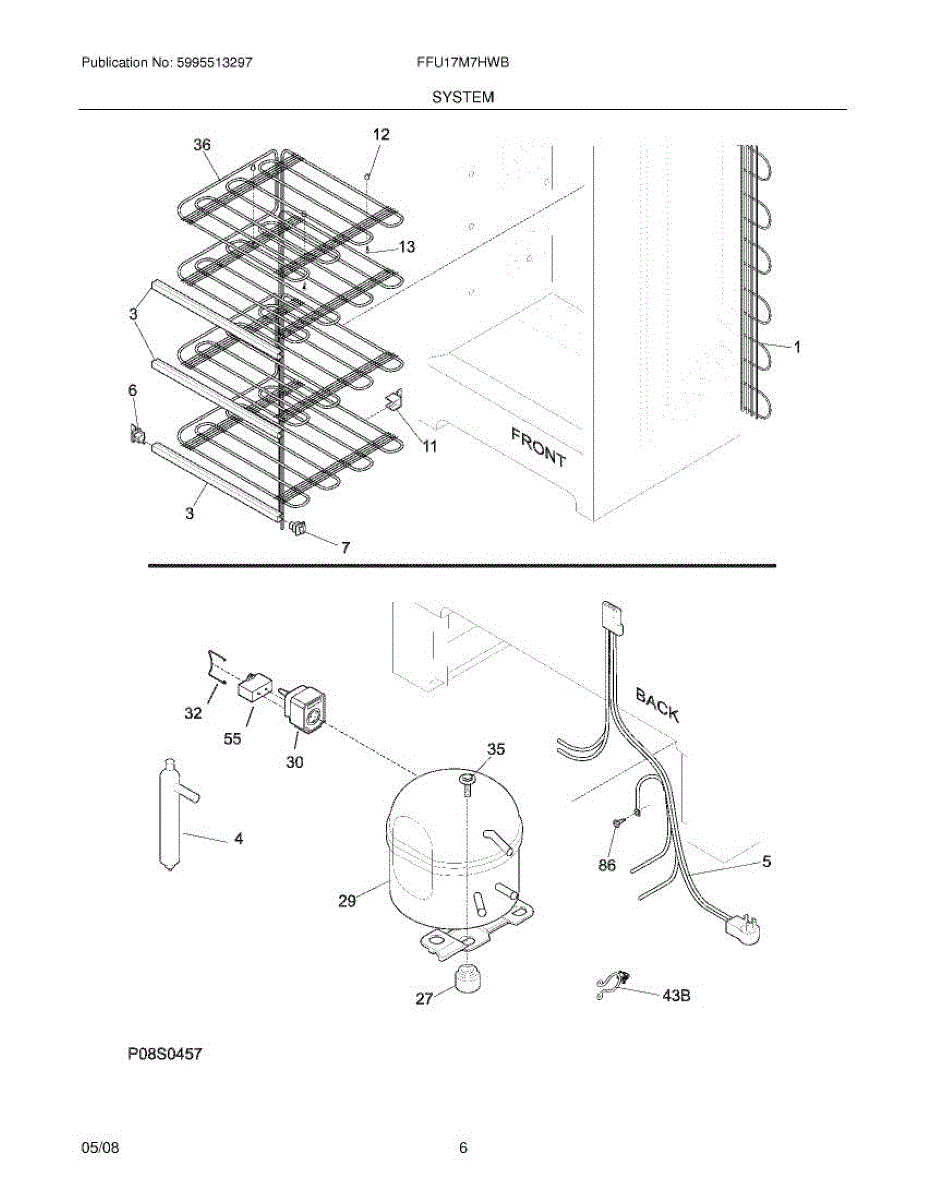

Parts for Frigidaire FFU17M7HWB: 07 - System Parts

Includes service line.

Main wiring harness that routes power between your freezer's control board and components. Replace if wires are frayed, connectors damaged, or harness worn.

Replacement shelf support bracket for freezers. Secures and stabilizes freezer shelves. Replace if broken, cracked, or missing due to heavy loads or age.

The Support-Shelf is an OEM part for Frigidaire freezers, designed to provide sturdy and reliable support for the freezer shelves. This part ensures that the shelves remain level and secure under the weight of stored items.

Causes of a bad Support-Shelf can range from overloading shelves beyond their weight capacity, to normal wear and tear from years of use.

Symptoms of a bad Support-Shelf include:

• Shelves sagging or not sitting level, which can lead to inefficient storage and the risk of items falling.
• Cracks or breaks in the support, compromising the stability of the entire shelving system.
• Difficulty installing or removing shelves, indicating that the supports may be damaged or misshapen.

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

Replacement spacer for the front of the top grid in your freezer. Needed when original spacer is cracked, broken, or missing to properly support shelf.

Rubber mounting grommet that cushions and isolates the compressor from the chassis. Replace if cracked, worn, or missing to restore proper support.

Freezer not cooling or running constantly? This compressor kit restores proper cooling. Professional installation required by EPA-certified technician.

The compressor start relay is a small electrical component that sends a brief burst of power to start the refrigerator's compressor motor. It acts as a trigger, allowing the compressor to kick on and begin the cooling cycle. Replace this part if your refrigerator is not cooling, you hear a clicking sound every few minutes, or the compressor hums briefly but never fully starts.

Replacement mounting clip for freezers and refrigerators. Secures interior panels and trim to prevent rattling. Replaces broken or missing clips.

Secures the compressor to the mounting bracket in your refrigerator or freezer. Replace if missing, stripped, or corroded during compressor service.

This evaporator coil circulates refrigerant and removes heat inside the freezer compartment to keep temperatures cold and help maintain proper food storage. It's a direct replacement evaporator assembly for compatible refrigerators. What it does:

• Circulates refrigerant to absorb heat from the freezer cavity
• Enables the cooling cycle that keeps the freezer cold
• Helps control frost buildup when the defrost system is working
• Symptoms of a failing evaporator: freezer not reaching temperature, excessive frost/ice on the coil, or long run-times

• One evaporator coil assembly

• Disconnect power before service and follow all safety precautions
• Replacement may require recovering and recharging refrigerant; handle sealed-system service
• Inspect and test the defrost components and blower while replacing the evaporator
• Tighten fittings and check for leaks after reassembly; vacuum and recharge the system per OEM specs if required

This capacitor stores and releases electrical energy to help the refrigerator's compressor start and run smoothly. Replacing a weak or failed capacitor can restore reliable compressor startup and more consistent cooling performance.

• Provides the electrical boost/phase shift needed for compressor motor startup and steady operation
• Works with the start device to deliver proper current to the compressor
• Failure symptoms can include clicking or humming near the compressor, poor cooling, or short cycling
• May cause the compressor not to start after power interruptions when weak or failed

• Disconnect power before servicing any electrical component
• Safely discharge the capacitor before handling; avoid touching terminals
• Note wire positions and terminal markings; transfer leads one at a time to the matching terminals
• Secure the capacitor in its mounting/bracket to prevent vibration damage

This #8-32 x 3/8 screw secures appliance panels, brackets, and assemblies. Replace a missing or stripped fastener to keep parts tight and aligned, reduce vibration, and restore proper fit in compatible refrigerators and freezers.

• Machine-thread fastener sized #8-32, 3/8-inch length
• Secures control housings, trims, covers, and support brackets per model design
• Replaces missing, worn, or corroded screws that cause loose or rattling parts
• Helps maintain alignment and stability after service

• Unplug the appliance; shut off water if applicable
• Match thread size to the original and start by hand to avoid cross-threading
• Use the correct driver; do not overtighten, especially into plastic
• Verify component alignment and operation after fastening

• Thread size: #8-32
• Length: 3/8 inch

This replacement power cord delivers household electricity from the outlet to your appliance. Installing a new cord restores safe, reliable power when the original is damaged, worn, or causing intermittent operation.

• Supplies AC power from a household outlet to the unit
• Common fix for no power, flickering lights, or power loss when the cord is moved
• Replaces cords with cuts, cracks, burn marks, or melted areas
• Restores a secure electrical connection for safe, consistent operation

• Unplug the appliance and verify the wall outlet is working before replacing parts
• Access the cord routing and internal connections; note wire positions and routing before removal
• Transfer and secure any strain relief/clamp; keep wiring clear of sharp edges and hot surfaces
• After installation, ensure the cord isn't pinched and the plug seats fully in the outlet
