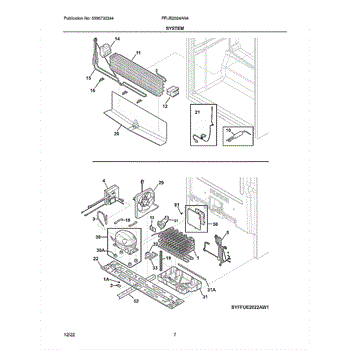

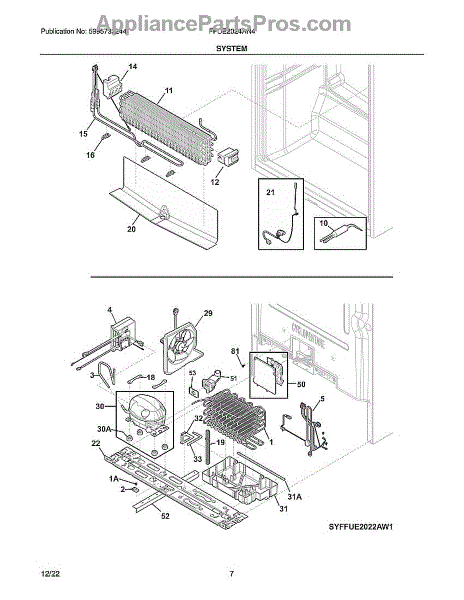

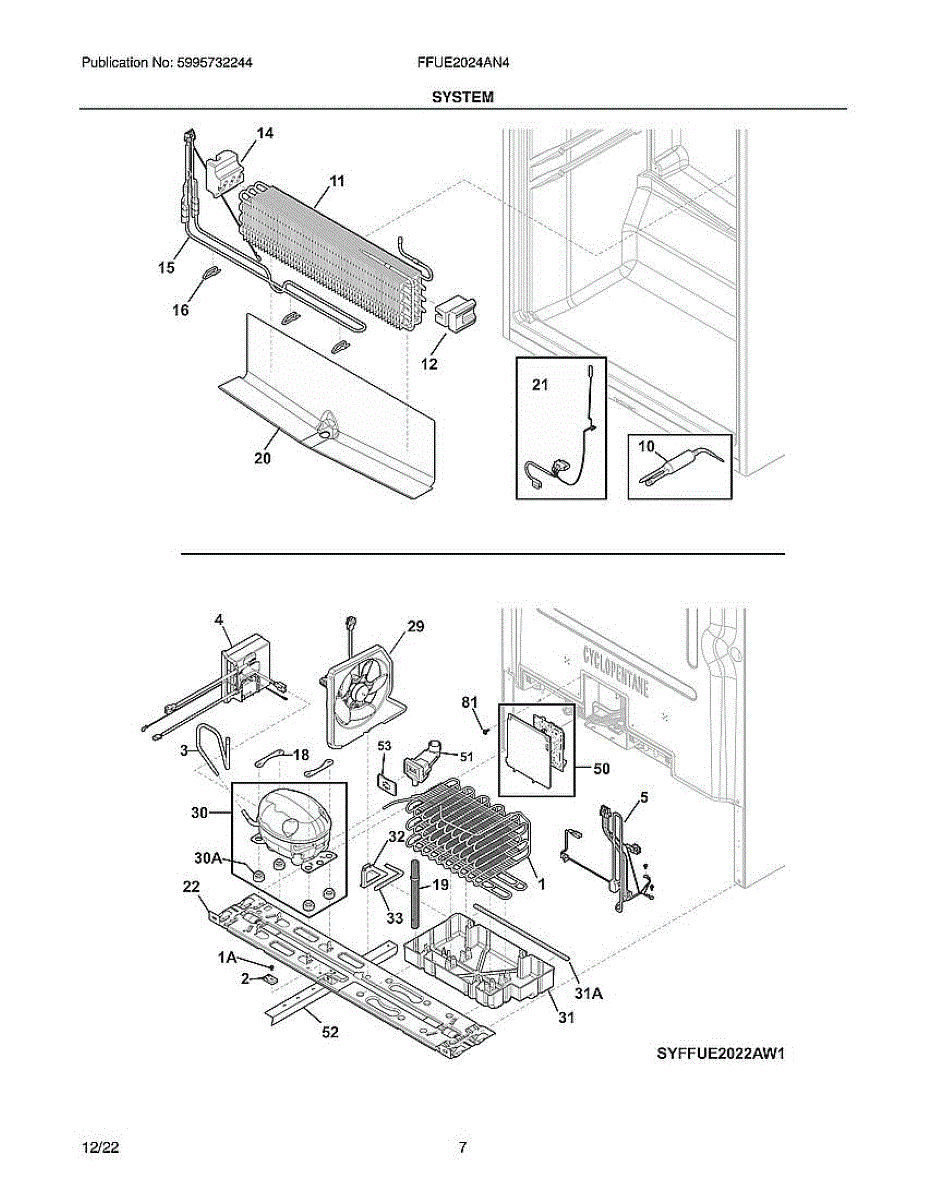

Parts for Frigidaire FFUE2024AN4: System Parts

This condenser coil assembly removes heat from the refrigerant so the refrigerator can cool properly. It's a direct-fit replacement that restores the cooling loop's ability to shed heat and run more efficiently. What it does

• Exchanges heat from the refrigerant to the surrounding air so the cooling cycle can continue
• Helps the compressor run within normal temperature range
• Commonly replaced when the refrigerator is warm inside or the unit runs continuously
• Needed if the condenser is bent, clogged with debris, or leaking

• One condenser

• Disconnect power to the appliance before starting any repair
• Handle with care — coil fins and tubing can be sharp and easily damaged
• Reinstalling may require removal of back or lower access panels; keep fasteners organized
• Sealed-system work (cutting or brazing refrigerant lines) requires certified HVAC service — do not attempt if refrigerant lines must be opened

Inverter board controls the appliance's inverter, managing power delivery to the variable-speed compressor and related systems. A direct replacement restores normal compressor control and can stop intermittent cooling, inverter error codes, or abnormal compressor operation. What it does:

• Manages inverter power and control for the variable-speed compressor.
• Communicates with the appliance's main control to regulate compressor operation.
• Can produce symptoms such as no cooling, intermittent cooling, compressor not starting, inverter-related error codes, or unusual compressor noises when failing.
• Replaces the defective inverter control board to restore inverter functionality.

• Disconnect power to the appliance before servicing to avoid shock; verify power is off.
• Handle the board carefully and use electrostatic discharge (ESD) protection if available; avoid touching components or contacts.
• Follow the wiring diagram for correct orientation and connector seating.

This filter-drier removes moisture and contaminants from a refrigerator's sealed refrigerant circuit to help protect the compressor and improve cooling reliability. It's a service replacement for sealed-system repairs. What it does:

• Traps moisture and acid from refrigerant to reduce corrosion and oil breakdown.
• Captures particulate debris that can clog expansion devices and reduce cooling.
• Helps restore proper refrigerant flow after a compressor or tubing repair.
• Common symptom: system not cooling efficiently or refrigerant circuit contaminated after failures.

• One filter-drier (quantity: 1)

• Intended for certified HVAC/refrigeration technicians only; sealed-system service requires proper tools and refrigerant handling.
• Replace only when the system is opened for repair (compressor, tubing, or evaporator replacement).
• Must be brazed into the liquid line, evacuated, and charged per manufacturer refrigerant and service specs.
• Dispose of and handle used refrigerant and components according to local regulations.

This evaporator coil assembly circulates refrigerant inside the freezer compartment to absorb heat and enable proper cooling. Replacing a faulty coil restores cold temperatures and helps the system run efficiently. What it does:

• Evaporates refrigerant to remove heat from the freezer compartment
• Enables consistent cold airflow for proper food preservation
• Prevents excessive frost buildup when functioning correctly
• Helps reduce long run cycles caused by poor evaporator performance

• 1 evaporator coil assembly

• Disconnect power before starting work and follow basic electrical safety
• Inspect and replace damaged gaskets, insulation, or defrost components as needed for reliable operation
• Test system for leaks and proper cooling after installation

This factory heater restores controlled heat in the appliance's heating or defrost circuit so cycles complete correctly and performance returns to normal. Replacing a failed heater helps resolve temperature-related issues and reduces extended run times. What it does:

• Generates heat for the unit's designed function (wash/dry assist or defrost), depending on model
• A failed element can cause no heat, extended cycles, or temperature-related error codes
• Result in dishes staying wet or detergent not dissolving (dishwashers)
• Lead to frost/ice accumulation that doesn't melt during defrost (refrigeration)
• Often tests open (no continuity) when defective

• 1 heater

• Disconnect power before servicing; turn off water supply if applicable
• Access and mounting vary by model—refer to the product's service information
• Note wire positions; make firm, original-style connections and avoid stressing terminals
• After reassembly, run a test and check for leaks where the heater passes through the tub (if applicable)

This aluminum strap secures the defrost heater firmly against the evaporator coil to maintain proper contact during defrost. Correct contact improves heat transfer so frost melts evenly and helps prevent recurring ice buildup on the evaporator.

• Secures the defrost heater to the evaporator for proper contact and heat transfer
• Promotes complete, even defrosting across the evaporator coil
• Helps reduce repeat frost/ice accumulation caused by a shifted or loose heater
• Typical clues include a loose heater, uneven frost pattern, or rattling near the evaporator

• Disconnect power and allow ice to melt before accessing the evaporator
• Use care around sharp fins and fragile refrigerant tubing; do not puncture or deform the coil
• Position the heater per your model's parts diagram and tighten the strap for firm, even contact
• Verify wiring is routed clear of the fan and moving parts before reassembly

The Harness Assembly is an OEM part for Frigidaire freezers. It is a bundle of color-coded wires that connect electronic and mechanical components inside the freezer, allowing them to communicate and function as intended. The harness assembly reliably transmits signals from the control board to things like fans, temperature sensors, and door alarms.

Symptoms of a bad harness assembly include:

• Components not receiving power or control signals
• Intermittent operation of internal lights or fans
• Temperature control or cooling issues
• Buzzing or humming noises from loose wires
• Error codes related to communicating with modules

Causes of a bad dispenser can include damage over time from repeated bending and flexing of wires, rodent chewing, or corroded connections.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Fan Motor is an OEM component for Frigidaire refrigerators. Located inside the refrigerator compartment, this specialized motor powers airflow and circulation through ducts within the cabinet.

Causes of a malfunctioning fan motor can include normal wear from constant operation, collecting debris that causes imbalance or binding, and motor winding failure over extended use.

Symptoms requiring replacement are:

• Reduced/insufficient air circulation within the refrigerator
• Abnormally high temperatures or frost accumulation
• Loud buzzing or grinding noises emanating from the motor

This OEM part fits Electrolux, Gibson, Kelvinator and select Kenmore models as well for a direct fit. Replace promptly for dependable fan performance.

This evaporator fan assembly circulates cold air across the evaporator coil to maintain even refrigerator temperatures and proper cooling performance. Replaces a failed or noisy fan to restore airflow and reduce frost buildup. What it does:

• Spins to move cold air from the evaporator into the fridge and freezer compartments
• Helps maintain consistent internal temperatures for food preservation
• Worn bearings or a damaged blade can cause noise, rattling, or reduced airflow
• Restores airflow when a broken or seized fan prevents proper cooling

• One complete evaporator fan assembly (motor with blade and mounting as shown)

• Disconnect power before servicing to avoid electrical shock
• Access typically requires opening the evaporator cover—handle evaporator fins and wiring carefully
• Verify correct orientation and secure mounting to prevent noise and motor strain
• Allow the evaporator to thaw and dry before reinstalling

This main control board manages the fridge's electronic functions so temperature, defrost cycles, and user controls operate correctly. Replacing a faulty board restores normal control response and cycle timing when electronics fail. What it does:

• Controls compressor, fans, defrost timer and other timed/relayed functions through the appliance's electronics
• Processes user inputs from the front control panel and sends commands to subsystems
• Can cause symptoms like blank or unresponsive controls, errors on the display, or erratic cooling when it fails
• Works with connected sensors and relays—symptoms may overlap with sensors or wiring faults

• One main control board (electronic control), ready for installation

• Disconnect power to the appliance before starting to avoid shock or damage
• Handle the board carefully; avoid static discharge and do not touch circuit traces or components
• Verify connectors and harnesses are fully seated; match connector locations before final reassembly

This baffle directs cold air inside the refrigerator to help maintain even temperatures and proper airflow. Replacing a damaged or missing baffle restores intended air circulation and helps performance. What it does

• Channels and directs airflow between compartments for more consistent cooling.
• Helps prevent warm spots caused by blocked or misdirected air.
• Reduces stress on the cooling system by restoring designed airflow paths.
• Commonly replaced when cracked, broken, or missing, or when airflow is visibly obstructed.

• Unplug the appliance or disconnect power before starting any work.
• Remove food, shelves, and drawers as needed for access; handle components gently to avoid damage.
• Inspect mounting points and gaskets; replace any damaged fasteners or seals.
• Refer to OEM instructions for model-specific removal/replacement steps.

This cover drain jumper is a molded drain-channel cover that helps route defrost and condensate water into the refrigerator drain system, preventing water from pooling inside the cabinet and reducing ice buildup. What it does:

• Guides defrost and condensate water into the drain channel so it flows to the drain pan
• Helps prevent water from pooling at the back or bottom of the fresh-food compartment
• Reduces the chance of ice forming around the evaporator or in the drain path
• Fits into the drain housing to maintain proper condensate flow

• Disconnect power to the appliance before beginning any service.
• Remove shelves/panels that obstruct access to the drain area; handle plastic parts gently to avoid breakage.
• Make sure the drain channel is clear of debris and ice before installing the cover for best results.

This replacement screw fastens appliance components so panels, brackets, and covers stay securely in place. Replace a missing, stripped, or damaged screw to restore a tight fit and help prevent vibration or noise. What it does:

• Secures panels, brackets, trim, or covers as designed for your model
• Replaces missing, rusted, or stripped hardware
• Helps correct loose or misaligned components
• Reduces vibration and rattling from loose fasteners

• Includes: 1 screw

• Disconnect power before servicing
• Wear gloves and eye protection
• Use the correct driver to avoid stripping the screw head
• Tighten snugly without overtightening; refer to your model's parts diagram for exact location

This adhesive-backed plastic mounting clip secures wires, small hoses, or components inside appliances to reduce movement and rattling. Its low-profile design helps keep internal parts organized for quieter, safer operation. What it does:

• Holds wiring harnesses, sensor leads, or small tubing in place to prevent chafing and noise
• Reduces vibration-related contact that can cause intermittent electrical or sensor issues
• Provides a simple, non-invasive mounting point without drilling or fasteners
• Adhesive backing allows quick placement in tight or hard-to-reach areas

• Clean and dry mounting surface; remove backing and press clip firmly for full adhesion
• Allow adhesive to set per ambient temperature (avoid stress on clip during initial cure)
• Disconnect power before installing
• Replace any brittle or damaged surrounding insulation or wire loom as needed

This hex head screw secures panels, brackets, and small components on appliances, restoring proper fit and stability. It's a direct replacement fastener when an original mounting screw is missing, loose, or damaged. What it does:

• Secures panels, brackets, trim, and internal components to prevent rattling or movement
• Replaces stripped, missing, or damaged mounting screws that cause loose parts or misalignment
• Restores reliable mechanical fastening so doors and panels sit flush and operate correctly
• Works as a general-purpose appliance mounting screw when original fasteners are worn

• Always disconnect power to the appliance before starting any repair
• Match the screw to the original location and thread engagement; start by hand to avoid cross-threading
• Use the correct driver or socket for the hex head and tighten until snug—do not overtighten
• If the original hole or threads are damaged, repair or replace the mating hardware before installing the screw

This hex head screw secures panels, brackets, and small components on appliances, restoring proper fit and stability. It's a direct replacement fastener when an original mounting screw is missing, loose, or damaged. What it does:

• Secures panels, brackets, trim, and internal components to prevent rattling or movement
• Replaces stripped, missing, or damaged mounting screws that cause loose parts or misalignment
• Restores reliable mechanical fastening so doors and panels sit flush and operate correctly
• Works as a general-purpose appliance mounting screw when original fasteners are worn

• Always disconnect power to the appliance before starting any repair
• Match the screw to the original location and thread engagement; start by hand to avoid cross-threading
• Use the correct driver or socket for the hex head and tighten until snug—do not overtighten
• If the original hole or threads are damaged, repair or replace the mating hardware before installing the screw
