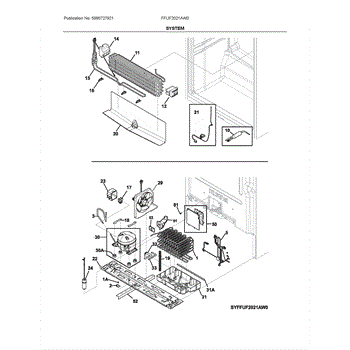

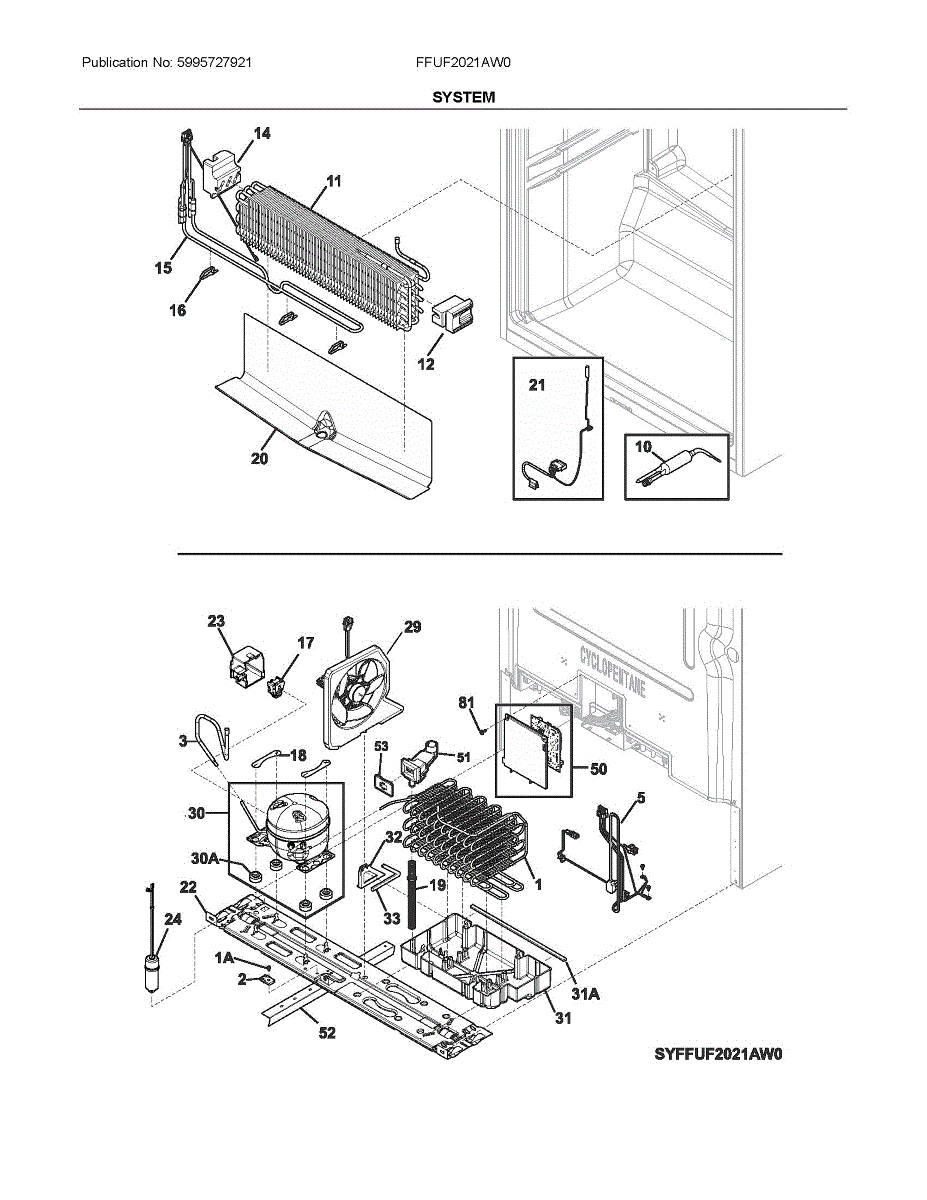

Parts for Frigidaire FFUF2021AW0: System Parts

This condenser coil assembly removes heat from the refrigerant so the refrigerator can cool properly. It's a direct-fit replacement that restores the cooling loop's ability to shed heat and run more efficiently. What it does

• Exchanges heat from the refrigerant to the surrounding air so the cooling cycle can continue
• Helps the compressor run within normal temperature range
• Commonly replaced when the refrigerator is warm inside or the unit runs continuously
• Needed if the condenser is bent, clogged with debris, or leaking

• One condenser

• Disconnect power to the appliance before starting any repair
• Handle with care — coil fins and tubing can be sharp and easily damaged
• Reinstalling may require removal of back or lower access panels; keep fasteners organized
• Sealed-system work (cutting or brazing refrigerant lines) requires certified HVAC service — do not attempt if refrigerant lines must be opened

This wiring harness routes electrical power and signals between refrigerator components so controls and accessories can operate reliably. It replaces a damaged or worn harness to restore proper connector fit and circuit continuity. What it does

• Carries power and signal connections between the control board and components
• Replaces frayed, burned, or broken wiring that can cause intermittent operation
• Helps fix symptoms like non-responsive controls, inoperative lights or accessories, or components that lose power
• Provides factory-style connector plugs for a direct-fit replacement

• One wiring harness as shown

• Disconnect power to the appliance before beginning any work
• Compare connectors and wire colors to the original harness to ensure fit
• Route harness to avoid pinch points and sharp edges; secure with existing clips or ties

This filter-drier removes moisture and contaminants from a refrigerator's sealed refrigerant circuit to help protect the compressor and improve cooling reliability. It's a service replacement for sealed-system repairs. What it does:

• Traps moisture and acid from refrigerant to reduce corrosion and oil breakdown.
• Captures particulate debris that can clog expansion devices and reduce cooling.
• Helps restore proper refrigerant flow after a compressor or tubing repair.
• Common symptom: system not cooling efficiently or refrigerant circuit contaminated after failures.

• One filter-drier (quantity: 1)

• Intended for certified HVAC/refrigeration technicians only; sealed-system service requires proper tools and refrigerant handling.
• Replace only when the system is opened for repair (compressor, tubing, or evaporator replacement).
• Must be brazed into the liquid line, evacuated, and charged per manufacturer refrigerant and service specs.
• Dispose of and handle used refrigerant and components according to local regulations.

This evaporator coil assembly circulates refrigerant inside the freezer compartment to absorb heat and enable proper cooling. Replacing a faulty coil restores cold temperatures and helps the system run efficiently. What it does:

• Evaporates refrigerant to remove heat from the freezer compartment
• Enables consistent cold airflow for proper food preservation
• Prevents excessive frost buildup when functioning correctly
• Helps reduce long run cycles caused by poor evaporator performance

• 1 evaporator coil assembly

• Disconnect power before starting work and follow basic electrical safety
• Inspect and replace damaged gaskets, insulation, or defrost components as needed for reliable operation
• Test system for leaks and proper cooling after installation

This factory heater restores controlled heat in the appliance's heating or defrost circuit so cycles complete correctly and performance returns to normal. Replacing a failed heater helps resolve temperature-related issues and reduces extended run times. What it does:

• Generates heat for the unit's designed function (wash/dry assist or defrost), depending on model
• A failed element can cause no heat, extended cycles, or temperature-related error codes
• Result in dishes staying wet or detergent not dissolving (dishwashers)
• Lead to frost/ice accumulation that doesn't melt during defrost (refrigeration)
• Often tests open (no continuity) when defective

• 1 heater

• Disconnect power before servicing; turn off water supply if applicable
• Access and mounting vary by model—refer to the product's service information
• Note wire positions; make firm, original-style connections and avoid stressing terminals
• After reassembly, run a test and check for leaks where the heater passes through the tub (if applicable)

This aluminum strap secures the defrost heater firmly against the evaporator coil to maintain proper contact during defrost. Correct contact improves heat transfer so frost melts evenly and helps prevent recurring ice buildup on the evaporator.

• Secures the defrost heater to the evaporator for proper contact and heat transfer
• Promotes complete, even defrosting across the evaporator coil
• Helps reduce repeat frost/ice accumulation caused by a shifted or loose heater
• Typical clues include a loose heater, uneven frost pattern, or rattling near the evaporator

• Disconnect power and allow ice to melt before accessing the evaporator
• Use care around sharp fins and fragile refrigerant tubing; do not puncture or deform the coil
• Position the heater per your model's parts diagram and tighten the strap for firm, even contact
• Verify wiring is routed clear of the fan and moving parts before reassembly

The Start Device is an OEM part for Frigidaire refrigerators. It is responsible for initiating the electrical power to the compressor, enabling it to start functioning.

Causes tend to relate to standard wear over time. Moisture exposure can also impact durability.

Symptoms of a faulty start device can include:

• The compressor not starting or running intermittently
• Unusual clicking or buzzing sounds coming from the appliance
• Temperature fluctuations inside the refrigerator or freezer
• Complete loss of cooling or freezing capabilities
• Overheating of the compressor
• Burnt or damaged electrical connections near the start device

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.


The Harness Assembly is an OEM part for Frigidaire freezers. It is a bundle of color-coded wires that connect electronic and mechanical components inside the freezer, allowing them to communicate and function as intended. The harness assembly reliably transmits signals from the control board to things like fans, temperature sensors, and door alarms.

Symptoms of a bad harness assembly include:

• Components not receiving power or control signals
• Intermittent operation of internal lights or fans
• Temperature control or cooling issues
• Buzzing or humming noises from loose wires
• Error codes related to communicating with modules

Causes of a bad dispenser can include damage over time from repeated bending and flexing of wires, rodent chewing, or corroded connections.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This replacement cover protects internal components and restores the appliance's exterior finish. It fits where the original cover was damaged, cracked, or missing to help keep parts shielded from dirt and debris. What it does:

• Replaces a damaged or missing cover to protect internal components and wiring
• Prevents dust, lint, and small debris from reaching sensitive parts
• Restores a finished appearance to the area where the original cover was mounted
• Helps maintain proper airflow paths when fitted correctly

• One replacement cover

• Disconnect power (unplug or shut off circuit breaker) before starting any repair
• Handle edges carefully; use gloves to avoid cuts from sheet metal or mounting tabs
• Remove fasteners holding the old cover, align replacement, and secure with the original screws or clips

The Capacitor is an OEM part for Frigidaire refrigerators. As an electrical component, it works behind the scenes to help power the compressor and ensure smooth, reliable refrigeration. Proper capacitor functioning is vital for starting and running the compressor motor efficiently.

Symptoms of a faulty capacitor can include:

• Inconsistent cooling power with temperature fluctuations
• The refrigerator fails to start or cycles on and off frequently
• Buzzing or humming sounds coming from inside walls
• Cases of warm food due to inadequate freezing and cooling abilities

Potential causes involve natural breakdown over many compressor start-up cycles accumulated over 10+ years. Damage from power surges is also possible.

Replace it with this genuine Frigidaire part to restore durable electrical support for the component operation. It prevents further wear and unnecessary service calls. Compatible with some Electrolux, KitchenAid, and Kenmore models that use Frigidaire components.


The Condenser Fan Motor is an OEM part for Frigidaire refrigerators. Located behind the rear refrigerator wall and grille, the condenser fan motor works to dissipate heat from within the refrigerator system.

Symptoms of a bad condenser fan motor include:

• Refrigerator failing to adequately cool or ice up
• Increased humming and vibrations
• Elevated compressor run times
• Warm air discharge from rear grill

Causes of a bad condenser fan motor can include winding failures, bearing seizing, or obstructed fan blades no longer spinning freely.

This genuine OEM Frigidaire motor is compatible with some Electrolux, KitchenAid and Danby French door refrigerator models as well.

This rubber grommet cushions and protects wiring, tubing or mounting points to reduce vibration and prevent chafing. It restores a tighter fit where the original grommet has worn, torn or become brittle. What it does:

• Cushions and isolates wiring, hoses, or mounting studs to reduce vibration and noise
• Prevents chafing and abrasion where components pass through metal or plastic openings
• Helps maintain proper alignment and fit of panels or assemblies
• Common symptom: visible wear, cracking, a loose or rattling component near the grommet location

• One grommet

• Disconnect power and water before servicing the appliance
• Inspect surrounding components for damage and replace any additional worn seals
• Gently press the grommet into place; small hand tools or a blunt plastic driver may help
• If routing wires or hoses, ensure they sit fully inside the grommet to prevent chafing

This electronic control board manages key appliance functions and replaces a failed or damaged main control. Restores control signals and display/function responsiveness so your appliance can operate normally. What it does

• Receives and sends signals to regulate cycles, timers, and user-interface commands
• Replaces a board that causes unresponsive controls, blank or error displays, or intermittent operation
• Helps fix issues where buttons or touchpads don't respond or settings don't change
• Works as the central logic component coordinating sensors and relays

• Disconnect power before accessing or replacing the board to avoid shock or damage
• Handle the board by its edges and avoid static discharge; use an anti-static wrist strap if available
• Verify connector orientation and secure all wiring harnesses before restoring power

This baffle directs cold air inside the refrigerator to help maintain even temperatures and proper airflow. Replacing a damaged or missing baffle restores intended air circulation and helps performance. What it does

• Channels and directs airflow between compartments for more consistent cooling.
• Helps prevent warm spots caused by blocked or misdirected air.
• Reduces stress on the cooling system by restoring designed airflow paths.
• Commonly replaced when cracked, broken, or missing, or when airflow is visibly obstructed.

• Unplug the appliance or disconnect power before starting any work.
• Remove food, shelves, and drawers as needed for access; handle components gently to avoid damage.
• Inspect mounting points and gaskets; replace any damaged fasteners or seals.
• Refer to OEM instructions for model-specific removal/replacement steps.

This cover drain jumper is a molded drain-channel cover that helps route defrost and condensate water into the refrigerator drain system, preventing water from pooling inside the cabinet and reducing ice buildup. What it does:

• Guides defrost and condensate water into the drain channel so it flows to the drain pan
• Helps prevent water from pooling at the back or bottom of the fresh-food compartment
• Reduces the chance of ice forming around the evaporator or in the drain path
• Fits into the drain housing to maintain proper condensate flow

• Disconnect power to the appliance before beginning any service.
• Remove shelves/panels that obstruct access to the drain area; handle plastic parts gently to avoid breakage.
• Make sure the drain channel is clear of debris and ice before installing the cover for best results.

This replacement screw fastens appliance components so panels, brackets, and covers stay securely in place. Replace a missing, stripped, or damaged screw to restore a tight fit and help prevent vibration or noise. What it does:

• Secures panels, brackets, trim, or covers as designed for your model
• Replaces missing, rusted, or stripped hardware
• Helps correct loose or misaligned components
• Reduces vibration and rattling from loose fasteners

• Includes: 1 screw

• Disconnect power before servicing
• Wear gloves and eye protection
• Use the correct driver to avoid stripping the screw head
• Tighten snugly without overtightening; refer to your model's parts diagram for exact location

This adhesive-backed plastic mounting clip secures wires, small hoses, or components inside appliances to reduce movement and rattling. Its low-profile design helps keep internal parts organized for quieter, safer operation. What it does:

• Holds wiring harnesses, sensor leads, or small tubing in place to prevent chafing and noise
• Reduces vibration-related contact that can cause intermittent electrical or sensor issues
• Provides a simple, non-invasive mounting point without drilling or fasteners
• Adhesive backing allows quick placement in tight or hard-to-reach areas

• Clean and dry mounting surface; remove backing and press clip firmly for full adhesion
• Allow adhesive to set per ambient temperature (avoid stress on clip during initial cure)
• Disconnect power before installing
• Replace any brittle or damaged surrounding insulation or wire loom as needed

This hex head screw secures panels, brackets, and small components on appliances, restoring proper fit and stability. It's a direct replacement fastener when an original mounting screw is missing, loose, or damaged. What it does:

• Secures panels, brackets, trim, and internal components to prevent rattling or movement
• Replaces stripped, missing, or damaged mounting screws that cause loose parts or misalignment
• Restores reliable mechanical fastening so doors and panels sit flush and operate correctly
• Works as a general-purpose appliance mounting screw when original fasteners are worn

• Always disconnect power to the appliance before starting any repair
• Match the screw to the original location and thread engagement; start by hand to avoid cross-threading
• Use the correct driver or socket for the hex head and tighten until snug—do not overtighten
• If the original hole or threads are damaged, repair or replace the mating hardware before installing the screw
