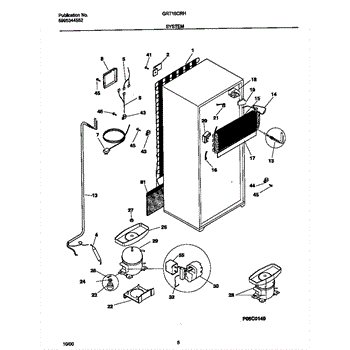

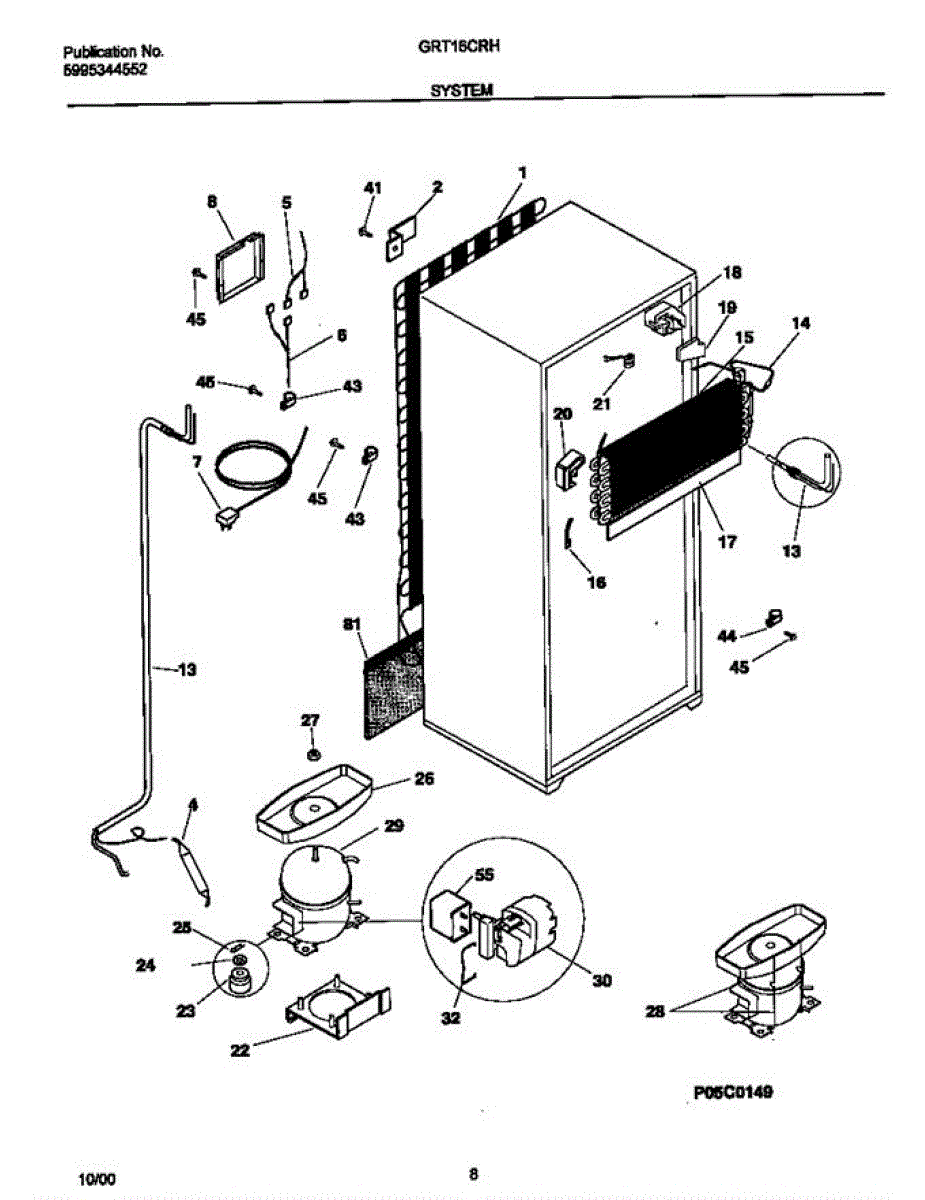

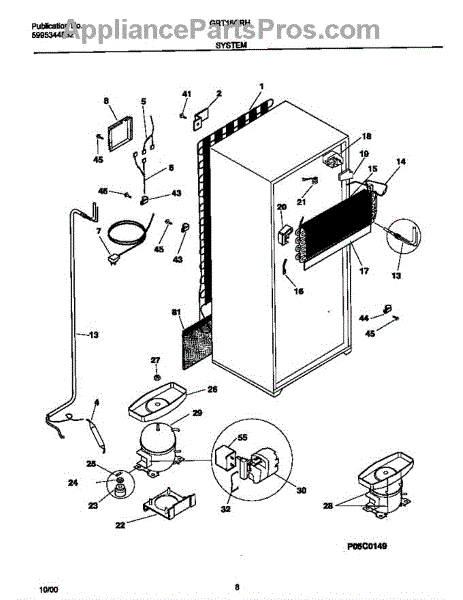

Parts for Gibson GRT16CRHD6: System Parts

Includes service line.

Refrigerator not cooling or freezing properly? The evaporator coil absorbs heat to keep your fridge cold. This repair requires moderate skills.

Aluminum strap secures the defrost heater against the evaporator coil. Replace if broken, cracked, or missing to maintain proper heater contact.

Freezer runs constantly or has frost buildup? The defrost thermostat regulates temperature to prevent ice on coils. DIY-friendly repair in 1-2 hours.

This compressor mounting plate secures the compressor to the refrigerator chassis, helping maintain proper alignment and reduce vibration for quieter operation. Durable stamped metal designed to fit the factory mounting points. What it does:

• Secures the compressor assembly to the appliance frame to prevent movement
• Dampens and distributes compressor vibration to reduce noise
• Maintains compressor alignment for reliable operation
• Helps keep mounting hardware and rubber isolators in correct position

• Disconnect power to the appliance before service to avoid electrical shock
• Basic hand tools required; support the compressor when removing or installing mounting hardware
• Follow the OEM service manual for torque specs and detailed installation steps

Rubber grommet that mounts and cushions the compressor to reduce vibration transfer. Replace if cracked, worn, or missing to restore quiet operation.

Secures compressor to mounting bracket in your refrigerator. Replace if clip is broken, loose, or causing vibration noise. Verify fit with your model number.

Fridge not cooling or making loud buzzing noise? This compressor kit restores cooling in refrigerators and freezers. Professional repair recommended.

Fix a refrigerator that won't cool or compressor runs briefly then stops. This PTC starter relay provides timed boost to start winding for reliable cooling.

Wire bale clip secures wiring harnesses and prevents loose connections in your refrigerator. Replace if damaged, broken, or missing to ensure proper wire routing. Confirm fit with your model number.

Secures and protects wiring harness from strain damage. Replace if cracked, broken, or wires show wear. Verify fit with your model number listed.

Replacement screw for various appliances. Used to secure panels, components, or housing. Replace if stripped, corroded, missing, or damaged hardware.

Refrigerator not cooling or compressor won't start? A failed run capacitor prevents the compressor from running. DIY repair in 10-15 minutes with video guide.

Sound insulation cover for refrigerators. Installs over insulation to reduce noise. Replace if cracked, broken, or missing for proper sound dampening.

This screw is a direct-replacement fastener used to secure appliance panels and trim so components stay in place and operate quietly. It restores proper fit where mounting screws are missing or worn. What it does:

• Secures panels, trim, brackets or small components to the appliance frame
• Helps prevent rattling, misalignment, or loose parts during operation
• Matches OEM thread and head style for correct fit and reliable fastening
• Useful when replacing stripped or missing mounting hardware

• Disconnect power before servicing electrical appliances
• Use the correct screwdriver or bit to avoid stripping the head
• Keep small parts away from children and pets during installation
• Replace with the exact OEM screw to ensure proper fit and safety

This left-side tapping plate/gusset is a metal mounting bracket that reinforces appliance panels and hinge areas, restoring secure attachment and alignment for doors or panels. It helps reduce wobble and maintains proper fit where the original bracket is damaged or worn. What it does:

• Reinforces and secures hinge or panel attachment points to restore alignment
• Provides a threaded or tapped surface for fasteners where sheet metal cannot accept screws
• Stops movement or sagging that can cause gaps, noise, or poor door sealing
• Helps prevent further damage to the cabinet or door mounting area

• Always disconnect power (and water, if applicable) before beginning repairs
• Inspect mounting holes and surrounding metal; remove any damaged fasteners or debris before installing
• Use the correct replacement screws and hand-tighten, then torque to manufacturer specs if available; do not over-tighten
• If the cabinet or hinge area is severely corroded or stripped, additional repair or reinforcement may be required

This nut anchor secures the appliance control box to the cabinet, keeping the control module mounted and stable for reliable operation. Replacement restores proper fastening when the original anchor is missing or damaged. What it does:

• Provides a captive fastening point for the control box or control board housing
• Holds the control assembly steady to prevent movement, vibration, or rattling
• Helps maintain proper alignment of electrical connections and wiring harnesses
• Used when the original anchor is stripped, cracked, or no longer grips the panel

• One nut anchor for control box mounting

• Disconnect power to the appliance before servicing to avoid shock or injury
• Access the control box per your model's service instructions; remove panels carefully
• Press or fasten the nut anchor into the mounting hole until it seats; secure the control box with the appropriate screw
• If supply threads are damaged, replace any mating fasteners and fit snugly, but not over-tightened.

Replace a loose or missing extension lock washer causing rattling noises or unstable component mounting. Simple DIY fix in under 15 minutes.

Sound dampening foam pad for refrigerators and freezers. Installs on evaporator or compressor area to reduce vibration noise. Replace if worn or missing.

Color: Black

Size: Approximate 2.5 inches thick, 33 inches wide and 70 inches long.

This is a replacement mounting screw used to secure the defrost timer assembly to the refrigerator control housing, restoring proper fastening and preventing the timer from shifting or vibrating during operation. What it does:

• Secures the defrost timer to the control housing so the timer stays in position.
• Prevents vibration or movement that can cause intermittent contact or noisy operation.
• Helps maintain reliable defrost cycle timing by keeping the timer properly aligned.
• Addresses symptoms such as a loose or missing fastener, rattling behind the control panel, or a timer that shifts when the door is opened.

• Unplug the appliance before starting work to prevent electrical shock.
• Access the control housing or timer bracket per your model's service instructions.
• Use the correct screwdriver or driver bit; do not overtighten—stop when snug to avoid stripping.
• Retain removed hardware for reference and compare screw length/threads before installing.

Sound insulation cover for refrigerators. Installs over insulation to reduce noise. Replace if cracked, broken, or missing for proper sound dampening.

Replacement shelf support grommet for refrigerators and freezers. Provides stability for shelves. Replace if broken, missing, or worn to restore proper shelf support.
