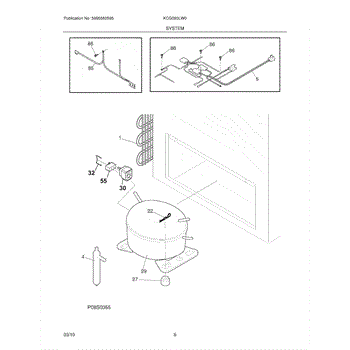

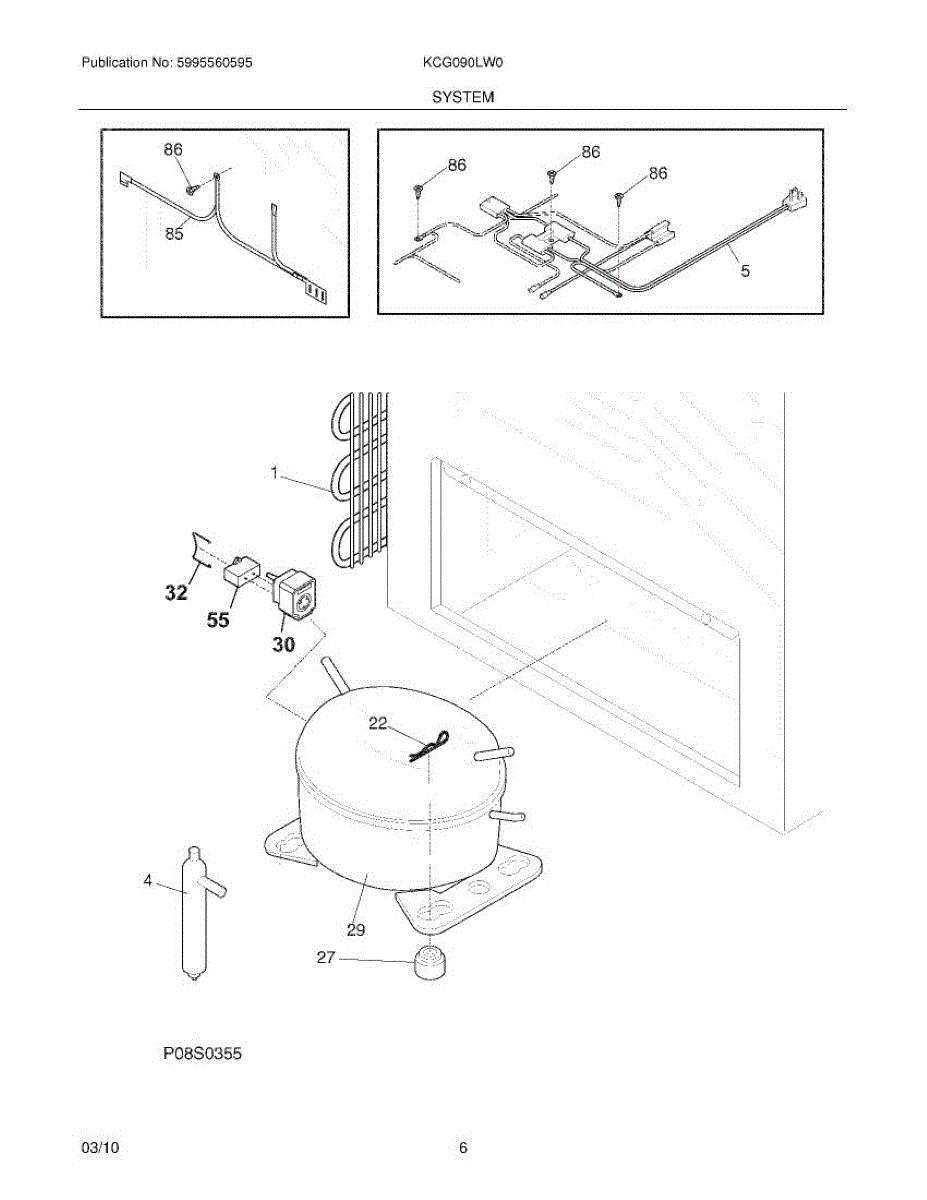

Parts for Kelvinator KCG090LW0: 07 - System Parts

Includes service line.

Wire harness for chest freezers. Connects electrical components inside the cabinet. Replace if wires are frayed, damaged, or connections are broken.

Secures the compressor to the chassis, reducing movement and noise. Replace if your compressor shifts or rattles during operation. Confirm fit with model.

Rubber grommet for freezers. Cushions and seals components where wires or tubes pass through panels. Replace if cracked, worn, or missing.

Refrigerator not cooling or freezing? A failed compressor stops the cooling cycle. This sealed system repair requires a licensed technician to complete.

This controller is the appliance's electronic control board. It monitors sensors and manages cooling system operations so temperatures stay stable. Replacing a failed board can restore consistent cooling performance and responsive controls.

• Manages compressor and fan run times to maintain the set temperature; failures can cause warm temps, overcooling, or short cycling
• Coordinates automatic defrost on applicable models; faults may lead to frost buildup and restricted airflow
• Processes input from temperature sensors and user settings; issues can make controls unresponsive or erratic
• Drives status lights/alarms on applicable models; malfunctions may trigger false alarms or no indications

• Disconnect power to the appliance before servicing
• Use ESD protection; handle the board by the edges to avoid component damage
• Photograph wiring and move connectors one at a time to the new board to ensure correct placement
• Reuse original mounting hardware and ensure all connections are fully seated before restoring power

Secures interior trim and panels in place to eliminate gaps and rattling. Replace when clips break or go missing. Confirm fit with your model number.

This capacitor stores and releases electrical energy to help the refrigerator's compressor start and run smoothly. Replacing a weak or failed capacitor can restore reliable compressor startup and more consistent cooling performance.

• Provides the electrical boost/phase shift needed for compressor motor startup and steady operation
• Works with the start device to deliver proper current to the compressor
• Failure symptoms can include clicking or humming near the compressor, poor cooling, or short cycling
• May cause the compressor not to start after power interruptions when weak or failed

• Disconnect power before servicing any electrical component
• Safely discharge the capacitor before handling; avoid touching terminals
• Note wire positions and terminal markings; transfer leads one at a time to the matching terminals
• Secure the capacitor in its mounting/bracket to prevent vibration damage
