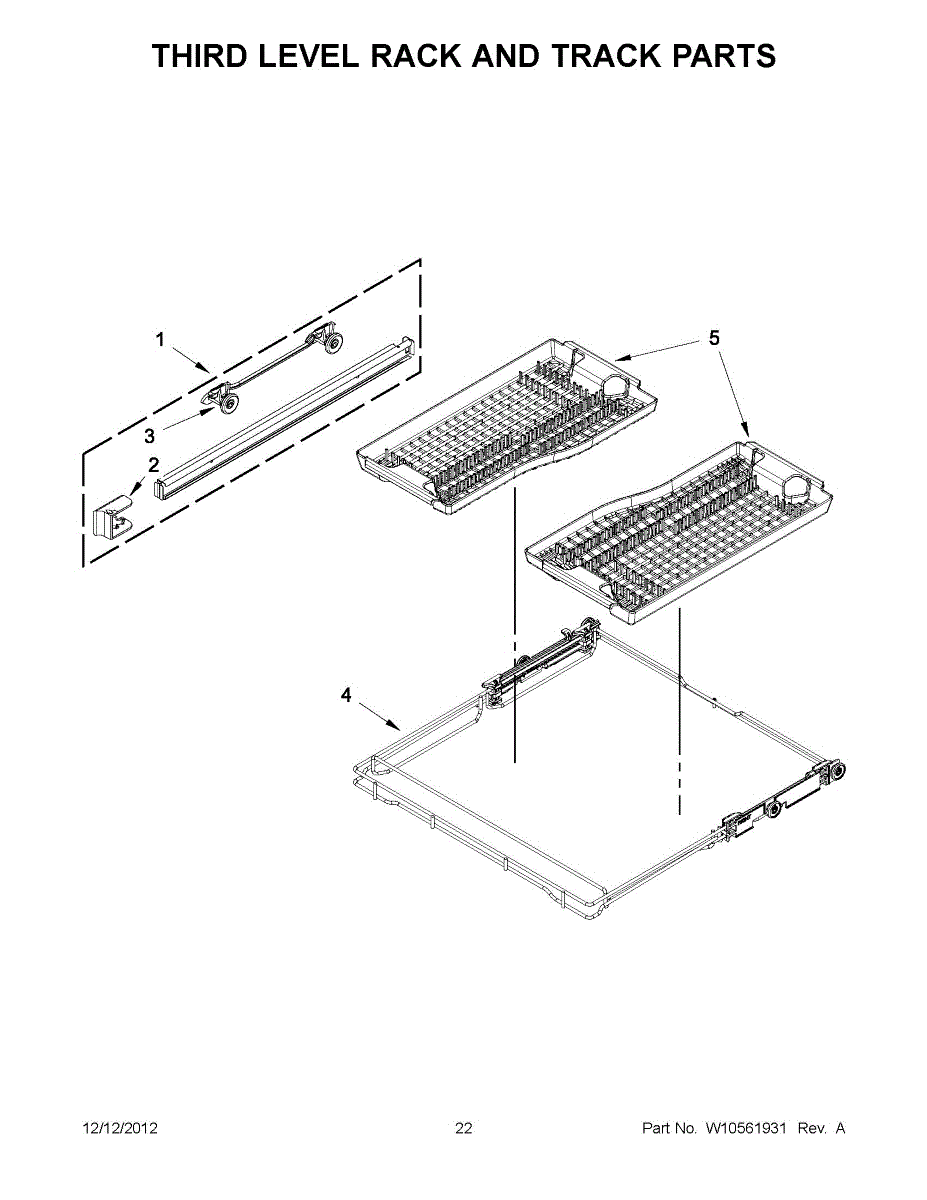

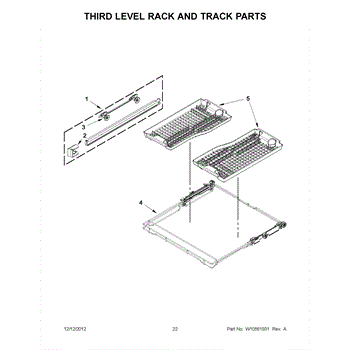

Parts for Kitchenaid KUDE60HXSS5: 11 - Third Level Rack And Track Parts

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

Left-side track assembly guides your dishwasher rack for smooth sliding. Replace if your track is worn, cracked, or damaged to restore proper alignment.

This right-side track assembly guides and supports the drawer/oven glide so the drawer opens and closes smoothly. Replacing a worn or bent track restores proper alignment and prevents sticking or uneven movement. What it does:

• Guides the drawer or glide assembly along its path for smooth operation
• Maintains proper alignment to prevent binding, scraping, or uneven travel
• Replaces worn, bent, or damaged tracks that cause sticking or noisy movement
• Works with the matching left-side track and existing rollers/slides to restore function

• One right-side track assembly

• Disconnect power to the appliance before beginning any repair
• Inspect accompanying rollers, clips, and fasteners; replace if damaged
• Hand-tighten fasteners, then test the drawer glide before fully re-torquing

Plastic clip that secures the dishrack to the track inside your dishwasher. Replace if broken, cracked, melted, or missing to prevent the rack from sliding.

This tub mount assembly secures the tub to the cabinet/frame, keeping it properly positioned so the appliance operates smoothly and quietly.

• Supports and stabilizes the tub during operation
• Helps reduce vibration, noise, and movement
• Replace if you notice excessive tub movement, rattling, or mounting damage
• Restores correct alignment after a broken or worn mount

• Disconnect power and water before servicing
• Access mounting area; support the tub to relieve stress on fasteners
• Transfer any reusable hardware and align the new mount precisely
• Tighten fasteners evenly; verify clearance and operation before restoring power

Complete upper dishrack assembly for dishwashers. Installs on top level to hold glasses, bowls, and utensils. Replace if rack is cracked or broken.

Third-level silverware basket mounts on dishwasher top rack to organize utensils and small items. Replace if cracked, broken, worn, or missing.

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.
