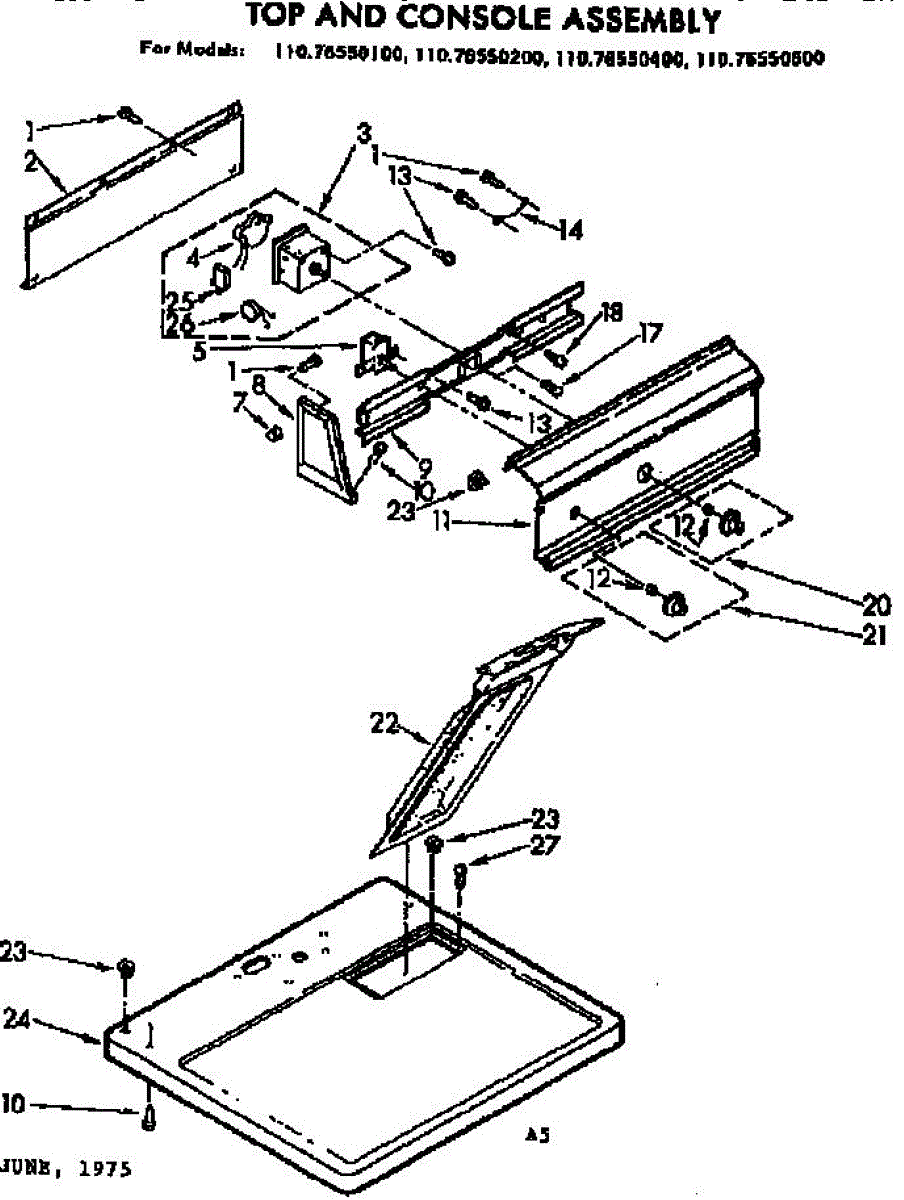

Parts for Kenmore 110.76550400 (11076550400, 110 76550400): Top And Console Assembly Parts

This is a push-to-start relay switch that initiates the dryer's motor circuit when the start button is pressed. It momentarily engages to start the drum motor spinning, then disengages once the motor reaches operating speed. Replace this relay if your dryer does not start when you push the start button, hums briefly without turning, or requires multiple attempts to start.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Replace stripped or missing screws causing loose panels or rattling during cycles. This self-locking Phillips screw secures internal components. Easy 5-minute fix.

Dryer lint screen filters debris during drying cycles. Replace when torn, damaged, or clogged beyond cleaning. Verify fit with your model number.

This lint filter catches lint and debris during the drying cycle to maintain proper airflow through the dryer's exhaust system. A clogged or damaged filter restricts airflow, which forces longer dry times, increases energy costs, and creates a fire hazard from lint buildup in the vent system.

Replace this filter if the pull handle is broken or cracked, the mesh is torn or separating from the frame, rust or metal flakes are visible on the screen, or lint is passing through instead of being trapped. The filter is white, measures approximately 20 inches long (excluding the handle) by 8.5 inches wide, and slides directly into the lint filter slot -- no tools needed, takes under a minute. Clean the filter before every load for best performance.

This part has been discontinued and is no longer available.

Rubber bumper. Color: Grey.

This small retaining clip secures the door hinge in place so the door opens and closes smoothly and stays properly aligned. Replacing a worn or missing clip helps restore reliable hinge support and consistent door operation.

• Retains the hinge/hinge pin to prevent shifting or separation
• Helps maintain door alignment to avoid rubbing, sagging, or binding
• Replaces a clip that is bent, cracked, corroded, or missing
• Common signs it's needed: loose or wobbly door, difficulty closing, misaligned door, visible damaged/missing clip

• Unplug the appliance and, if applicable, remove items from the door to reduce weight
• Support the door before working on the hinge
• Remove any hinge cover/fasteners, swap the clip, and ensure it seats fully
• Reassemble and check door alignment and smooth operation

This kit secures the lower toe/kick panel to the front of the appliance, keeping the panel tight and properly aligned. Replacing worn or missing clips restores a secure fit and makes access for service straightforward.

• Holds the toe/kick panel in place at the base of the cabinet
• Helps prevent panel rattling, gaps, or a loose/hinging lower panel
• Common fix when the lower panel won't stay secured after service
• Durable metal clip design for repeated panel removal and reattachment

• Unplug appliance before servicing; wear gloves to avoid sharp edges
• Support the toe panel while releasing old clips to prevent bending
• Install clips in the cabinet slots first, then engage the panel into the clips
• Verify the panel is fully seated on both sides before restoring power
