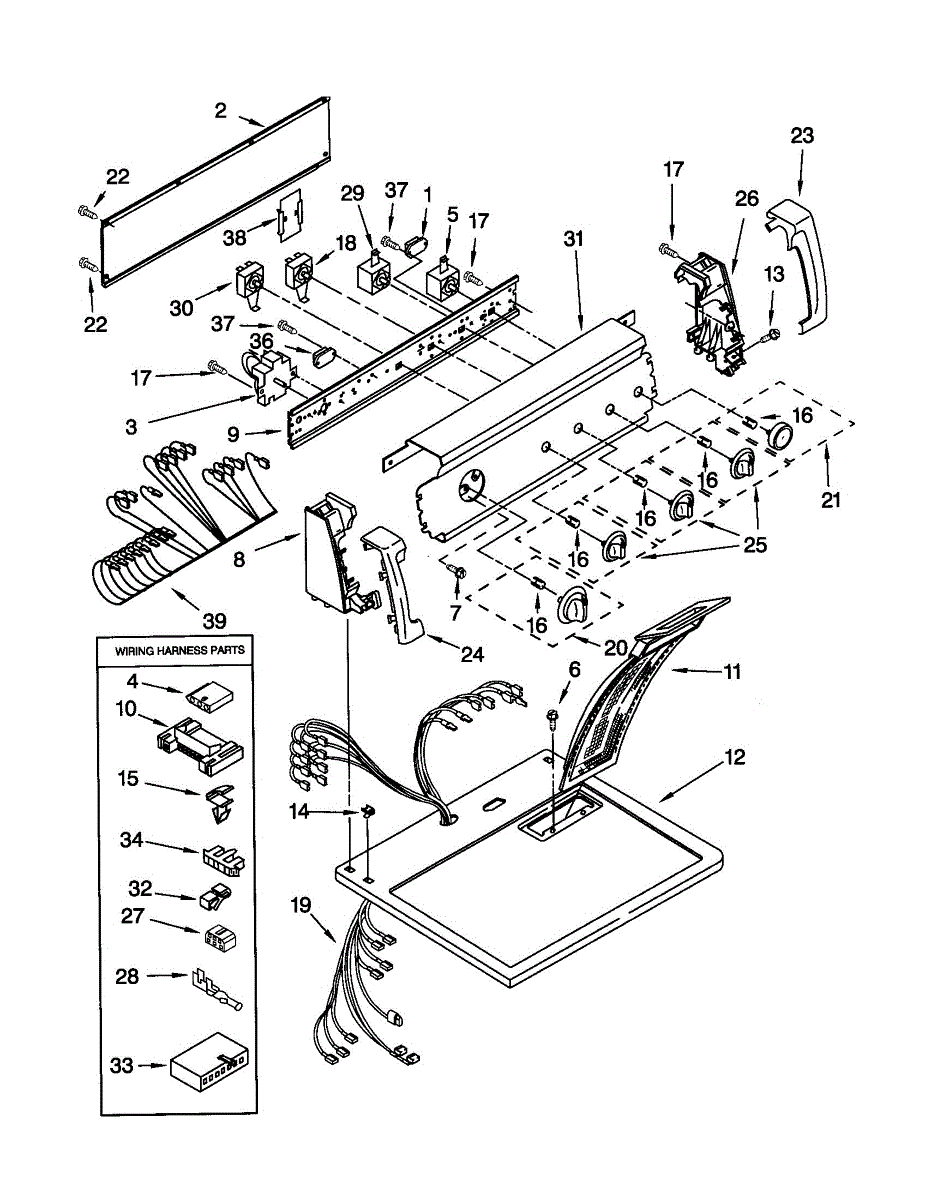

Parts for Kenmore 110.62884100 (11062884100, 110 62884100): Top And Console Parts

Dryer won't stay running after releasing start button? A faulty power relay is often the cause. This relay keeps the motor spinning consistently.

This is a 60 Hz timer that controls the duration of drying cycles in a clothes dryer. It advances through each stage of the cycle and signals the motor and heating components to turn on or off at the appropriate times. Replace this timer if the dryer will not start, the cycle does not advance, the timer knob spins freely without clicking, or if the dryer runs continuously without shutting off.

Dryer won't power on or trips breaker? This terminal block plug connects power to your dryer's electrical system. Common fix for power issues.

Dryer won't start when button pressed? The push to start switch sends the signal to begin the cycle. Simple 10-minute fix with basic tools.

Type AB #8-18 x 5/8 inch thread-forming screw secures panels and components in appliances. Replace missing, stripped, or corroded fasteners.

This is a replacement 8-18 x 7/32 machine screw used to secure panels and small components in compatible Whirlpool appliances. It restores proper fastening where a screw is missing, stripped, or damaged. What it does:

• Secures panels, trim pieces, brackets or small components to prevent movement
• Helps stop rattling, vibration noise, or loose-fitting parts
• Replaces missing or damaged screws to restore proper alignment of panels or controls
• Used wherever an 8-18 x 7/32 machine screw is specified by the manufacturer

• Unplug the appliance or turn off power before servicing.
• Use the correct screwdriver or bit to avoid stripping the head; tighten snugly but do not over-torque.
• Replace any stripped inserts or mating hardware if threads are damaged.

White end cap kit with left and right caps for the dryer control panel ends. Provides finished appearance and protects panel edges.

This motor connector housing is the molded body that holds the motor's wire terminals for a secure, insulated connection. Replacing a cracked or heat-damaged housing helps restore reliable motor operation and prevent intermittent power issues.

• Organizes and insulates the motor's wiring terminals
• Locks the harness to the motor for a firm electrical connection
• Helps reduce loose contacts, arcing, and heat damage at the plug
• If the housing is failing, you may see intermittent or no motor operation, the machine stopping mid-cycle, or visible melting/discoloration at the motor connector

• Disconnect power; also shut off gas supply
• Note wire positions; transfer terminals into the new housing one at a time to maintain orientation
• Inspect terminals and wiring; replace any burnt or loose terminals before reassembly
• Ensure the connector seats fully on the motor and the harness is secure; restore power and test

Dryer lint screen captures lint and debris to protect the blower system. Replace when torn, damaged, or handle breaks. Confirm fit by model number.

This console screw secures the control console to the appliance cabinet or top, keeping the panel tight and aligned. Replace a missing or damaged screw to stop panel wobble and rattling and maintain a snug, stable fit. What it does:

• Fastens the control console/control panel to the cabinet or top panel
• Helps maintain alignment and reduces vibration and rattling
• Replaces a missing, stripped, or rusty original screw
• Common fix for a loose or lifting console/panel

• 1 screw

• Disconnect power before service; if applicable, shut off gas/water
• Support the console to avoid straining wiring harnesses
• Start threads by hand to prevent cross-threading; tighten until snug—do not overtighten
• Use the correct driver style for your model's hardware

Push-in.

Secures dryer wiring to the cabinet to prevent rubbing and interference. Replace if your wire retainer clip is broken, missing, or damaged.

The Clip is an OEM part for Whirlpool dryers. This part secures the control knob to the dryer’s control panel, ensuring it remains firmly attached and functions correctly. The clip helps provide stability and precise control over the dryer settings.

Causes of a bad clip can include regular wear and tear, accidental damage during use, or stress from frequent adjustments.

Symptoms of a bad clip include:

• Knob becoming loose or falling off
• Difficulty turning the knob to adjust settings
• Knob not staying securely in place
• Knob wobbling or feeling unstable

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Replace worn, stripped, or missing 8-18 x 3/8 machine screws that secure control panels, trim pieces, and brackets on your appliance. Restores tight fit.

Fix a dryer that won't stop running when the cycle ends. This end of cycle switch signals the timer to stop. Simple DIY repair for most models.

Replace your dryer's worn, cracked, or missing control knob. Mounts on the control shaft to select cycle settings and temperatures. Restores grip and clarity.

This 8-18 x 5/8-inch screw secures dryer panels, brackets, and covers. Replace missing or stripped fasteners to restore a tight fit and stability.

This trim piece finishes and protects an opening or edge on your appliance's cabinet or console. Replacing a cracked or missing trim restores a clean, factory look and helps nearby components sit and operate as intended. What it does:

• Provides a clean, finished edge and covers sharp cabinet/console edges
• Helps keep adjacent parts aligned and secured around the opening
• Restores appearance when original trim is cracked, warped, discolored, or missing
• Common symptoms: loose or rattling piece, cosmetic damage, snagging edges, or poor fit of nearby parts

• 1 trim piece

• Disconnect power; if applicable, shut off gas or water. Wear cut-resistant gloves.
• Remove the existing trim by releasing clips or removing screws; note orientation and retain hardware.
• Transfer any reusable clips/inserts from the old trim to the new part.
• Align and snap/screw the new trim into place; do not overtighten.

This trim piece finishes and protects an opening or edge on your appliance's cabinet or console. Replacing a cracked or missing trim restores a clean, factory look and helps nearby components sit and operate as intended. What it does:

• Provides a clean, finished edge and covers sharp cabinet/console edges
• Helps keep adjacent parts aligned and secured around the opening
• Restores appearance when original trim is cracked, warped, discolored, or missing
• Common symptoms: loose or rattling piece, cosmetic damage, snagging edges, or poor fit of nearby parts

• 1 trim piece

• Disconnect power; if applicable, shut off gas or water. Wear cut-resistant gloves.
• Remove the existing trim by releasing clips or removing screws; note orientation and retain hardware.
• Transfer any reusable clips/inserts from the old trim to the new part.
• Align and snap/screw the new trim into place; do not overtighten.

Black control knob for washers and dryers. Restores control panel functionality when original knob is cracked, stripped, loose, or missing.

White end cap kit with left and right caps for the dryer control panel ends. Provides finished appearance and protects panel edges.

For mating terminal use [AP31136300].

This 5-position fabric selector switch controls the dryer's fabric-cycle selection and associated heat/timing signals, restoring correct cycle choice and reliable control response when the original switch is faulty. What it does:

• Routes user fabric-setting selections to the dryer control so the correct cycle and heat options run.
• Common symptoms: selector won't move or click, dryer stays on one setting, or changing fabric settings has no effect.
• Helps eliminate intermittent or no-response issues from a worn or broken selector.
• Matches the control interface functions so cycles correspond to the chosen fabric type.

• Disconnect power before starting; for gas dryers also shut off the gas supply.
• Take photos of existing wiring and knob placement to ensure correct reassembly.
• Handle electrical connectors gently; verify secure connections and operation before final reassembly.

The dryer grounding clip is a small metal fastener that maintains a secure electrical ground connection between components inside your dryer. A proper ground is essential for safe operation and helps protect against electrical shock or appliance damage. Replace this part if it is bent, corroded, or missing, especially if you are experiencing intermittent electrical issues or completing a repair that requires re-grounding internal parts.

This is a replacement mounting screw used to secure panels and components on compatible Whirlpool appliances, restoring loose or missing fasteners for safe, stable operation. What it does

• Fastens appliance panels, brackets, and small components in place
• Replaces stripped, rusted, or missing screws that cause rattling or loose parts
• Helps restore proper alignment and reduce vibration-related noise
• Matches OEM fit and function for straightforward replacement

• One replacement screw

• Use the matching screwdriver or nut driver to avoid stripping the head
• Tighten until snug; do not overtighten to prevent thread or panel damage
• Turn off and unplug the appliance before accessing internal components

Color: Biscuit. Size: 1 qt. can uncut. Enamel paint.

Color: White. Size: 1 qt. can. Acrylic appliance paint.

Graphite spray paint for appliance touch-ups. Covers chips, scratches, and scuffs on dryer drums, washer panels, and exterior surfaces. Restore finish.

13 oz. enamel spray paint in biscuit color for appliances. Restores scratched, chipped, or discolored surfaces on refrigerators, dishwashers, and more.

Color: Gray. Size: 13 oz. can. Used for coating the dryer drum interior. Acrylic appliance paint.

Touch-up paint for appliances. Covers chips, scratches, and worn areas on range tops, refrigerators, and other appliances. Includes brush applicator.

Color: White. Size: 13 oz can. Acrylic appliance aerosol can spray paint.

The Appliance Spray Paint is an OEM part for Whirlpool appliances, designed to provide a quick and effective way to touch up or completely refinish the exterior of various appliances. This specialty spray paint is formulated to adhere to metal surfaces, offering a durable and resistant finish that can withstand the routine wear and tear of kitchen environments, including heat, moisture, and everyday use.

The primary reason for using such a specialized paint is to maintain or restore the aesthetic appeal of your appliances while protecting them from further damage.

Symptoms needing for Appliance Spray Paint include:

• Scratches, chips, or rust spots on the appliance's exterior that can lead to further damage or corrosion if left untreated
• A desire to refresh or update the appearance of the appliance without the need for complete replacement
• Discoloration or fading of the original finish due to age, exposure to sunlight, or cleaning agents

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Touch-up paint for covering scratches, chips, and minor blemishes on appliance exteriors. Restores appearance and protects surfaces when finish is damaged.
