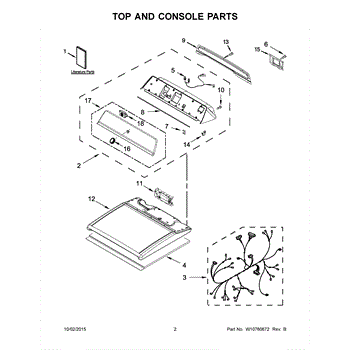

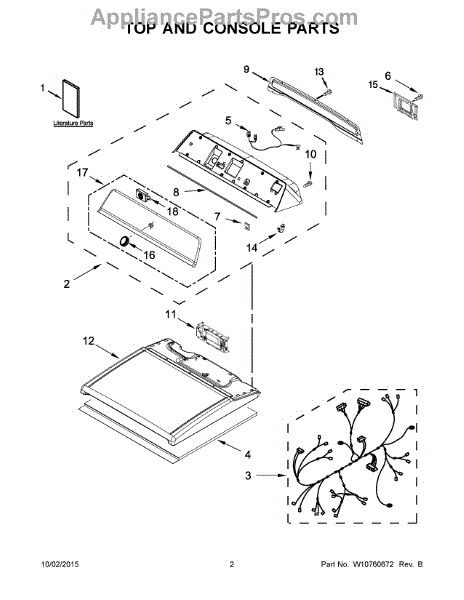

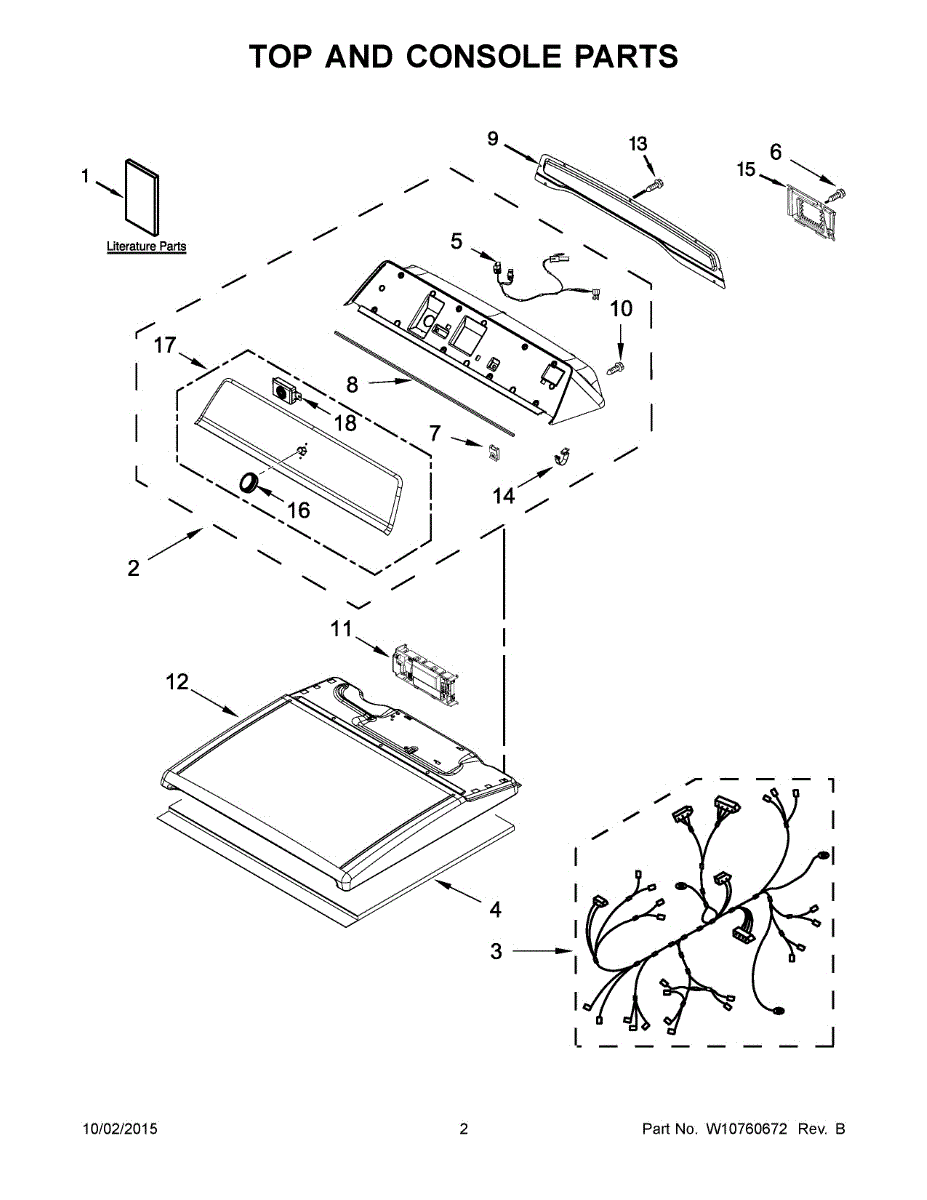

Parts for Maytag YMEDB855DC0: 02 - Top And Console Parts

This replacement wire harness connects electrical components to restore reliable power and signal paths in select Whirlpool appliances. Use it to replace a damaged or worn harness that causes intermittent operation or loss of function. What it does:

• Routes power and signal connections between appliance controls and components
• Replaces frayed, melted, or broken wiring that can cause intermittent operation
• Helps resolve symptoms such as no power to a circuit, intermittent operation, or control errors
• Ensures proper connector fit to maintain electrical continuity

• Disconnect power (unplug appliance or turn off circuit breaker) before starting any repair
• Verify connector orientation and routing against the service diagram before removing the old harness
• Secure harness away from pinch points and moving parts; avoid contact with sharp edges or heat sources

The Switch Mounting Screw is an OEM part compatible with Whirlpool washing machines. This screw securely mounts the cycle selector switch within the control console assembly. Proper fastening ensures dependable operation of control functions.

Causes of a bad mounting screw can stem from stress cracks developing over multiple years of operation. Vibrations accumulate, slowly loosening connections housed in a wet environment.

Symptoms of a bad mounting screw include:

• Loose or rattling switch within the console face
• Difficulty selecting cycles as buttons wobble out of place
• Water intrusion hastening corrosion of electrical terminals
• Potential shock hazards if live connections are exposed

This Whirlpool replacement screw restores a tight mounting point. It is compatible with brands like Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This electronic control board governs the appliance's user interface and cycle functions, restoring normal operation when the original control fails. It replaces a faulty main control to help resolve control- and display-related issues. What it does:

• Manages electronic logic for cycles, timing, and user commands
• Powers and communicates with the display/touchpad and sensors
• Helps stop intermittent operation, random resets, or no-display symptoms

• One electronic control board assembly

• Always disconnect power before servicing to avoid shock or damage
• Handle the board by its edges and avoid touching components or contacts
• Transfer any needed mounting brackets, wiring harnesses, or labels from the old board if required

The Top is an OEM replacement part for Whirlpool dryers. It serves as the protective cover for the top of the dryer, keeping dust and debris out while providing a finished look. It is designed to withstand the demands of daily use and provides a sturdy surface for placing items on top of the dryer.

A bad dryer top panel can occur due to physical damage, wear and tear, or improper installation. If you notice symptoms such as a cracked or broken panel, misalignment, or an unattractive appearance, it may be time to replace the top panel.

Symptoms of a bad dryer top panel include:

• Cracked or broken panel
• Misalignment or uneven surface
• Unattractive or worn-out appearance

Restore your dryer by replacing the faulty or damaged top panel with this genuine OEM part.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


This top panel replaces the appliance's cabinet top to restore a flush, secure surface and protect internal components. It's a direct-fit exterior panel used when the existing top is dented, bent, or damaged. What it does:

• Covers and protects the washer/dryer cabinet and internal components from debris and spills
• Provides the mounting surface for controls, console, and trim
• Restores a straight, even appearance when the original top is warped or dented
• Helps maintain proper alignment of adjoining panels and doors

• 1 top panel

• Unplug the appliance or disconnect power before starting work
• Keep fasteners organized and hand-tighten before final torque to ensure proper fit

This screw is a genuine replacement fastener used to secure appliance panels and components for a reliable fit. It restores proper fastening where original screws are missing, stripped, or damaged. What it does:

• Fastens panels, trim, brackets or small components to keep parts aligned and secure
• Replaces missing or damaged screws that can cause loose panels or rattling
• Restores proper clamping force to prevent movement and wear on adjacent parts
• Matches OEM function and fit when the correct part number is used

• Disconnect power and water before servicing the appliance
• Use the correct driver to engage the head cleanly and avoid stripping
• Tighten until snug; avoid over-tightening which can strip threads or crack plastic

The Console Clip is an OEM part compatible with Whirlpool dryers. This clip secures the control console assembly to the top panel, ensuring it is firmly mounted during operation. Properly functioning clips are necessary to maintain the correct alignment of controls and prevent detachment.

Causes of a bad clip can include wear and fatigue from repeated opening and closing of the dryer door. Excessive force or impact could also bend or break the clip over time.

Symptoms of a bad clip include:

• Loose console assembly that is not securely fastened
• Misaligned or dangling controls that do not sit flush
• Dislodged console at risk of detaching from housing
• Missing clip leaving an open mounting point

This OEM Whirlpool replacement clip is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This terminal block cover protects the dryer/range terminal block and wiring by keeping connections enclosed and reducing risk of accidental contact or debris intrusion. It restores a finished, safe rear electrical access area. What it does:

• Covers and shields the appliance's electrical terminal block to help prevent accidental contact with live wires
• Helps keep dust, lint and small debris out of the terminal area
• Provides a mounting surface for the terminal block screw or clamp where applicable
• Common service symptom: missing, cracked or damaged cover exposes wiring or looks broken at the rear access

• One terminal block cover

• Disconnect all power at the breaker or unplug the appliance before servicing
• Intended to mount over the terminal block; secure with the factory screw(s) or fastener(s)
• Inspect wiring and terminal connections while the cover is off; replace frayed or damaged wires before reinstalling

This control knob attaches to the appliance's control shaft so you can select settings with a solid, positive feel. Replace a cracked, stripped, or missing knob to restore smooth operation and a clean, finished look.

• Attaches to a switch or valve shaft to select temperatures, burner levels, or cycles
• Transfers your hand turn to the control shaft for accurate setting changes
• Common symptoms: cracked hub, spins without engaging, wobbly/loose, falls off, or missing
• Helps maintain a uniform appearance across the control panel

• Disconnect power (and shut off gas, if applicable) before servicing
• Pull the old knob straight off the shaft; avoid prying against the control panel
• Align the insert with the shaft's flats or splines and press straight on until fully seated
• Match position- and finish-specific knobs to the original on models that use different knobs per location

The Speaker is an OEM component specifically designed for Whirlpool brand washers. It alerts users with chime tones or voice prompts during cycle operation or any error states. Precise acoustic engineering allows for clear audio reception even amid operating vibrations.

Symptoms of a bad speaker include:

• No audio tones or voice prompts were heard
• Muffled, distorted, or unusually loud sounds
• Speaker making rattling or buzzing noises

Causes can be damage from water damage, defects in the audio circuitry, or aging components.

This speaker ensures optimal user communication. Without it, you cannot verify cycle progress or troubleshoot issues. Its dependable performance maintains the washer's convenience.

This Whirlpool OEM part fits perfectly while extending the equipment's lifespan. It is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.
