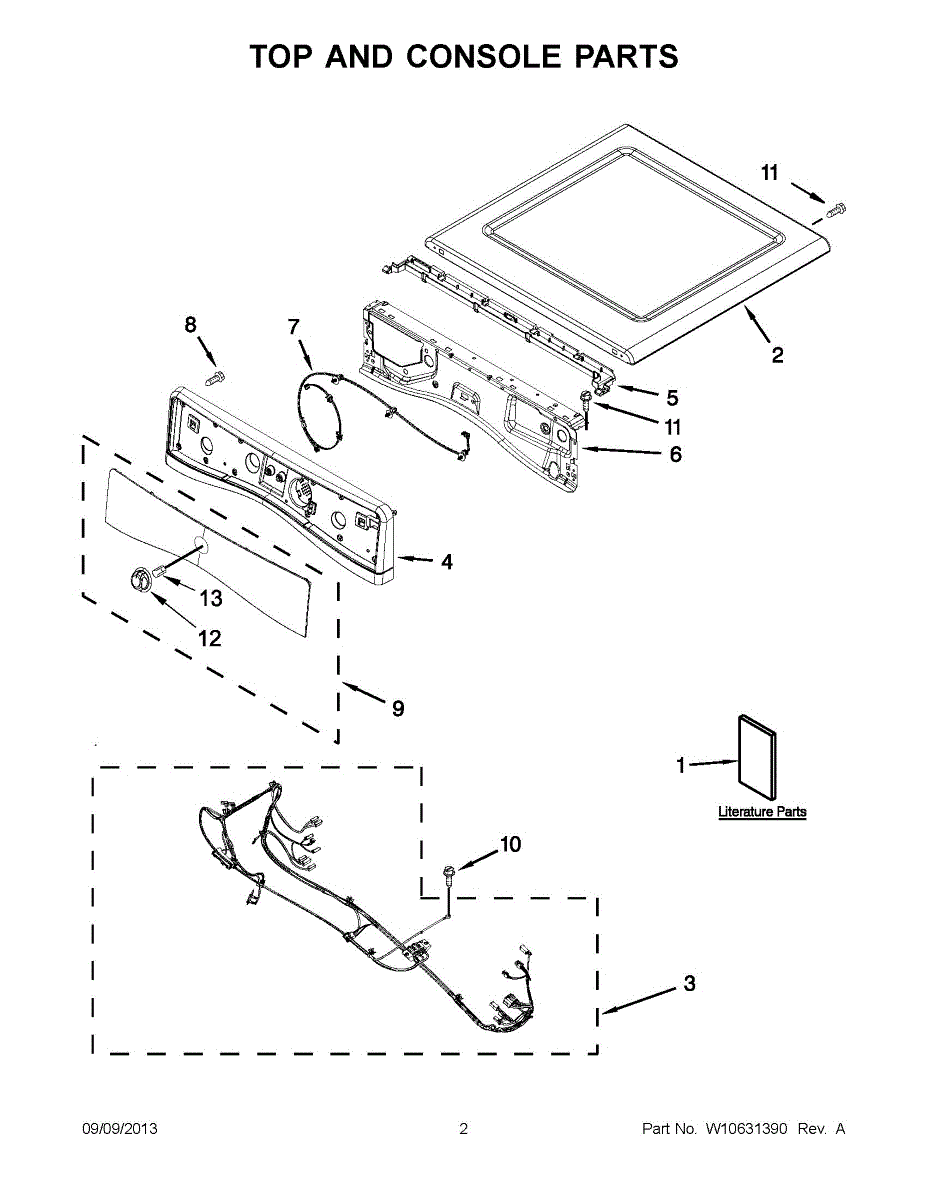

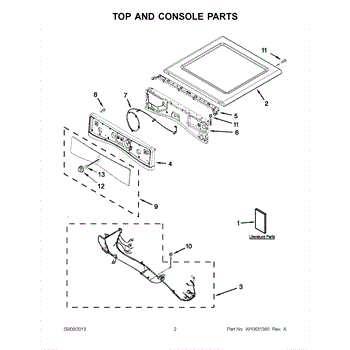

Parts for Whirlpool BSG17CCANA0: 02 - Top And Console Parts

Chrome finish cabinet top panel for dryers. Replaces dented, bent, or rusted top panels to restore clean appearance and secure fit over internal components.

This wire harness routes electrical power and signals between appliance components, restoring reliable connections and component operation. Use it to replace damaged, burned, or loose wiring assemblies that cause intermittent or failed function. What it does:

• Provides factory-style wire routing and connector interfaces between controls, switches, and motors
• Replaces damaged or corroded wiring that can cause intermittent operation or loss of power to components
• Restores proper signal and power paths to eliminate erratic behavior or non-start conditions
• Prevents arcing or shorts caused by frayed insulation or compromised terminals

• One complete wire harness as shown

• Always disconnect power (unplug or switch off breaker) before servicing the appliance
• Compare the replacement harness to the original for connector types and wire lengths before installing
• Route wires along original paths and secure all clips; avoid contact with sharp edges or heat sources
• If connectors are tight, use gentle pressure; do not force or modify terminals — replace the harness if connectors are damaged

Console mounting bracket for dryers. Secures the control panel to the cabinet. Replace if cracked, bent, or broken to restore proper console support.

Internal wire harness assembly that connects dryer components for signal and power flow. Replace if wires are cracked, frayed, or connectors are damaged.

The Screw is an OEM component compatible with Whirlpool washing machines. This screw secures the rear panel onto the cabinet frame, ensuring a sturdy connection between housing components.  Proper installation is critical for the washer's structural integrity.

Causes of a bad screw include corrosion from repeated water exposure or stresses from years of use. Loosening can occur from vibrations weakening the threads over time.

Symptoms of a bad screw include:

• Rear panel detaching from frame opening gaps
• Increased noise and vibrations from a compromised seal
• Stress on other connections from improper mounting points
• Potential leak paths from openings near hoses or tub areas

This OEM Whirlpool replacement screw helps maintain a tight panel closure. It is compatible with additional brands like Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This 8-18 x 5/8-inch screw secures dryer panels, brackets, and covers. Replace missing or stripped fasteners to restore a tight fit and stability.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This is a D-shaped knob insert or spring clip that fits inside a control knob and connects it to the control shaft on the dryer's front panel. It ensures the knob grips the shaft properly so you can turn the timer or selector. Replace this insert if your control knob spins freely without engaging the shaft or if the knob feels loose and won't stay in position.
