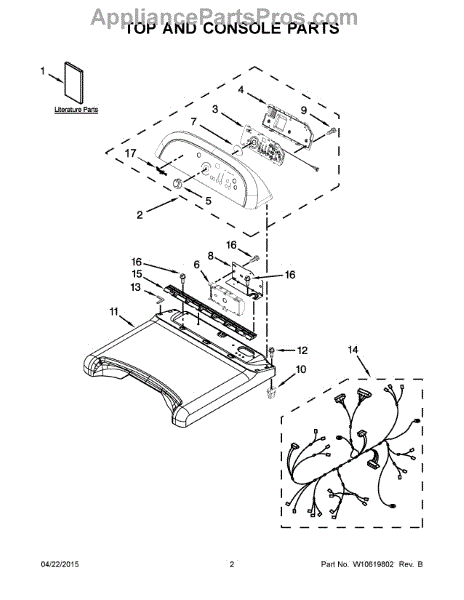

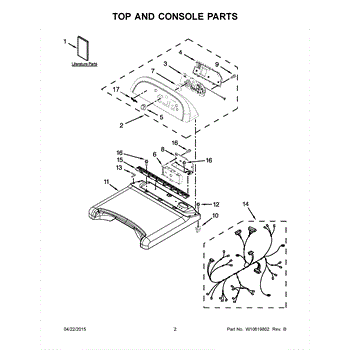

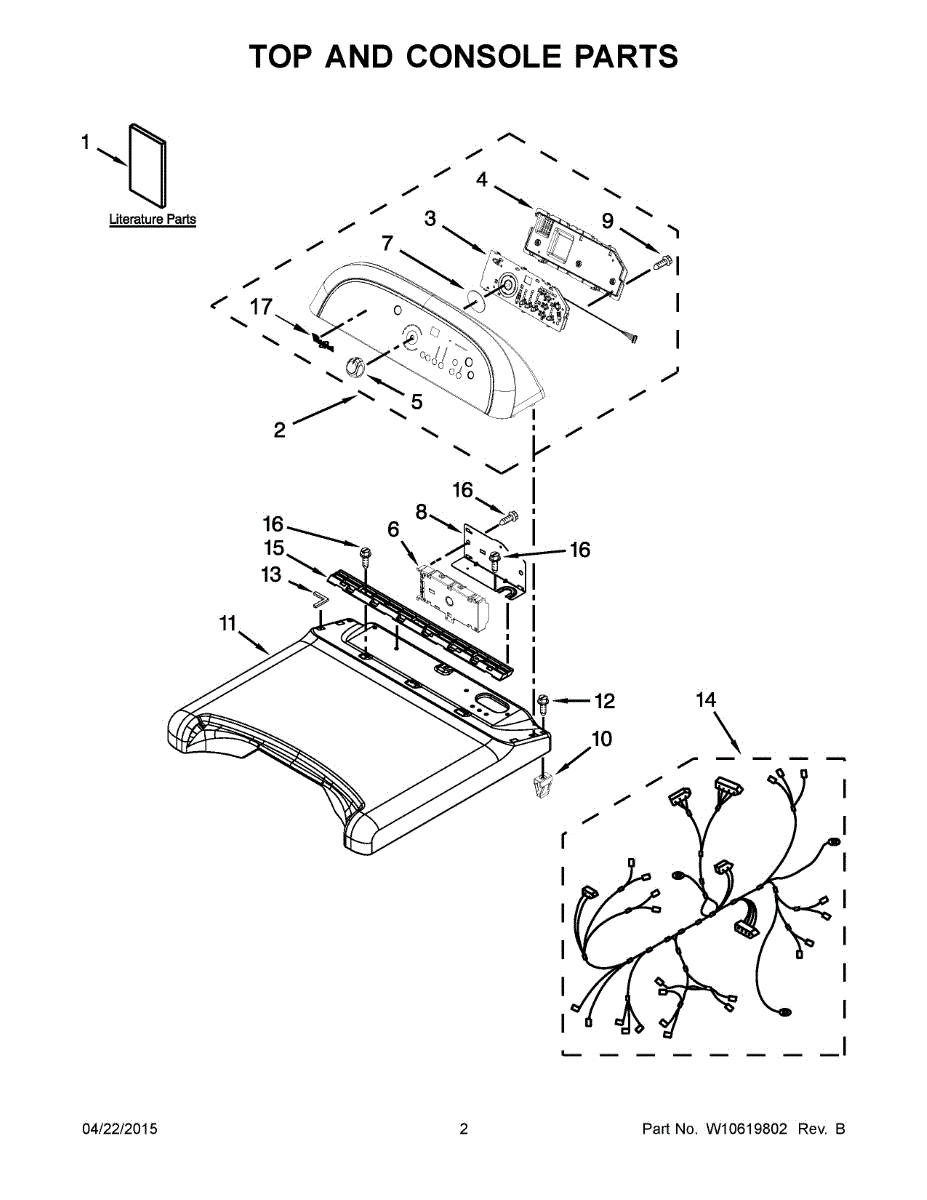

Parts for Whirlpool WED8000BW0: 02 - Top And Console Parts

This electronic control board is the appliance's main control module, managing user inputs and cycle functions so your appliance operates reliably. Replaces a failed control to restore normal operation of the console and programmed cycles. What it does:

• Interprets touchpad/selector inputs and runs the appliance's programmed cycles
• Controls display, timers, and cycle sequencing for proper operation
• Manages power to subsystems (motors, valves, heaters) as directed by settings
• Common symptom causes: unresponsive or blank display, control not accepting inputs, cycles not starting or stopping, or erroneous error codes

• One electronic control board

• Disconnect power to the appliance before beginning work to avoid shock
• Handle the board carefully and avoid static discharge; use anti-static precautions if available
• Access may require removing the console or back panel; keep fasteners organized during reassembly

This electronic control board coordinates the appliance's operations by processing inputs and sending power to critical components. Replacing a failed board can restore reliable performance when the unit won't start, stops mid-cycle, shows error codes, or behaves unpredictably.

• Directs cycle timing and power to motors, valves, heaters, and other loads
• Interprets user interface commands and sensor feedback to run selected programs
• Manages safety checks and built-in diagnostics
• Failure symptoms include: won't start/respond, cycle won't advance, stops mid-cycle, error codes, or intermittent/erratic operation

• Disconnect power at the breaker or unplug the appliance before servicing
• Use ESD precautions and handle the board by the edges
• Transfer any brackets, covers, or jumpers from the original board if required
• Label or photograph wiring, then move one connector at a time to the matching terminals

Screw for control panel.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This name plate is the decorative centennial badge that restores the appliance's exterior appearance and branding. It replaces a missing, damaged, or faded badge to keep the unit looking factory-finished. What it does

• Restores the appliance's exterior badge for a like-new appearance
• Replaces badges that are cracked, scratched, peeling, or discolored
• Helps identify the appliance style when the original emblem is missing
• Cosmetic part only — does not affect appliance operation

• One name plate

• For best results, clean the mounting area and remove dirt or wax before installation
• Handle carefully to avoid scratching the finish; use non-marring tools as needed
• If access behind trim is required, unplug the appliance or disconnect power before removing panels
• Follow OEM instructions for removal and reinstallation to avoid damaging clips or surrounding trim
