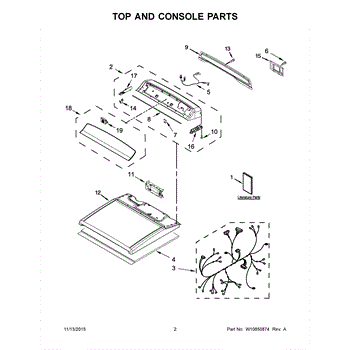

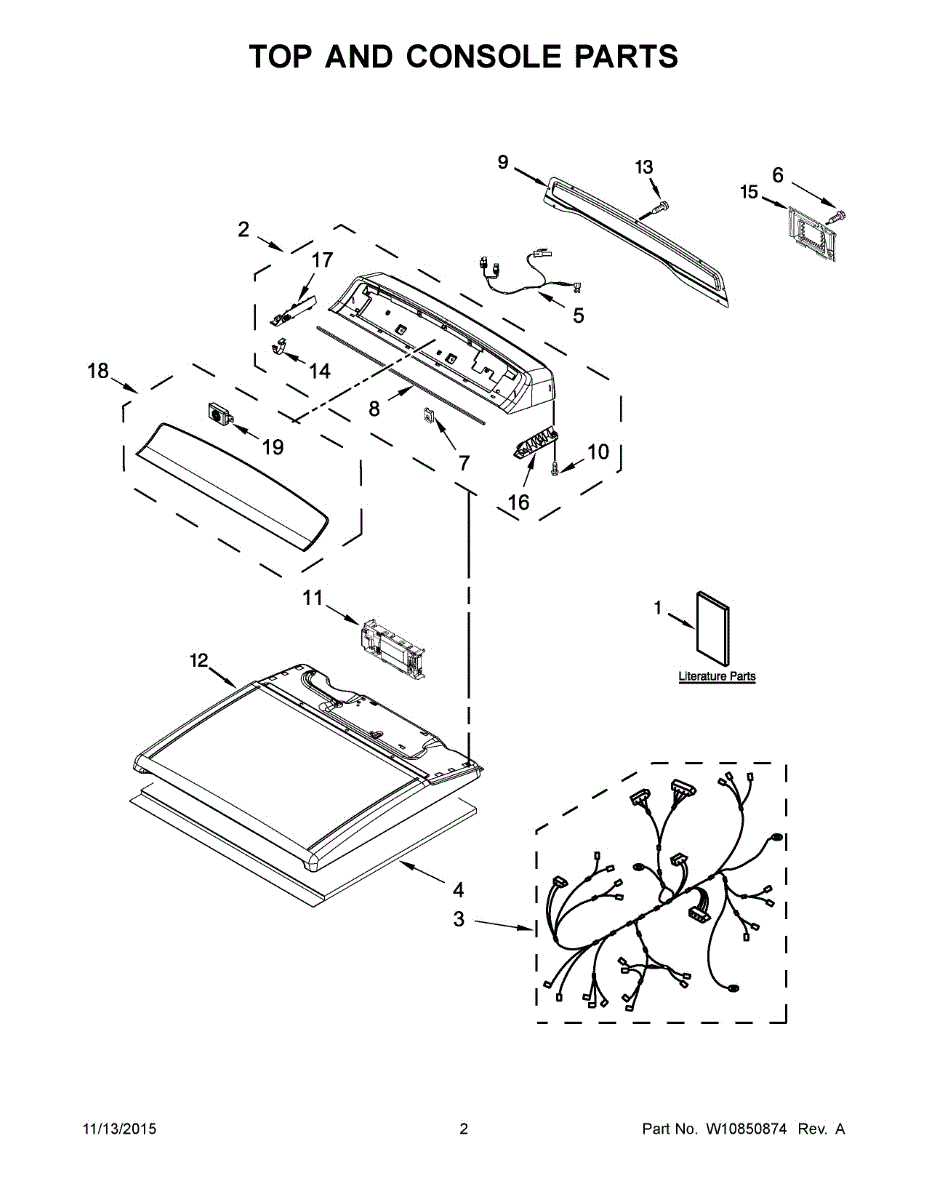

Parts for Whirlpool WED8000DW2: 02 - Top And Console Parts

The Console is an OEM part for Whirlpool electric dryers. This console houses the dryer control panel, buttons, toggle switches and electronic display.

Causes of a bad console could include physical damage from impact or repeated opening and closing of the dryer door. Over time, constant exposure to heat and vibration can also degrade sensitive electronic components inside.

Symptoms of a faulty console are:

• Non-responsive or uncalibrated control buttons
• Flickering or blank control display
• Inability to select cycles or temperature settings
• Loose fitting or opening console panel

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This replacement wire harness connects electrical components to restore reliable power and signal paths in select Whirlpool appliances. Use it to replace a damaged or worn harness that causes intermittent operation or loss of function. What it does:

• Routes power and signal connections between appliance controls and components
• Replaces frayed, melted, or broken wiring that can cause intermittent operation
• Helps resolve symptoms such as no power to a circuit, intermittent operation, or control errors
• Ensures proper connector fit to maintain electrical continuity

• Disconnect power (unplug appliance or turn off circuit breaker) before starting any repair
• Verify connector orientation and routing against the service diagram before removing the old harness
• Secure harness away from pinch points and moving parts; avoid contact with sharp edges or heat sources

This replacement nut secures appliance parts and hardware to keep assemblies stable and prevent loose connections. It's a simple, direct replacement for worn or missing fastening hardware to restore proper fit and reduce vibration. What it does:

• Fastens mounting studs, brackets or panels to hold components in place
• Restores secure mechanical connections that can loosen over time
• Helps eliminate rattling, vibration and misaligned panels caused by missing or stripped hardware
• Provides a straightforward, durable replacement for corroded or damaged nuts

• Disconnect power to the appliance before beginning any repair
• Use the correct-size wrench or socket; ensure threads engage smoothly before tightening
• Tighten until snug—avoid overtightening that can strip threads or damage components
• Inspect mating threads and replace any damaged studs or hardware for a reliable repair

The Screw is an OEM component compatible with Whirlpool washing machines. This screw secures the rear panel onto the cabinet frame, ensuring a sturdy connection between housing components.  Proper installation is critical for the washer's structural integrity.

Causes of a bad screw include corrosion from repeated water exposure or stresses from years of use. Loosening can occur from vibrations weakening the threads over time.

Symptoms of a bad screw include:

• Rear panel detaching from frame opening gaps
• Increased noise and vibrations from a compromised seal
• Stress on other connections from improper mounting points
• Potential leak paths from openings near hoses or tub areas

This OEM Whirlpool replacement screw helps maintain a tight panel closure. It is compatible with additional brands like Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This electronic control board operates the appliance's user interface and internal functions, restoring proper control response and cycle sequencing. It's a direct-fit replacement used to repair malfunctioning or unresponsive controls. What it does

• Controls and coordinates electronic functions, timers, and cycle logic
• Restores touch/keypad and display responsiveness when control signals fail
• Can resolve symptoms like unresponsive buttons, incorrect cycle operation, or intermittent power to components
• Works as the primary interface between sensors, motors, and user inputs

• 1 electronic control board

• Disconnect power before starting and verify the appliance is fully de-energized
• Handle the board carefully to avoid static damage; wear an anti-static wrist strap if available
• Inspect connectors and wiring harnesses for damage; replace damaged harnesses separately

This top panel replaces the appliance's cabinet top to restore a flush, secure surface and protect internal components. It's a direct-fit exterior panel used when the existing top is dented, bent, or damaged. What it does:

• Covers and protects the washer/dryer cabinet and internal components from debris and spills
• Provides the mounting surface for controls, console, and trim
• Restores a straight, even appearance when the original top is warped or dented
• Helps maintain proper alignment of adjoining panels and doors

• 1 top panel

• Unplug the appliance or disconnect power before starting work
• Keep fasteners organized and hand-tighten before final torque to ensure proper fit

The Switch Mounting Screw is an OEM part compatible with Whirlpool washing machines. This screw securely mounts the cycle selector switch within the control console assembly. Proper fastening ensures dependable operation of control functions.

Causes of a bad mounting screw can stem from stress cracks developing over multiple years of operation. Vibrations accumulate, slowly loosening connections housed in a wet environment.

Symptoms of a bad mounting screw include:

• Loose or rattling switch within the console face
• Difficulty selecting cycles as buttons wobble out of place
• Water intrusion hastening corrosion of electrical terminals
• Potential shock hazards if live connections are exposed

This Whirlpool replacement screw restores a tight mounting point. It is compatible with brands like Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Console Clip is an OEM part compatible with Whirlpool dryers. This clip secures the control console assembly to the top panel, ensuring it is firmly mounted during operation. Properly functioning clips are necessary to maintain the correct alignment of controls and prevent detachment.

Causes of a bad clip can include wear and fatigue from repeated opening and closing of the dryer door. Excessive force or impact could also bend or break the clip over time.

Symptoms of a bad clip include:

• Loose console assembly that is not securely fastened
• Misaligned or dangling controls that do not sit flush
• Dislodged console at risk of detaching from housing
• Missing clip leaving an open mounting point

This OEM Whirlpool replacement clip is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This terminal block cover protects the dryer/range terminal block and wiring by keeping connections enclosed and reducing risk of accidental contact or debris intrusion. It restores a finished, safe rear electrical access area. What it does:

• Covers and shields the appliance's electrical terminal block to help prevent accidental contact with live wires
• Helps keep dust, lint and small debris out of the terminal area
• Provides a mounting surface for the terminal block screw or clamp where applicable
• Common service symptom: missing, cracked or damaged cover exposes wiring or looks broken at the rear access

• One terminal block cover

• Disconnect all power at the breaker or unplug the appliance before servicing
• Intended to mount over the terminal block; secure with the factory screw(s) or fastener(s)
• Inspect wiring and terminal connections while the cover is off; replace frayed or damaged wires before reinstalling

The Bracket Dryer is an OEM part compatible with Whirlpool dryers. This bracket provides stability and structure by securing the dryer cabinet to the base frame. It is a necessary component that allows for proper mounting and alignment of the dryer.

Causes of a bad bracket can include cracking, bending, or warping over time and use. Exposure to excessive heat or impact can damage the bracket and compromise its integrity.

Symptoms of a bad bracket include:

• Vibrating or noisy dryer
• Loose cabinet that is not firmly mounted
• Difficulty leveling or aligning the dryer
• Stress on other components like doors or panels

This OEM Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Bracket Dryer is an OEM part compatible with Whirlpool dryers. This bracket provides stability and structure by securing the dryer cabinet to the base frame. It is a necessary component that allows for proper mounting and alignment of the dryer.

Causes of a bad bracket can include cracking, bending, or warping over time and use. Exposure to excessive heat or impact can damage the bracket and compromise its integrity.

Symptoms of a bad bracket include:

• Vibrating or noisy dryer
• Loose cabinet that is not firmly mounted
• Difficulty leveling or aligning the dryer
• Stress on other components like doors or panels

This OEM Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Overlay is an OEM replacement part for Whirlpool dryers. It is the interface touchpad between you and your dryer, allowing you to select different drying cycles, adjust temperature settings, and control other functions with a simple touch.

Symptoms of a bad overlay include:

• Unresponsive buttons
• Cracked or damaged overlay
• Errors in cycle selection

A bad control panel overlay touchpad can occur due to regular use, accidental damage, or wear and tear over time. If you notice symptoms such as unresponsive buttons, cracked or damaged overlay, or errors in cycle selection, it may be time to replace the control panel overlay touchpad.

This Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


The Speaker is an OEM component specifically designed for Whirlpool brand washers. It alerts users with chime tones or voice prompts during cycle operation or any error states. Precise acoustic engineering allows for clear audio reception even amid operating vibrations.

Symptoms of a bad speaker include:

• No audio tones or voice prompts were heard
• Muffled, distorted, or unusually loud sounds
• Speaker making rattling or buzzing noises

Causes can be damage from water damage, defects in the audio circuitry, or aging components.

This speaker ensures optimal user communication. Without it, you cannot verify cycle progress or troubleshoot issues. Its dependable performance maintains the washer's convenience.

This Whirlpool OEM part fits perfectly while extending the equipment's lifespan. It is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.
