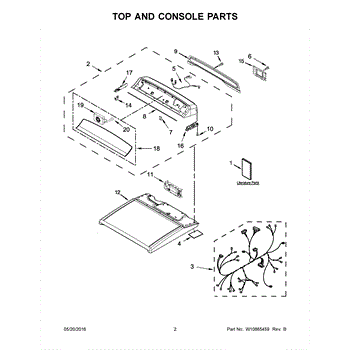

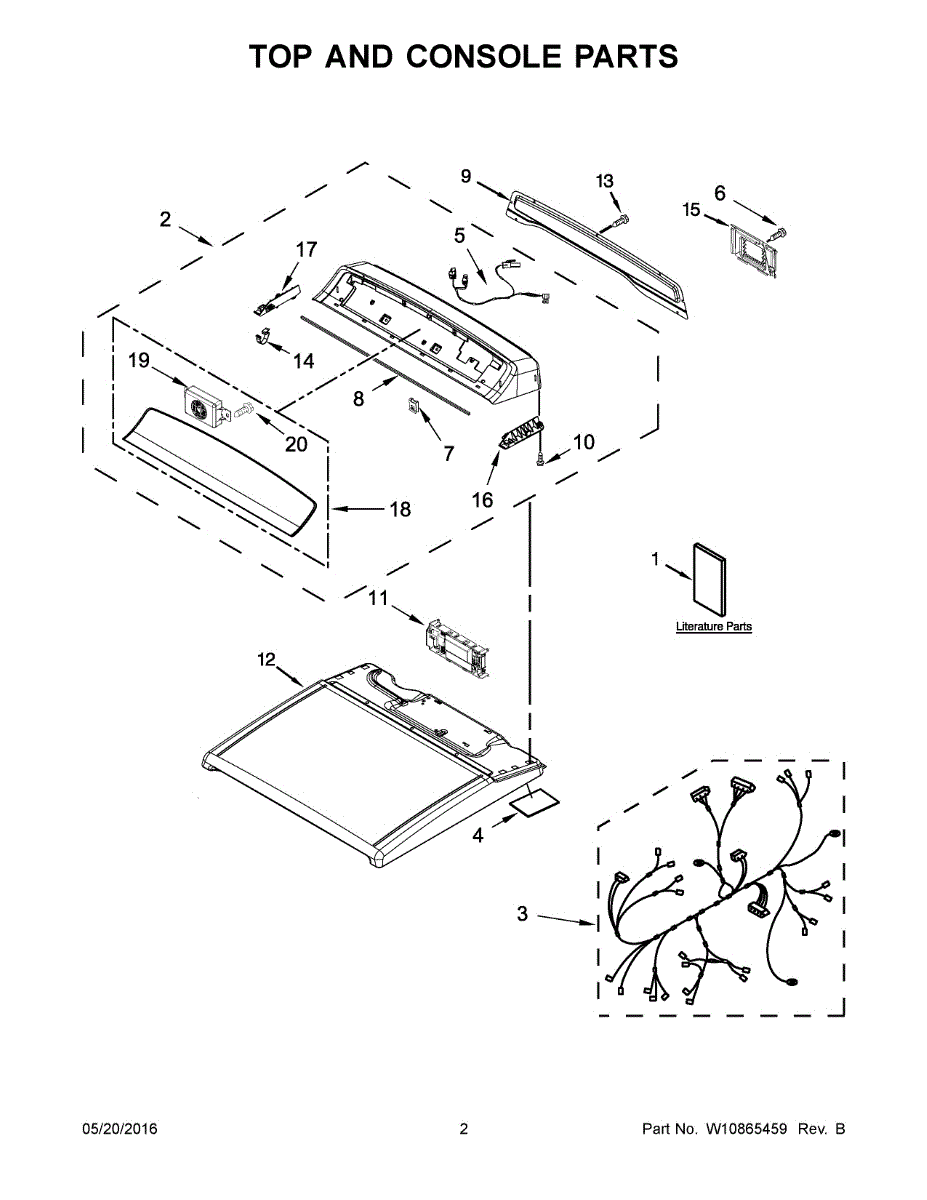

Parts for Whirlpool WED8500DC3: 02 - Top And Console Parts

White console housing for dryer control panel. Protects internal electronics and holds cycle selection controls. Replace if cracked, broken, or damaged.

This is the front control console panel for a dryer, which houses the cycle selector knobs, buttons, and display. It provides the user interface for selecting drying cycles and settings. Replace this console if it is cracked, damaged, or if the controls are no longer responding properly due to physical wear on the panel.

Red control panel console housing for dryers. Covers and protects internal electronics while providing access to cycle selection and settings. Replace if cracked, broken, or worn.

Fix dryer control issues or electrical failures with this wire harness. Connects console controls to heating and motor systems. Moderate difficulty repair.

Dryer not starting or running intermittently? This wire harness assembly restores electrical connections between components. Direct-fit replacement part.

Replacement mounting nut secures panels, brackets, and studs in dryers. Restores tight fit for worn, stripped, or missing fastening hardware.

Rear access panel for dryers. Covers the back of the cabinet and provides access to internal components. Replace if cracked, dented, or missing.

The Screw is an OEM component compatible with Whirlpool washing machines. This screw secures the rear panel onto the cabinet frame, ensuring a sturdy connection between housing components.  Proper installation is critical for the washer's structural integrity.

Causes of a bad screw include corrosion from repeated water exposure or stresses from years of use. Loosening can occur from vibrations weakening the threads over time.

Symptoms of a bad screw include:

• Rear panel detaching from frame opening gaps
• Increased noise and vibrations from a compromised seal
• Stress on other connections from improper mounting points
• Potential leak paths from openings near hoses or tub areas

This OEM Whirlpool replacement screw helps maintain a tight panel closure. It is compatible with additional brands like Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Dryer won't start or control panel not responding? This electronic control board manages cycle selection and timing. Restores responsive controls.

Replacement top panel for your dryer. Installs on the upper cabinet housing. Needed when the original panel is cracked, dented, or damaged. Fits select models.

Replace your dryer's top panel if it's cracked, chipped, or damaged. This protective cover installs on the upper cabinet, providing a clean finish.

Replaces the cabinet top panel on your dryer. Direct-fit exterior cover that restores a flush surface when the original is dented, bent, or damaged.

The Switch Mounting Screw is an OEM part compatible with Whirlpool washing machines. This screw securely mounts the cycle selector switch within the control console assembly. Proper fastening ensures dependable operation of control functions.

Causes of a bad mounting screw can stem from stress cracks developing over multiple years of operation. Vibrations accumulate, slowly loosening connections housed in a wet environment.

Symptoms of a bad mounting screw include:

• Loose or rattling switch within the console face
• Difficulty selecting cycles as buttons wobble out of place
• Water intrusion hastening corrosion of electrical terminals
• Potential shock hazards if live connections are exposed

This Whirlpool replacement screw restores a tight mounting point. It is compatible with brands like Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Console Clip is an OEM part compatible with Whirlpool dryers. This clip secures the control console assembly to the top panel, ensuring it is firmly mounted during operation. Properly functioning clips are necessary to maintain the correct alignment of controls and prevent detachment.

Causes of a bad clip can include wear and fatigue from repeated opening and closing of the dryer door. Excessive force or impact could also bend or break the clip over time.

Symptoms of a bad clip include:

• Loose console assembly that is not securely fastened
• Misaligned or dangling controls that do not sit flush
• Dislodged console at risk of detaching from housing
• Missing clip leaving an open mounting point

This OEM Whirlpool replacement clip is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Exposed wiring at the back of your dryer? This terminal block cover shields electrical connections from accidental contact and debris. Simple snap-on install.

Structural bracket that secures the dryer cabinet to the base frame. Replace if bent, cracked, or causing alignment issues during installation or use.

The Bracket Dryer is an OEM part compatible with Whirlpool dryers. This bracket provides stability and structure by securing the dryer cabinet to the base frame. It is a necessary component that allows for proper mounting and alignment of the dryer.

Causes of a bad bracket can include cracking, bending, or warping over time and use. Exposure to excessive heat or impact can damage the bracket and compromise its integrity.

Symptoms of a bad bracket include:

• Vibrating or noisy dryer
• Loose cabinet that is not firmly mounted
• Difficulty leveling or aligning the dryer
• Stress on other components like doors or panels

This OEM Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Fix a non-responsive dryer display or control panel that won't light up. This control board replacement restores button and dial function. Moderate DIY.

This is a small speaker used in a microwave to produce audible alerts and tones, such as the beep that sounds when cooking is complete or buttons are pressed. If your microwave no longer beeps, produces distorted sounds, or has no audio feedback at all, this speaker likely needs replacement.

10 - 16 x 1/2
