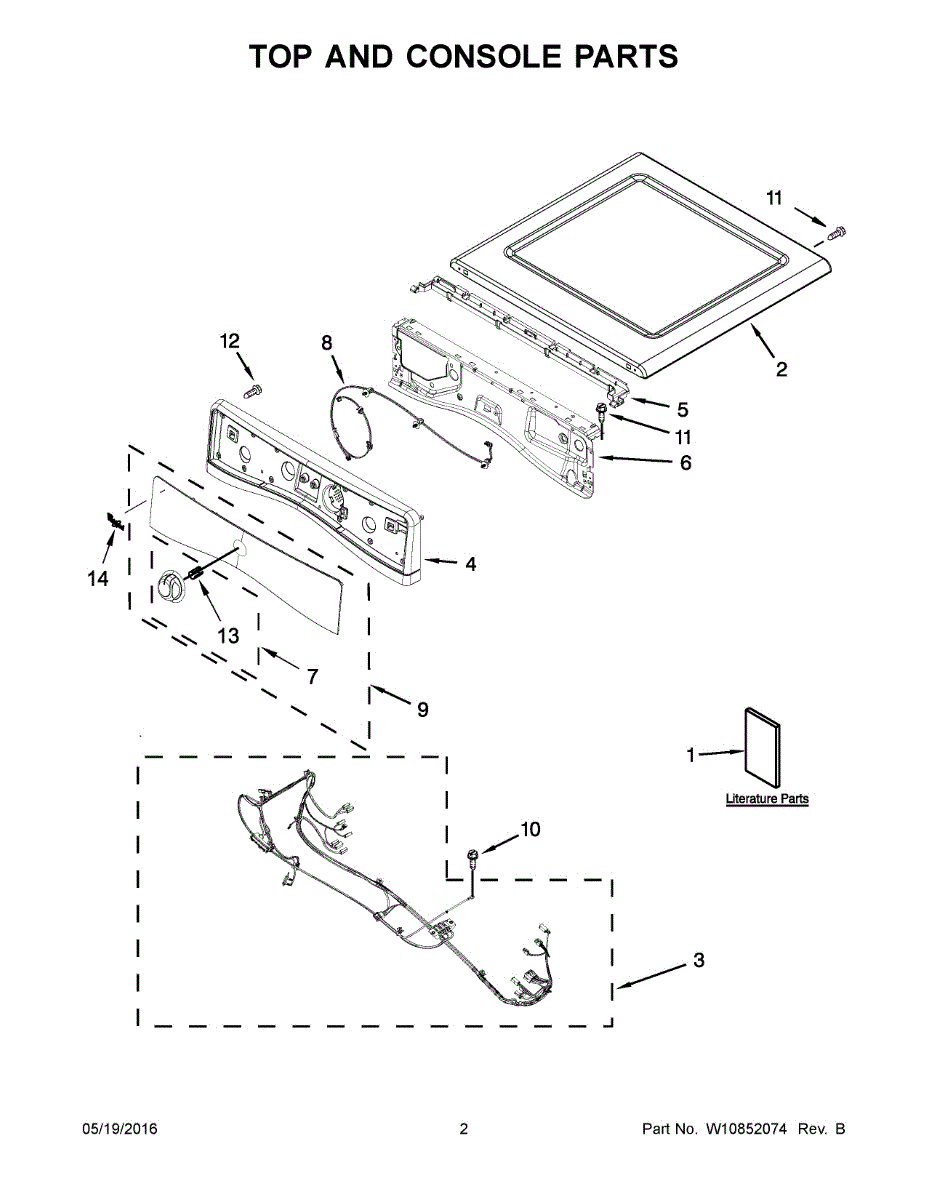

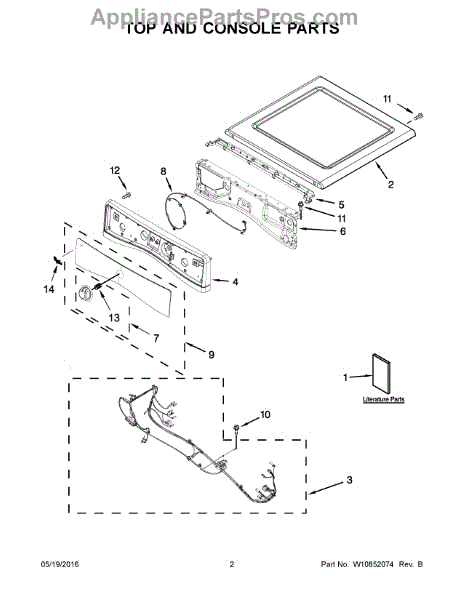

Parts for Whirlpool WED87HEDC1: 02 - Top And Console Parts

Chrome finish cabinet top panel for dryers. Replaces dented, bent, or rusted top panels to restore clean appearance and secure fit over internal components.

Replaces the upper cabinet cover of your dryer. Needed when the original panel is dented, rusted, warped, or damaged. Restores a secure fit and clean look.

If your dryer won't start, stops mid-cycle, or controls are unresponsive, the main wire harness may have failed. This part routes power and signals.

Control console panel for dryers. Replaces cracked, broken, or worn control panels. Includes display and button interface housing assembly.

Replaces the outer control housing on your dryer. Restores a clean, secure surface when the original is cracked, broken, or cosmetically damaged.

Console mounting bracket for dryers. Secures the control panel to the cabinet. Replace if cracked, bent, or broken to restore proper console support.

This is a gray plastic timer knob that attaches to the dryer's control panel shaft. It allows you to select and set the drying cycle and time. Replace this knob if it is cracked, broken, or if the D-shaped shaft hole is worn out, causing the knob to spin freely without engaging the timer.

This is a chrome-finished timer knob that attaches to the timer shaft on the dryer's control panel, allowing you to select and start drying cycles. It is made of plastic with a metallic chrome appearance. Replace this knob if it is cracked, broken, or no longer grips the timer shaft properly, making it difficult to turn or set the dryer cycle.

Internal wire harness assembly that connects dryer components for signal and power flow. Replace if wires are cracked, frayed, or connectors are damaged.

Fix unresponsive buttons or blank displays with this dryer control panel. Restores cycle selection and status feedback. Moderate DIY repair.

This 8-18 x 5/8-inch screw secures dryer panels, brackets, and covers. Replace missing or stripped fasteners to restore a tight fit and stability.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Mounting screw for microwaves, dryers, wall ovens, washers, and laundry centers. Replaces lost, stripped, or damaged screws during installation or repair.

This is a D-shaped knob insert or spring clip that fits inside a control knob and connects it to the control shaft on the dryer's front panel. It ensures the knob grips the shaft properly so you can turn the timer or selector. Replace this insert if your control knob spins freely without engaging the shaft or if the knob feels loose and won't stay in position.
