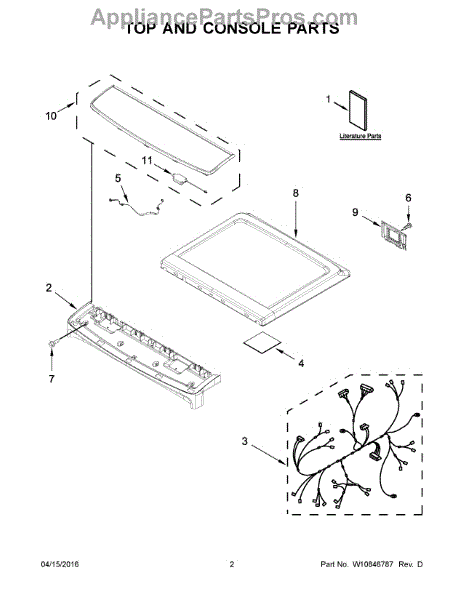

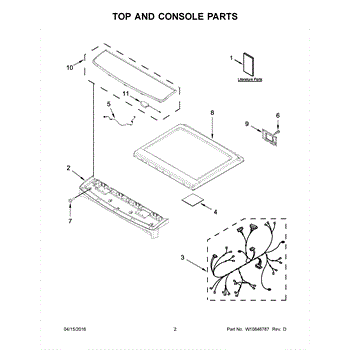

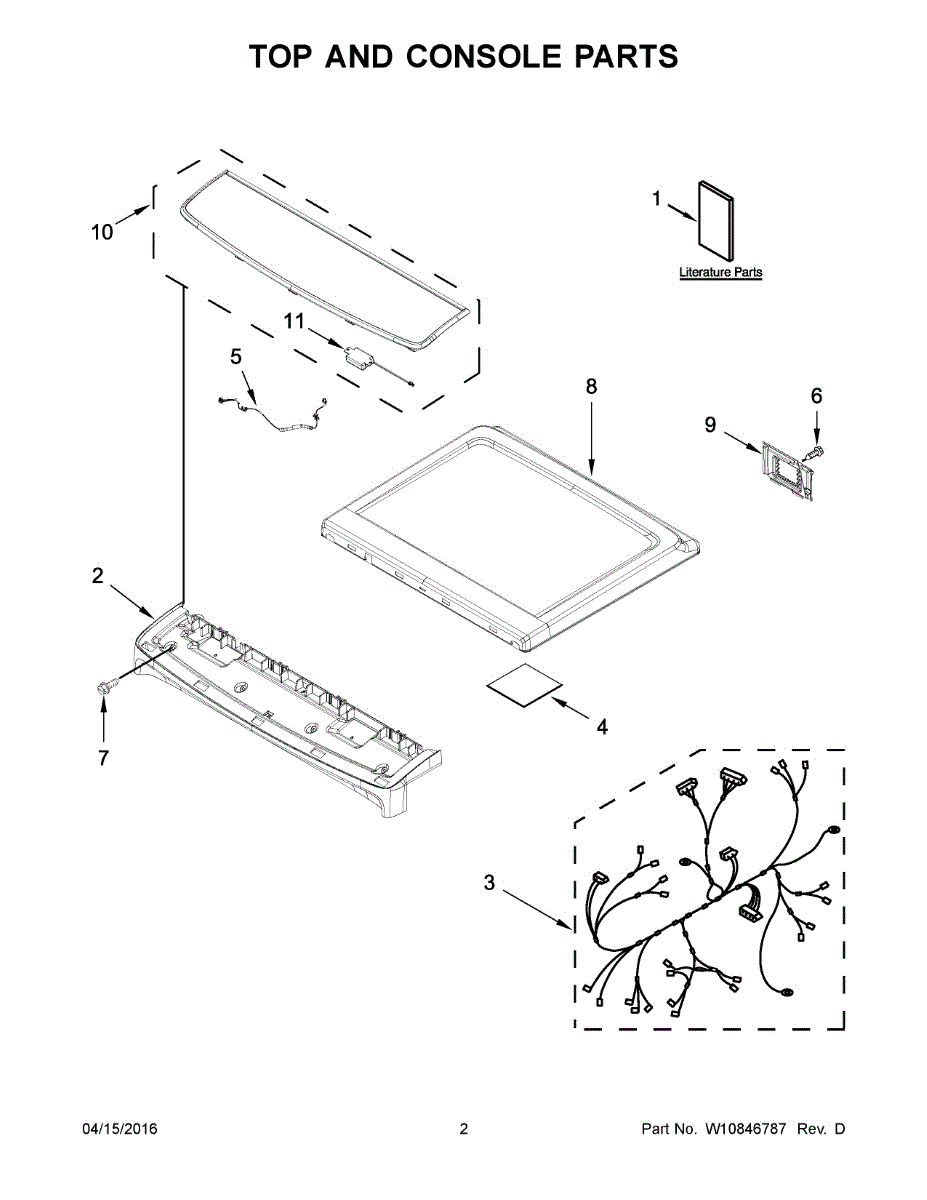

Parts for Whirlpool WED9500EC0: 02 - Top And Console Parts

This wire harness connects control and power circuits, restoring reliable electrical routing and device operation. It replaces a worn or damaged cable assembly to help eliminate intermittent power, non-responsive controls, or component failures. What it does:

• Routes power and signal connections between control boards, switches, and components
• Re-establishes secure plug-and-socket connections to prevent intermittent operation
• Helps resolve symptoms like no power to parts, erratic controls, or appliances that won't complete cycles
• Maintains correct wire grouping and strain relief to protect circuits from chafing

• Disconnect power before beginning work; follow OEM safety procedures
• Inspect connectors and mating sockets for damage; replace if corroded or broken
• Route harness to avoid sharp edges and heat sources; use existing clips and fasteners

10 - 16 x 1/2

This factory fastener is a #8-18 x 5/8-inch Type AB screw designed for appliance assembly. It secures panels and components to restore a tight, rattle-free fit and dependable alignment. What it does:

• Thread-forming Type AB design engages thin metal or plastic components
• Secures panels, brackets, trim, or covers to reduce looseness and vibration
• Replaces missing, stripped, or corroded fasteners
• Helps maintain alignment for proper operation and reduced noise

• One screw

• Disconnect power before servicing; shut off water supply if working near water lines
• Use the correct driver for the screw head; start by hand to avoid cross-threading
• Tighten until snug—do not overtighten to prevent stripping or cracking plastic
• Repair damaged holes or replace worn clips/inserts before installing the new screw

• Size: #8-18 x 5/8 in (length 0.625 in)
• Thread type: Type AB, thread-forming

This terminal block cover protects the dryer/range terminal block and wiring by keeping connections enclosed and reducing risk of accidental contact or debris intrusion. It restores a finished, safe rear electrical access area. What it does:

• Covers and shields the appliance's electrical terminal block to help prevent accidental contact with live wires
• Helps keep dust, lint and small debris out of the terminal area
• Provides a mounting surface for the terminal block screw or clamp where applicable
• Common service symptom: missing, cracked or damaged cover exposes wiring or looks broken at the rear access

• One terminal block cover

• Disconnect all power at the breaker or unplug the appliance before servicing
• Intended to mount over the terminal block; secure with the factory screw(s) or fastener(s)
• Inspect wiring and terminal connections while the cover is off; replace frayed or damaged wires before reinstalling

The Speaker is an OEM component specifically designed for Whirlpool brand washers. It alerts users with chime tones or voice prompts during cycle operation or any error states. Precise acoustic engineering allows for clear audio reception even amid operating vibrations.

Symptoms of a bad speaker include:

• No audio tones or voice prompts were heard
• Muffled, distorted, or unusually loud sounds
• Speaker making rattling or buzzing noises

Causes can be damage from water damage, defects in the audio circuitry, or aging components.

This speaker ensures optimal user communication. Without it, you cannot verify cycle progress or troubleshoot issues. Its dependable performance maintains the washer's convenience.

This Whirlpool OEM part fits perfectly while extending the equipment's lifespan. It is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.
