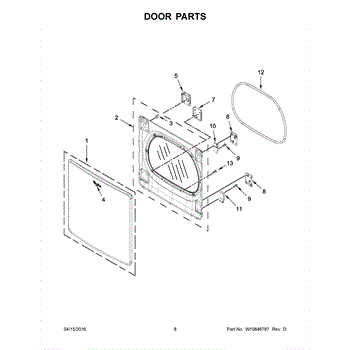

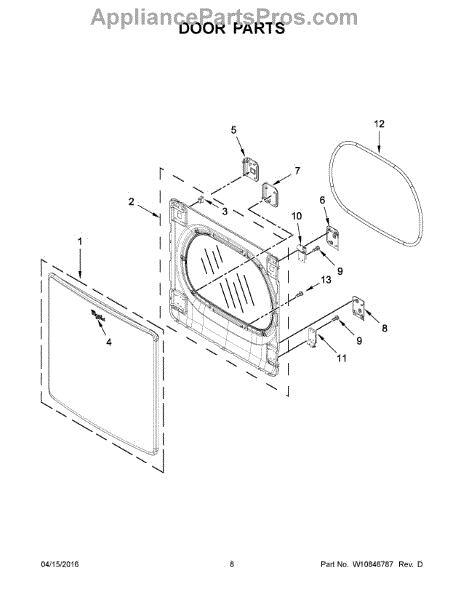

Parts for Whirlpool WED9500EC0: 05 - Door Parts

This outer door panel replaces a damaged or dented appliance door and restores the unit's appearance and proper sealing. It provides the visible exterior surface and supports inner components for normal door operation. What it does

• Replaces a cracked, dented, or cosmetically damaged outer door surface to improve appearance
• Restores flush fit and alignment so the door closes evenly
• Supports attached trim, handles, and inner door components
• Helps maintain the appliance's insulating shell and barrier against leaks

• One outer door panel

• High-level replacement: remove door from hinges per your model's service instructions before swapping panels
• Disconnect power and water and work on a stable surface to avoid damage or injury
• Handle panel edges and any attached hardware with care; use appropriate tools and protective gloves

This flat-head screw secures panels, brackets, or trim so they sit flush on your appliance. Replacing a worn or missing screw restores a tight fit and helps prevent vibration, rattling, or shifting components.

• Provides a countersunk, flush-mount fastener for panels, trim, brackets, or covers
• Helps maintain alignment and secure attachment during operation
• Replaces stripped, rusted, or missing hardware
• Symptoms can include loose panels or handles, rattling noises, or visible gaps/misalignment

• Disconnect power (and shut off gas, if applicable) before servicing
• Match screw length and thread to the original for proper fit
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Support the part being fastened to keep alignment while tightening

This replacement door hinge restores proper door alignment and smooth opening on compatible Whirlpool refrigerators. It helps stop door sagging and keeps the gasket sealing fully for efficient cooling. What it does:

• Provides a secure pivot for the appliance door so it opens and closes smoothly
• Corrects door misalignment and prevents rubbing or binding
• Helps maintain an even door seal to reduce cold air loss
• Stops clicking or scraping noises caused by a worn hinge

• Disconnect power to the appliance before starting any repair
• Support the door while removing and installing the hinge to prevent injury or damage
• Use the OEM fasteners and tighten to secure fit; check door alignment after installation

This replacement door seal restores a tight door-to-cabinet gasket to stop leaks and help the appliance operate reliably. It replaces worn, cracked, or torn seals so doors close securely and minimize water, air, and odor escape. What it does:

• Creates a secure seal between the door and cabinet to prevent water or air leaks.
• Helps reduce odors and protects internal components from moisture damage.
• Restores proper door closure to prevent puddles, drips, or inefficient operation.
• Commonly replaced when the existing seal is torn, stretched, or compressed.

• Disconnect power and water before starting; follow all safety precautions.
• Remove the old seal and clean the mounting surface before installing the new gasket to ensure a proper fit.
• Seat the gasket evenly into the door channel and verify the door closes fully with no gaps.
• After installation, run a short test cycle or inspection to confirm there are no leaks.

This factory fastener secures appliance components such as panels, brackets, and handles. Replacing a missing or damaged screw restores a tight fit, reduces rattles, and helps keep parts aligned for smooth, reliable operation.

• Secures components to the appliance frame or assemblies
• Helps maintain alignment and structural stability
• Replaces missing, rusted, or stripped hardware
• Common symptoms include loose/wobbly handles or panels, rattling/vibration noises, or a visibly missing screw

• Disconnect power before servicing
• Use the correct driver/bit and start threads by hand to avoid cross-threading
• Do not overtighten; snug until secure
• Replace any that are corroded or stripped for an even hold
