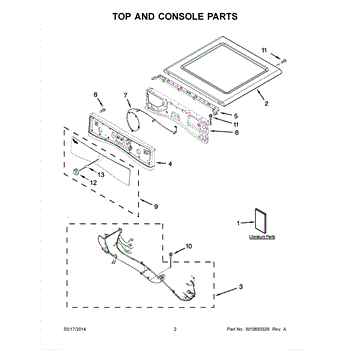

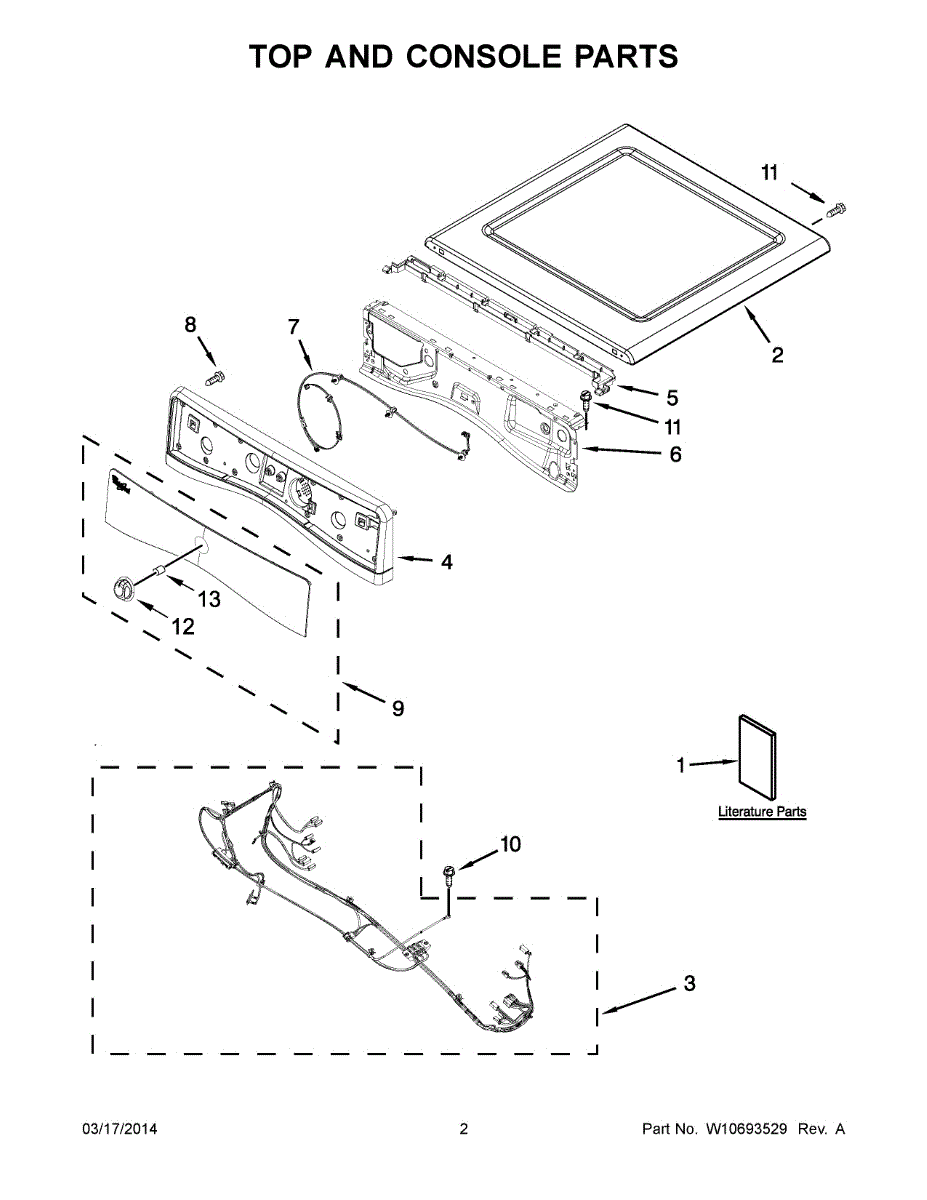

Parts for Whirlpool WGD72HEDW0: 02 - Top And Console Parts

Replaces the upper cabinet cover of your dryer. Needed when the original panel is dented, rusted, warped, or damaged. Restores a secure fit and clean look.

Replaces the outer control housing on your dryer. Restores a clean, secure surface when the original is cracked, broken, or cosmetically damaged.

Console mounting bracket for dryers. Secures the control panel to the cabinet. Replace if cracked, bent, or broken to restore proper console support.

The Wire Harness is an OEM part for Whirlpool dryers. This wire harness is responsible for delivering power and electricity throughout the dryer and to its individual components.

Causes of a bad wire harness can include fraying or exposed wires due to wear and tear over time, cracking or damage of protective casings that expose internal wirings, or malfunctioning connections that disrupt power flow.

Symptoms of a bad wire harness include:

• The dryer not starting or powering on
• Components like the drum or heating elements not working
• Buzzing or humming noises coming from inside the dryer
• Tripped or blown fuses
• Error codes or failure to progress through cycles properly

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Screw is an OEM component compatible with Whirlpool washing machines. This screw secures the rear panel onto the cabinet frame, ensuring a sturdy connection between housing components.  Proper installation is critical for the washer's structural integrity.

Causes of a bad screw include corrosion from repeated water exposure or stresses from years of use. Loosening can occur from vibrations weakening the threads over time.

Symptoms of a bad screw include:

• Rear panel detaching from frame opening gaps
• Increased noise and vibrations from a compromised seal
• Stress on other connections from improper mounting points
• Potential leak paths from openings near hoses or tub areas

This OEM Whirlpool replacement screw helps maintain a tight panel closure. It is compatible with additional brands like Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is a Whirlpool dryer control panel that is compatible with several different models. The control panel for a dryer is the piece across the top of the appliance where the controls are housed. The inner portion of this piece contains a circuit board that controls every function of the dryer. Without a properly functioning control board, the dryer is useless.If the control board is damaged or faulty, the dryer could fail to turn on. Different functions of the dryer may begin to malfunction one at a time. Specific settings may cease to work, or the dryer may not produce the proper heat to dry the clothes. Replacing the control board of a dryer is relatively straightforward. Always be sure to disconnect from the power source before beginning any work. The back panel of the dryer contains screws that hold the control board assembly in place. These can be accessed by removing the plastic casing on the control assembly. Unscrew the damaged unit, and unplug it from the connecting wires. Check for any signs of damage, such as burn marks or charring, before installing the new component.This part is a genuine OEM product and is sourced directly from the manufacturer as a single component. This product is compatible with Whirlpool, Maytag, and Kenmore appliances.

This 8-18 x 5/8-inch screw secures dryer panels, brackets, and covers. Replace missing or stripped fasteners to restore a tight fit and stability.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This is a chrome-finished timer knob that attaches to the timer shaft on the dryer's control panel, allowing you to select and start drying cycles. It is made of plastic with a metallic chrome appearance. Replace this knob if it is cracked, broken, or no longer grips the timer shaft properly, making it difficult to turn or set the dryer cycle.

This is a D-shaped knob insert or spring clip that fits inside a control knob and connects it to the control shaft on the dryer's front panel. It ensures the knob grips the shaft properly so you can turn the timer or selector. Replace this insert if your control knob spins freely without engaging the shaft or if the knob feels loose and won't stay in position.
