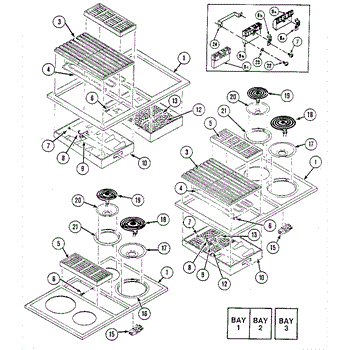

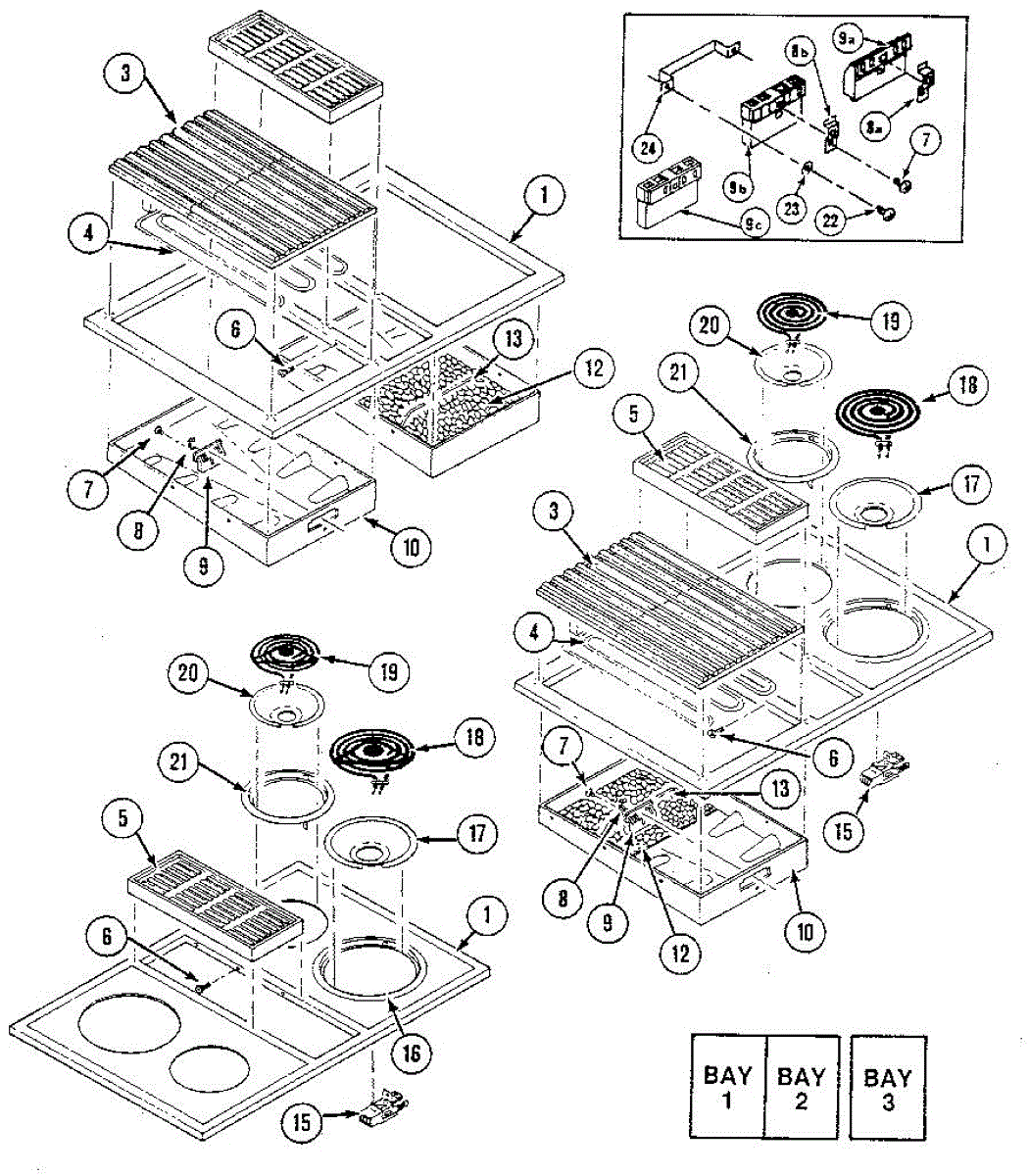

Parts for Kenmore 223.09 / 1988 (22309 / 1988, 223 09 / 1988): Top Assembly Parts

This part is a grill element that is used on a cooktop. The element is responsible for supplying heat to the cooking area of the cooktop. If the element is not lighting up orange or red when it is turned on, it will need to be replaced. This part may need to be replaced over time due to normal wear and tear on the appliance. Some users may also notice that the element is not heating evenly or works intermittently. If this is the case, this is a genuine OEM replacement part that is made out of high-quality materials. Unplug the range from the electrical outlet and allow the cooktop ample time to cool down before trying to replace it. Wear work gloves for safety during this process.This part is compatible with cooktops that are manufactured by Jenn-Air and Maytag. It is sold individually and comes from the manufacturer.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Screw: 8-16 x 3/8 inch.

Secures cooktop panels and components to eliminate rattling and maintain alignment. Replace when worn clips allow movement or vibration. Confirm fit with your model.

This is a high-heat ceramic light receptacle used in select appliances. It provides a safe, insulated socket for the appliance light bulb so you can reliably see inside during use or service.

• Holds and insulates the bulb in high-temperature areas
• Restores lighting when the bulb is good but the light won't turn on
• Helps correct loose, flickering, or intermittent interior light
• Common signs include a cracked/scorched socket or arcing at the bulb base

• Disconnect power before servicing; allow the appliance to cool completely
• Access may be from inside the cavity or from the rear panel, depending on model
• Transfer wires one at a time to the new receptacle to maintain correct connections
• Install only the bulb type and wattage specified by the appliance manufacturer

Includes one rock plate. 2 used per unit. For the support order 700819.

This rock plate support is used on many of the Jenn-air grill cartridge rock plates.

Sheet metal pan head screw secures panels, brackets, and components to appliance cabinets. Replace missing, stripped, or corroded screws to restore fit.
