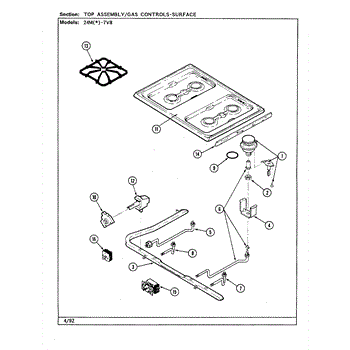

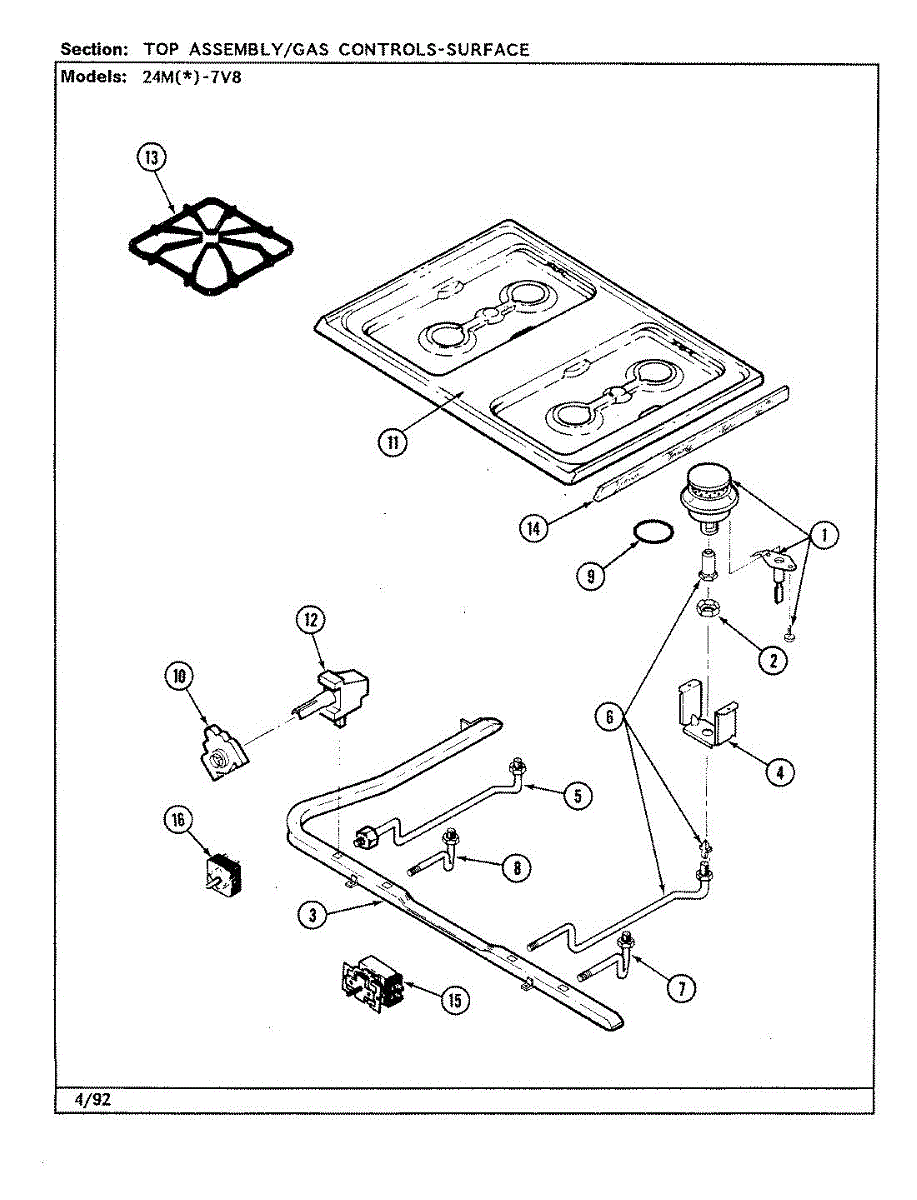

Parts for Magic Chef 24MN-7CKXWV8: 09 - Top Assembly / Gas Controls-Surface Parts

To replace igniters complete burner heads must be replaced order by color: Black: WP3412D024-09 Grey: WP3412D024-26 Brown: WP3412D025-09 Matte Black: 12001495 Taupe: 3412D024-28.

This is a replacement 6-32 x 3/8" screw used to secure panels and components on compatible Whirlpool appliances. It restores proper fastening for loose or missing fasteners so parts stay aligned and stable. What it does:

• Secures trim, panels, brackets or small components to the appliance frame
• Stops rattling or movement caused by a missing or stripped screw
• Helps maintain proper alignment of control panels and access panels
• Provides the correct thread engagement for safe, stable fastening

• One replacement screw (6-32 x 3/8")

• Disconnect power before accessing internal components
• Use the correct screwdriver or nut driver to avoid stripping the head
• Thread carefully and do not overtighten to prevent damage to threads or components
• Keep removed hardware organized and compare sizes before installation

This is a replacement sealed burner cap. This is a genuine OEM part made by Whirlpool and has been sourced directly from the manufacturer. This part is intended to replace a broken, misplaced, or defective burner cap in various models of gas ranges and stoves. Electrodes are included.This sealed burner cap protects the surface burner and allows the cooktop to light properly. If the gas igniter is glowing but does not ignite, the stove won't start up, or there will be a gas smell. Proper tools may be required to replace this part. Always ensure the appropriate safety precautions are adhered to when attempting to fix any appliances. Make sure that the stove is entirely disconnected from gas and power before starting the repair work. For more accurate information on how and where to install this sealed burner cap, the appropriate owner's manual and included diagrams should be referenced.As an authentic replacement part, this burner cap is suitable for use on several different models of gas stoves, ranges, and cooktops manufactured by Whirlpool, Maytag, KitchenAid, Amana, and other Whirlpool brands. This is a genuine part made of high-quality, durable materials and is sold individually.

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued and is no longer available.

This part has been discontinued and is no longer available.

This part has been discontinued and is no longer available. This gasket is no longer needed.

This surface burner igniter switch mounts on the gas valve shaft and signals the spark module to ignite when you turn the knob. Replacing a worn or stuck switch restores consistent clicking and dependable lighting of the cooktop burners.

• Closes the ignition circuit as the knob is turned from OFF, triggering spark at the surface burners
• Typical symptoms: no spark/click at a burner, intermittent ignition, or continuous clicking when knobs are off
• Fits over the valve stem and connects to the spark harness

• Disconnect electrical power and shut off gas before servicing
• Remove the knob and access the control panel/top to reach the valve switch
• Note wire positions; transfer connectors one at a time and align the switch correctly on the valve shaft
• Test for proper spark at each burner before reassembly
