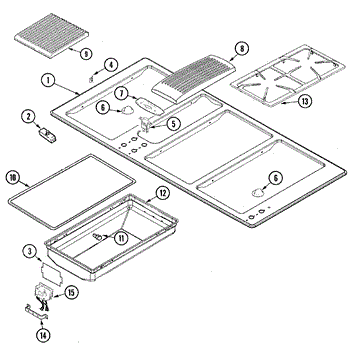

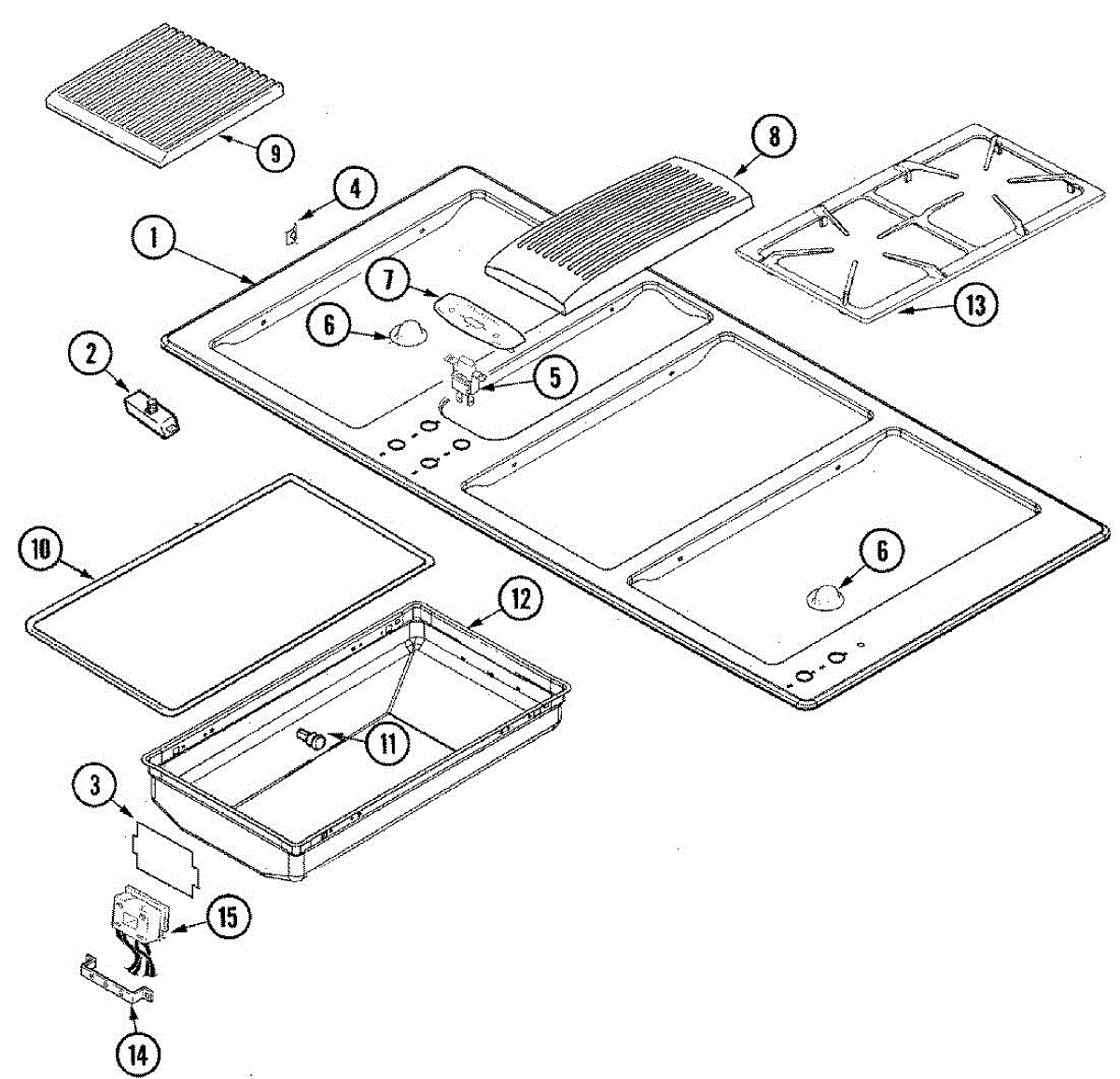

Parts for Jenn-Air JGD8345ADB: 04 - Top Assembly Parts

A replacement SN switch that restores the appliance's control function so selections and features respond reliably. Installs in the original switch location to return consistent on/off or selector operation after a switch failure. What it does:

• Opens and closes the electrical circuit to control the associated function or component.
• Replaces a worn or failed switch to stop intermittent operation or loss of control.
• Common symptoms it can fix: appliance not responding to a selector/setting, intermittent power to a component, or a component that won't turn on.
• Functions as the user-facing or internal control switch depending on the model application.

• Disconnect power (unplug appliance or shut off breaker) before starting any repair.
• May require removing an access or control panel; use basic hand tools and note wire locations before disconnecting.

A genuine replacement mounting screw that secures appliance panels and components to restore proper fit and reduce vibration. Use this screw to replace missing or damaged fasteners for a secure, rattle-free repair. What it does:

• Fastens panels, brackets, or components to the appliance frame
• Restores proper alignment and reduces rattling or vibration
• Prevents parts from coming loose during operation
• Works wherever the OEM screw W10828565 is specified

• Disconnect power to the appliance before servicing
• Use the correct screwdriver or bit to avoid stripping the head
• Install only where the OEM screw is specified; do not overtighten
• Replace any stripped or damaged screws with this exact part

This fan switch restores dependable control of your appliance's ventilation fan. It routes power to the blower motor so you can turn the fan on and off from the control panel when the original switch becomes worn or fails.

• Controls electrical power to the blower motor
• Restores reliable on/off fan operation from the user interface
• Typical symptoms: fan won't start, won't shut off, runs intermittently, or the switch/rocker feels loose or broken
• Contacts can wear or arc over time from repeated use

• Disconnect power at the breaker or unplug the appliance before servicing
• Access the switch from the control panel; note wire positions and take a photo for reference
• Move wires one at a time to the matching terminals on the new switch; replace any heat-damaged connectors
• Reassemble, restore power, and test fan operation

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This gas valve knob restores smooth burner control on your range or cooktop. Replace a cracked, stripped, or missing knob to reliably turn the valve from Off to Hi/Lo and fine-tune the flame.

• Mounts on the burner valve stem to select Off, Low, and High settings
• Replaces knobs that are cracked, stripped, loose, or missing
• Helps when the knob won't turn the valve or align with settings
• Restores consistent feel and control during flame adjustment

• Ensure all burners are Off and the appliance is cool before servicing.
• Pull the old knob straight off the valve stem; do not force or twist the stem.
• Align the new knob with the flat/D of the stem and press firmly until fully seated.
• Disconnect power and shut off gas first if accessing internal parts is required.

This fan switch restores dependable control of your appliance's ventilation fan. It routes power to the blower motor so you can turn the fan on and off from the control panel when the original switch becomes worn or fails.

• Controls electrical power to the blower motor
• Restores reliable on/off fan operation from the user interface
• Typical symptoms: fan won't start, won't shut off, runs intermittently, or the switch/rocker feels loose or broken
• Contacts can wear or arc over time from repeated use

• Disconnect power at the breaker or unplug the appliance before servicing
• Access the switch from the control panel; note wire positions and take a photo for reference
• Move wires one at a time to the matching terminals on the new switch; replace any heat-damaged connectors
• Reassemble, restore power, and test fan operation

Color: Black.

This replacement grate cartridge secures and centers a cooktop burner grate so cookware sits level and burners perform as intended. Durable design restores stable support for pots and pans on compatible gas ranges. What it does:

• Replaces a worn or broken grate cartridge that lets the grate rock or sit unevenly
• Helps keep the burner grate properly aligned over the burner for even cooking
• Prevents cookware from wobbling or shifting during use
• Restores proper fit where the grate attaches to the cooktop surface

• One grate assembly (cartridge) as shown

• Turn off and disconnect power and gas supply; allow the range to cool completely before servicing
• Remove the burner grate and lift out the old cartridge; align tabs and snap or seat the new cartridge into place
• Handle enamel-coated grates carefully to avoid chipping; use soft padding if needed during installation

This element receptacle is the electrical connector that secures a stove or cooktop surface heating element and provides a safe, stable connection for power transfer. It helps restore reliable heating and reduce intermittent contact. What it does:

• Provides the terminal connection point for a surface heating element so the burner receives power
• Maintains a tight electrical fit to prevent arcing, sparking, or intermittent heating
• Supports normal removal and replacement of a cooktop element for service
• Common symptom: one surface burner won't heat or heats intermittently
• Common symptom: visible burning or discoloration at the element terminal

• Disconnect power to the appliance at the breaker or unplug before servicing
• Inspect the element terminal and wiring for damage; replace any burned or frayed wires
• Use proper tools to remove and install the receptacle; ensure terminals are fully seated
