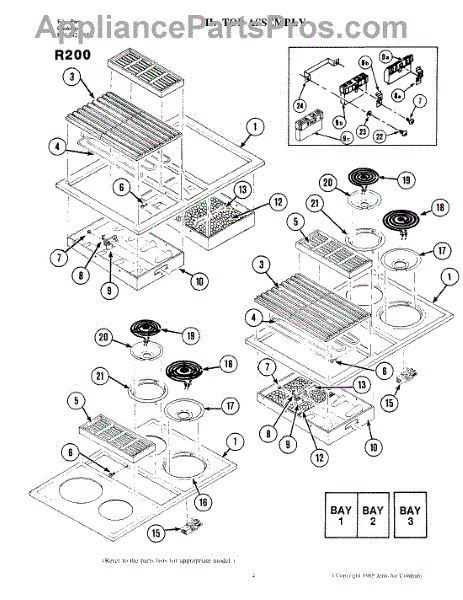

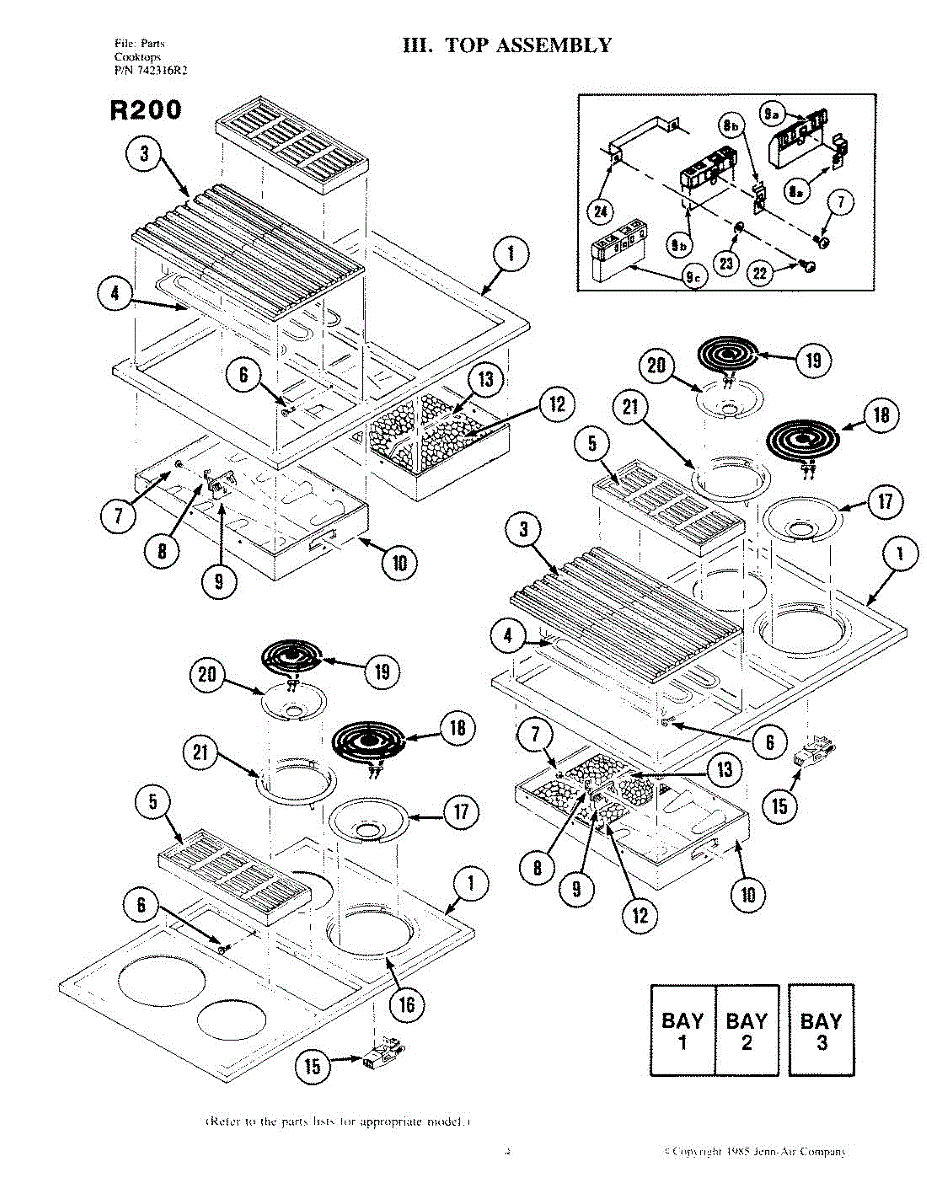

Parts for Jenn-Air R200: 04 - Top Assembly Parts

The Terminal Block Kit is an OEM part for Whirlpool cooktops. It is a crucial component that provides a secure connection point for electrical wires and cables within the appliance's control system.

Symptoms of a faulty terminal block kit:

• Intermittent power supply or electrical issues
• Burnt or melted wires or connectors
• Appliance not receiving or responding to electrical signals correctly
• Visible damage or corrosion on the terminal block

Causes of a bad terminal block kit include excessive heat exposure, loose connections, moisture or water damage, or simply wear and tear over time.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

By Jenn Air/Maytag. 8 inch adapter ring. Fits some Jenn Air models. For the 6 inch order WPY707454.

The 8 inch Drip Pan is an OEM replacement part for Whirlpool ranges and cooktops. It is designed to catch spills, boilovers, and other messes that may occur during cooking, helping to keep the cooktop surface clean and preventing potential damage.

Symptoms of a need to replace the drip pan include:

• Excessive wear, warping, or damage to the pan itself
• Difficulty fitting or securing the pan properly under the burners
• Staining or discoloration that cannot be removed through regular cleaning

Causes of a faulty drip pan can include exposure to excessive heat, spills of acidic or abrasive substances, general wear and tear over time, or improper cleaning methods.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore ranges and cooktops.

The Surface Element is an OEM part for Whirlpool ranges and cooktops. This component is essential for providing the heat necessary for cooking on the stove, converting electrical energy into the heat needed to cook food.

Over time, surface elements can become faulty due to wear and tear, overheating, or electrical issues. Replacing a bad surface element ensures the appliance continues to perform effectively and safely.

Symptoms of a bad surface element include:

• The element not heating up or only heating intermittently
• Visible damage such as burns or breaks in the element
• Uneven cooking due to inconsistent heat distribution
• The element not responding to temperature adjustments

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: For the 6-inch element, order WPY04100165.

The Surface Element is an OEM part for Whirlpool ranges. This part provides heat to the cooking surface, allowing for the preparation of food.

Common causes of a bad surface element include electrical faults, physical damage from heavy cookware, or degradation from constant heating and cooling cycles.

Symptoms of a bad surface element include:

• Inconsistent or uneven heating
• The element not heating up at all
• Visible damage such as burns or breaks in the coil
• Sparking or unusual noises when the element is turned on

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The 6 inch Drip Pan is an OEM replacement part for Whirlpool ranges and ovens. It is designed to catch spills, drips, and overflows that may occur during cooking, helping to keep the oven cavity clean and preventing potential messes.

Symptoms of a need to replace the drip pan:

• Excessive buildup of baked-on or burnt food residue
• Warping or deformation of the pan due to high temperatures
• Rust or corrosion compromising the integrity of the pan

Causes of a faulty or damaged drip pan can include general wear and tear from regular use, exposure to acidic or corrosive spills, or physical impact or mishandling during cleaning or maintenance.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore oven models.

By Jenn Air/Maytag. 6 inch adapter ring. Fits some Jenn Air models. For the 8 inch order WPY707453.
