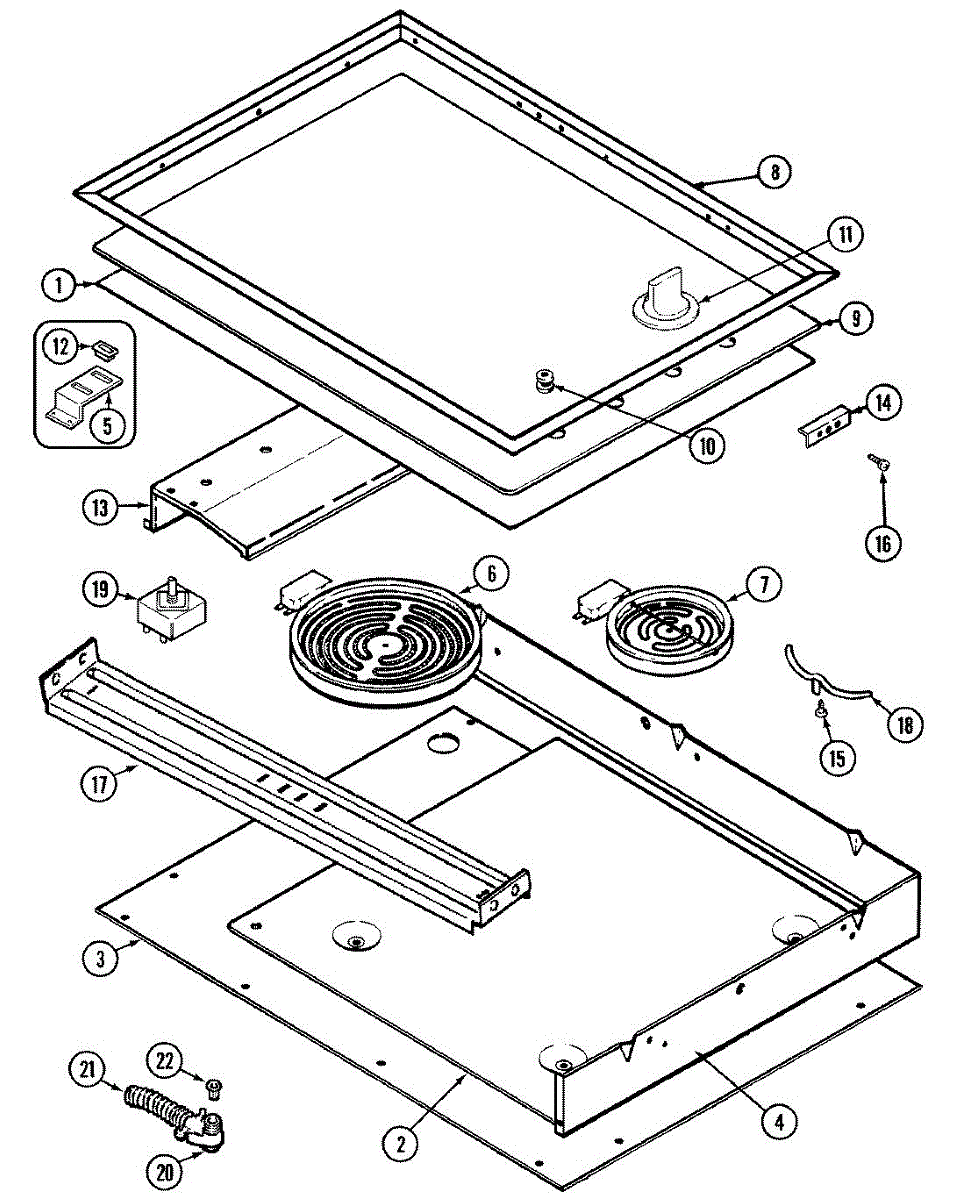

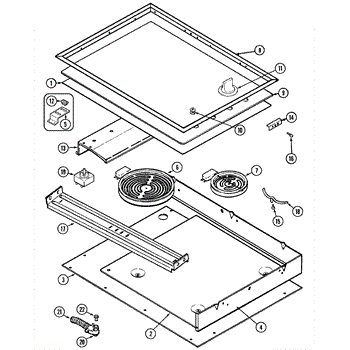

Parts for Magic Chef 8670PB: 01 - Top Assembly Parts

This part has been discontinued by the manufacturer and is no longer available.

Restore reliable heat to your electric range or cooktop with this surface heating element. Replacing a failed top-burner element brings back consistent, even heating so pots and pans heat up properly at your chosen setting.

• Supplies electric heat to a cooktop burner zone when turned on
• Common fix for a burner that won't heat or only partially glows/heats
• Helps address uneven or slow heating on the affected element
• Replace if the element shows visible breaks, blisters, or has shorted

• Disconnect power at the breaker and allow the cooktop to cool completely before service
• Access varies by model; support and protect glass tops when lifting/removing
• Photograph wiring; transfer any original brackets, insulators, or limiter/thermostat if present
• Ensure clean, tight terminal connections; fully reassemble before restoring power

This surface heating element powers one of your range's top burners, restoring steady, responsive heat for everyday cooking. Replace a failed element to bring your cooktop back to consistent performance when boiling, simmering, or sautéing.

• Provides heat to the selected surface burner when the control is turned on
• Works with the burner switch to reach and maintain set temperatures
• Common symptoms of failure: burner won't heat, heats unevenly or intermittently, or shows visible damage/hot spots
• Helps resolve long heat-up times and inconsistent cooking results

• Disconnect power at the breaker and allow the cooktop to cool completely before servicing.
• Access and mounting vary by model; note wire locations and transfer any brackets/clips from the original element.
• Inspect terminals and connectors; replace any heat-damaged wiring or receptacles before reconnecting.
• Handle by the frame and avoid stressing the element; ensure secure electrical connections before testing.

Color: black. It measures about 2 inches in diameter.

This is a replacement 6-32 x 3/8" screw used to secure panels and components on compatible Whirlpool appliances. It restores proper fastening for loose or missing fasteners so parts stay aligned and stable. What it does:

• Secures trim, panels, brackets or small components to the appliance frame
• Stops rattling or movement caused by a missing or stripped screw
• Helps maintain proper alignment of control panels and access panels
• Provides the correct thread engagement for safe, stable fastening

• One replacement screw (6-32 x 3/8")

• Disconnect power before accessing internal components
• Use the correct screwdriver or nut driver to avoid stripping the head
• Thread carefully and do not overtighten to prevent damage to threads or components
• Keep removed hardware organized and compare sizes before installation

This factory fastener secures panels, trim, or brackets on your appliance. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned for proper operation and a clean, finished appearance.

• Fastens exterior panels, trim pieces, or internal brackets to the appliance chassis
• Replaces lost, damaged, or stripped hardware
• Helps prevent vibration, rattling, and gaps between parts
• Common signs you need this screw: missing hardware, loose or misaligned panel/trim, stripped head or threads

• Disconnect power before servicing; also shut off the gas supply
• Use the correct driver; start the screw by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping or cracking adjacent parts
• Repair or replace the mounting point before installing

Razor blade scraper.

Size: 10 fl. oz. Used on glass, ceramic and porcelain cooktops.
