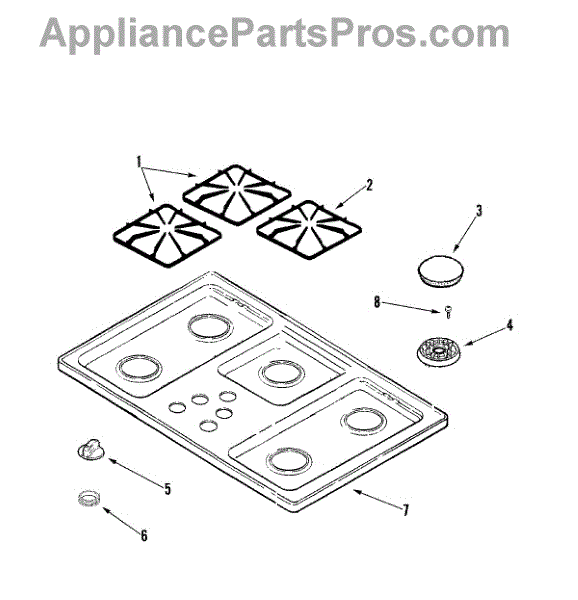

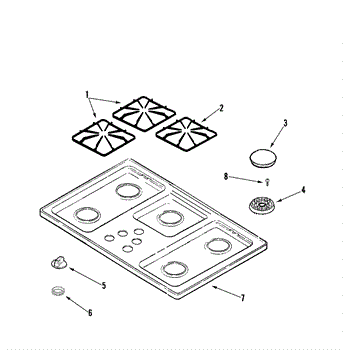

Parts for Magic Chef CGC2536ADC: 03 - Top Assembly Parts

Replace a damaged or unsteady cooking surface with this burner grate. It supports pots and pans at the proper height above the burner, restoring stable, level support on your gas cooktop or range when the original grate is worn or broken.

• Provides sturdy support for cookware over the surface burner
• Maintains the correct clearance between burner and pan for consistent heating
• Replaces grates that are cracked, bent/warped, or have worn feet causing wobble
• Helps prevent rocking or instability of pots and pans during cooking

• Allow the cooktop/range and grate to cool completely before handling
• Lift off the old grate; clean the surface; align and place the new grate over the correct burner
• Ensure the grate sits flat and stable—do not force into place
• Refer to your owner's manual for care and cleaning recommendations

This burner grate replaces a damaged or worn cooktop support to restore stable cookware placement and even heating on your range. It provides a durable cooking surface designed for safe, reliable use. What it does:

• Supports pots and pans over the burner for safe, balanced cooking
• Restores proper burner-to-pan contact to help improve heat transfer
• Replaces cracked, warped, or chipped grates that cause instability
• Compatible with standard sealed gas burner designs

• One replacement burner grate

• Install by lifting out the old grate and seating the new grate into the cooktop openings
• Ensure the cooktop is cool and gas supply is turned off before handling
• Clean surrounding cooktop surfaces of debris before installing to ensure a flush fit

Color: Black

The Burner Head is an OEM part for Whirlpool ranges. It is responsible for distributing gas to create an even flame for cooking on the stovetop. This burner head ensures efficient gas flow and optimal flame control, which are essential for consistent cooking performance.

Causes of a bad burner head can include clogging from food debris or grease, corrosion due to prolonged exposure to heat and moisture, or physical damage from impact. Such issues can obstruct gas flow and result in uneven heating or poor flame quality.

Symptoms of a bad burner head include:

• Uneven flame or poor flame control
• Difficulty igniting the burner
• Low or inconsistent heat output
• Unusual noises such as hissing or popping during operation

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

A replacement burner knob for electric ranges that restores reliable control of a surface element. Simple, direct fit for the matching original control shaft and restores user control of heat settings. What it does

• Replaces a worn, melted, cracked, or missing burner control knob to allow safe adjustment of the surface element.
• Engages the stove/range control shaft so settings click and hold as intended.
• Helps prevent slipping or inaccurate temperature selection caused by a damaged knob.
• Matches the original shape and fit for intuitive operation.

• One replacement burner knob (single).

• Install is typically plug-and-play: pull off the old knob and push the new knob onto the control shaft; no tools usually required.
• Disconnect power to the appliance before working near controls if removing any control panel components.
• If the knob does not seat properly, stop and verify shaft style to avoid damage.

This grommet fits into a chassis or cooktop panel opening to cushion and seal where a shaft or component passes through. Replacing a worn grommet helps keep spills and debris out and restores a snug, quiet fit.

• Seals the opening to help prevent moisture and debris from entering the appliance chassis
• Centers and cushions the passing component to reduce vibration and rattling
• Helps maintain proper alignment and smooth operation of the control or related assembly
• Typical signs of wear: cracked or missing grommet, visible gap around the opening, loose/wobbly fit, evidence of spill intrusion

• Disconnect electrical power and, if applicable, shut off gas supply before servicing
• Remove knobs/bezels or access panels as needed to reach the grommet
• Lift out the old grommet and clean the opening of residue
• Press the new grommet fully into place without pinching; reassemble and test operation

This orifice holder secures the gas orifice for a 17K burner, ensuring consistent fuel delivery for reliable burner operation. It replaces worn or damaged holders to restore proper gas flow and stable flames. What it does:

• Holds the burner orifice in the correct position for consistent gas flow to the burner
• Helps maintain an even, steady flame and predictable heat output
• Can address symptoms like weak or uneven flames or burners that fail to light reliably
• Works with the corresponding burner assembly to prevent orifice movement or leakage

• One orifice holder (17K) as shown

• Turn off gas supply and disconnect power before servicing the range
• Handle gas fittings carefully; confirm proper seating of the orifice in the holder
• If you smell gas, stop immediately
• Use manufacturer diagrams to verify fit
