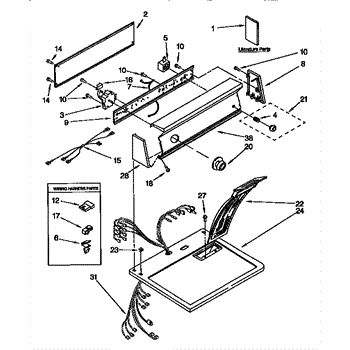

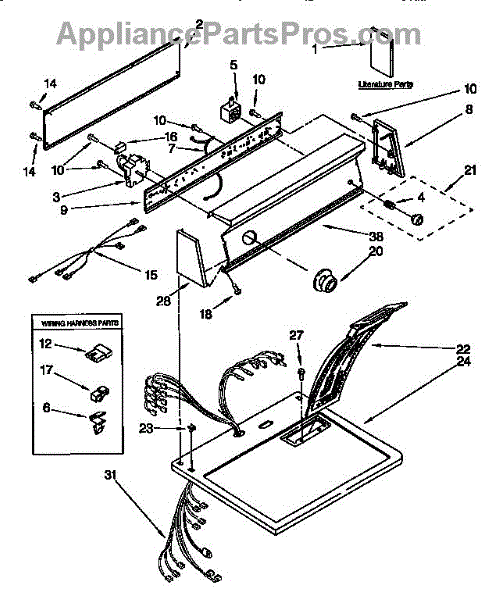

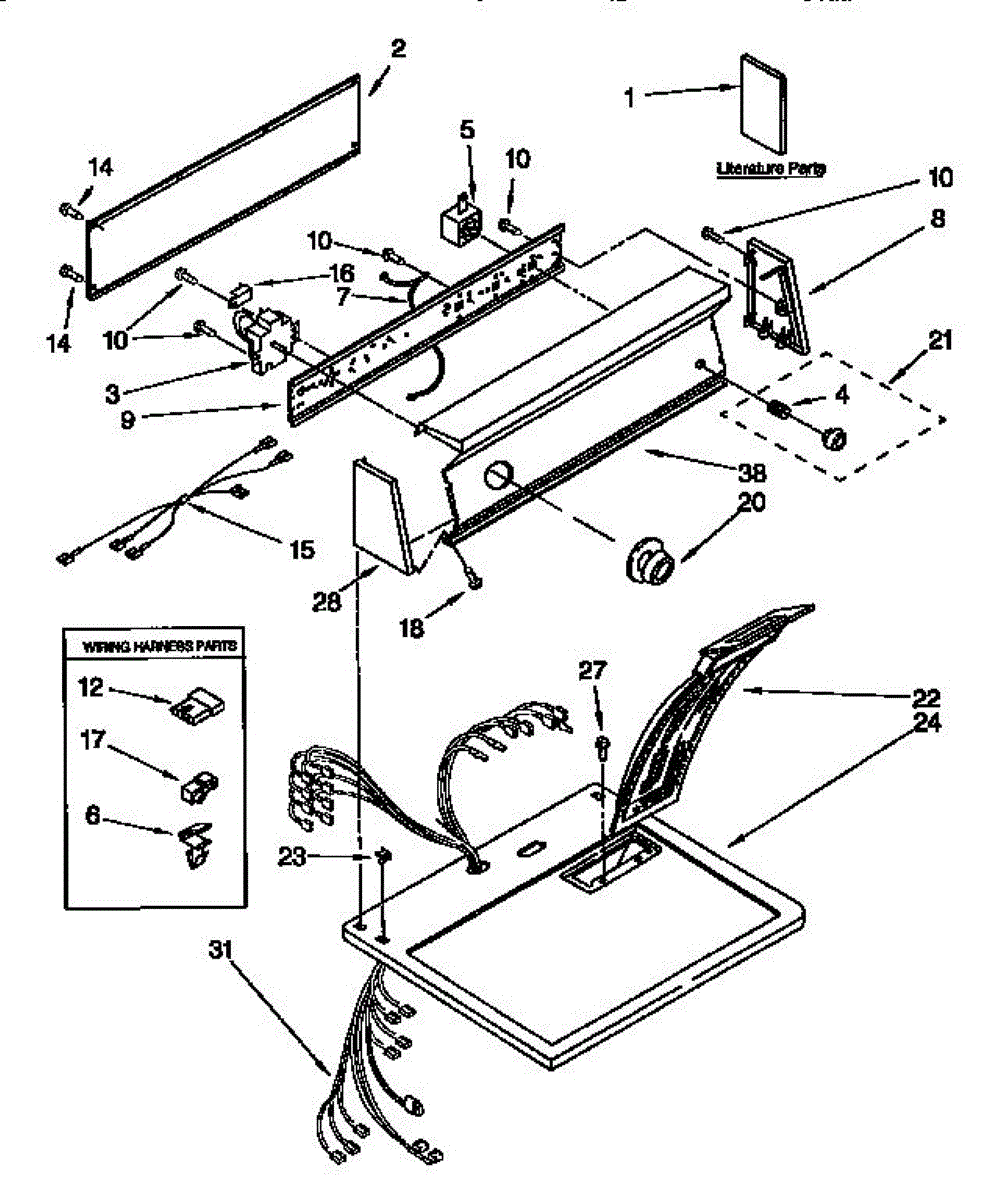

Parts for Kenmore 110.97573010 (11097573010, 110 97573010): Top And Console Parts

The Clip is an OEM part for Whirlpool dryers. This part secures the control knob to the dryer’s control panel, ensuring it remains firmly attached and functions correctly. The clip helps provide stability and precise control over the dryer settings.

Causes of a bad clip can include regular wear and tear, accidental damage during use, or stress from frequent adjustments.

Symptoms of a bad clip include:

• Knob becoming loose or falling off
• Difficulty turning the knob to adjust settings
• Knob not staying securely in place
• Knob wobbling or feeling unstable

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Start Switch is an OEM replacement part for Whirlpool dryers. It is an electronic component responsible for initiating the heating elements and tumble cycles upon user command from the control panel.

Causes of a bad start switch involve general wear over extended use. Failure of the internal conducting surfaces interrupts circuit activation as well.

Symptoms of a bad start switch include:

• Heating elements or tumble cycles that will not engage properly
• Dryer fails to operate or stops mid-cycle unexpectedly
• Control panel appears non-responsive to selections
• Error codes related to ignition or power delivery faults

Note: This dryer push-to-start switch has 2 terminals.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore electric dryer models.

This harness clip secures appliance wiring to the cabinet or components to prevent rubbing, pinching, and interference with moving parts. It keeps wiring routed neatly for reliable operation and reduced risk of abrasion-related failures. What it does:

• Holds wire harnesses in place to prevent chafing against sharp edges or moving parts
• Reduces vibration-related noise and intermittent connections caused by loose wiring
• Helps maintain proper wire routing around panels, motors, and heaters
• Supports safe operation by keeping wires away from heat sources and pinch points

• Disconnect power to the appliance before servicing to avoid electric shock
• Remove panels or access covers as needed to reach the original clip location
• Install by snapping or seating the clip into the original mounting point and securing the harness in the retainer; replace any broken mounts
• Inspect surrounding wiring and replace damaged wires or insulation before completing repair

This is a replacement machine screw sized 8-18 x 3/8 that secures panels and components on compatible appliances. It restores proper fastening where a worn, stripped, or missing screw causes loose parts or rattling. What it does

• Fastens control panels, trim pieces, or brackets to the appliance chassis
• Replaces stripped, corroded, or missing screws that cause loose panels or vibrating noise
• Provides correct thread engagement for a secure hold in tapped holes
• Small hardware solution often used during door, console, or interior repairs

• One 8-18 x 3/8 machine screw (quantity: 1)

• Use the correct screw size and thread; do not force a different-size fastener into tapped holes
• Hand-start the screw to avoid cross-threading, then tighten with the appropriate screwdriver
• Disconnect power before accessing internal components or panels on electrical appliances
• If metal threads are damaged, repair with a helicoil or replace the damaged component rather than over-torquing

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This adjustable buzzer kit replaces a failed or noisy mini buzzer to restore audible alerts for cycles, timers and notifications. Compact design lets the appliance signal you reliably when cycles finish or need attention. What it does:

• Produces audible tones for cycle end, timers and other appliance notifications
• Replaces buzzers that are silent, intermittent, weak or emitting erratic beeps
• Helps you hear and identify completed cycles and timed alerts
• Small, mountable unit that fits behind the control panel and connects to the control board

• One adjustable buzzer kit

• Disconnect power before servicing to avoid shock risk
• Access may require removing the control panel; keep fasteners organized for reassembly
• Disconnect the buzzer wiring harness or connector before removing the old unit; connect the new buzzer the same way
• Test buzzer function with power restored before fully reassembling

This console screw secures the control console to the appliance cabinet or top, keeping the panel tight and aligned. Replace a missing or damaged screw to stop panel wobble and rattling and maintain a snug, stable fit. What it does:

• Fastens the control console/control panel to the cabinet or top panel
• Helps maintain alignment and reduces vibration and rattling
• Replaces a missing, stripped, or rusty original screw
• Common fix for a loose or lifting console/panel

• 1 screw

• Disconnect power before service; if applicable, shut off gas/water
• Support the console to avoid straining wiring harnesses
• Start threads by hand to prevent cross-threading; tighten until snug—do not overtighten
• Use the correct driver style for your model's hardware

This lint screen captures lint during each cycle to keep airflow steady and drying consistent. Replacing a torn or warped screen helps reduce long dry times, overheating shut-offs, and lint buildup in the vent path.

What it does

• Traps lint and debris before air exits the drum
• Maintains proper airflow for efficient, even drying
• Helps keep lint out of the blower and exhaust duct
• Replaces screens that are torn, warped, or won’t seat flush

What’s included
One lint screen.

Install notes

• Power off the dryer before reaching into the lint housing.
• Vacuum and wipe the lint channel clean before installing the new screen.
• Seat the screen fully; don’t operate the dryer without it.
• Clean the screen before every load; wash with mild soap if residue builds up.

Usage tip
If you use dryer sheets or liquid softener, rinse the screen periodically to remove film that can restrict airflow.

This genuine part is an OEM replacement part is also compatible with Amana and KitchenAid models as well.

This lint screen captures lint during each cycle to keep airflow steady and drying consistent. Replacing a torn or warped screen helps reduce long dry times, overheating shut-offs, and lint buildup in the vent path.

What it does

• Traps lint and debris before air exits the drum
• Maintains proper airflow for efficient, even drying
• Helps keep lint out of the blower and exhaust duct
• Replaces screens that are torn, warped, or won’t seat flush

What’s included
One lint screen.

Install notes

• Power off the dryer before reaching into the lint housing.
• Vacuum and wipe the lint channel clean before installing the new screen.
• Seat the screen fully; don’t operate the dryer without it.
• Clean the screen before every load; wash with mild soap if residue builds up.

Usage tip
If you use dryer sheets or liquid softener, rinse the screen periodically to remove film that can restrict airflow.

This genuine part is an OEM replacement part is also compatible with Amana and KitchenAid models as well.

Push-in.

This factory fastener is a #8-18 x 5/8-inch Type AB screw designed for appliance assembly. It secures panels and components to restore a tight, rattle-free fit and dependable alignment. What it does:

• Thread-forming Type AB design engages thin metal or plastic components
• Secures panels, brackets, trim, or covers to reduce looseness and vibration
• Replaces missing, stripped, or corroded fasteners
• Helps maintain alignment for proper operation and reduced noise

• One screw

• Disconnect power before servicing; shut off water supply if working near water lines
• Use the correct driver for the screw head; start by hand to avoid cross-threading
• Tighten until snug—do not overtighten to prevent stripping or cracking plastic
• Repair damaged holes or replace worn clips/inserts before installing the new screw

• Size: #8-18 x 5/8 in (length 0.625 in)
• Thread type: Type AB, thread-forming
