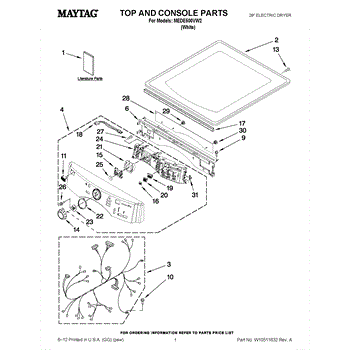

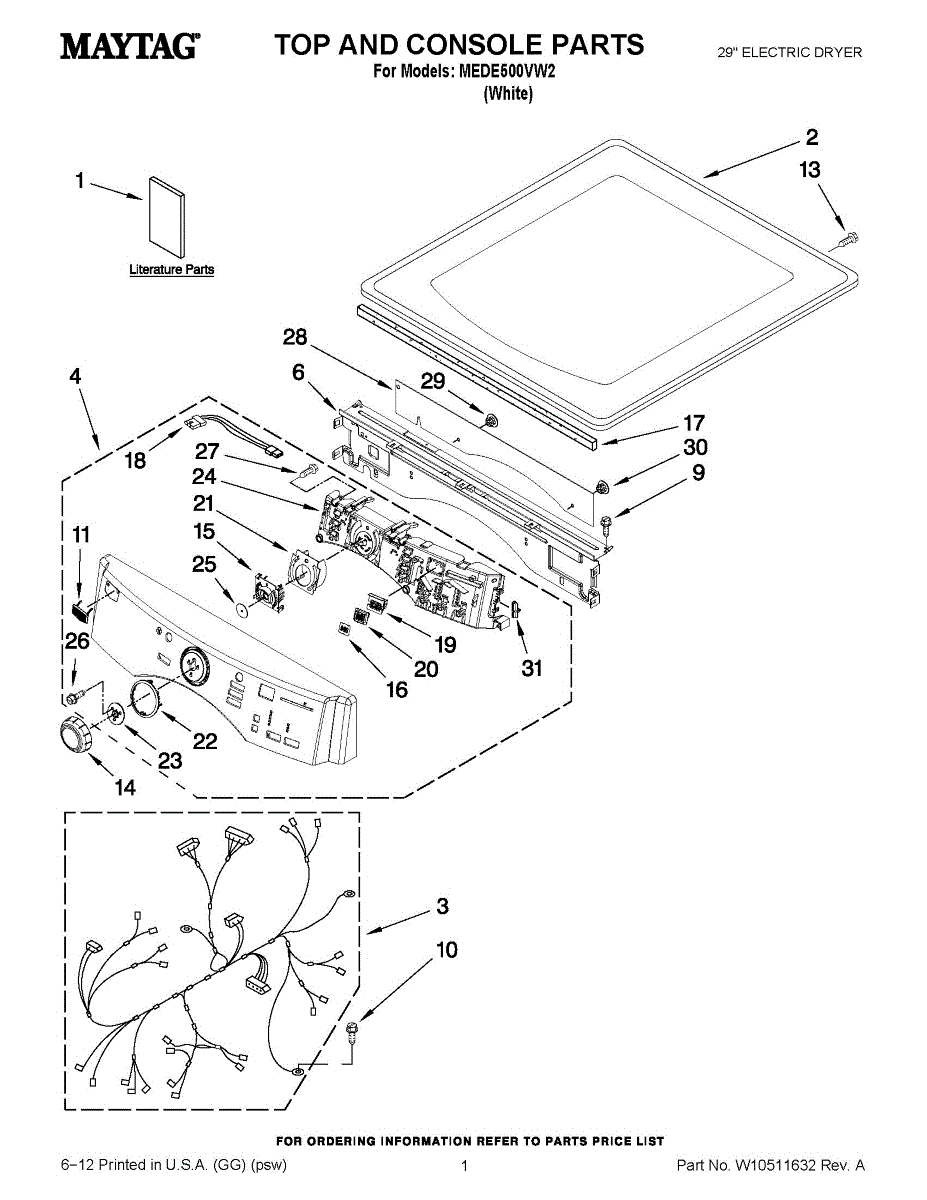

Parts for Maytag MEDE500VW2: 01 - Top And Console Parts

A factory-style wire harness assembly that routes power and signals between components to restore reliable electrical connections. Replaces damaged or frayed wiring to help fix intermittent operation, no-power issues, or control faults. What it does

• Delivers power and control signals between major components so circuits function as designed.
• Replaces broken, melted, or corroded wiring that can cause intermittent operation or component failure.
• Helps resolve symptoms such as no power to modules, controls that don't respond, or appliances that start and stop unexpectedly.
• Provides factory-style connectors for a direct-fit replacement when the original harness is defective.

• One complete wire harness assembly as shown.

• Disconnect power (unplug appliance or shut off breaker) before starting any repair.
• Route wires and secure connectors exactly as the original to avoid pinching or heat exposure.

This 8-18 x 5/8-inch screw secures appliance panels, brackets, and covers. Replacing a missing or stripped fastener restores a tight fit and helps prevent vibration or loosening where this exact size is specified.

• Fastens sheet-metal or plastic components where a #8-18 x 5/8 screw is called for
• Helps maintain alignment and reduce rattling or vibration
• Replaces stripped, corroded, or missing screws of the same size
• Common symptoms: loose panels, gaps/poor fit, rattling noises, or visible missing hardware

• Disconnect power and shut off gas/water (as applicable) before service
• Match thread and length to the original; replace screws one at a time to keep parts aligned
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• If the receiving threads are damaged, additional repair (clip, insert, or new nut) may be needed

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

A replacement control knob that restores safe, accurate control of your appliance's settings. Simple push-on design matches original fit and lets you adjust temperature or function with a secure grip. What it does:

• Replaces a worn, cracked, or missing control knob so you can reliably change settings
• Engages the control shaft splines to provide positive, slip-free rotation
• Restores correct tactile feel for precise adjustments
• Helps prevent accidental changes caused by damaged knobs

• One control knob

• Disconnect power to the appliance before servicing to avoid shock or injury
• Pull the old knob straight off the control shaft; install the new knob by aligning splines and pushing firmly until seated
• Do not force the knob if it resists—check spline orientation and fit first
• If the control shaft is damaged or the knob does not seat properly, replace the control.

This replacement screw secures appliance components and panels so they stay aligned and rattle-free during operation. Replace stripped, missing, or corroded hardware to restore a tight fit and dependable performance. What it does

• Fastens brackets, panels, and internal sub-assemblies in the appliance
• Helps maintain alignment to reduce vibration and rattling
• Replaces missing, rusted, or stripped screws that no longer hold
• Useful when a part won't mount securely or a screw backs out during use

• One screw

• Disconnect power; for gas appliances, also shut off the gas supply
• Compare to the original for length and thread style for the location
• Start threads by hand to avoid cross-threading; use the correct driver bit
• Do not overtighten; if the mounting hole or clip is worn, replace it
