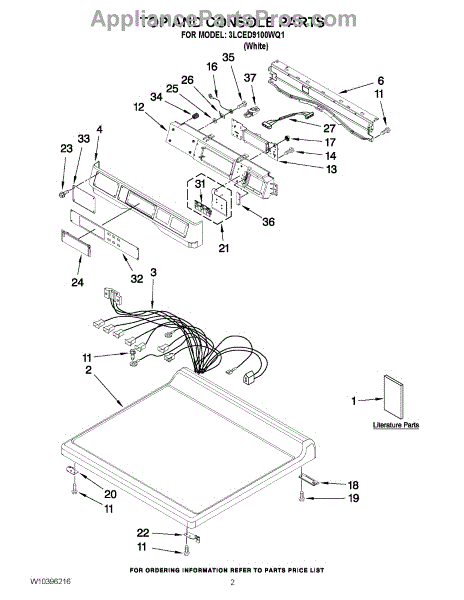

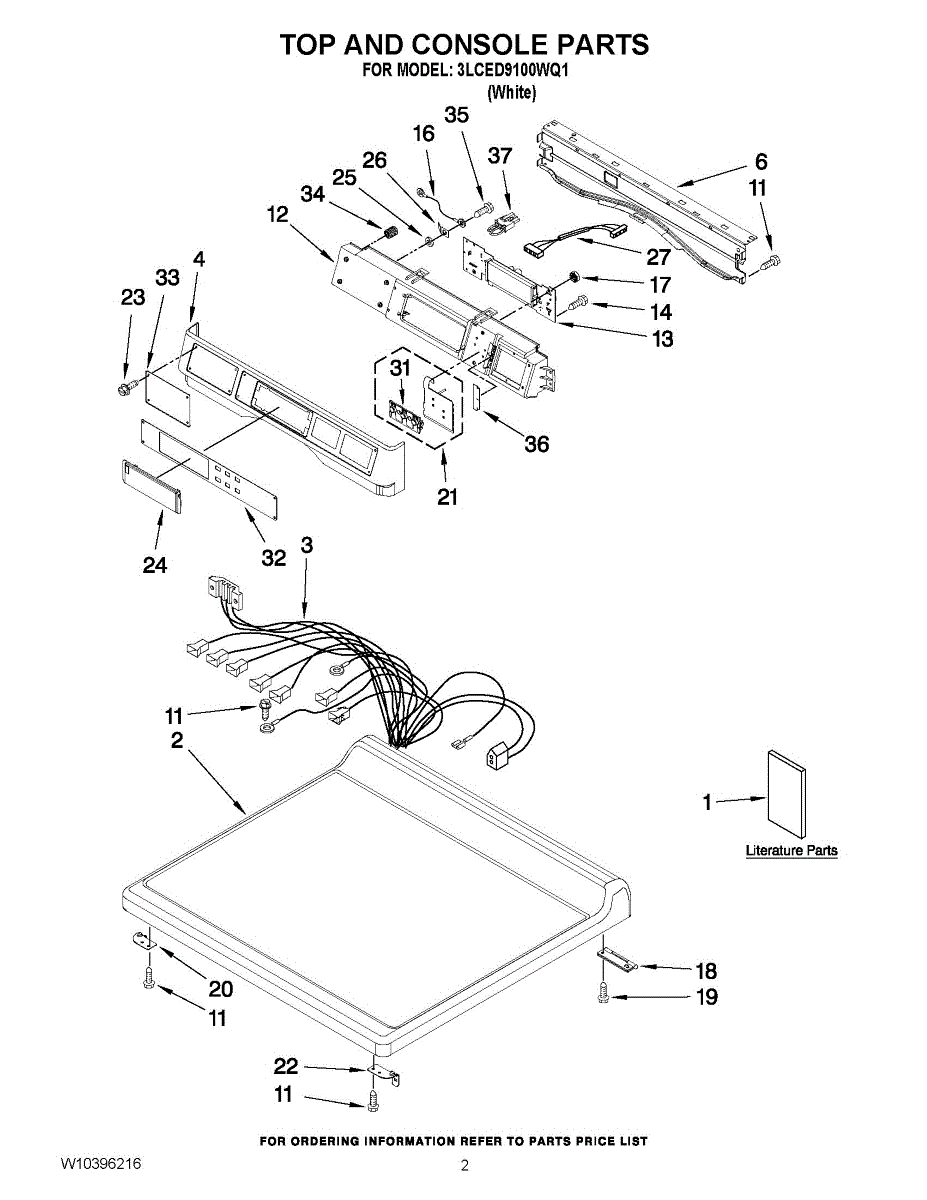

Parts for Whirlpool 3LCED9100WQ1: 01 - Top And Console Parts

Structural bracket that secures components inside your dryer. Replace if bracket is rusty, bent, broken, or missing to restore proper support and alignment.

This flat-head screw secures panels, brackets, or trim so they sit flush on your appliance. Replacing a worn or missing screw restores a tight fit and helps prevent vibration, rattling, or shifting components.

• Provides a countersunk, flush-mount fastener for panels, trim, brackets, or covers
• Helps maintain alignment and secure attachment during operation
• Replaces stripped, rusted, or missing hardware
• Symptoms can include loose panels or handles, rattling noises, or visible gaps/misalignment

• Disconnect power (and shut off gas, if applicable) before servicing
• Match screw length and thread to the original for proper fit
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Support the part being fastened to keep alignment while tightening

A hinge pin assembly that secures and aligns an appliance door to its cabinet, restoring proper fit and smooth opening and closing while reducing hinge noise. What it does:

• Secures the door pivot and maintains proper door alignment for a consistent seal.
• Can correct door sag, uneven gaps, or doors that stick, scrape, or fail to close fully.
• Can reduce grinding, clicking, or binding noises caused by worn or bent hinge pins.
• Replaces worn, broken, or bent hinge components that affect door motion.

• Disconnect power to the appliance before beginning any repair.
• Support the door (use a helper or suitable block) to prevent it from dropping when removing the hinge.
• Basic hand tools are typically required; follow the manufacturer's service instructions for safe removal and reinstallation.
• Inspect adjacent hinge mounts and fasteners during installation; replace damaged mounting hardware as needed.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This replacement switch restores dependable on/off control for the specific function it serves in your appliance. It helps resolve unresponsive, stuck-on, or intermittent operation of the associated light, fan, motor, or heating element.

• Opens and closes the circuit to start or stop the designated component in your model
• Failure can cause the function to not turn on, stay on, or work only intermittently
• Address issues like a loose/broken actuator or burnt internal contacts
• Direct-fit replacement designed to accept the original wiring and mounting

• Disconnect power at the breaker or unplug the appliance before servicing
• Note wire positions or take a photo; move wires to the new switch one at a time
• Ensure terminals are fully seated and the switch is securely mounted
• Restore power and test operation before final reassembly

This commercial-grade screw secures appliance panels and components to restore proper fit and reduce vibration. Use it to replace a missing, stripped, or damaged fastener and keep parts aligned for safe, stable operation. What it does:

• Fastens panels, brackets, or trim to the appliance chassis
• Prevents rattling or movement caused by loose or missing screws
• Restores secure attachment of control housings and access panels
• Helps maintain proper alignment of parts to avoid wear or interference

• Use the matching driver and do not overtighten to avoid stripping threads
• Replace only with the same screw type and size for secure fit
• Disconnect power and follow appliance safety precautions before servicing
• If threads are damaged, replace the mating nut or insert as needed

Fix dryer control issues with this wire harness. Solves electrical connection problems causing no start or control failures. Moderate DIY repair.

This is a push button used on the control panel of a commercial or residential dryer. It allows you to select dryer cycles or settings by pressing the button to engage the corresponding function. Replace this button if it is cracked, stuck, difficult to press, or no longer activates the desired dryer cycle.

Size: 8-32 x 1/4 inch.
